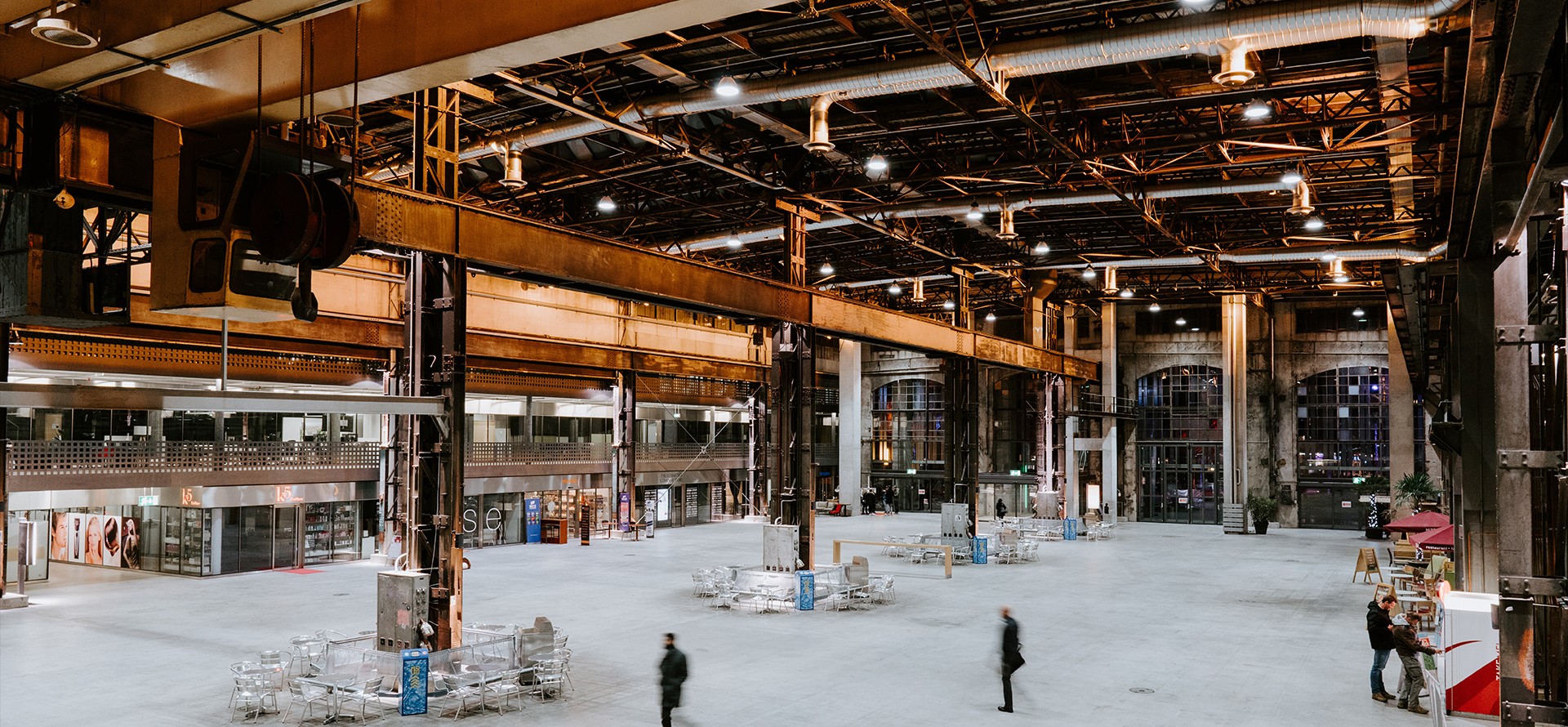

It can be widely used in Workshops, Warehouse, Exhibition halls, Supermarkets, Gyms, Indoor stadiums, Gas stations, Logistics centers, Underground parking lots, etc
High strength PC lens, Achieve IK08, Anti-UV, transmittance >94°
Multiple lighting distribution :60°/90°/110°
Top brand LED chip and driver, ensure the product quality and lifetime.
Die-casting technology by ADC12, Excellent thermal management,reduce the temperature difference and ensure the lumens depreciation
Ingress Protection Rating: IP66
Operation Temperature: -35°~+50°
Working Temperature: -35~+50
Storage Temperature: -35~+50
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
Model No. | ISL-UFO-A50W | ISL-UFO-A100W | ISL-UFO-A150W | ISL-UFO-A200W | |
Rated Power | 50W | 100W | 150W | 200W | |
Input Voltage | AC85~265V / AC100~277V | ||||
LED Chip | OSRAM 2835/5050 | ||||
LED Driver | ZH/Sosen/Meanwell HBG | ||||
Material | Alu+lens | ||||
CRI | Ra>80 | ||||
Power Factor | PF>0.95 | ||||
CCT | 2700-6500K | ||||
Light Efficacy | 150lm/W up to 170lm/W | ||||
IP Rating | IP65 | ||||
IK Rating | IK06 | ||||
Operation Temperature | ﹣25°C- +50°C | ||||
Beam Angle | 60/90/110° | ||||
Warranty | 5years | ||||
Lifespan | 50,000Hrs | ||||
Dimension | 290*179mm | 290*179mm | 340*185mm | 360*191mm | |
Packing | 400*400*155mm | 400*400*155mm | 420*420*165mm | 445*445*170mm | |
Weight | G.W: 2KG | G.W: 2.2KG | G.W: 3.5KG | G.W: 3.7KG | |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS |
