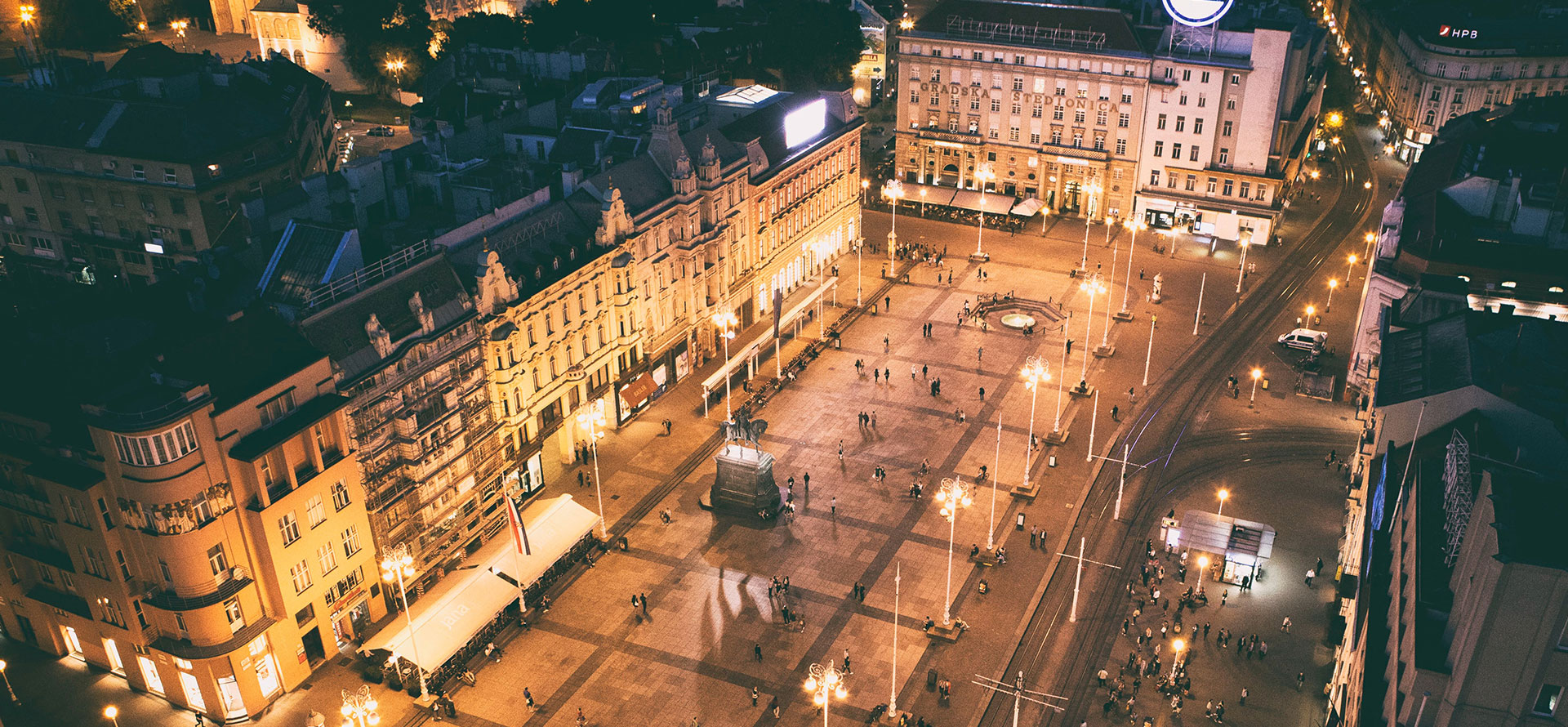

Tunnel, Square, Plaza, Garden, Lawn, Playground, tennis stadium, golf course, Bus station, airport, Parking lot, etc.
Die-casting Technology with ADC12, thermal conductivity 96W/M *25 centigrade, excellent thermal management and decrease the lumen depreciation.
Integrated copper breather valve, balance internal and external temperature & humidity.
Streamline design improves the industrial look and optimize the cost structure.
Optical polycarbonate lens provide high impact resistance, multiple lighting distributions:15/30/60/90/150*70/150*150/Asymmetrical 50 degree.
Ingress protection: IP66.
Light efficiency is up to 120LM/W.
304 stainless steel screw, galvanized bracket with corrosion resistance treatment that suitable for costal areas.

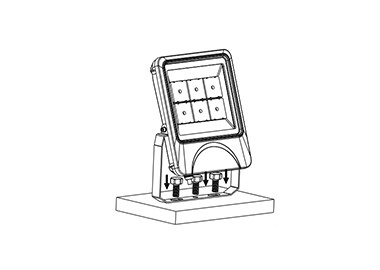

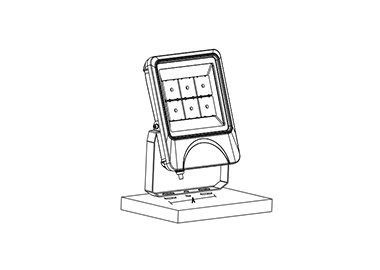

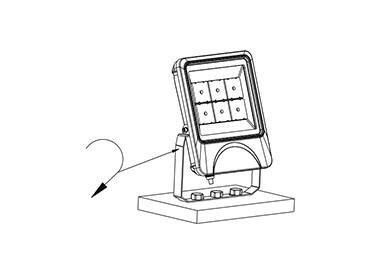

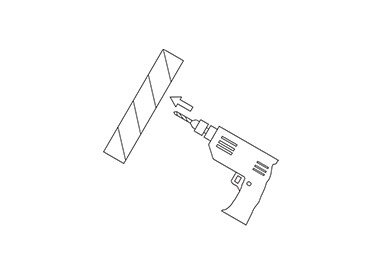

1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V
1. Don't install the lamp to non-stable place.

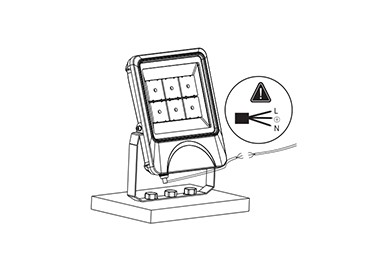

2. Installed by qualified eletrician.

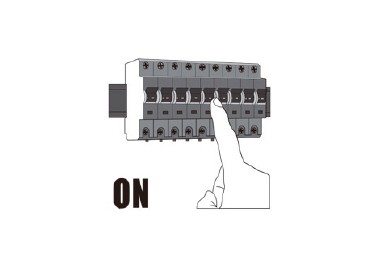

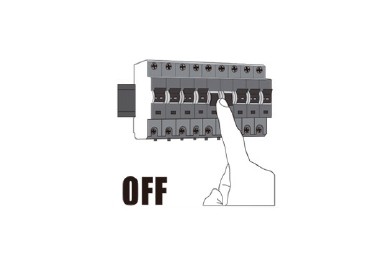

3. Switch off the switch box and contact certified electrician if the lamp works abnormally
|LED Chip||Epistar / Bridgelux|
|LED Driver||ZH / Sosen / Meanwell|
|Material||Die-casting ADC12 + Tempered glass|
|Operation Temperature||﹣35°C- +50°C|
|Beam Angle||15/30/60/90/150*70/150*150/Asymmetrical 50 °|
|Certificate||CCC, FCC, CE, ROHS, TUV, CB, SAA|
