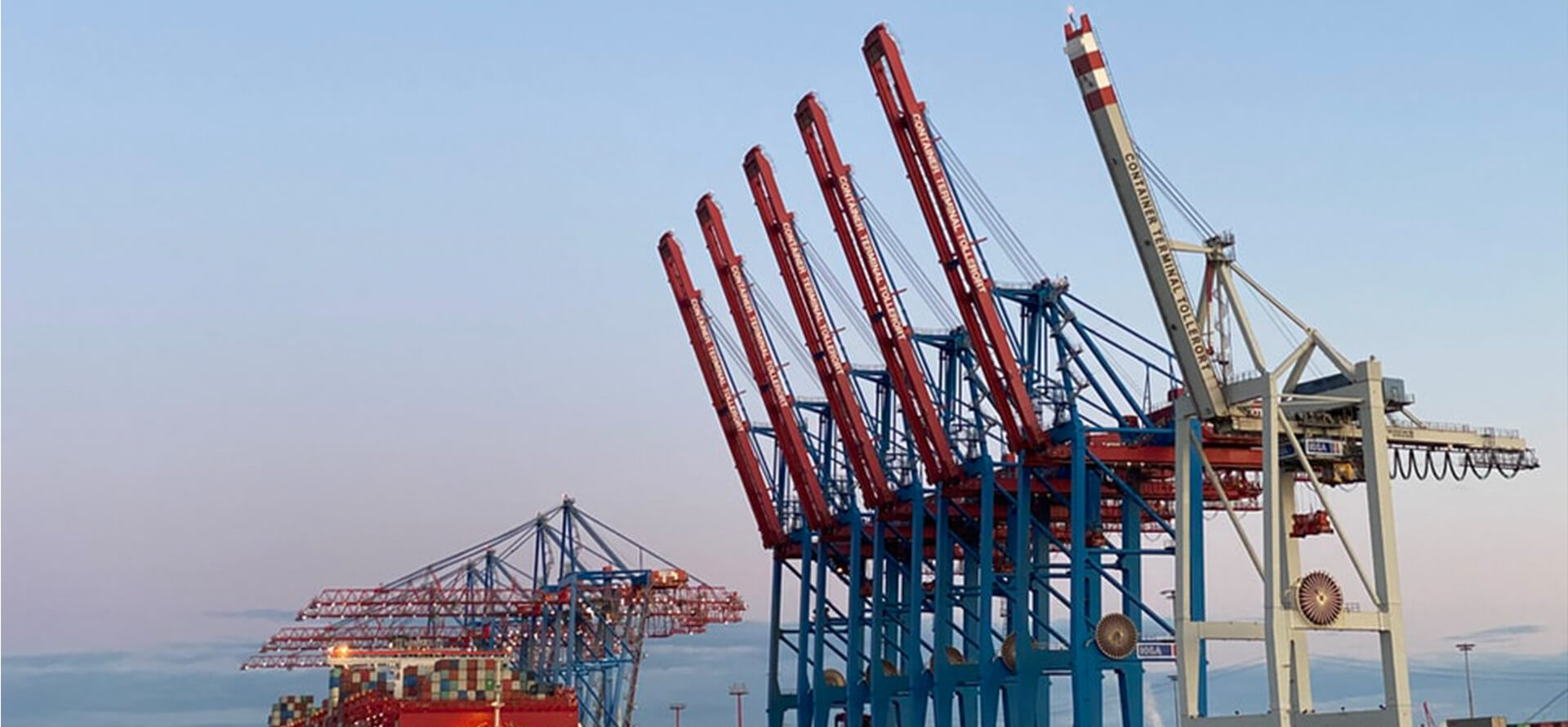

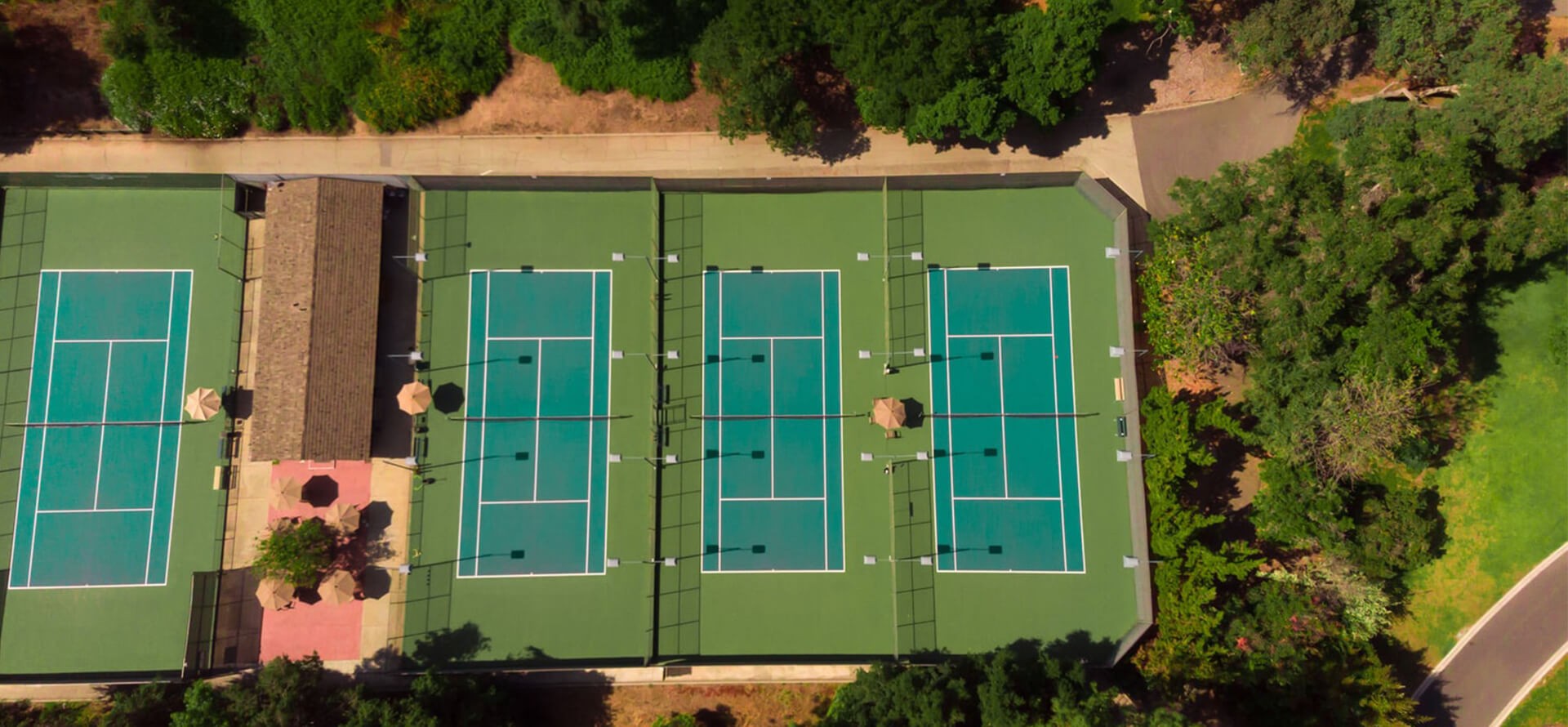

It can be widely used in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc

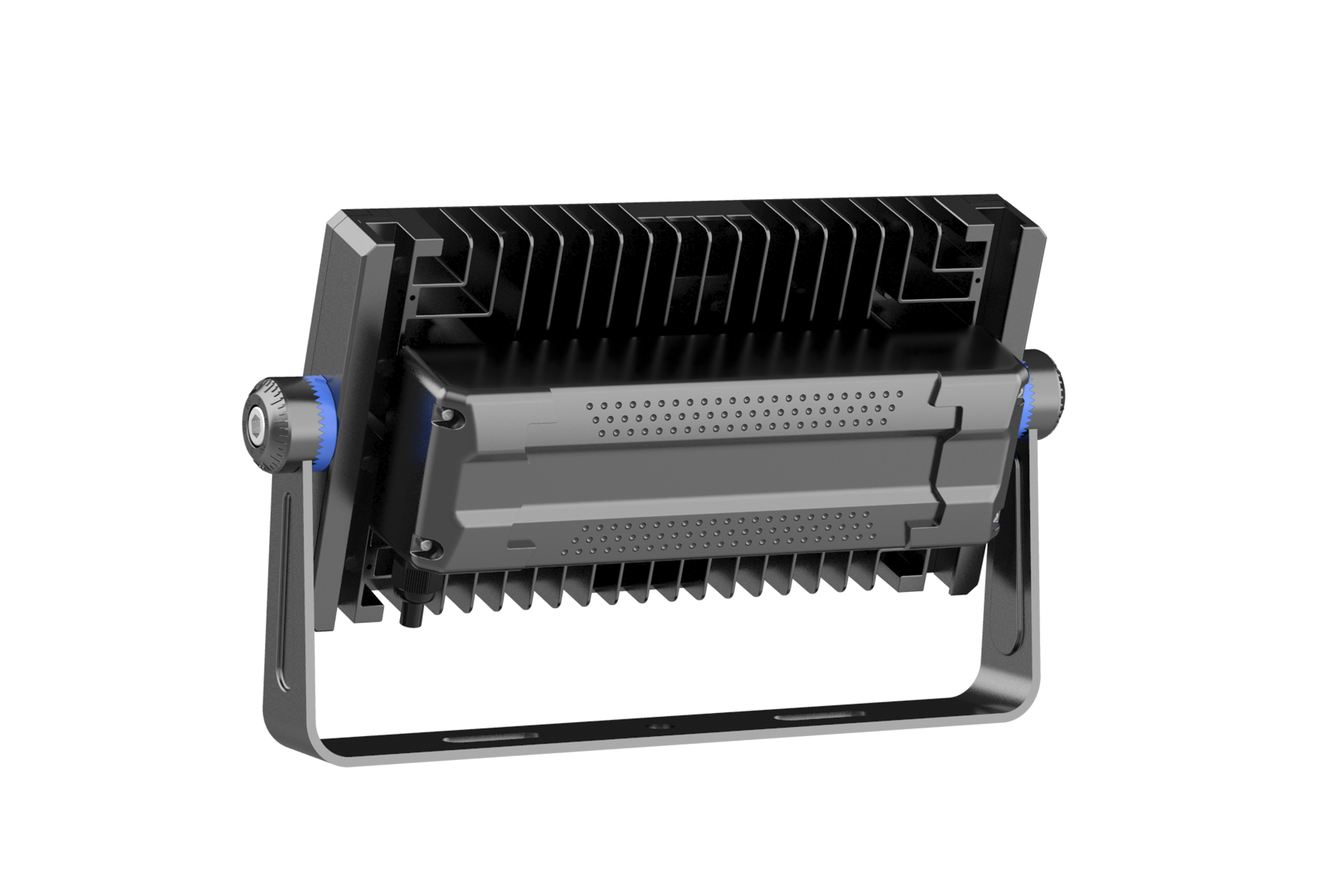

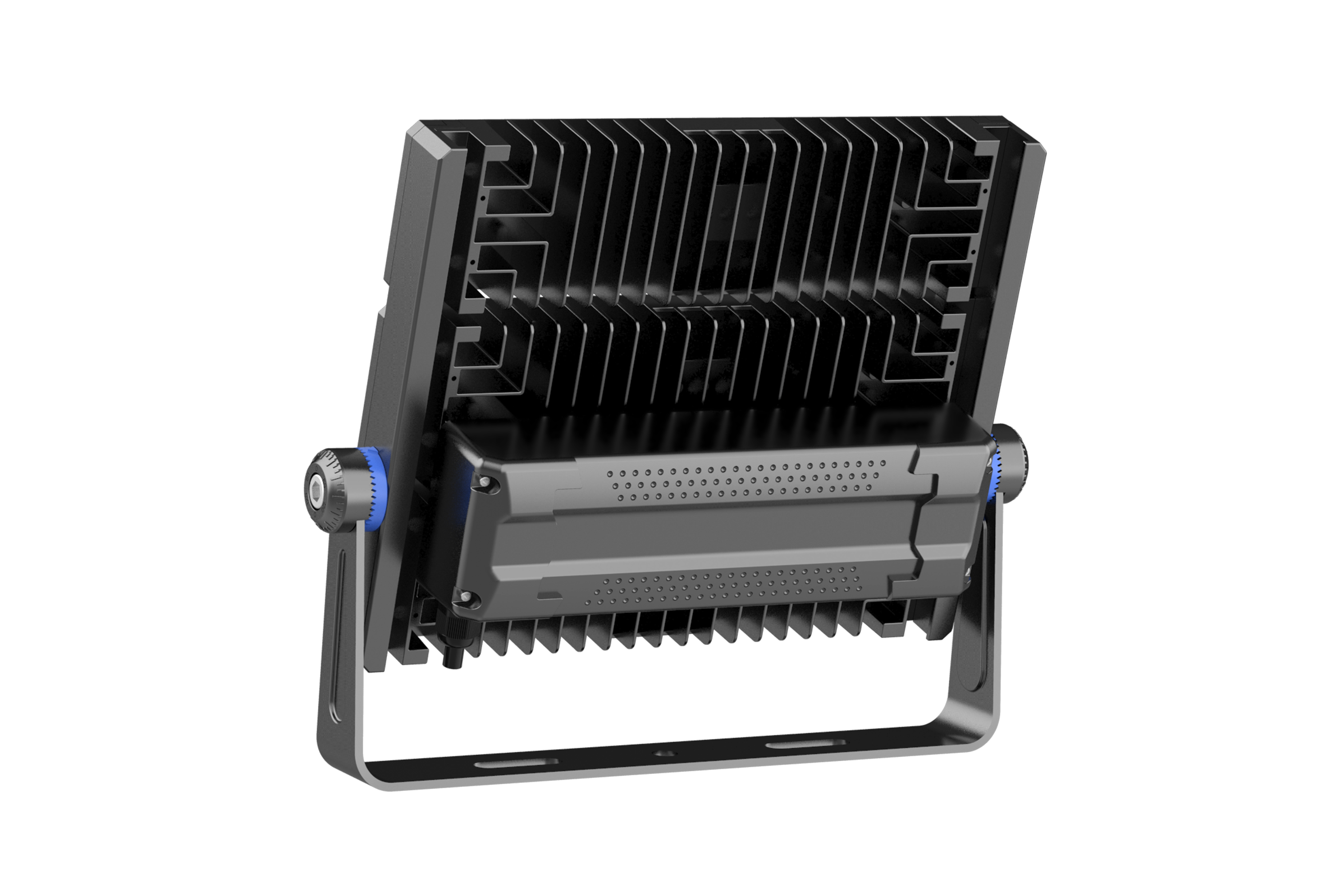

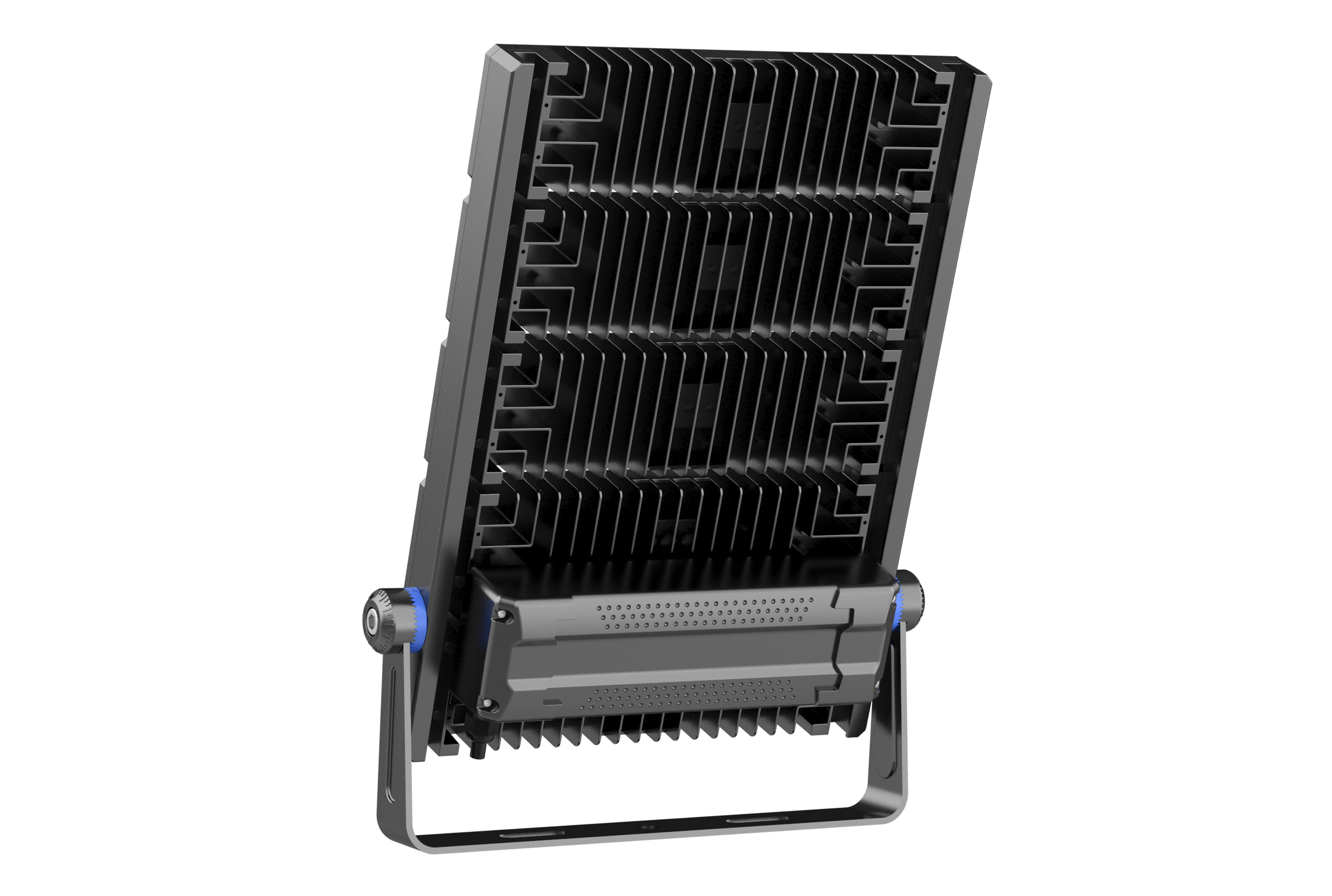

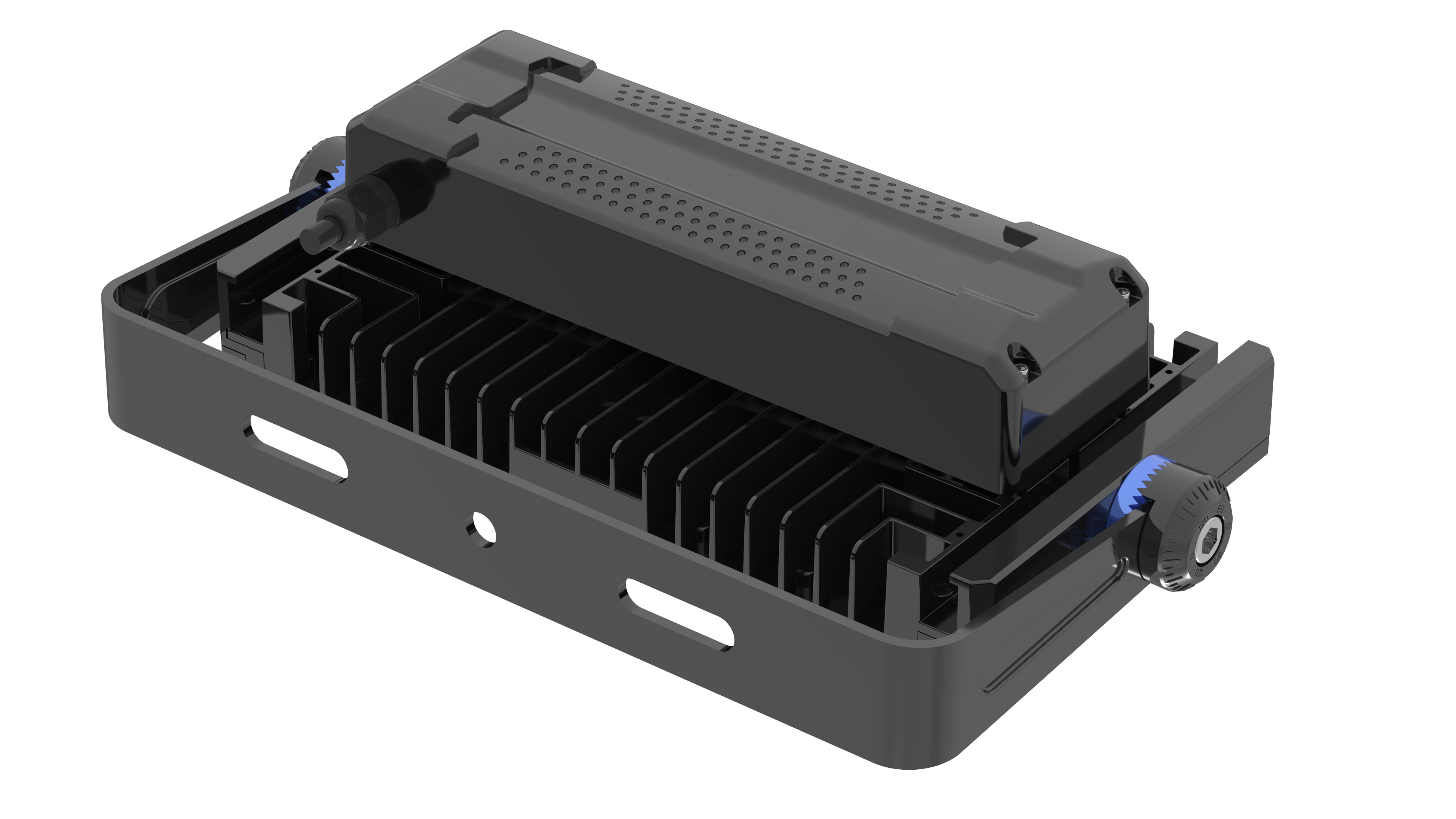

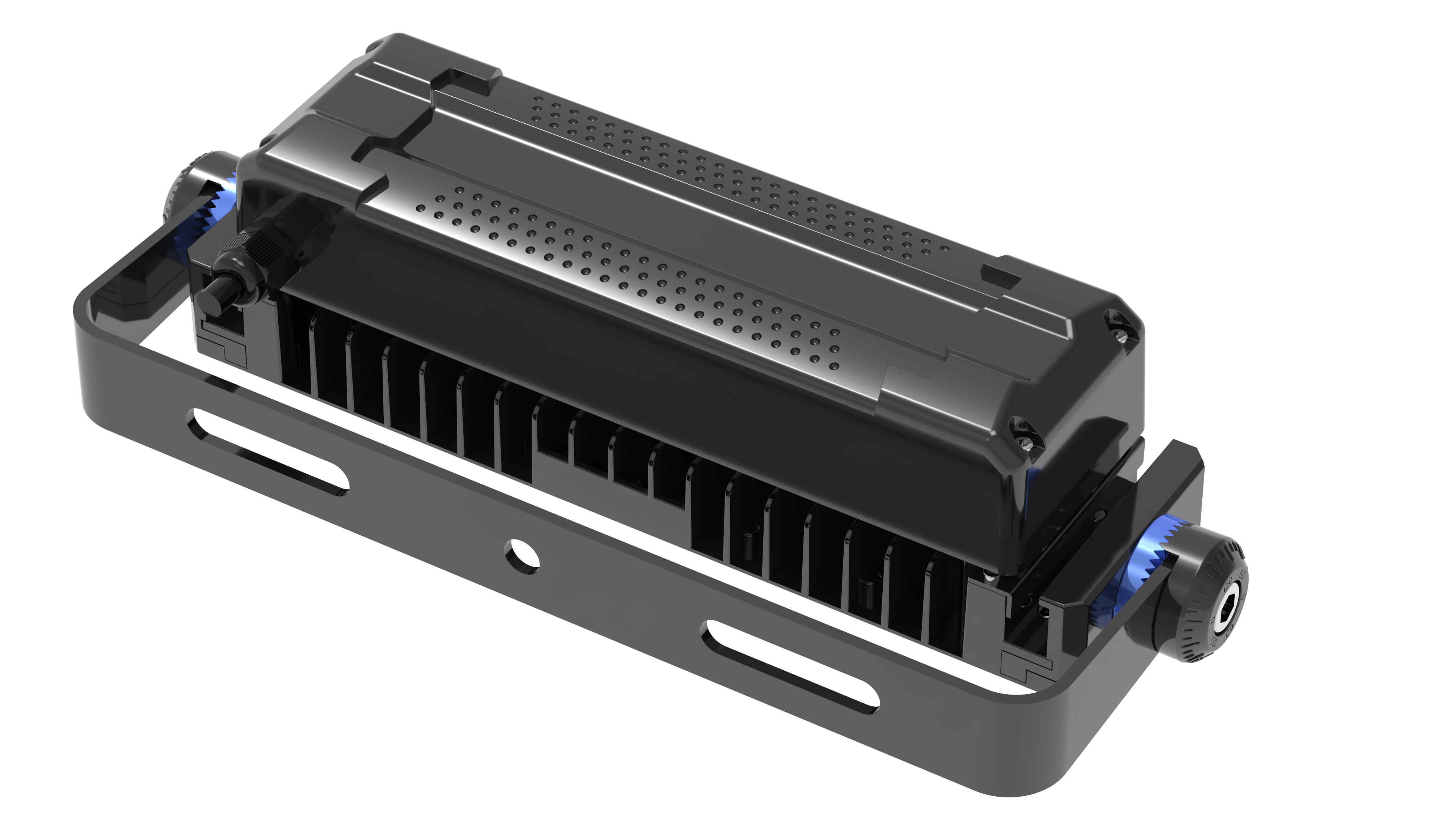

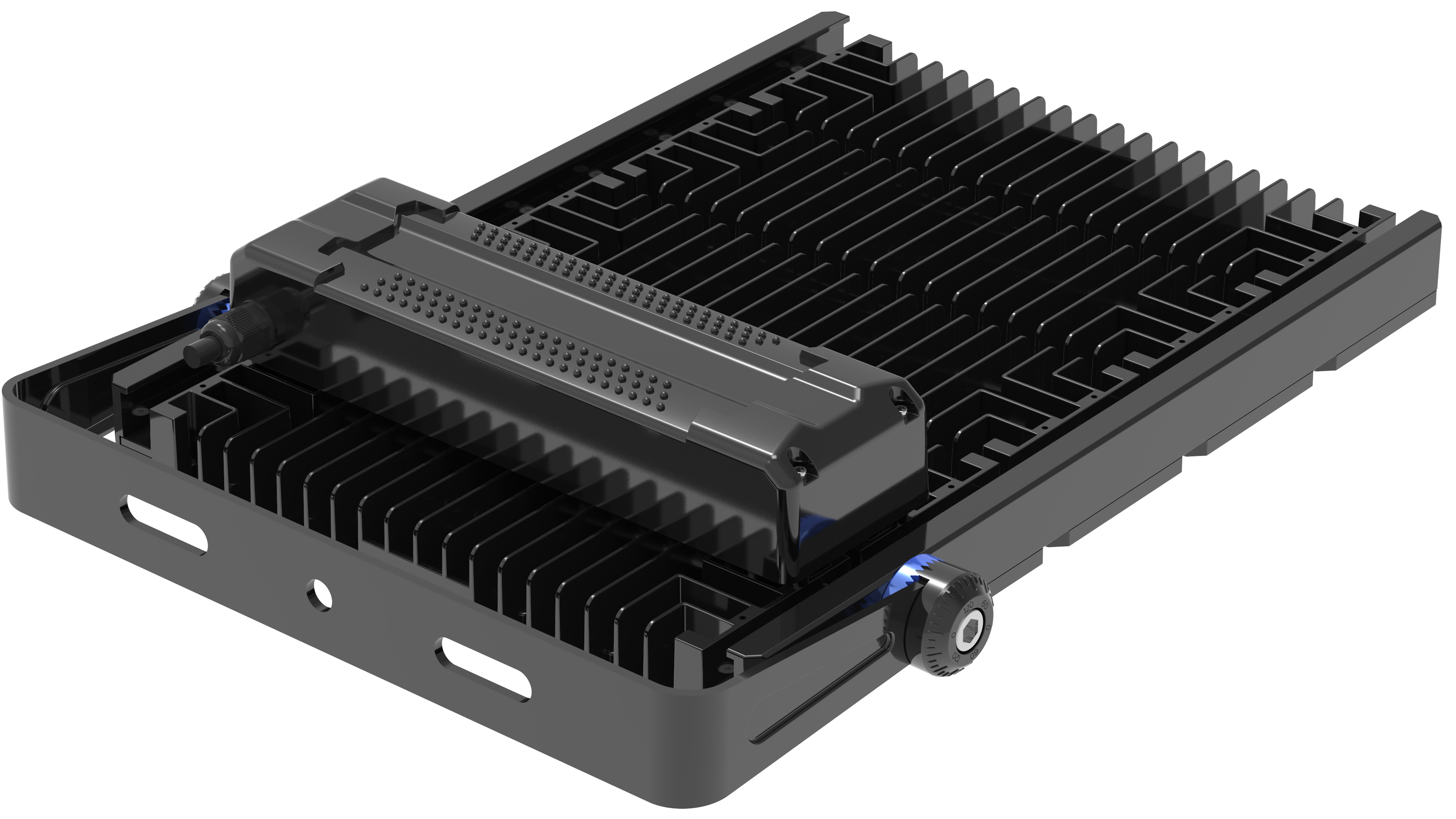

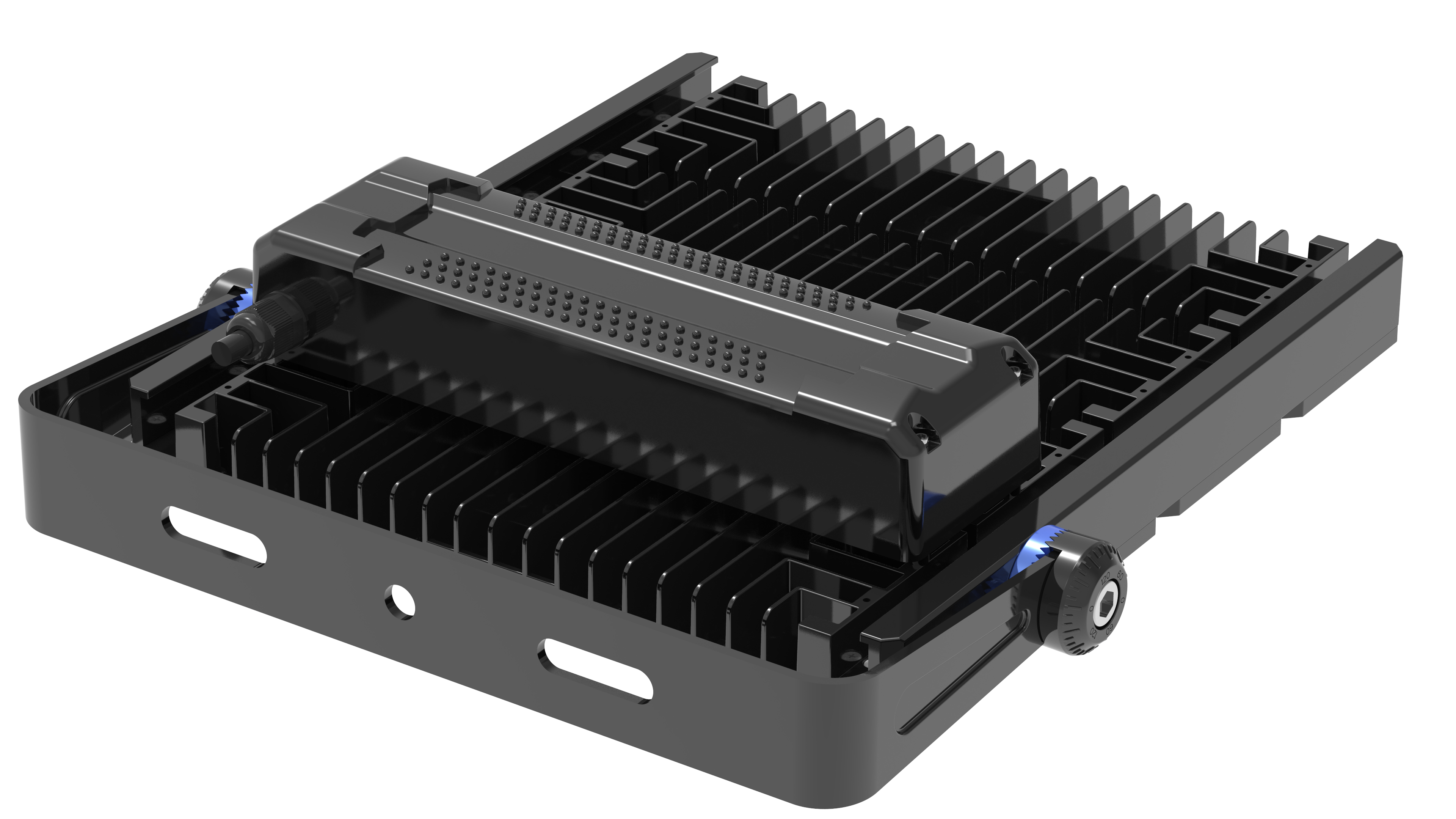

Die Casting Heat sink: Excellent Thermal Management & Compact Structure
Embedded Cable Raceway: Optimized Cable Layout

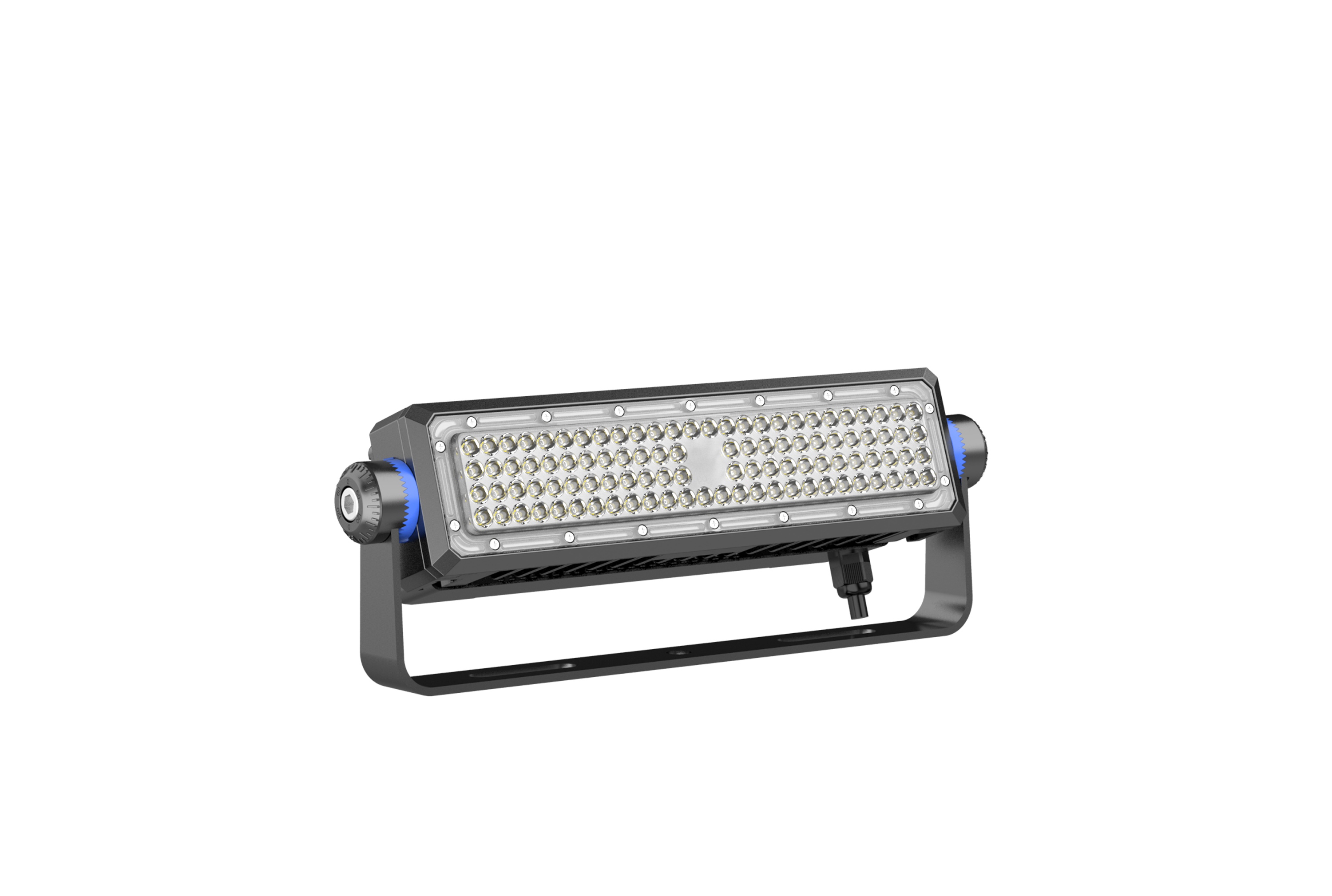

Optional Polycarbonate Lenses provide high impact resistance IK08, Light transmittance up to 94% and multiple lighting distributions:10/25/45/60/90/20*50/30*70/80*140
op brand LED chip and Driver, ensure the product quality and lifetime
4mm thickness arm & brackets, anti-typhoon rating 17
Glass Cover Option: Can be Applied in Harsh Environment
Racked Angle, Angle Adjustable 180, Achieving Precise Installation
Ingress Protection Rating: IP66
External 10KV SPD, provide extra surge protection
Operation Temperature: -35~+50
External 10KV SPD, provide extra surge protection
Working Temperature: -35~+50
Storage Temperature: -35~+50
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
waring
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified eletrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally
| Model No. | ISL-UFO-A50W | ISL-UFO-A100W | ISL-UFO-A150W | ISL-UFO-A200W | |
| Rated Power | 50W | 100W | 150W | 200W | |
| Input Voltage | AC85~265V / AC100~277V | ||||
| LED Chip | OSRAM 2835/5050 | ||||
| LED Driver | ZH/Sosen/Meanwell HBG | ||||
| Material | Alu+lens | ||||
| CRI | Ra>80 | ||||
| Power Factor | PF>0.95 | ||||
| CCT | 2700-6500K | ||||
| Light Efficacy | 150lm/W up to 170lm/W | ||||
| IP Rating | IP65 | ||||
| IK Rating | IK06 | ||||
| Operation Temperature | ﹣25°C- +50°C | ||||
| Beam Angle | 60/90/110° | ||||
| Warranty | 5years | ||||
| Lifespan | 50,000Hrs | ||||
| Dimension | 290*179mm | 290*179mm | 340*185mm | 360*191mm | |
| Packing | 400*400*155mm | 400*400*155mm | 420*420*165mm | 445*445*170mm | |
| Weight | G.W: 2KG | G.W: 2.2KG | G.W: 3.5KG | G.W: 3.7KG | |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | ||||
