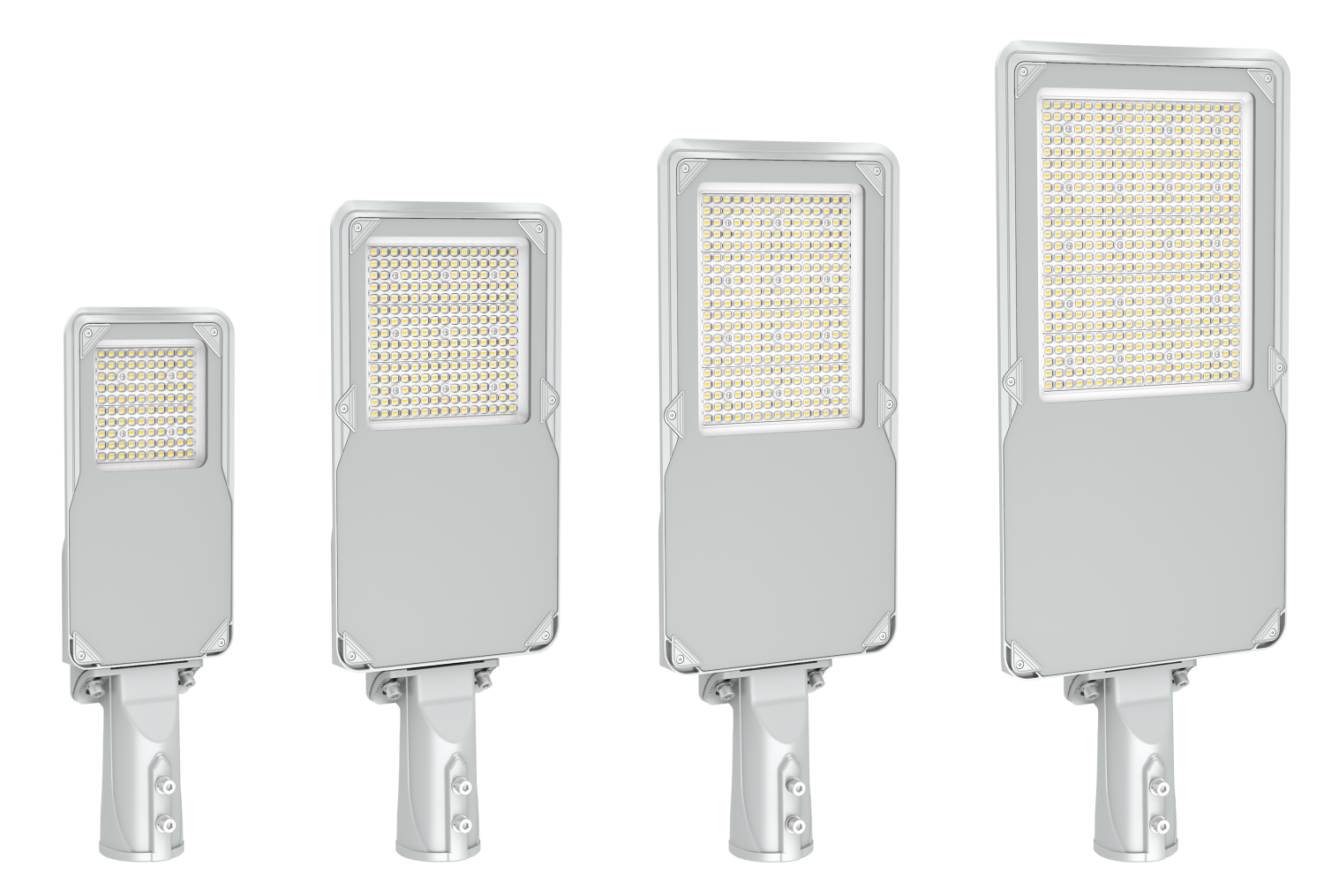

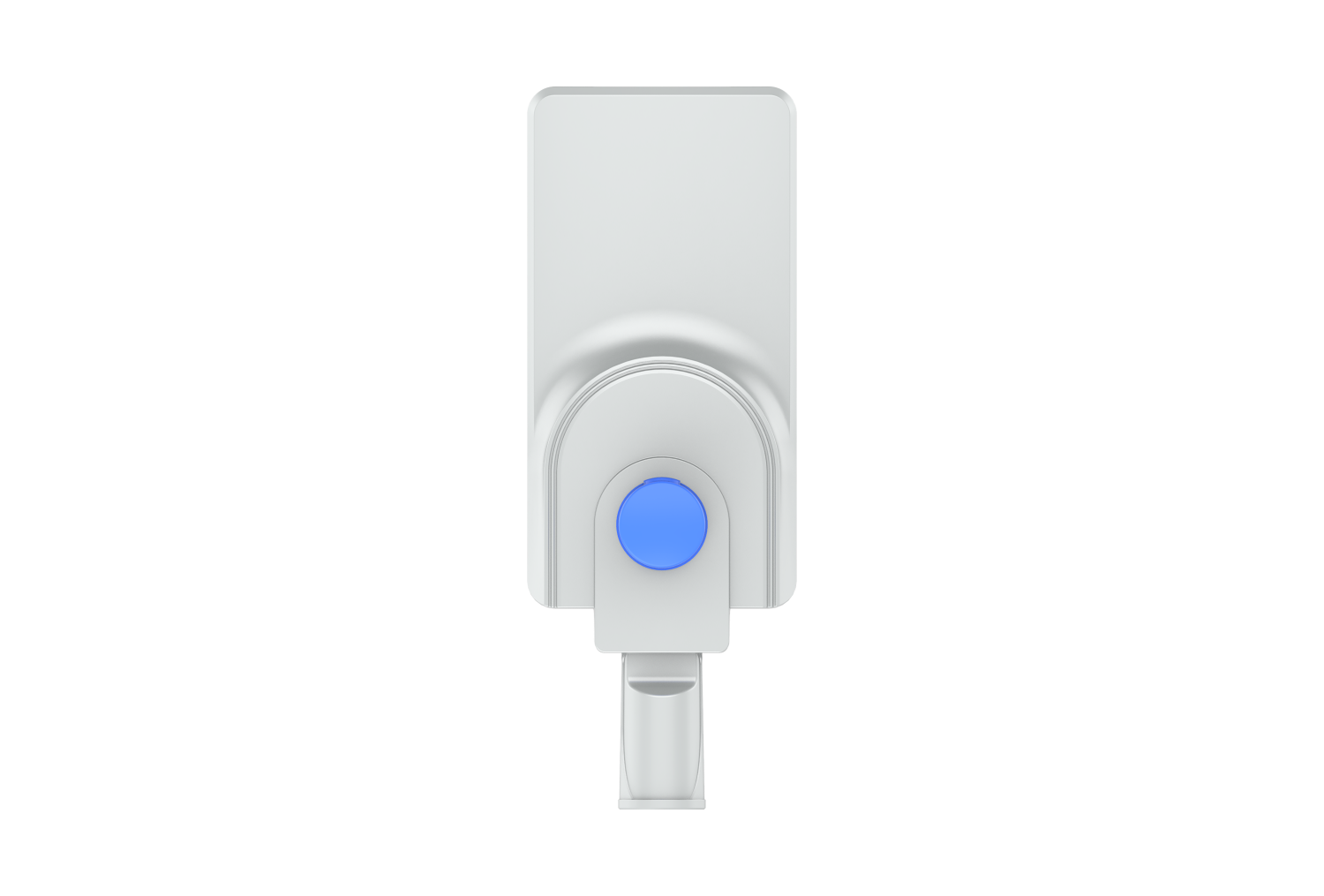

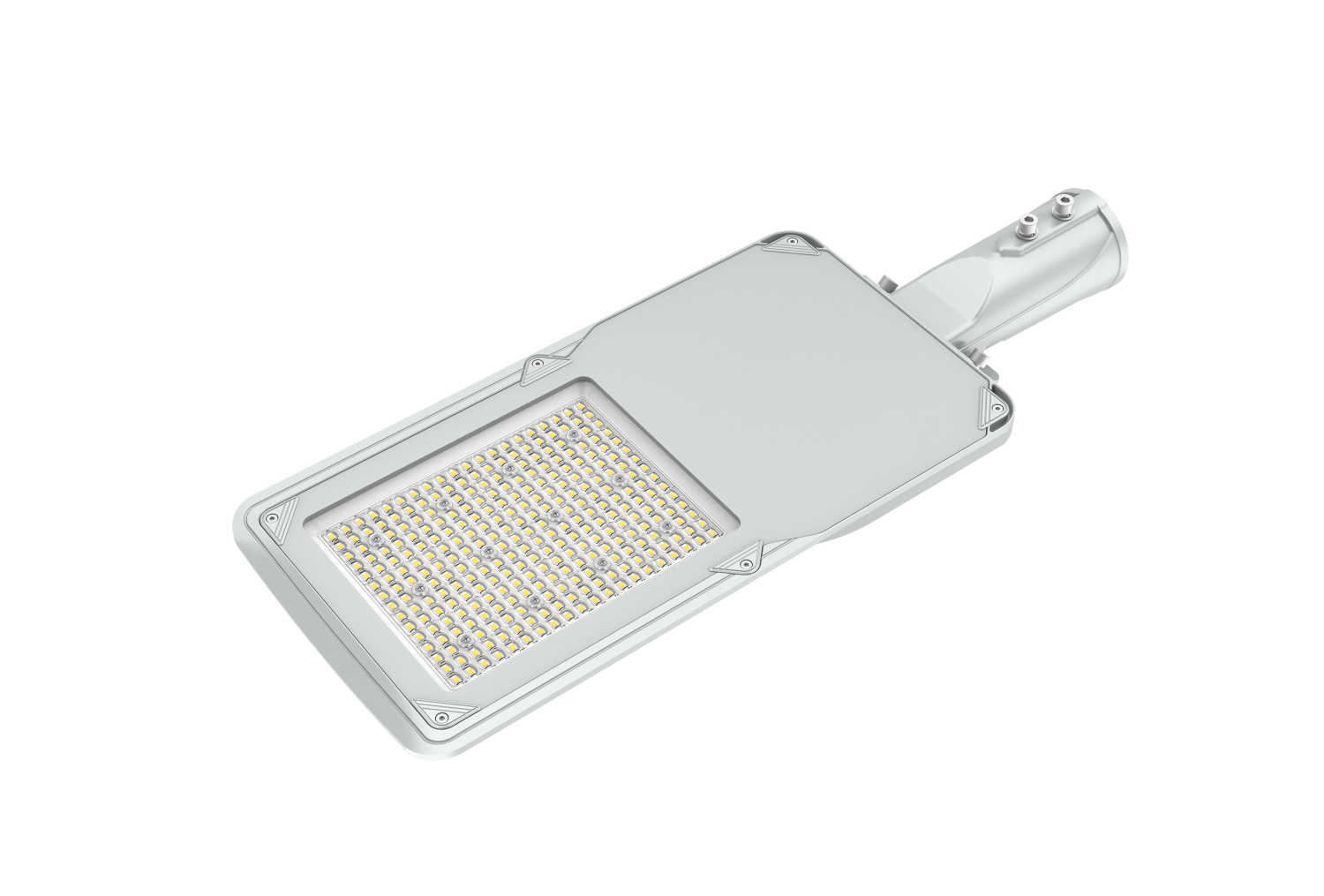

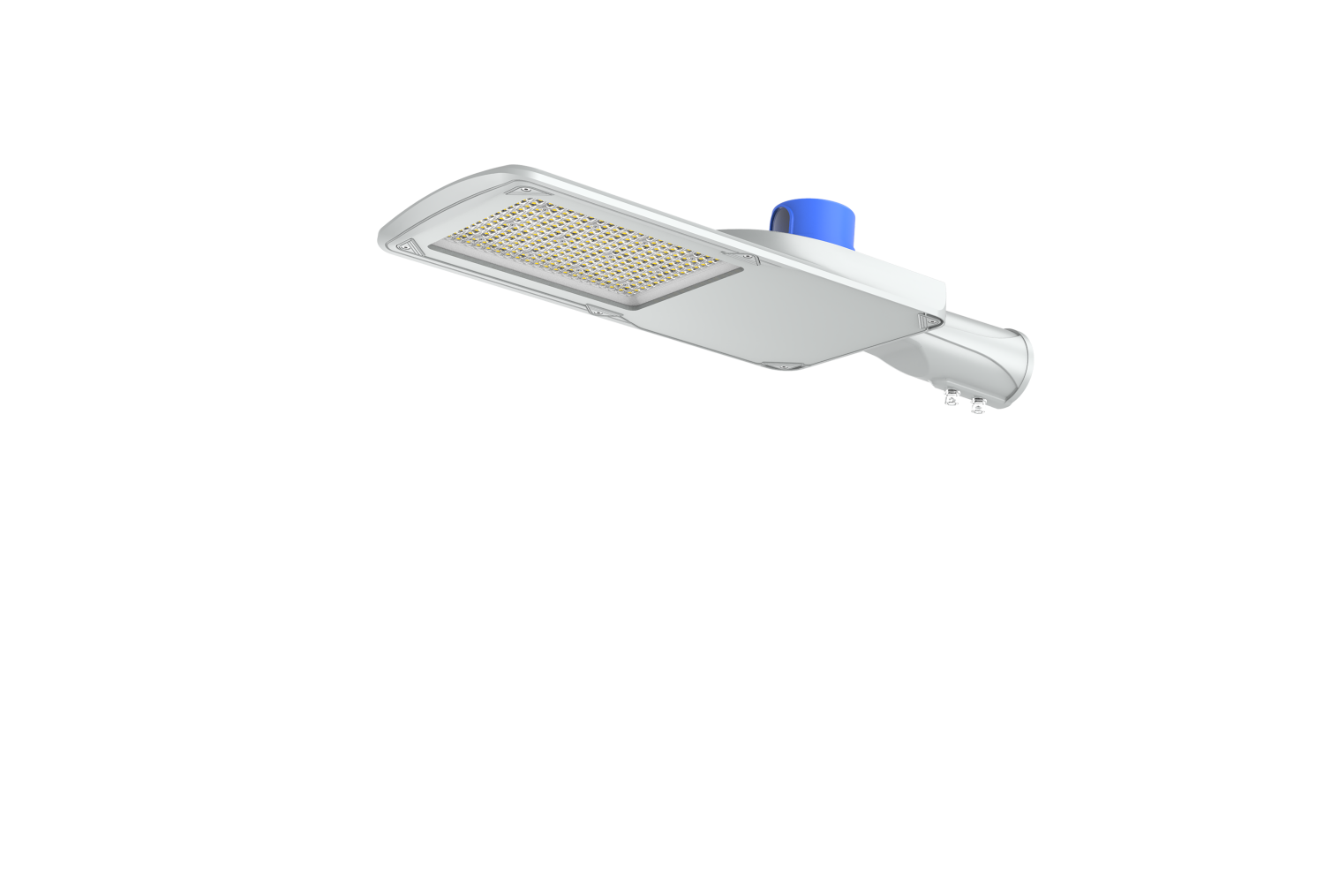

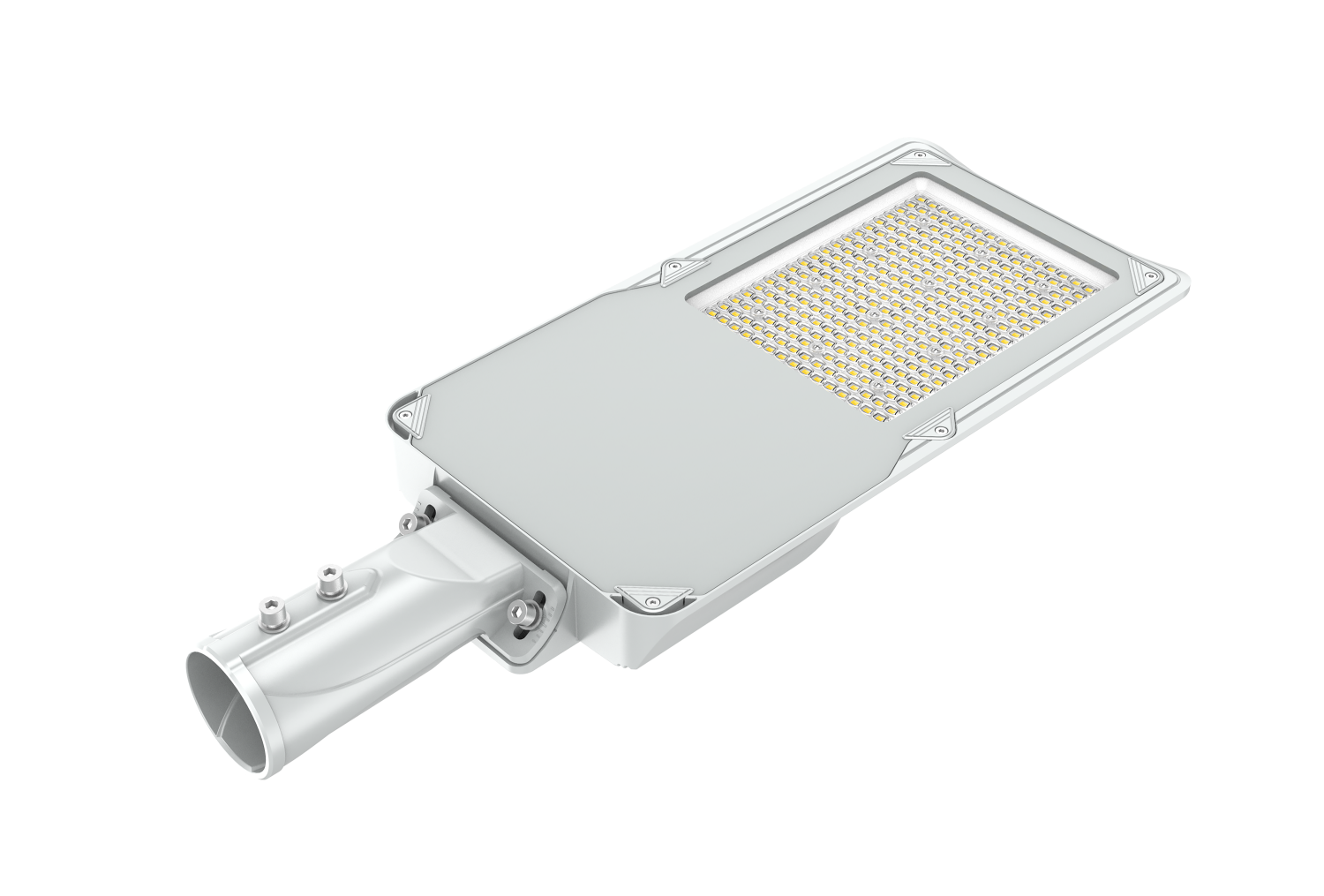

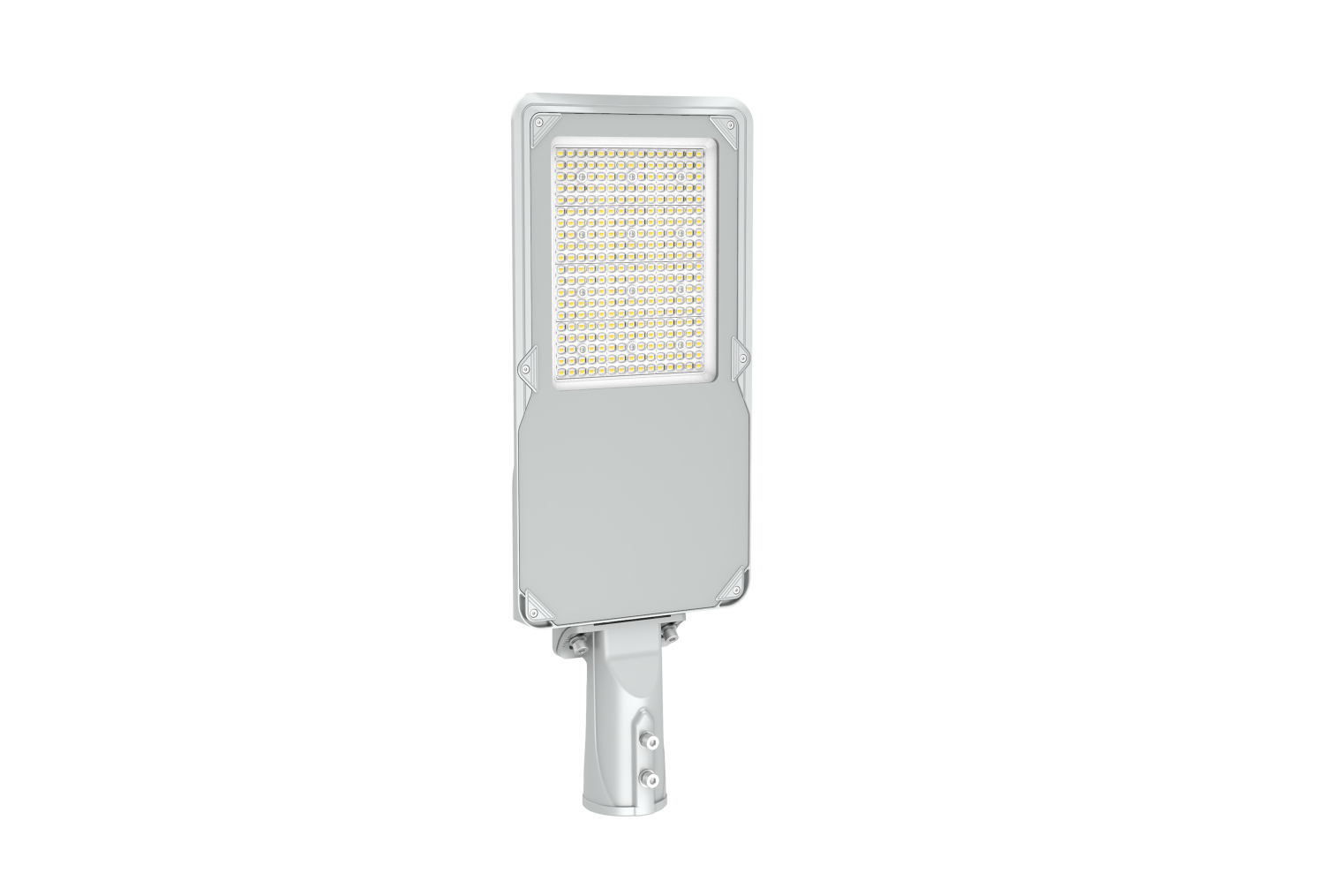

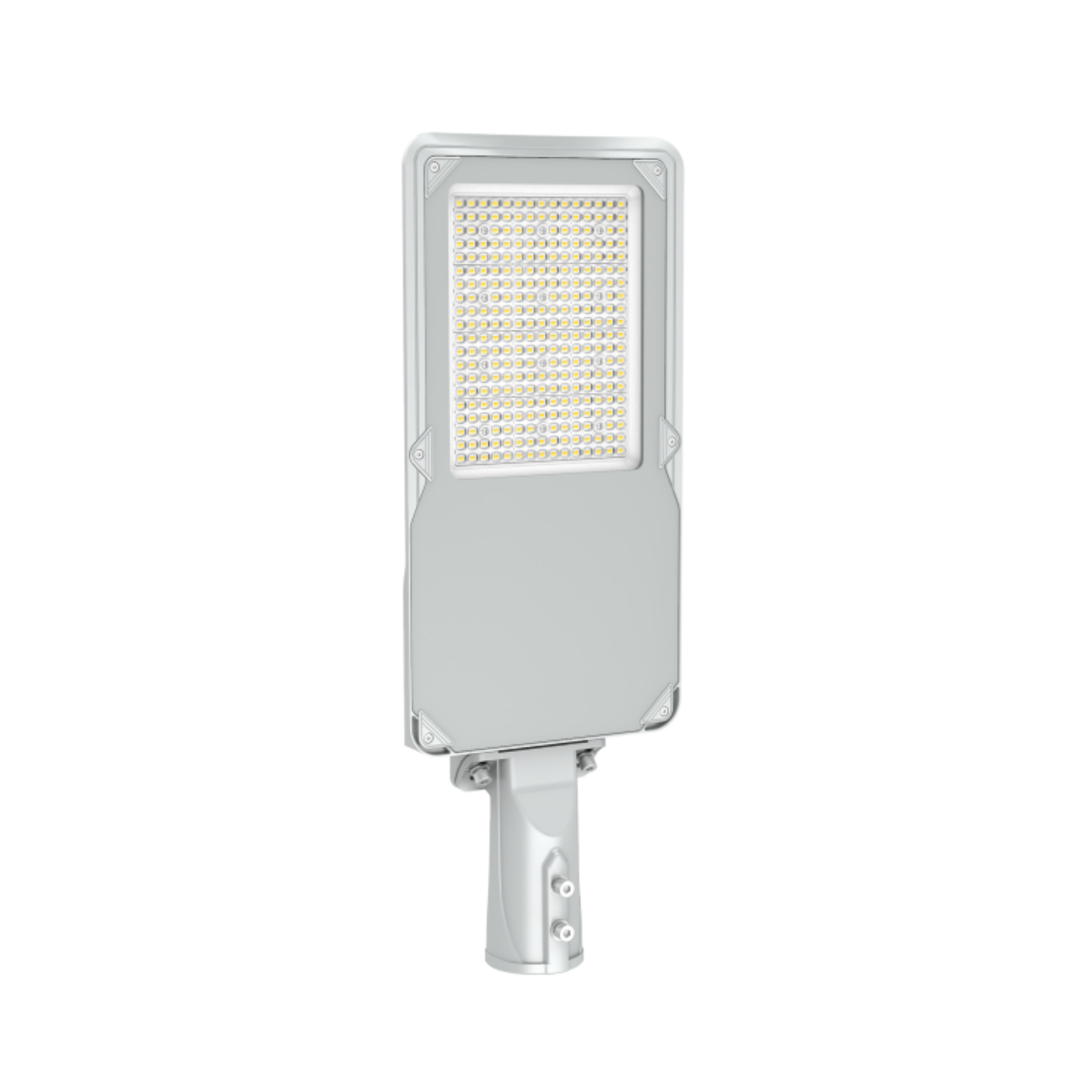

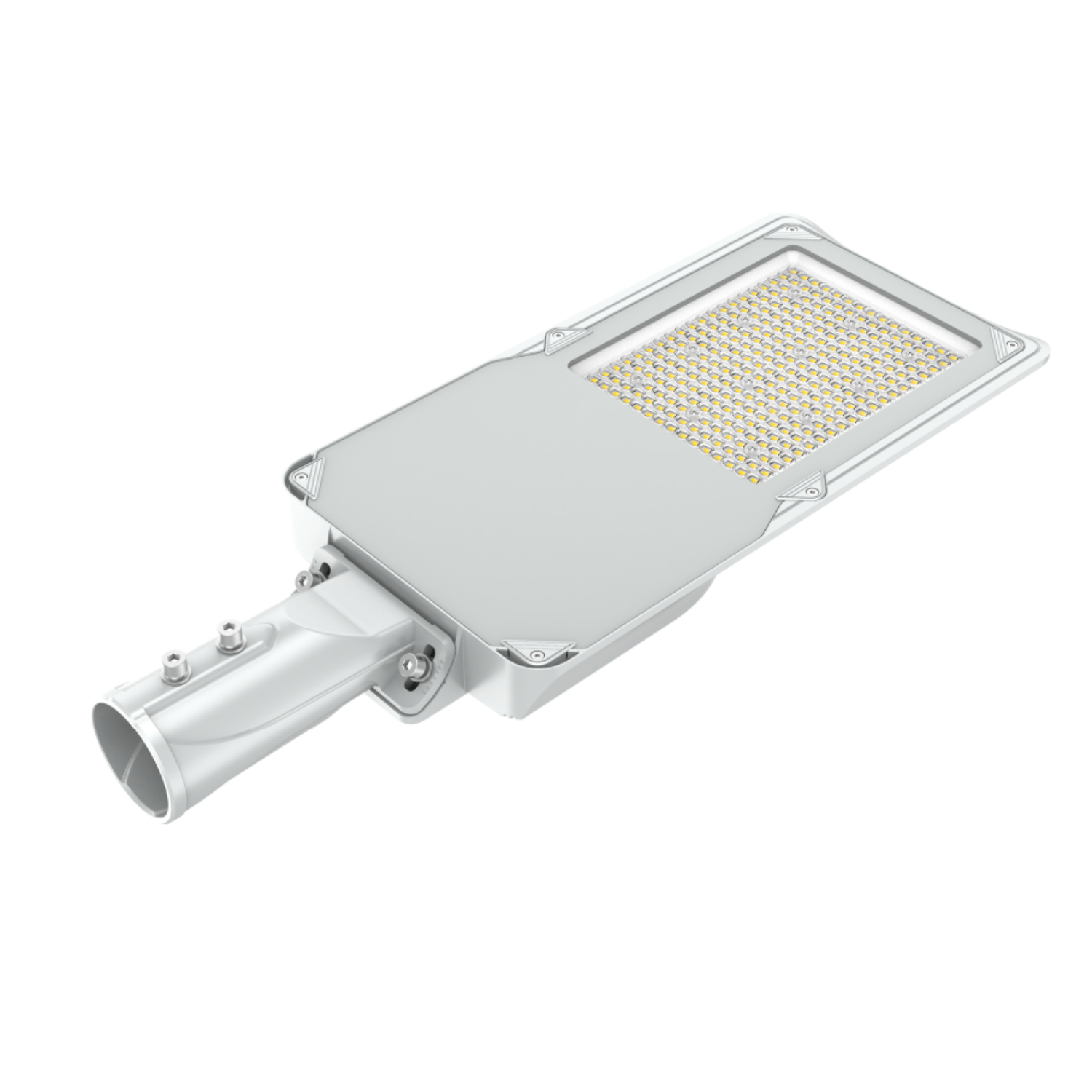

LEGEND V LED Street Light

Inquiry now

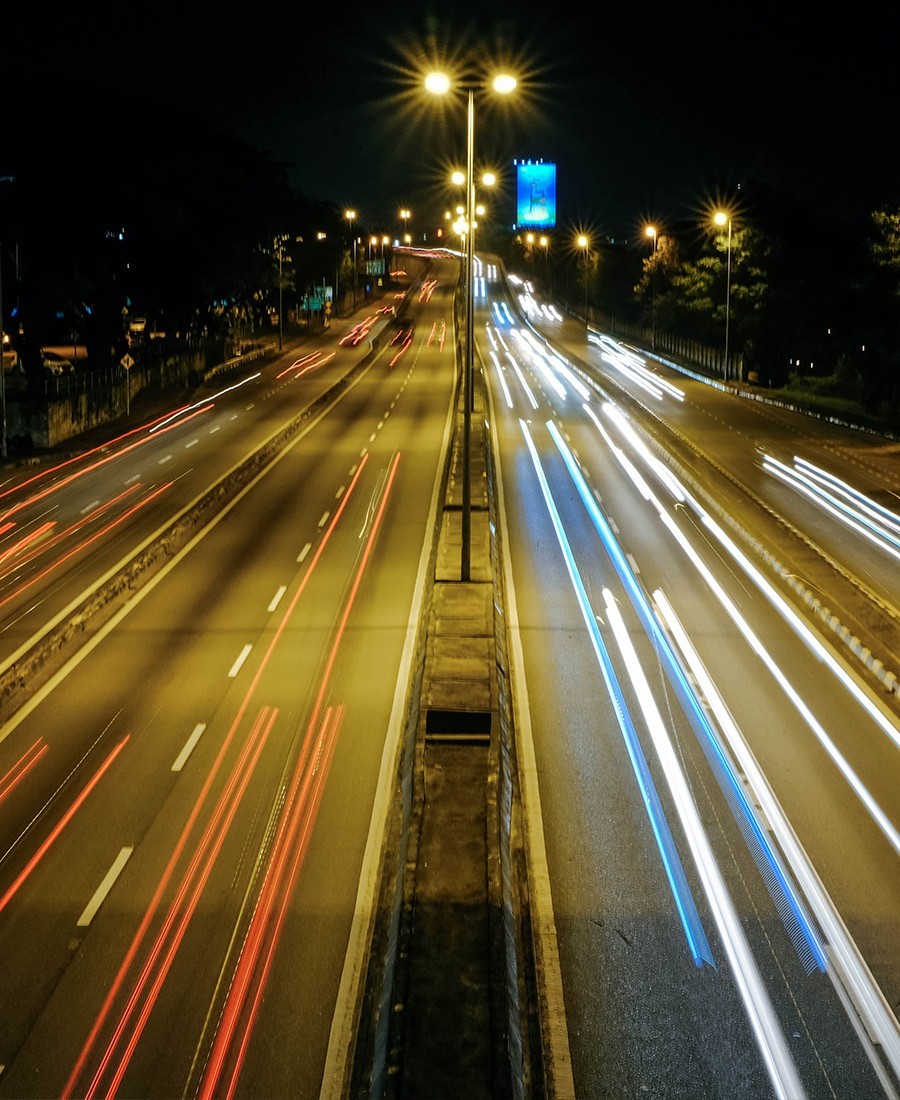

Roads, highways, viaducts, city streets, overpasses, sidewalks, and outdoor lighting places such as squares, schools, residential areas and parks.>

Features

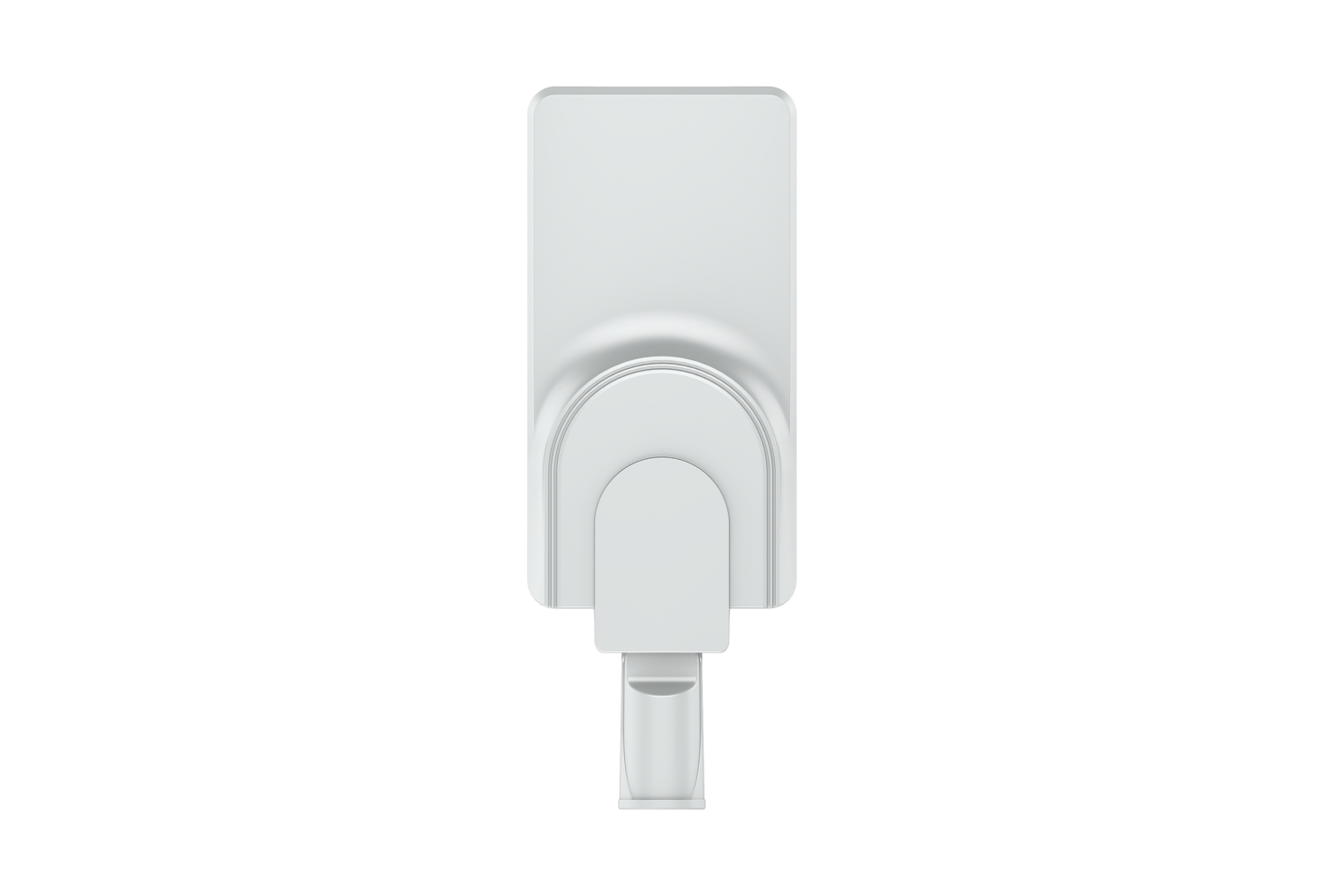

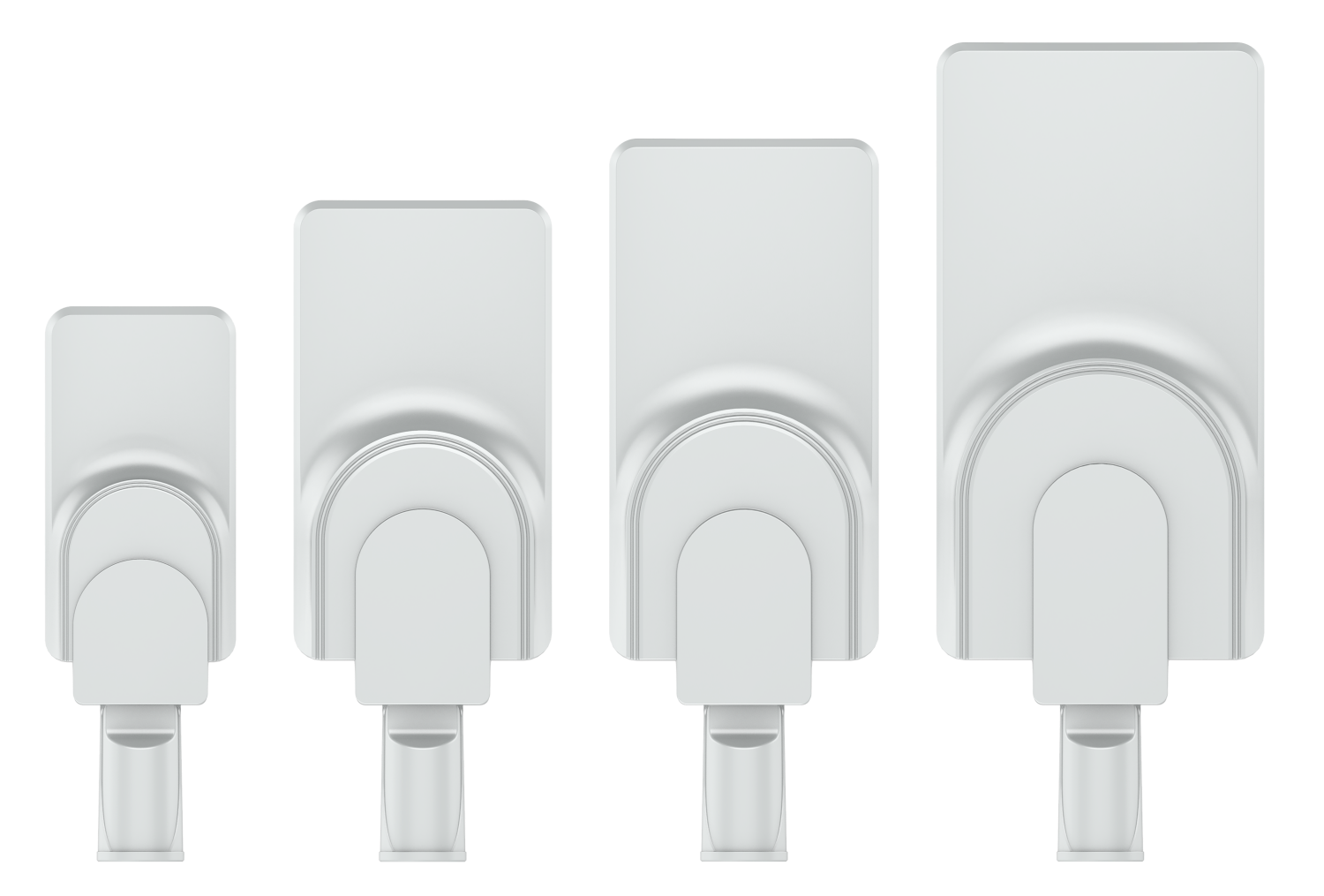

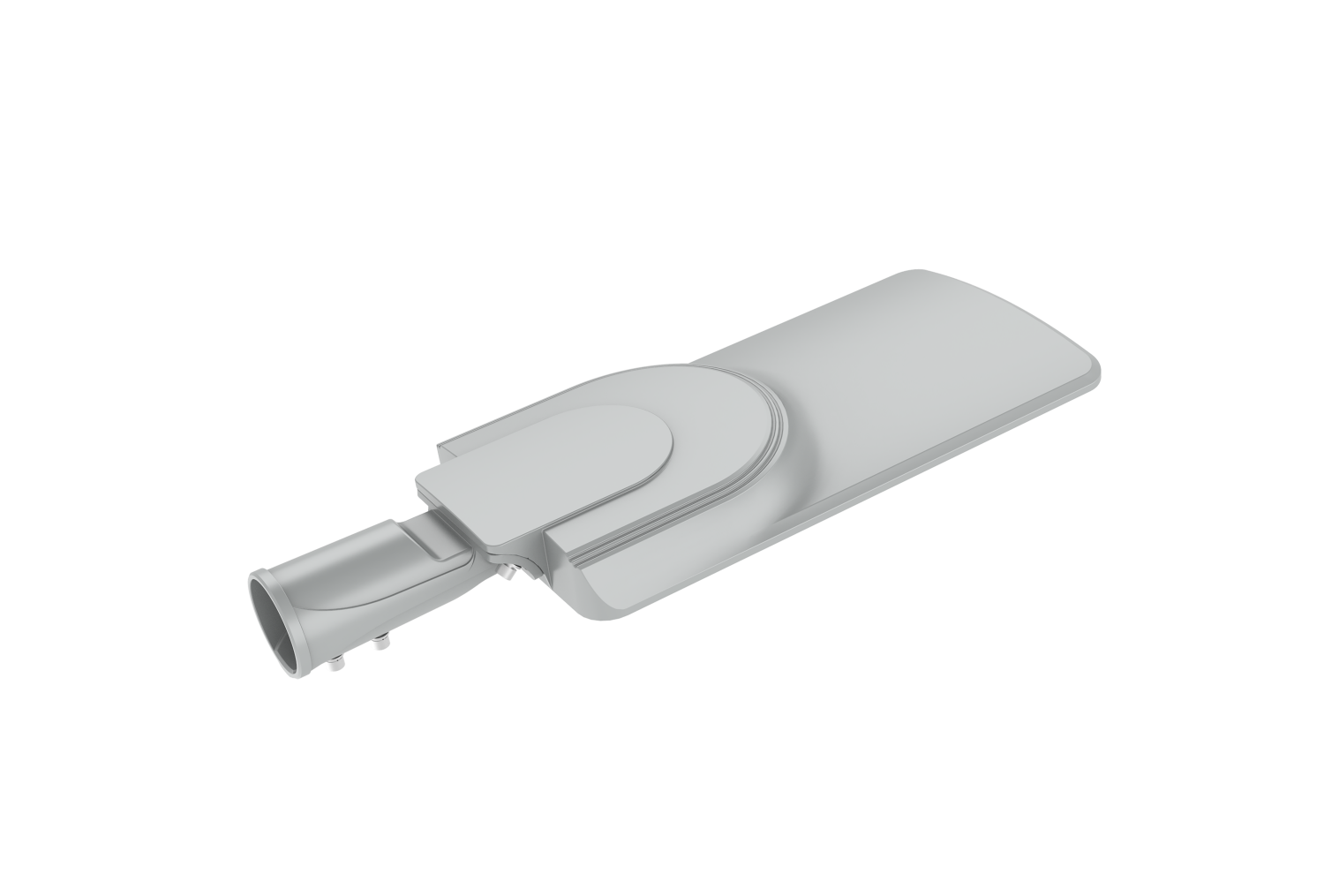

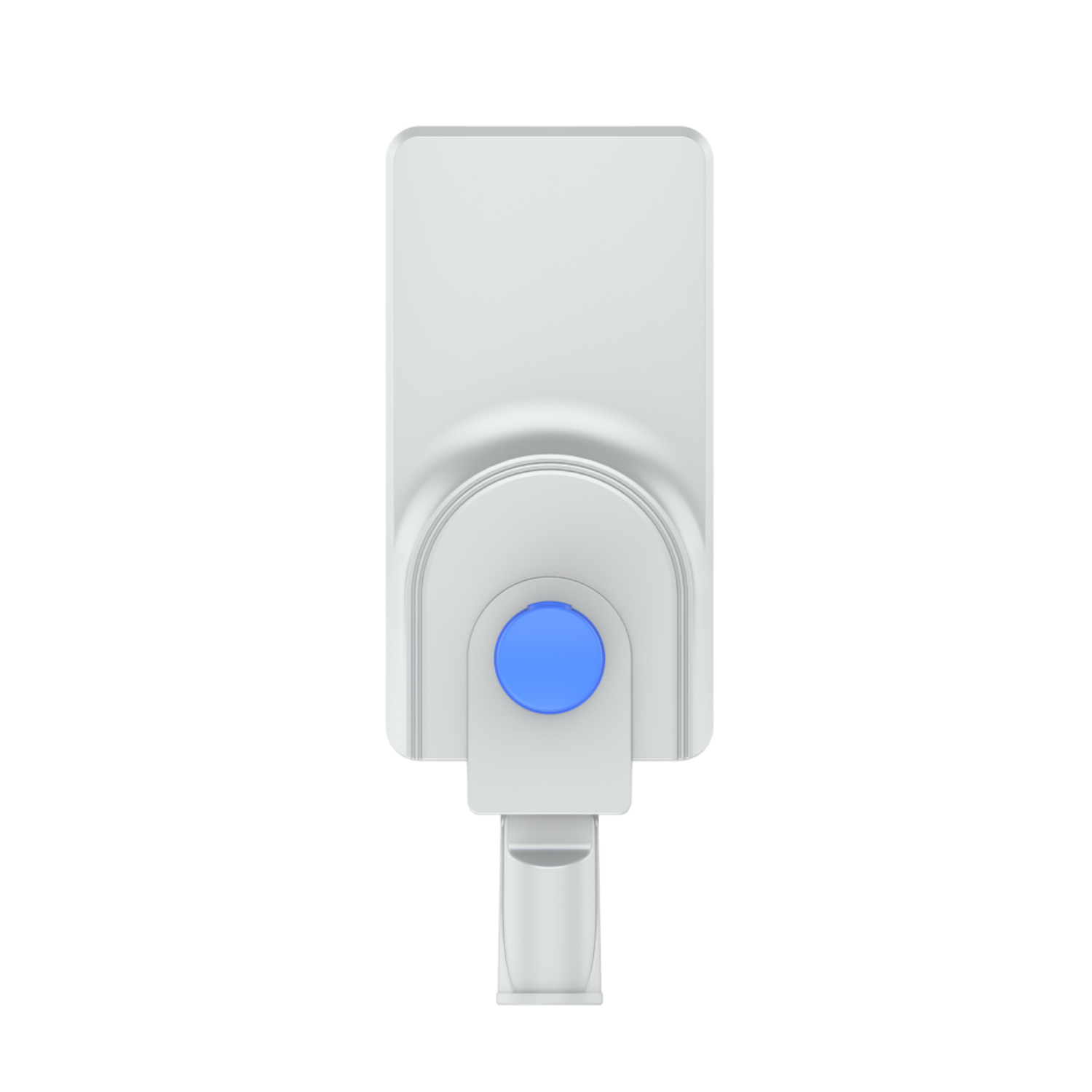

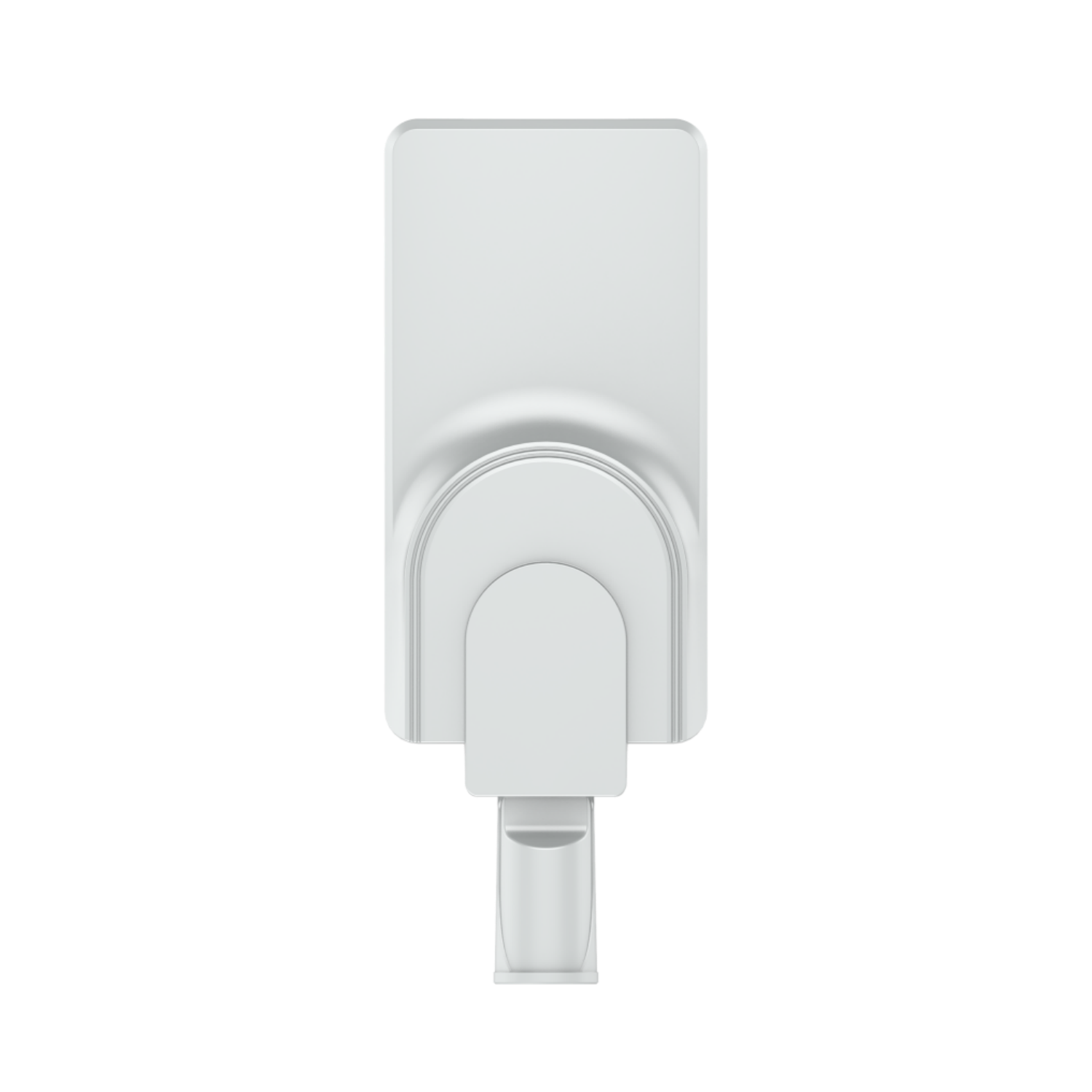

Die Casting Aluminum Housing with Smooth Back Cover Design, no dust and water will stay on the housing

Luminous Efficacy up to 140lm/W

Light Distribution: T2-M/ T3-M

Ingress Protection Rating: IP66

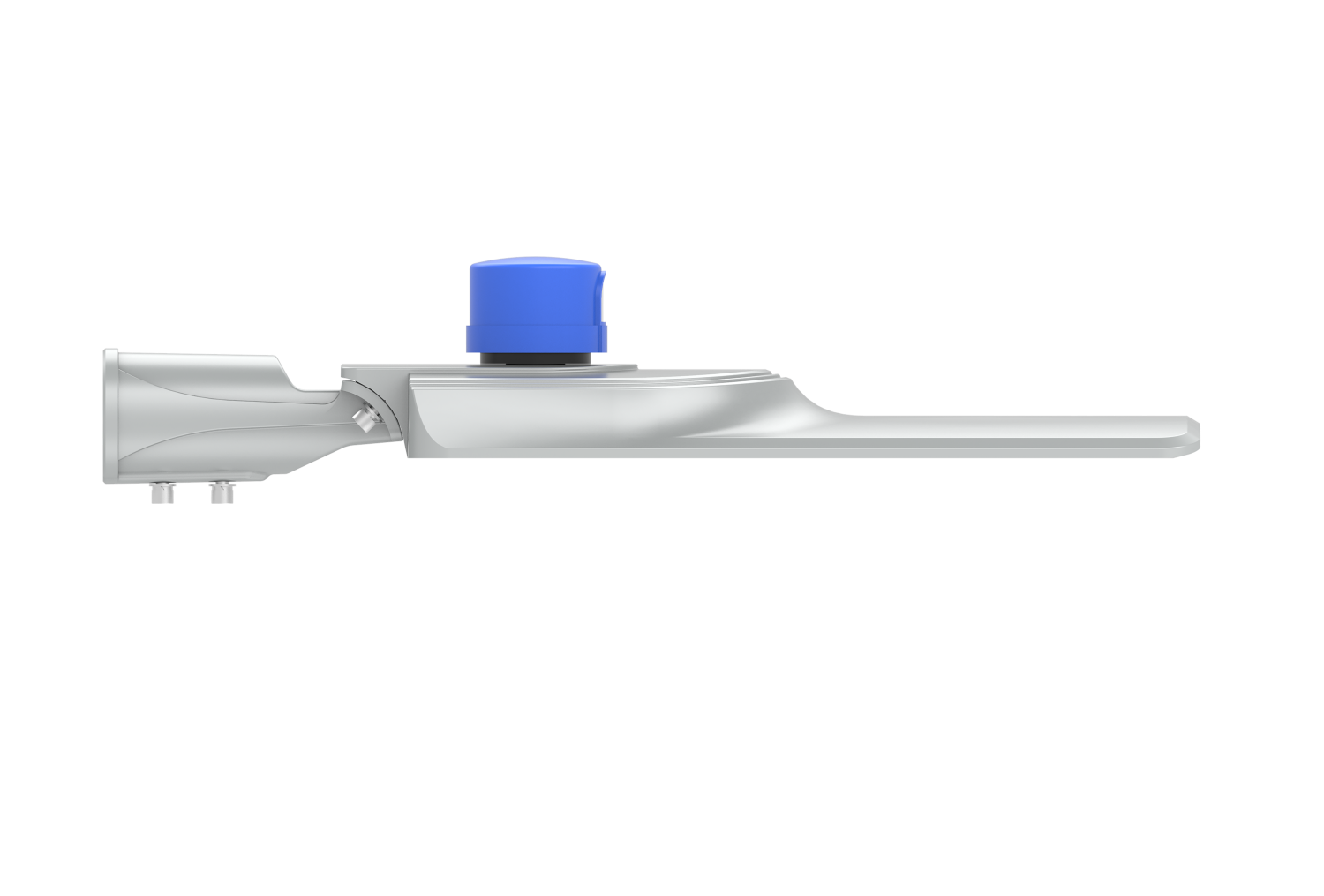

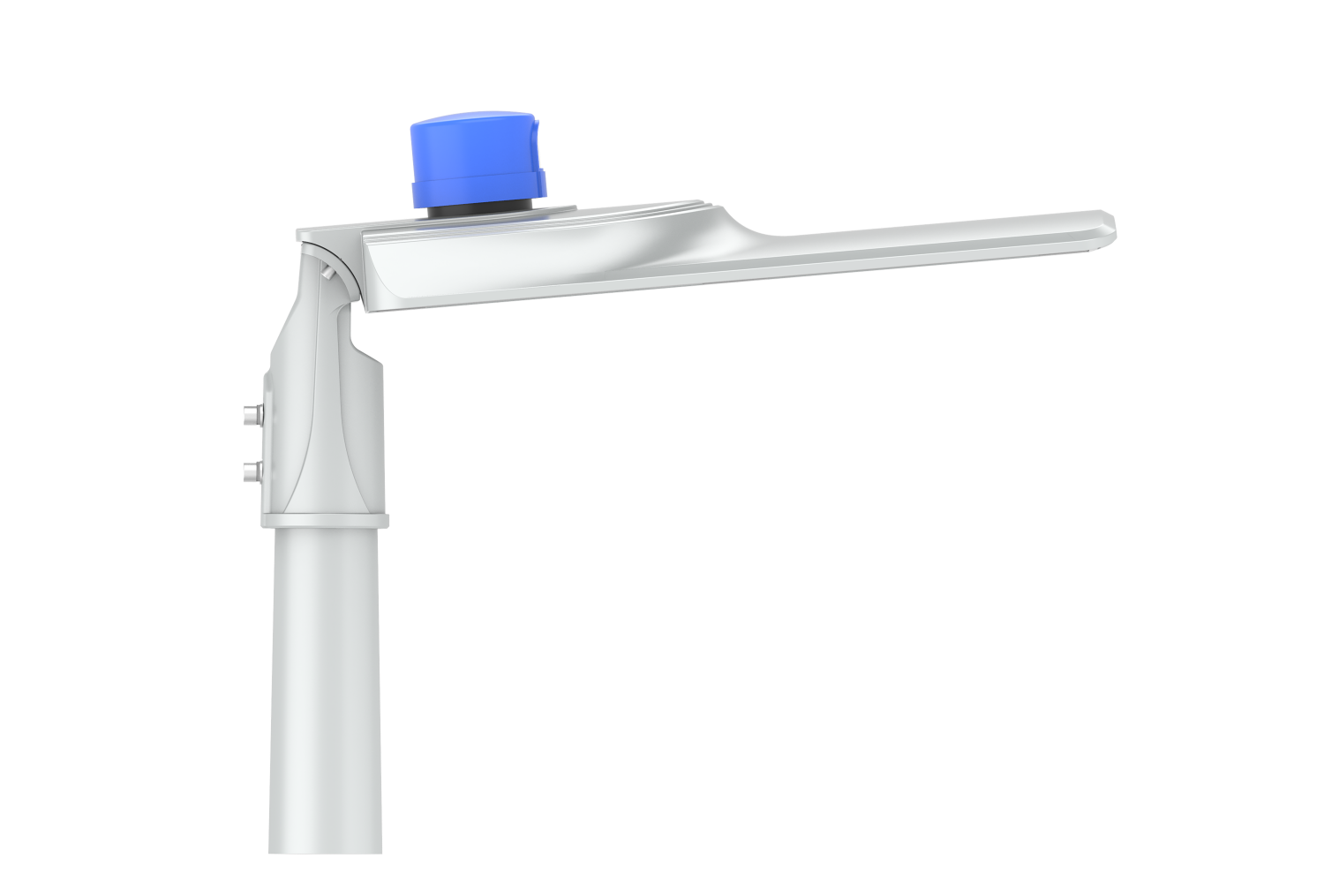

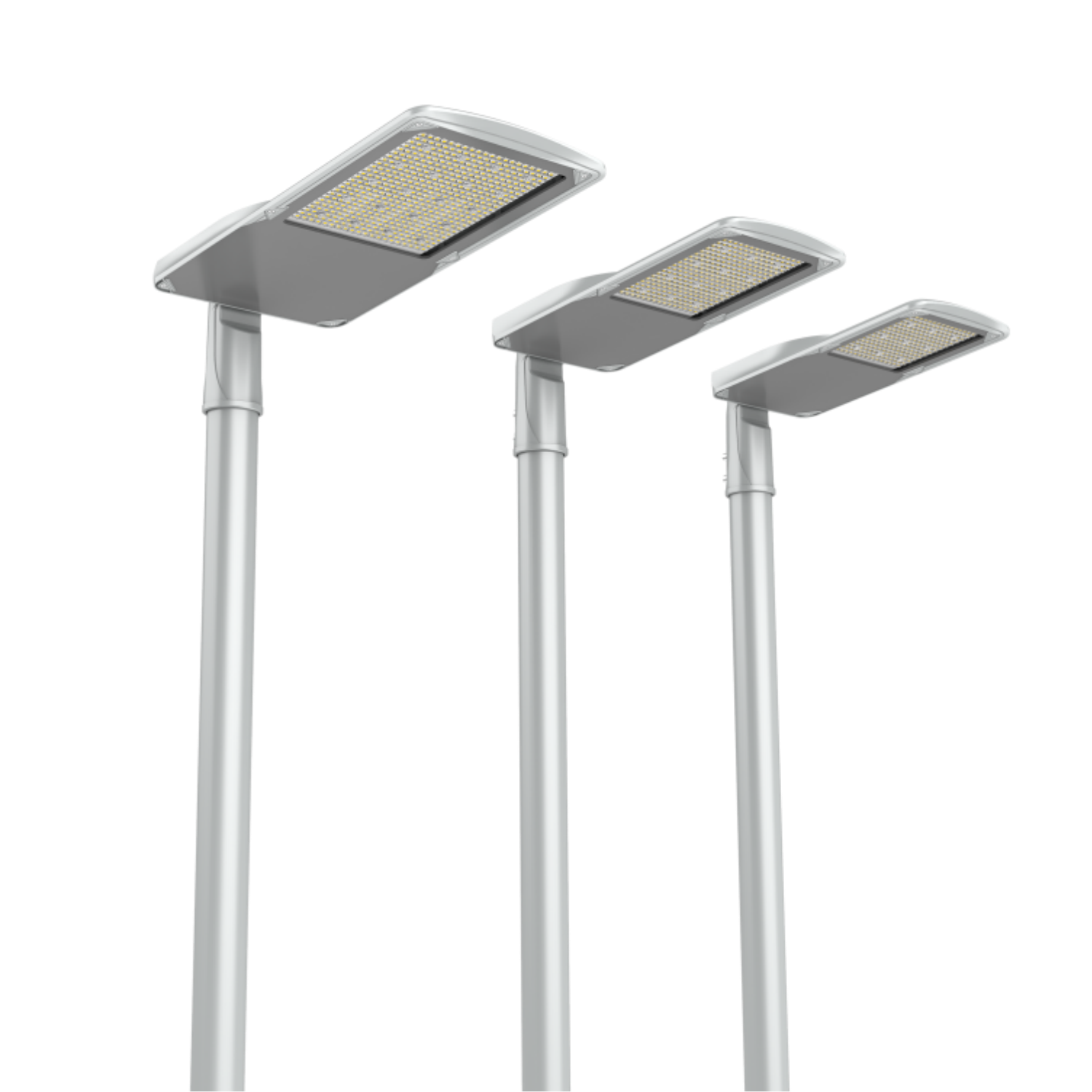

Post Top Or Side Entry

Optical Lens with Tempered Glass Cover, High Anti-Corrosion and UV for costal area

Waterproof Breathing Valve, balance the internal & external temperature and humidity

Operation Temperature: -35°~+50°

Environment Requirement

Working Temperature:-35~+50℃

Storage Temperature:-35~+50℃

Working Humidity:0%~85%

Storage Humidity:0%~90%

Installation instruction

Note: The installation base must be able to support 10 times weight of the products

Product parameter

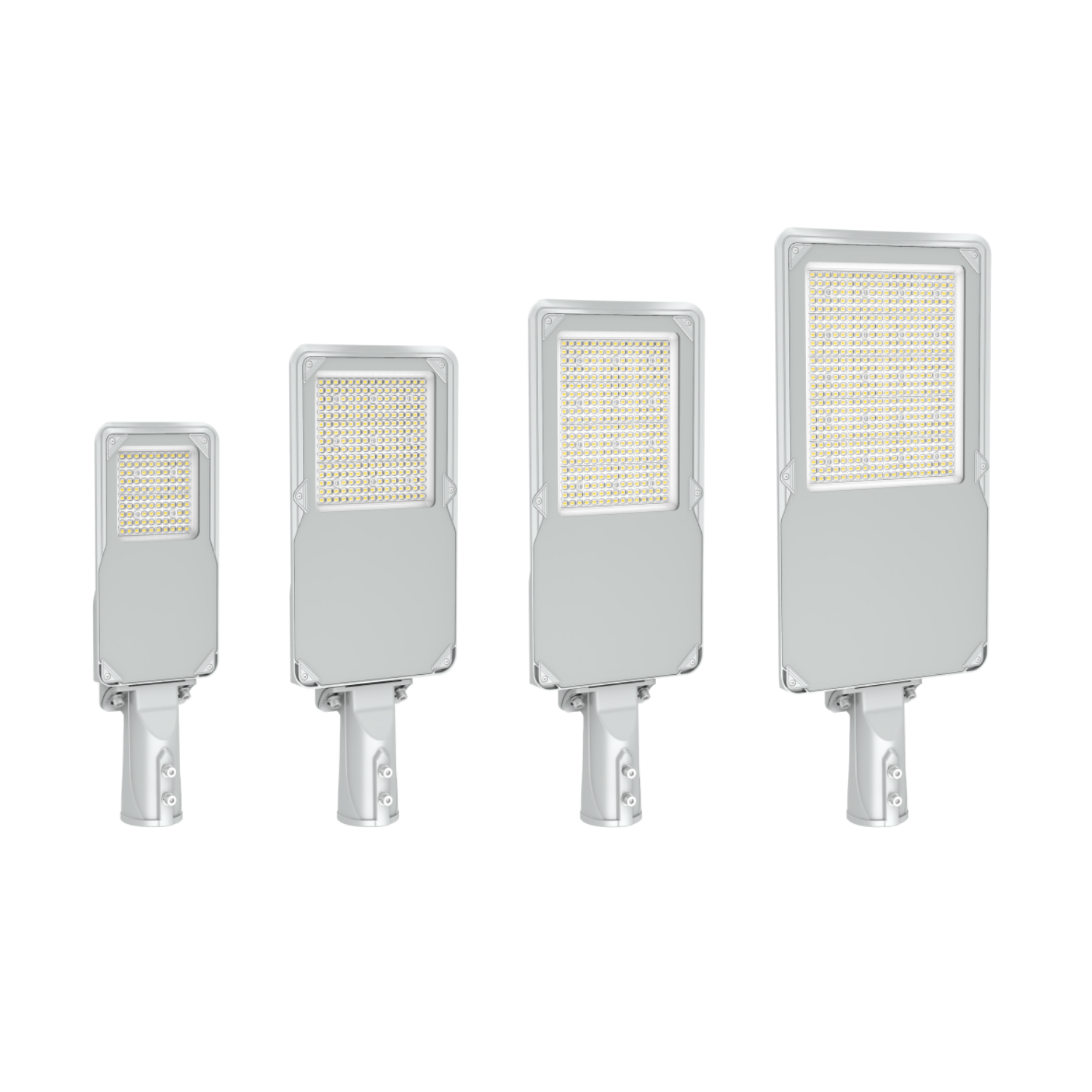

Model No.ISL-SL05-50WISL-SL05-100WISL-SL05-150WISL-SL05-200WISL-SL05-240W
Rated Power50W100W150W200W240W
Light Efficiency140lm/W
Input VoltageAC100-277V, 50/60Hz
LED ChipLumileds2835
LED DriverSosen/ Meanwell
Beam AngleT2-M/ T3-M
CCT3000K/ 4000K/ 5000K/ 5700K/ 6500K
CRI80Ra
Power Factor0.95
IP RatingIP66
Operation Temperature35°C- +50°C
Warranty5Years
Lifespan50,000Hrs

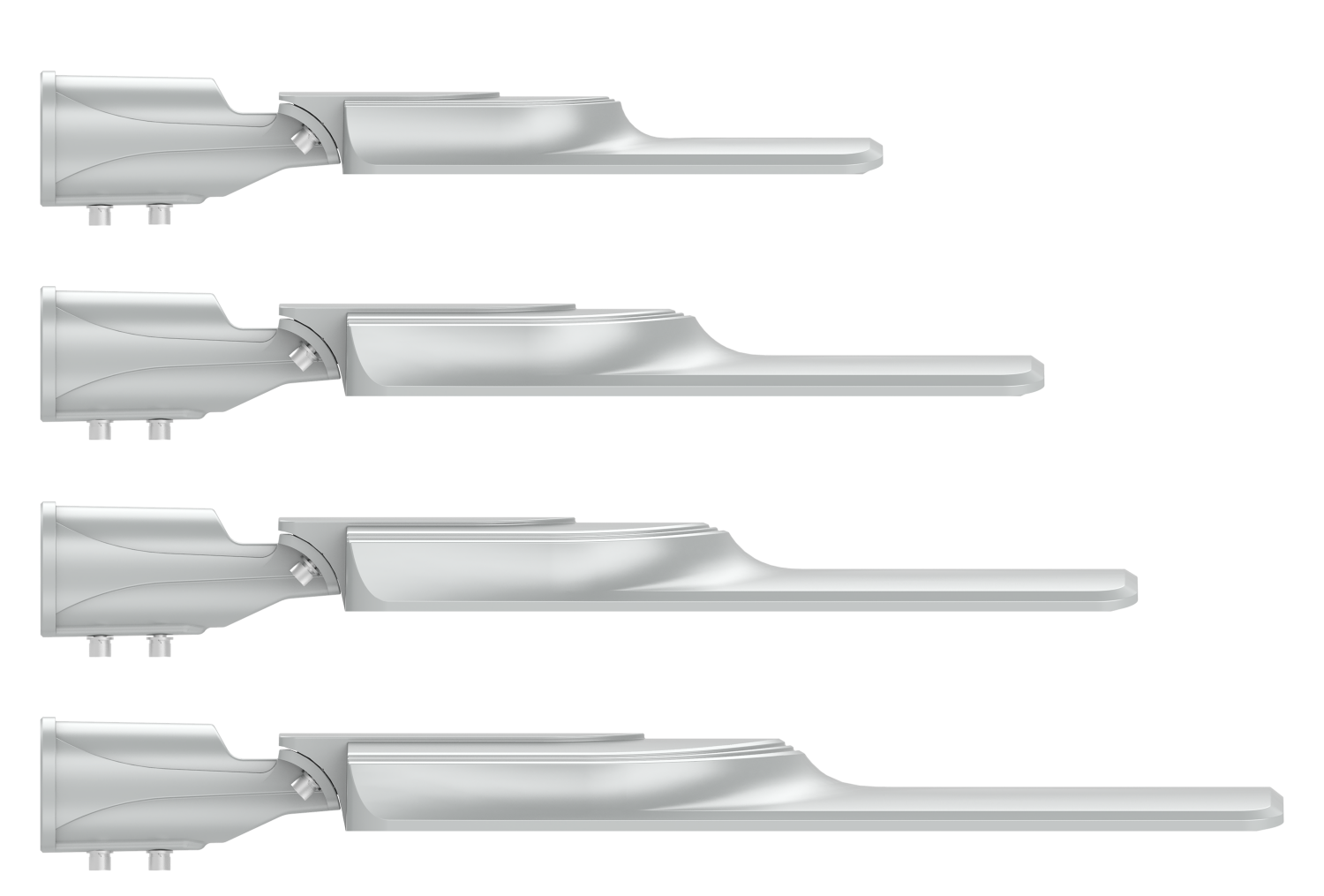

Dimension494*170*80mm589*230*80mm644*240*80mm729*292*80mm729*292*80mm
Packing545*255*140mm635*305*140mm695*305*140mm780*365*140mm780*365*140mm
N.W.2.05KG3.2KG3.75KG5.00KG5.00KG
CertificateCCC / CQC / TUV / CB / FCC / SAA / CE / RoHS

Warning

1. Please install the lamp according to the installation to avoid dropping and electric shock.

2. Don't exchange the lamp as to avoid dropping, electric shock and damage of the lamp.

3. Working voltage is not to be exceeded AC100-277V 50/60Hz


Attention

1. Don't install the lamp to non-stable place.

2. Installed by qualified electrician.

3. Switch off the switch box and contact certified electrician if the lamp works abnormally
