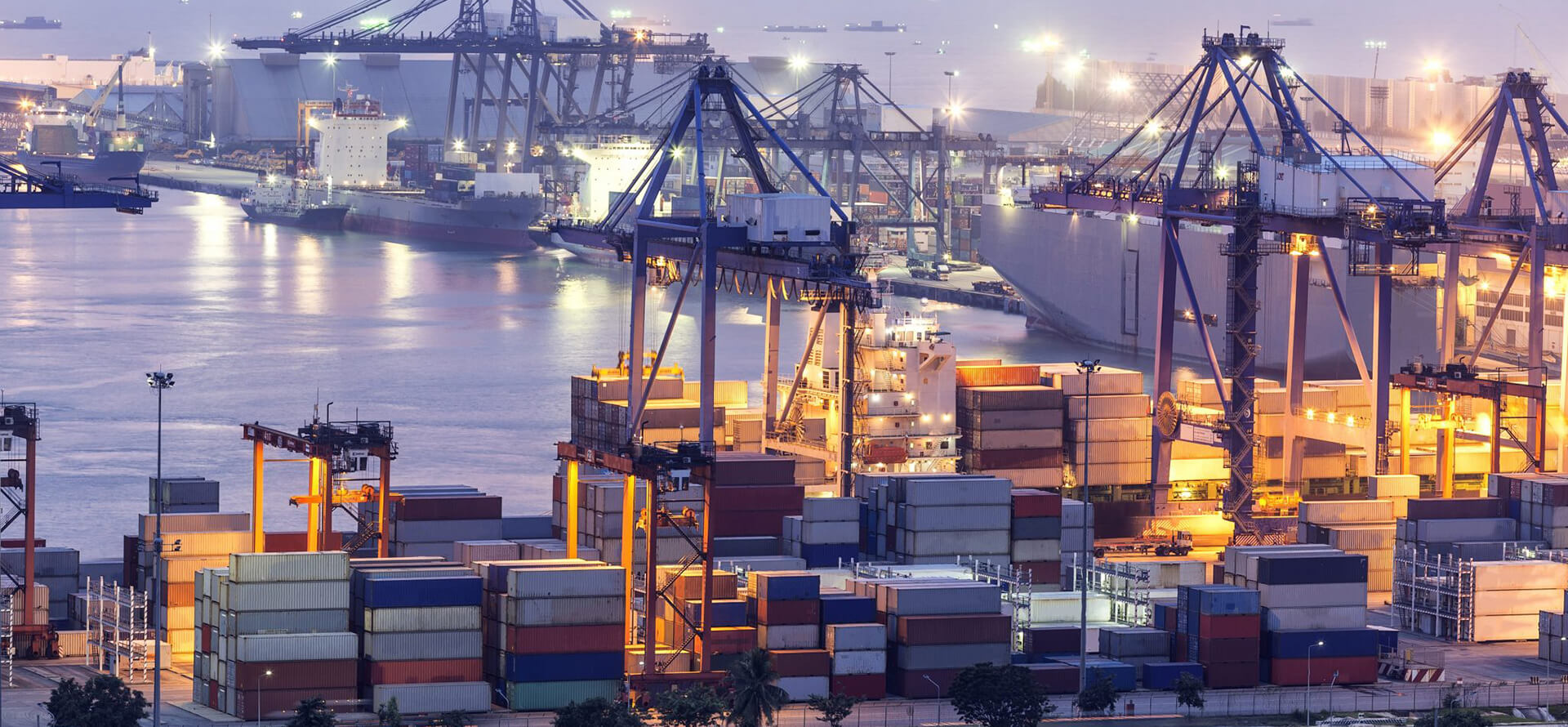

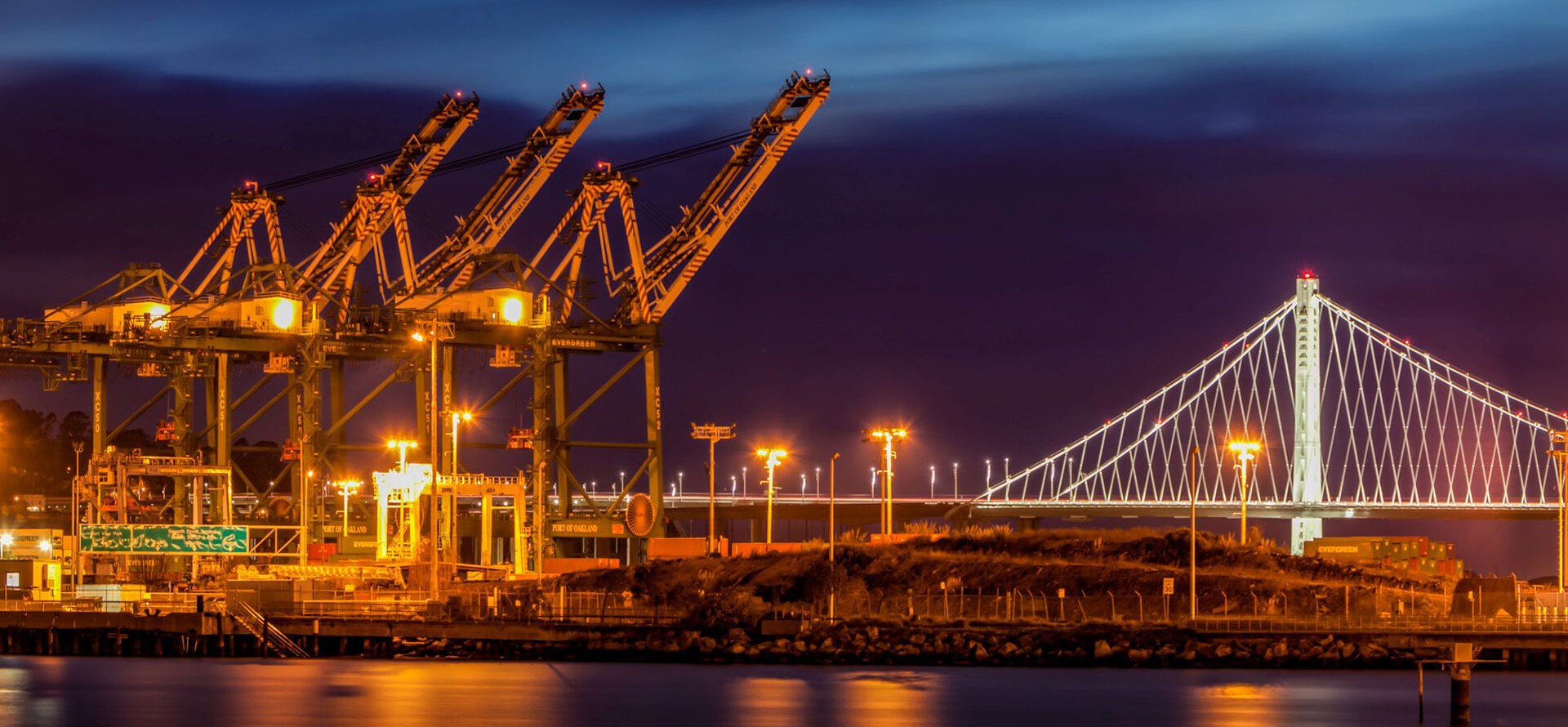

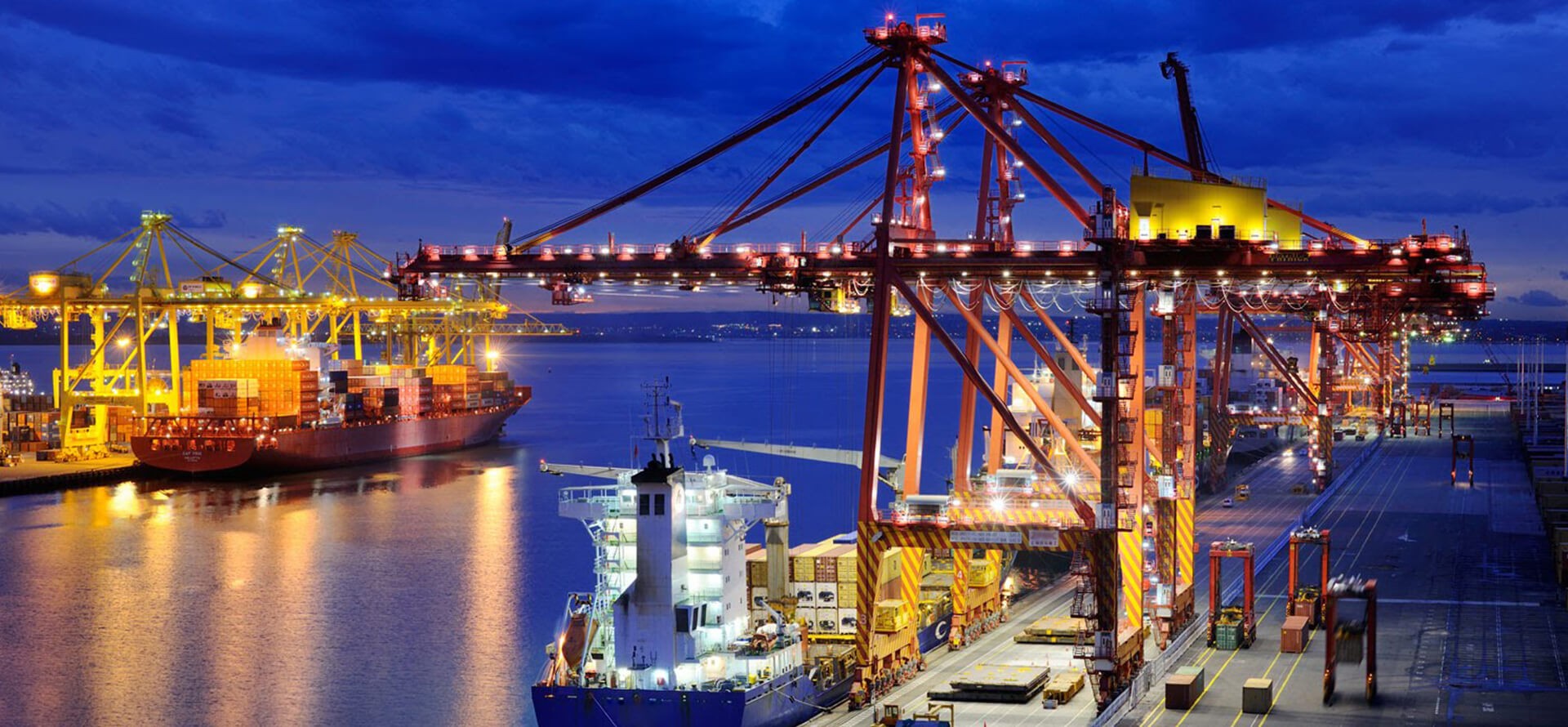

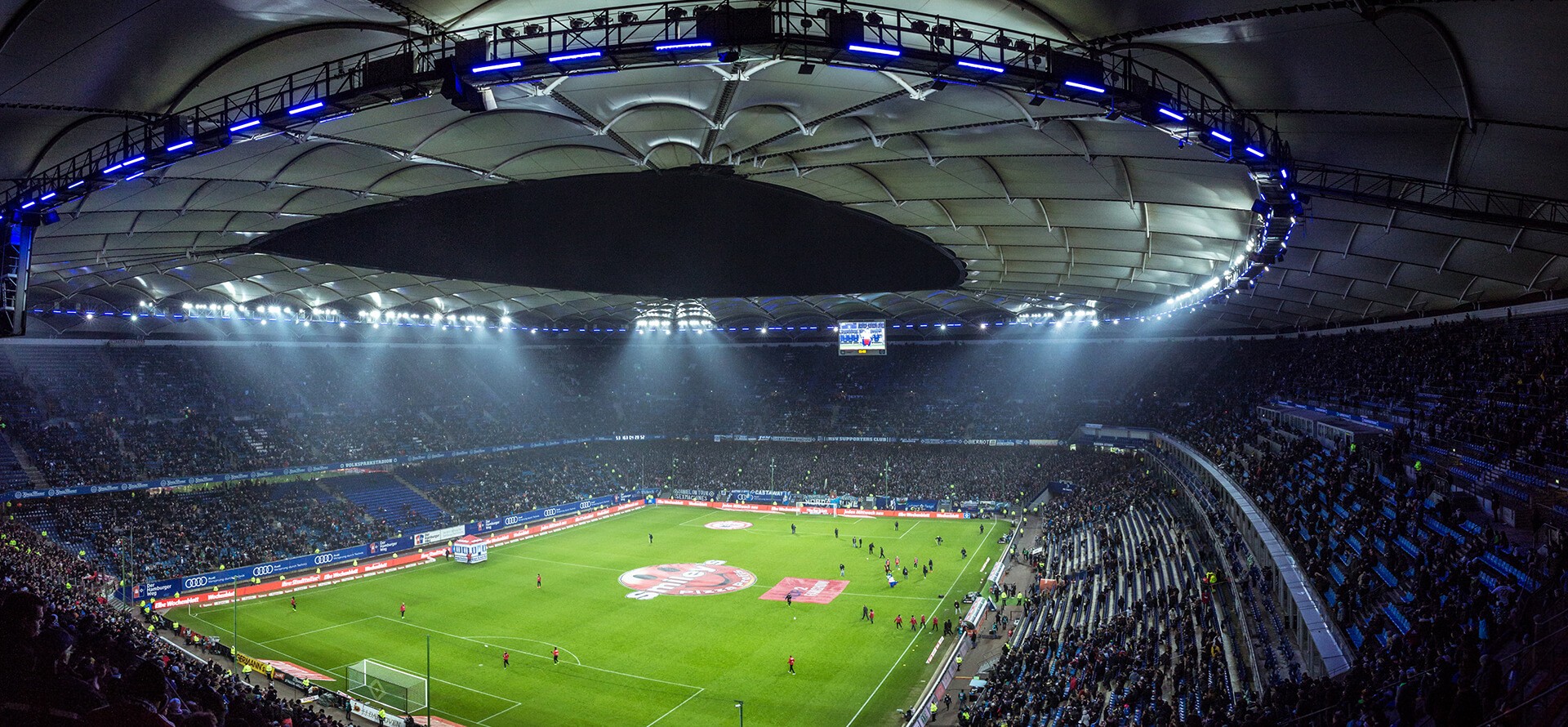

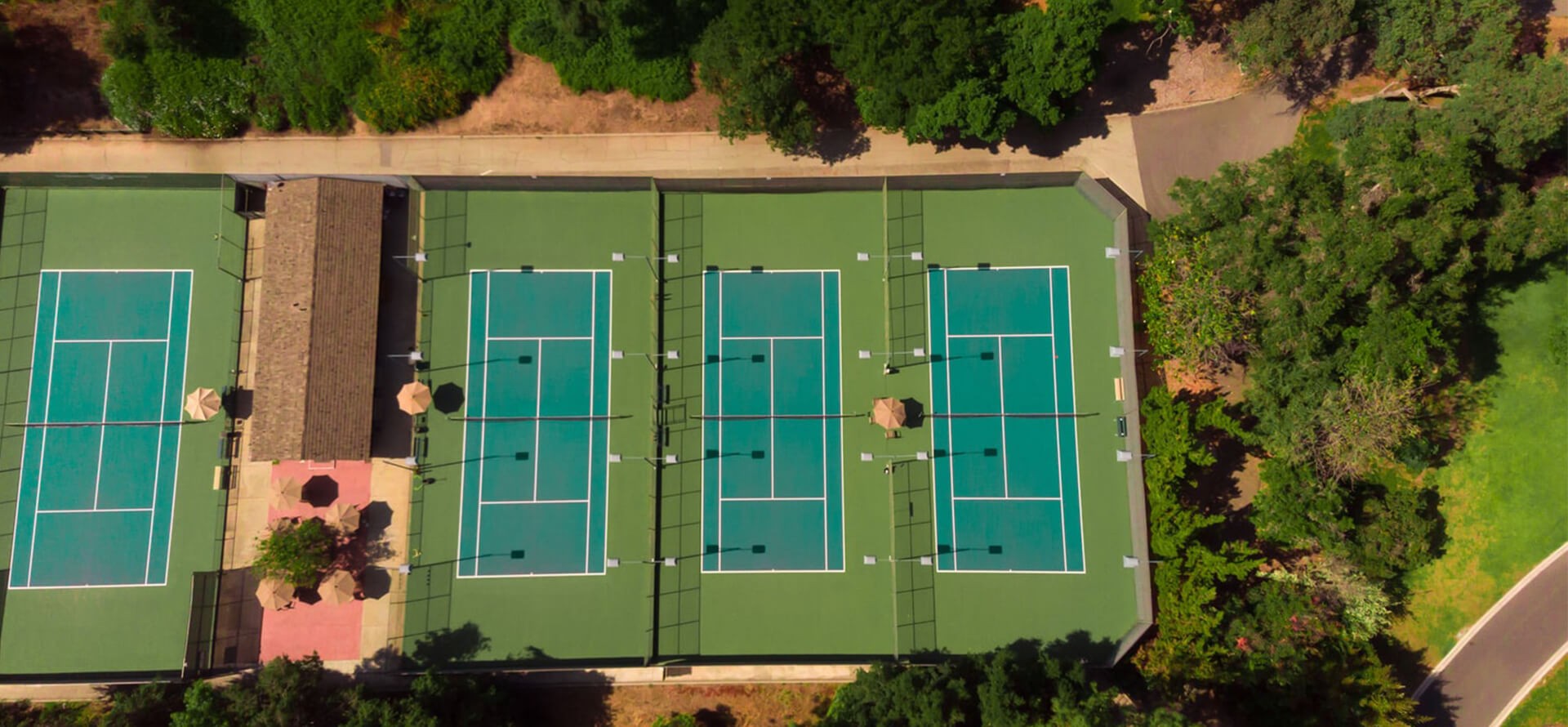

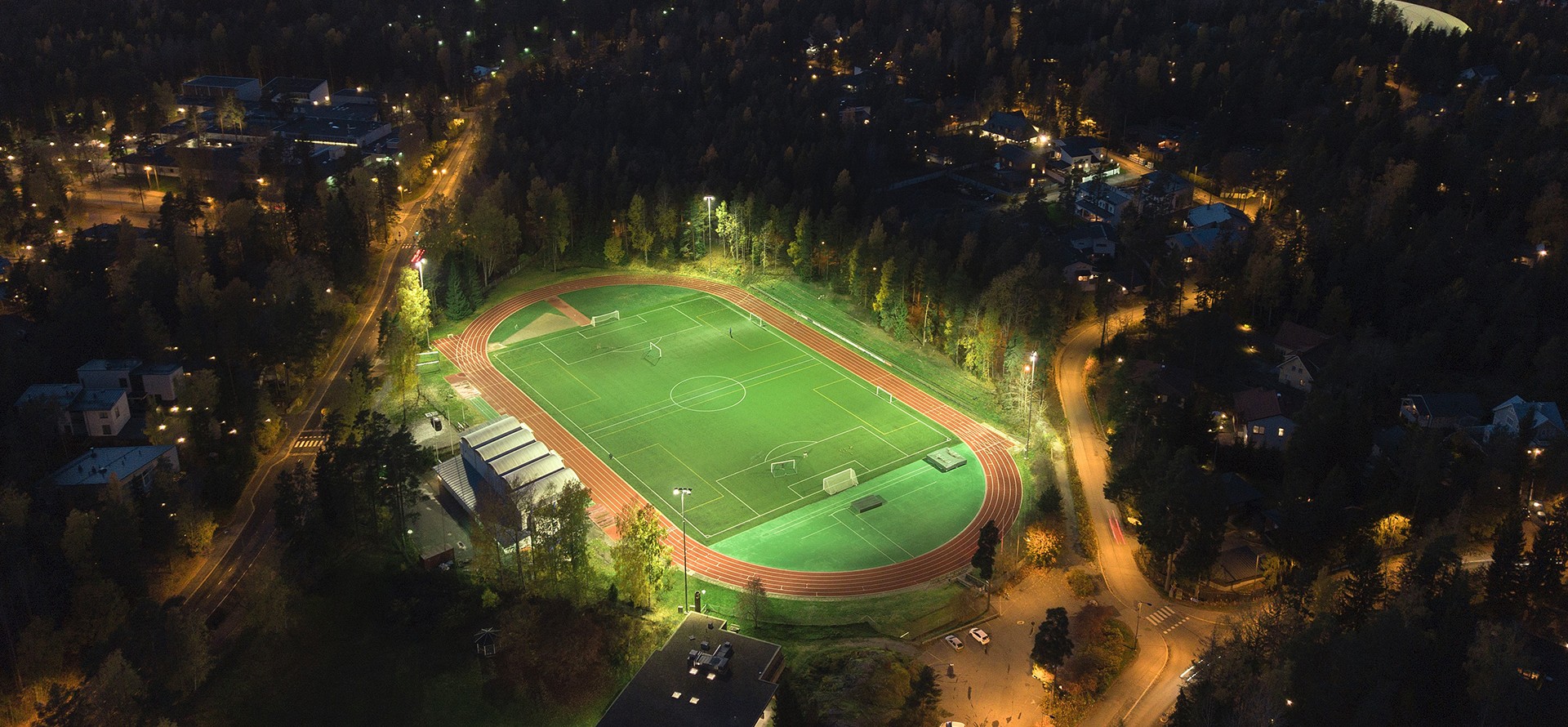

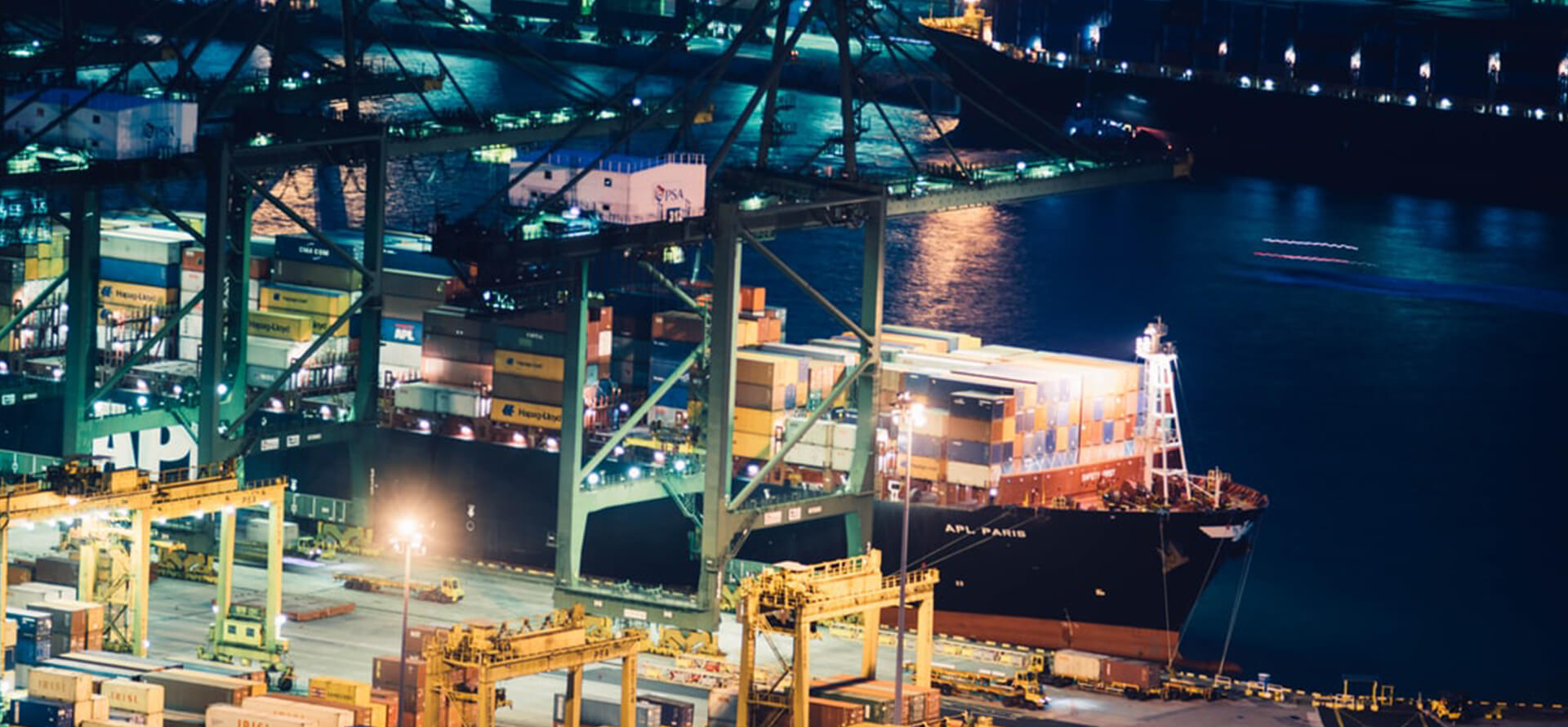

It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Cold Forging Technology with AL1070, Thermal Conductivity 236W/m*25℃
Integrated copper breather valve, balance internal and external temperature and humidity

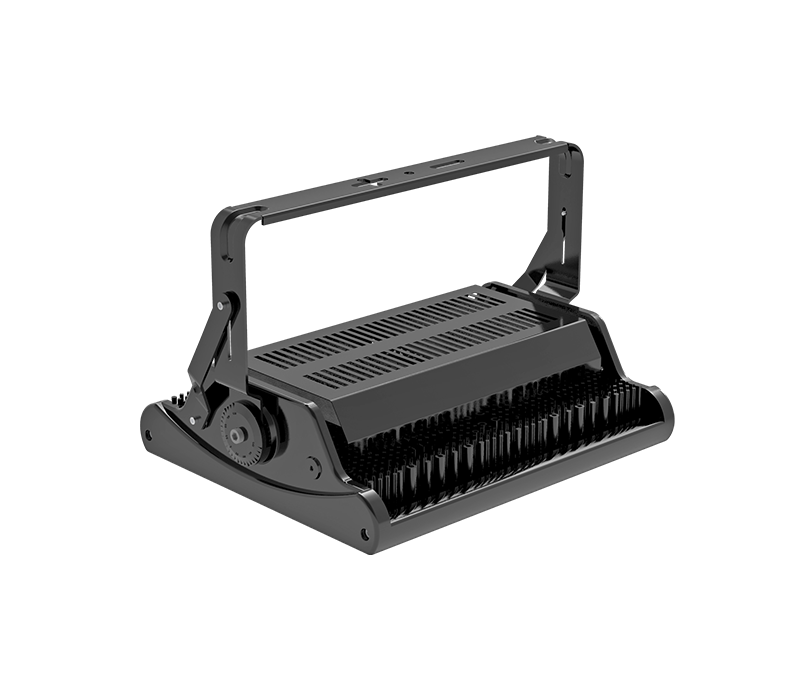

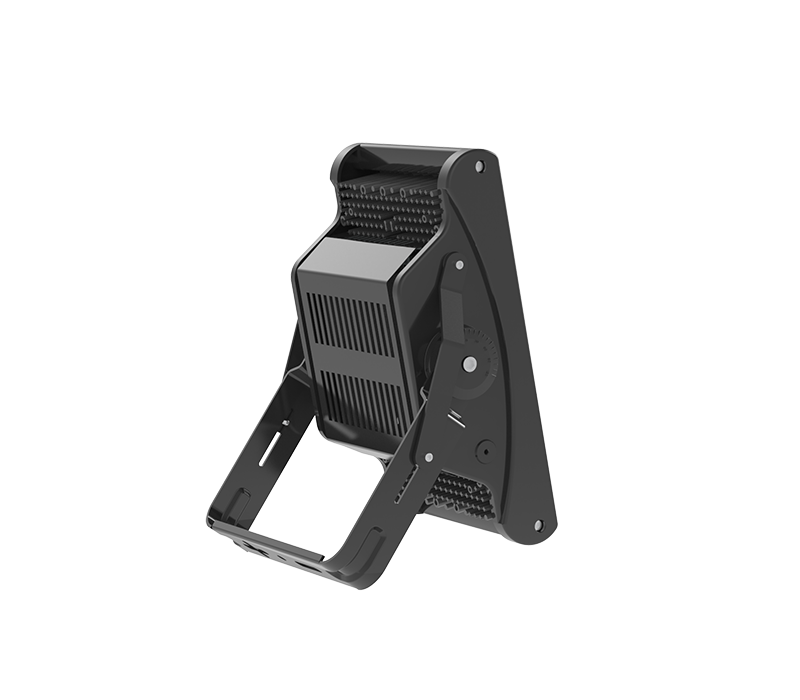

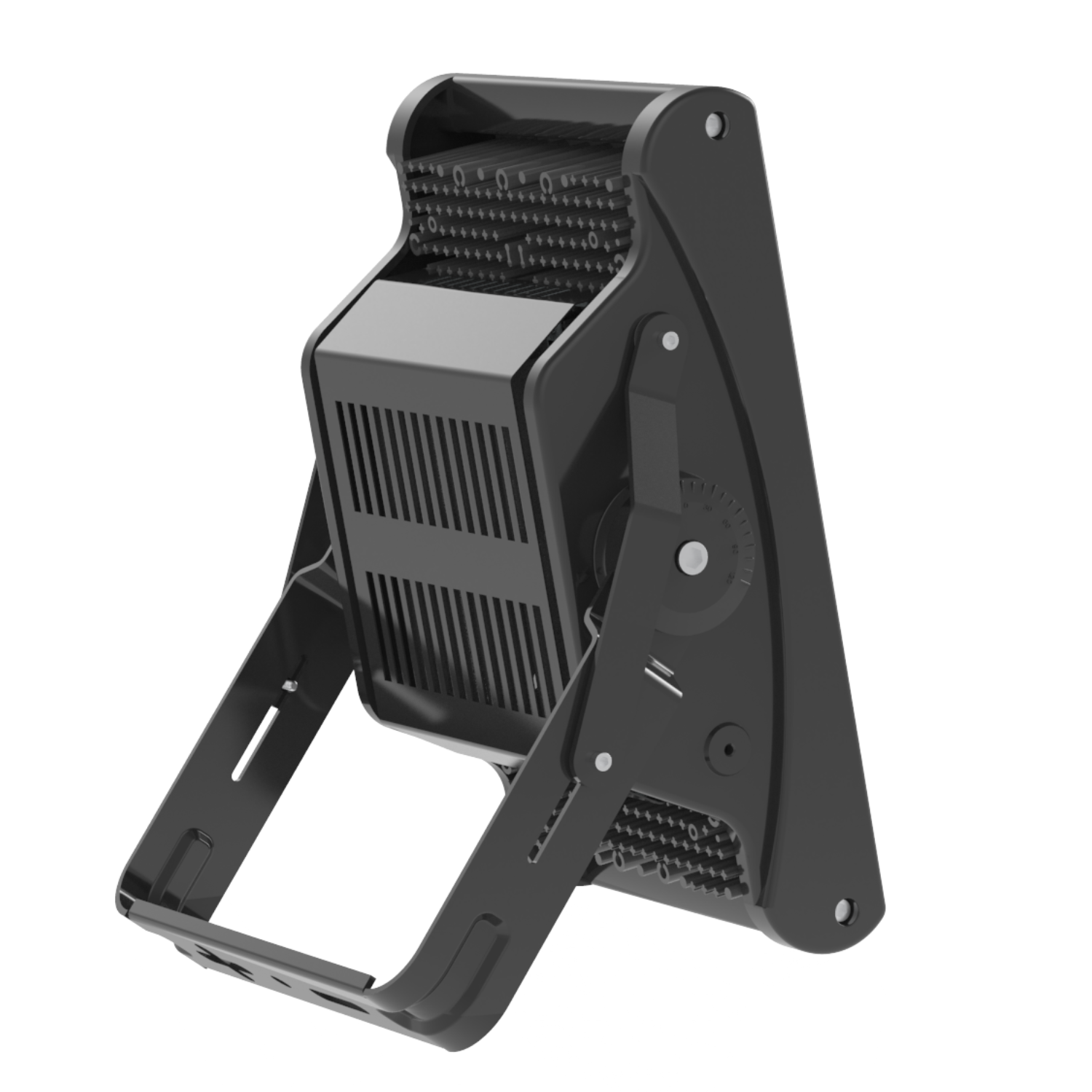

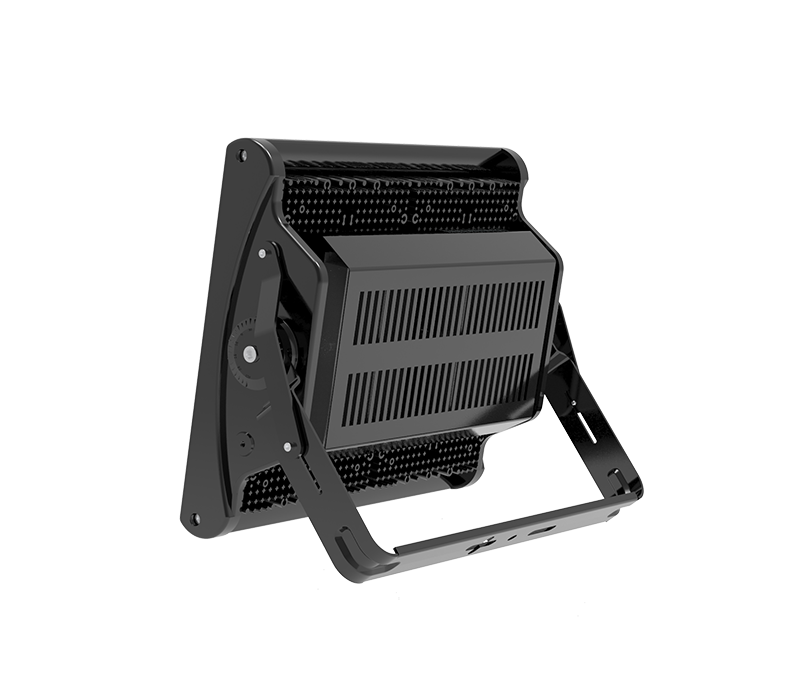

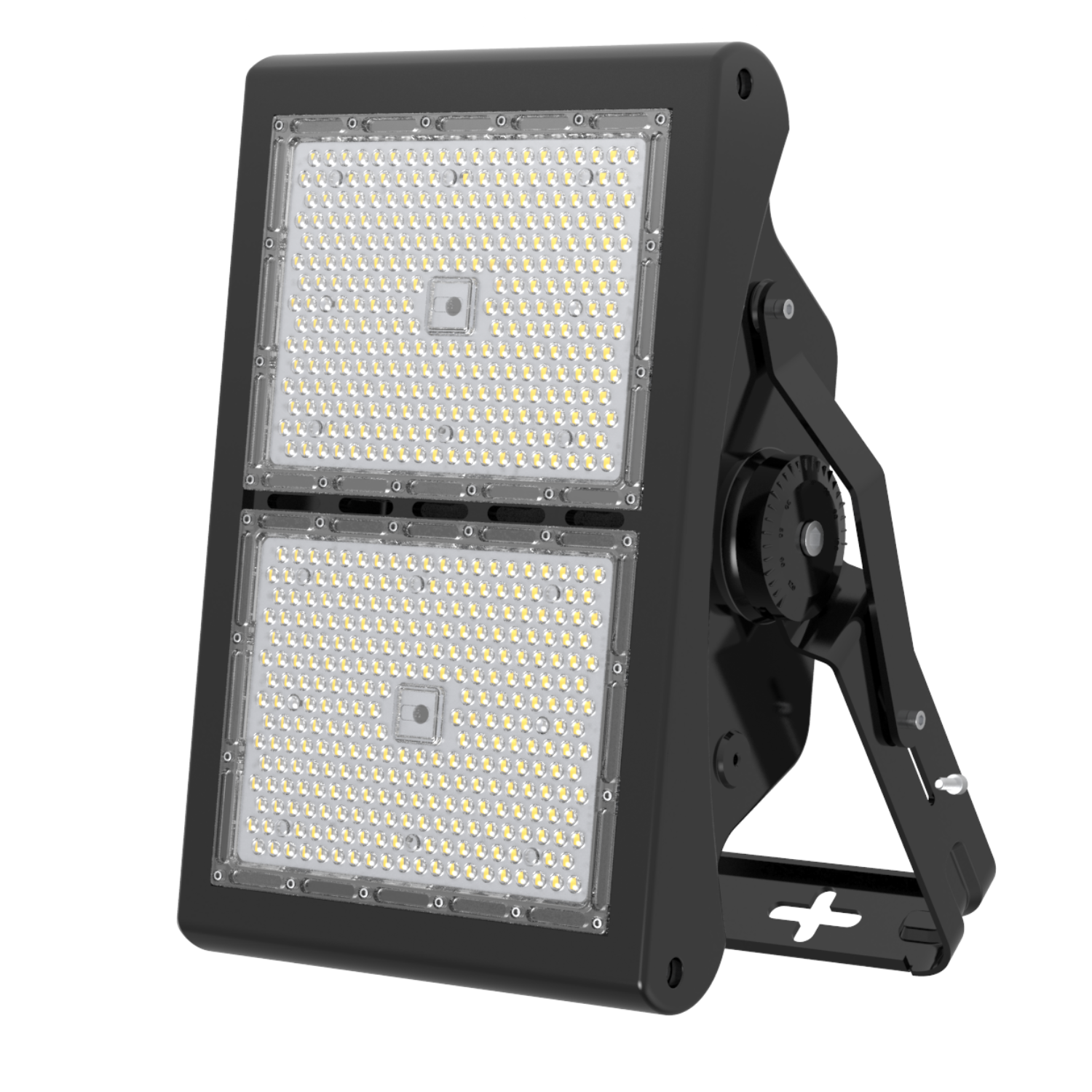

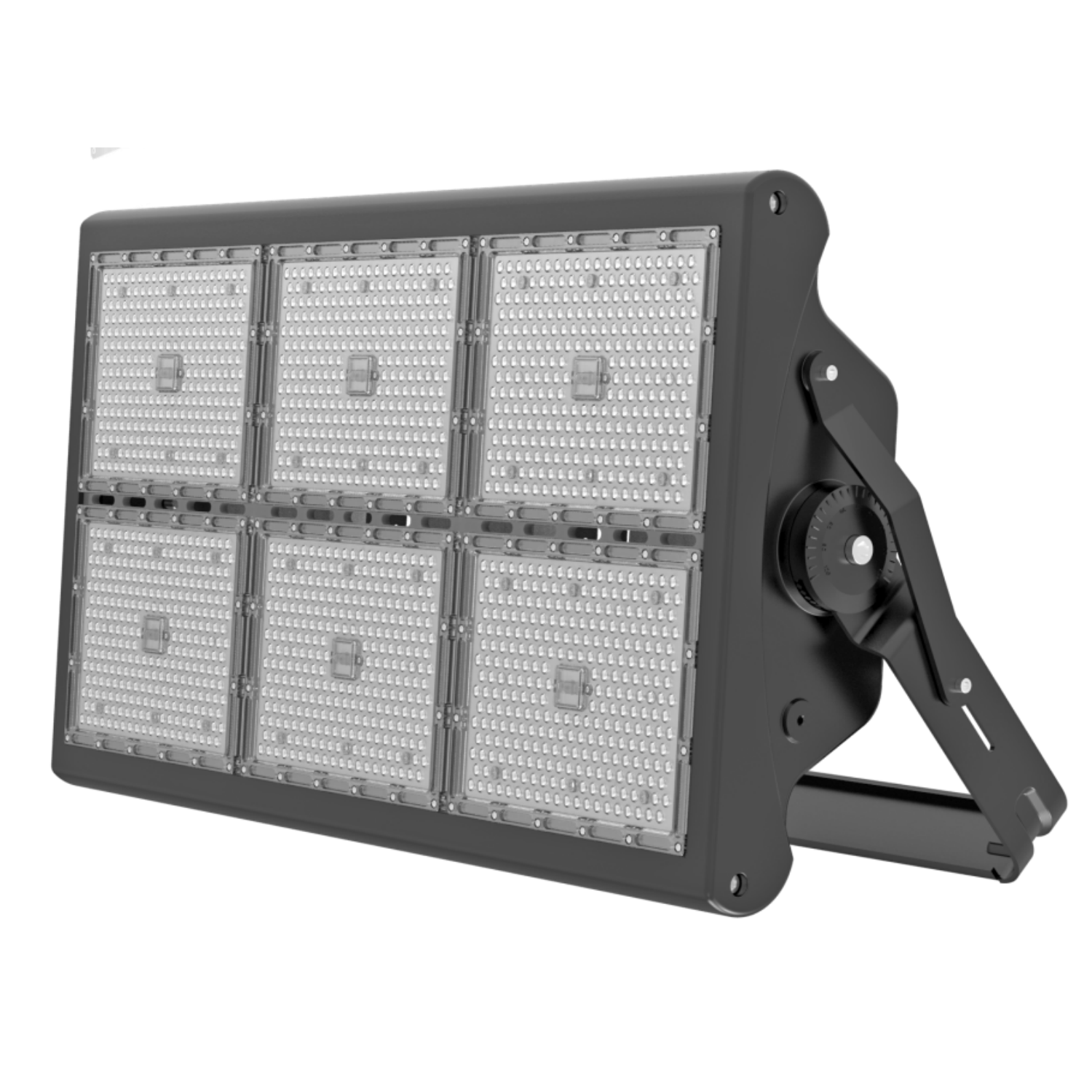

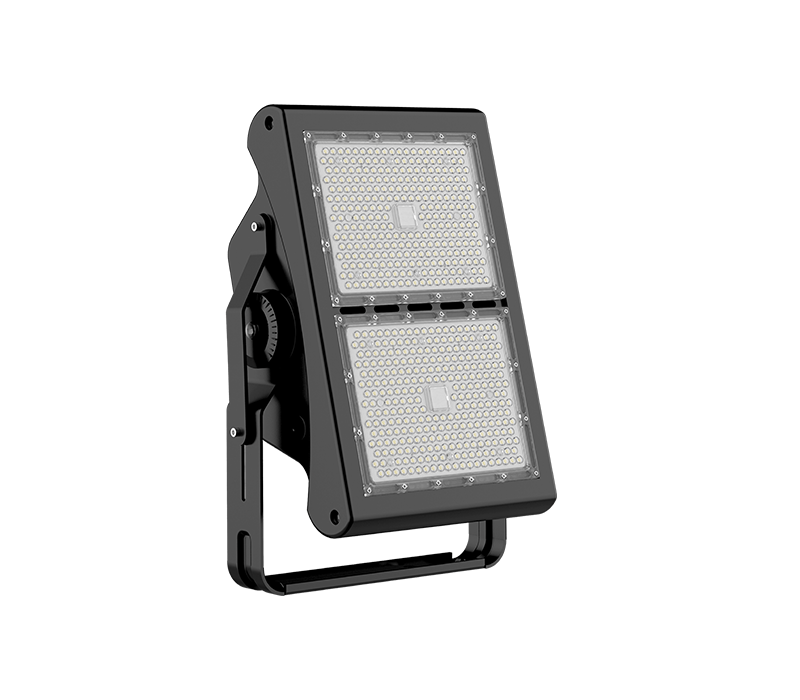

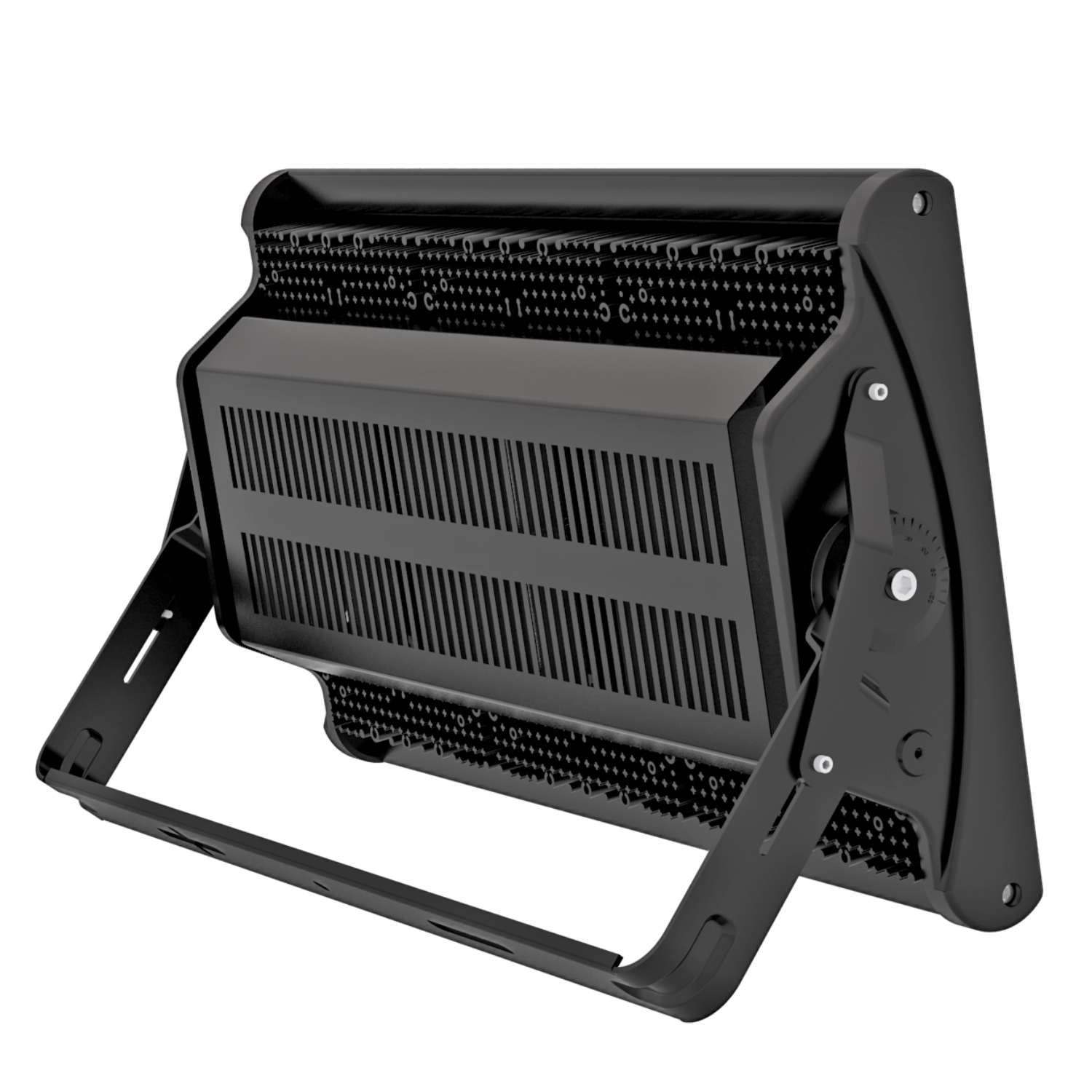

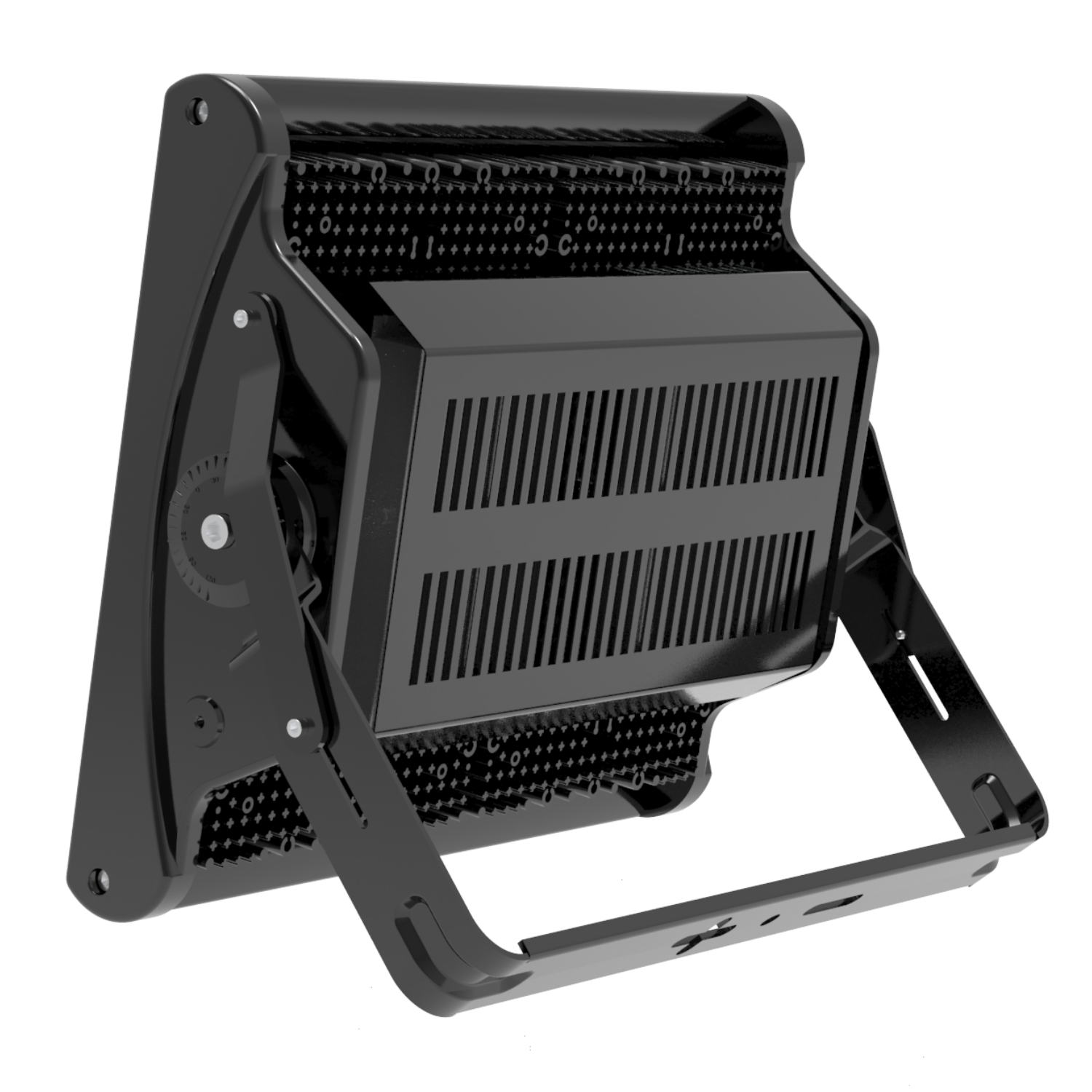

Extrusion Aluminum Frame, high mechanical strength and excellent thermal management
Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions,: 10°/25°/45°/60°/90°
Top brand LED chip and driver, ensure the product quality and lifetime
4mm thickness arm & brackets, anti-typhoon rating 17
Racked Angle allows for precise installation, up to 180°
Luminous Efficacy up to 140lm/W, Lifetime: 60,000H
Ingress Protection Rating: IP65
Operation Temperature: -35°-+50°
External 10KV SPD, provide extra surge protection
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%

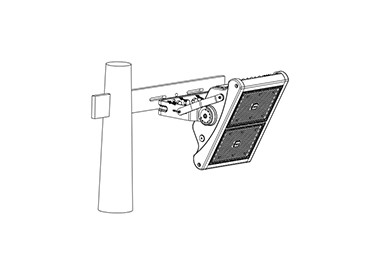

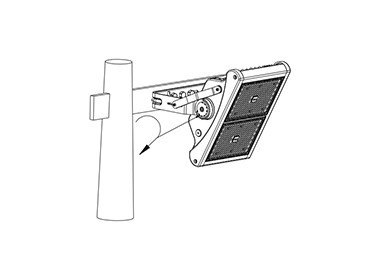

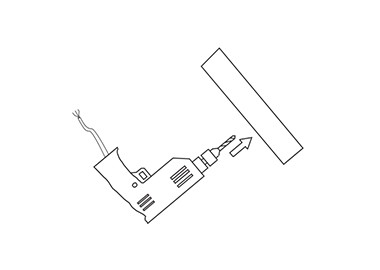

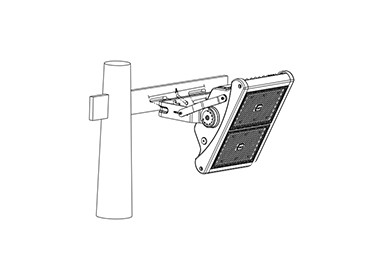

1. Please install the lamp according to the installation to avoid dropping and electric shock
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp
3. Working voltage is not to be exceeded AC100-277V 50/60Hz
1. Don't install the lamp to non-stable place

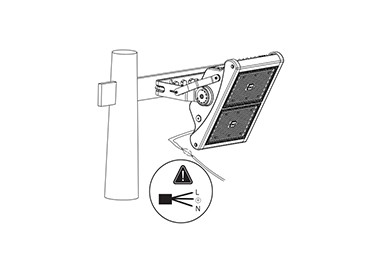

2. Installed by qualified eletrician

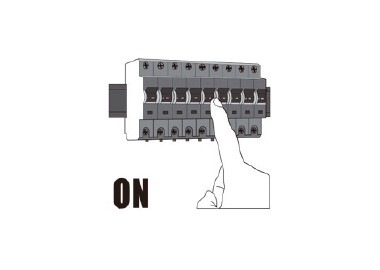

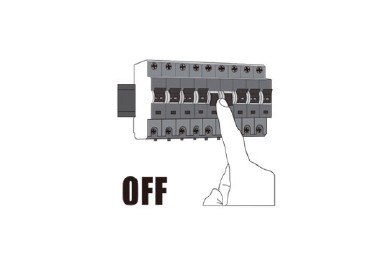

3. Switch off the switch box and contact certified electrician if the lamp works abnormally

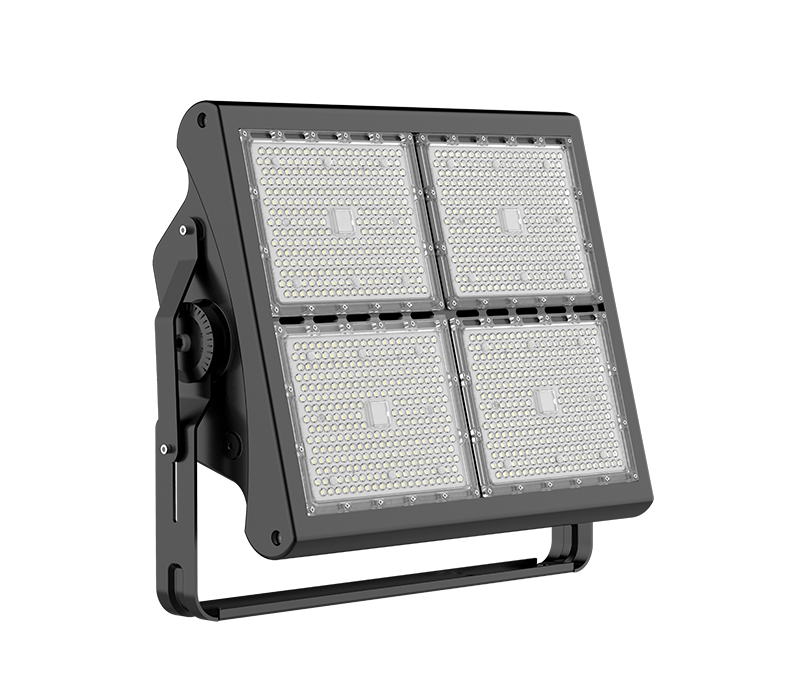

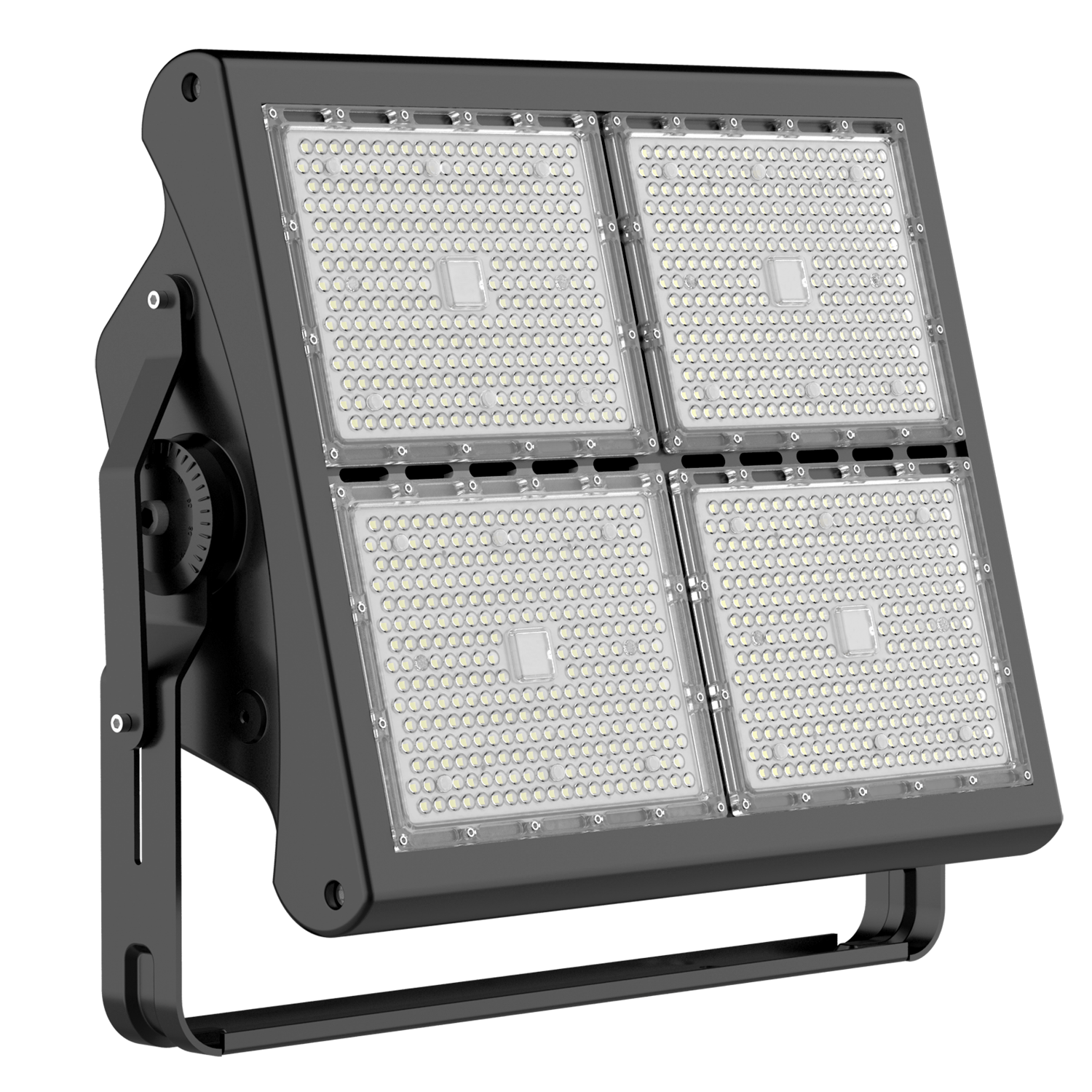

Model No. | ISL-QCD-B400W | ISL-QCD-B500W | ISL-QCD-B800W | ISL-QCD-B1000W | ISL-QCD-B1200W | ISL-QCD-B1500W |
Rated Power | 400W | 500W | 800W | 1000W | 1200W | 1500W |
Input Voltage | AC100~277V | |||||
LED Chip | Lumileds/CREE | |||||
LED Driver | Sosen/Meanwell ELG/HLG | |||||
Material | 1070 Cold Forge +Lens | |||||
CRI | Ra>70 | |||||
Power Factor | PF>0.95 | |||||
CCT | 2700-6500K | |||||
Light Efficacy | 140lm/W | |||||
IP Rating | IP66 | |||||
IK Rating | IK08, IK10 Available | |||||
Operation Temperature | ﹣35°C- +50°C | |||||
Beam Angle | 10°/25°/45°/60°/90° | |||||
Warranty | 5years, 7years | |||||
Lifespan | 50,000Hrs | |||||
Dimension | L325xW472xH160mm | L325xW472xH160mm | L629xW536xH160mm | L629xW536xH160mm | L890xW536xH160mm | L890xW536xH160mm |
Packing | 650*475*265mm | 650*475*265mm | 775*660*265mm | 775*660*265mm | 1005*685*265mm | 1005*685*265mm |
Weight | N.W: 15KG / G.W:18KG | N.W: 15KG / G.W:18KG | N.W: 28KG / G.W:31KG | N.W: 28KG / G.W:31KG | N.W: 39KG / G.W:43KG | N.W: 39KG / G.W:43KG |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS |
Specification
IES Files
Integrating Sphere
