Roads, highways, viaducts, city streets, overpasses, sidewalks; and outdoor lighting places such as squares, schools, residential areas and parks.>

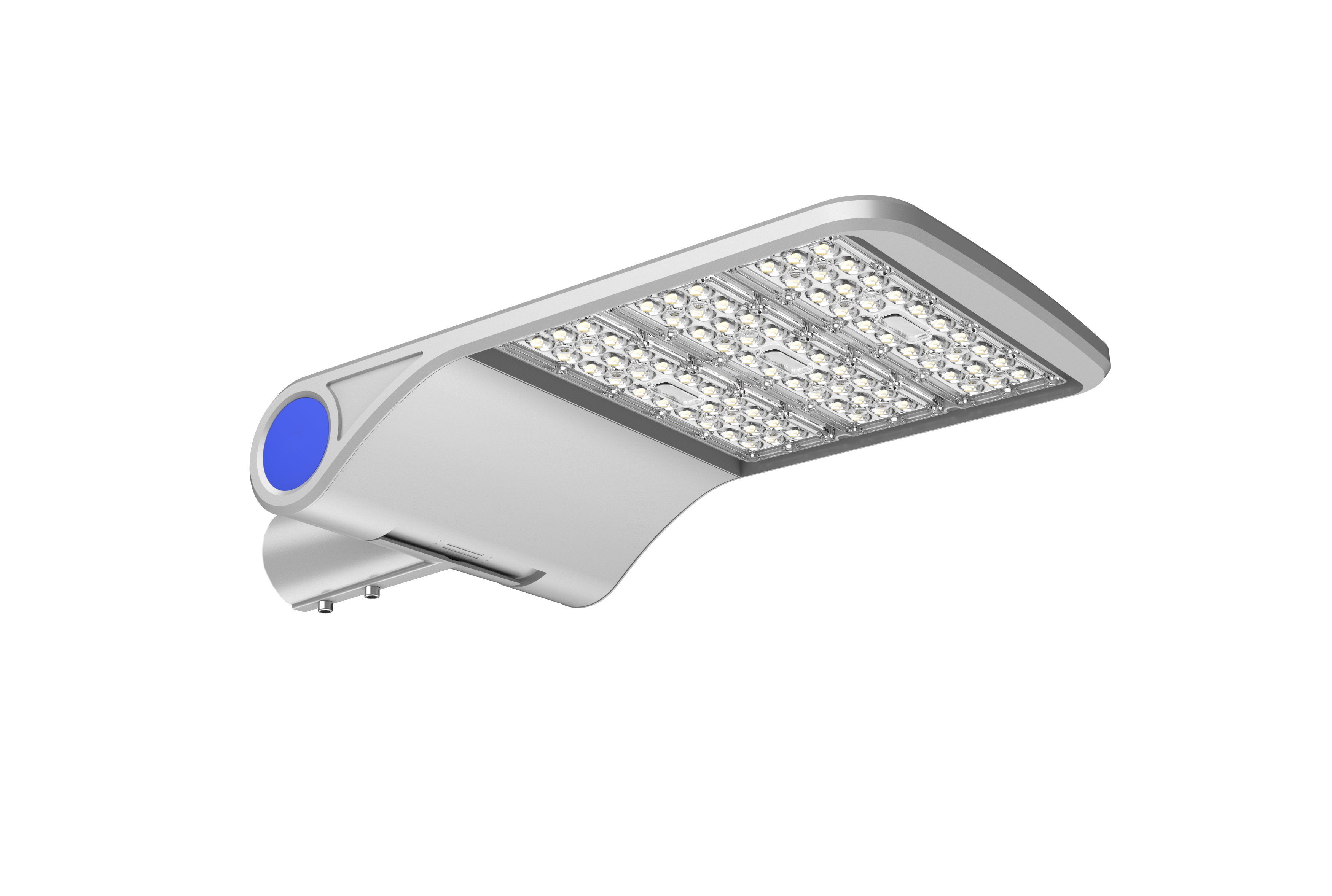

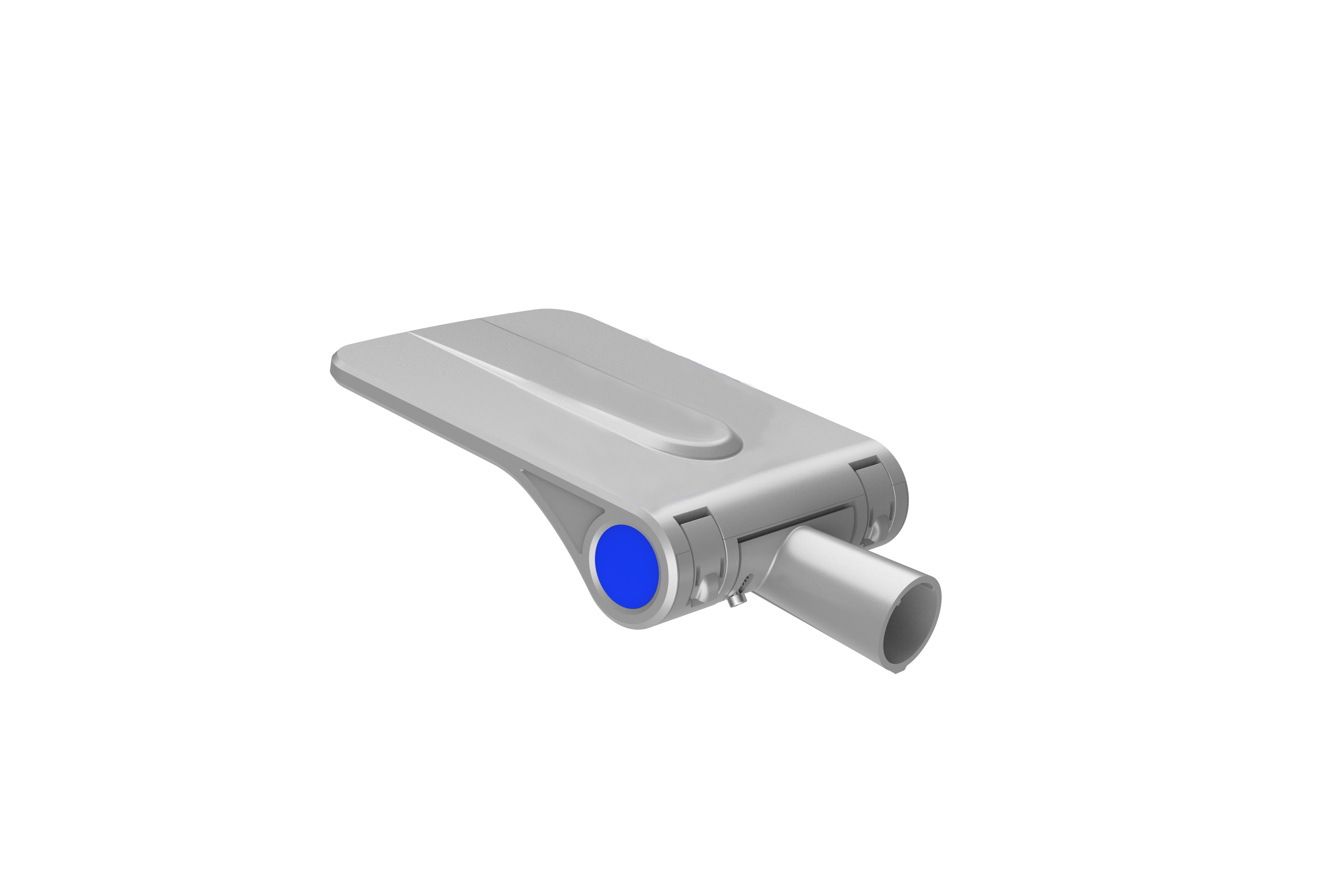

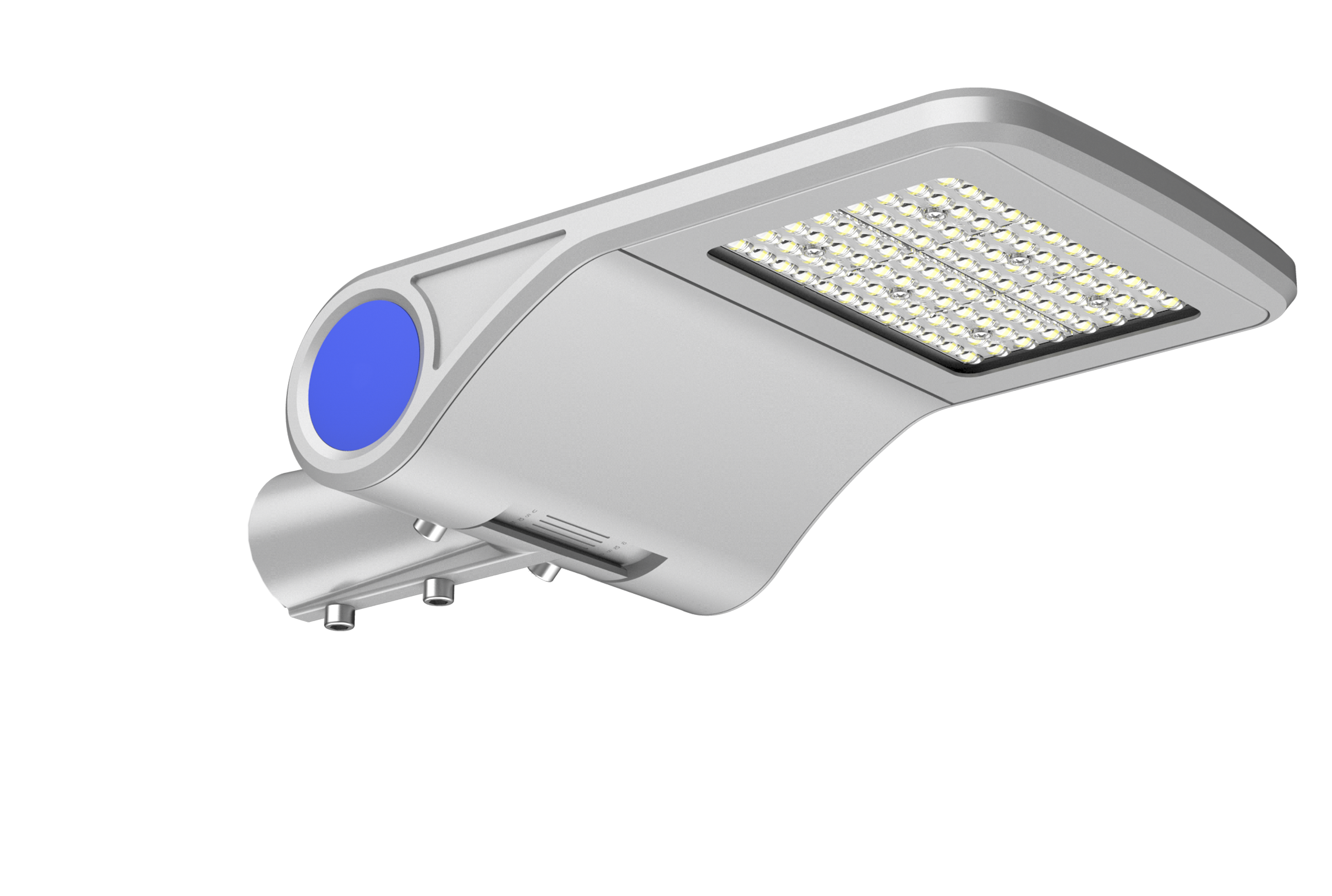

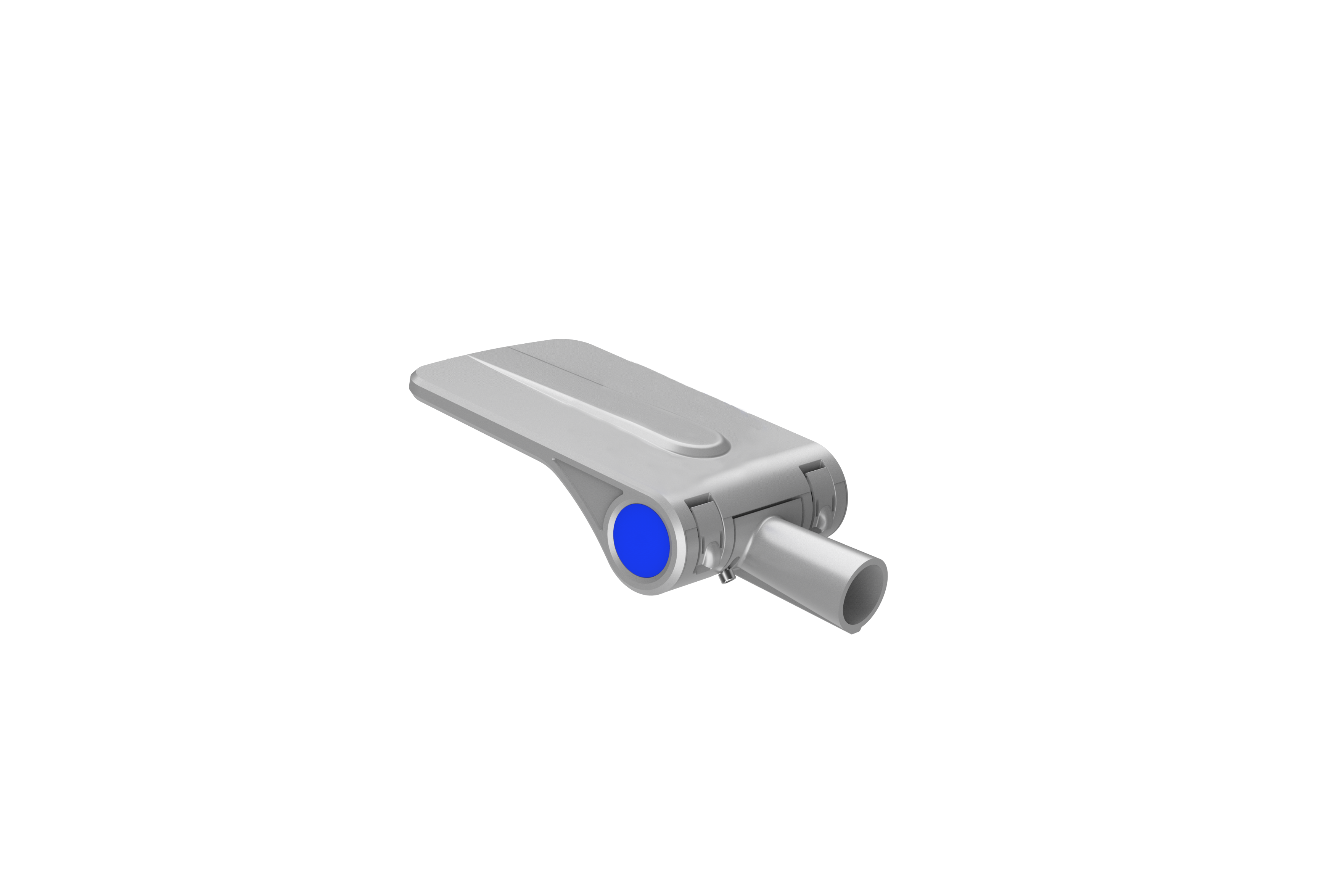

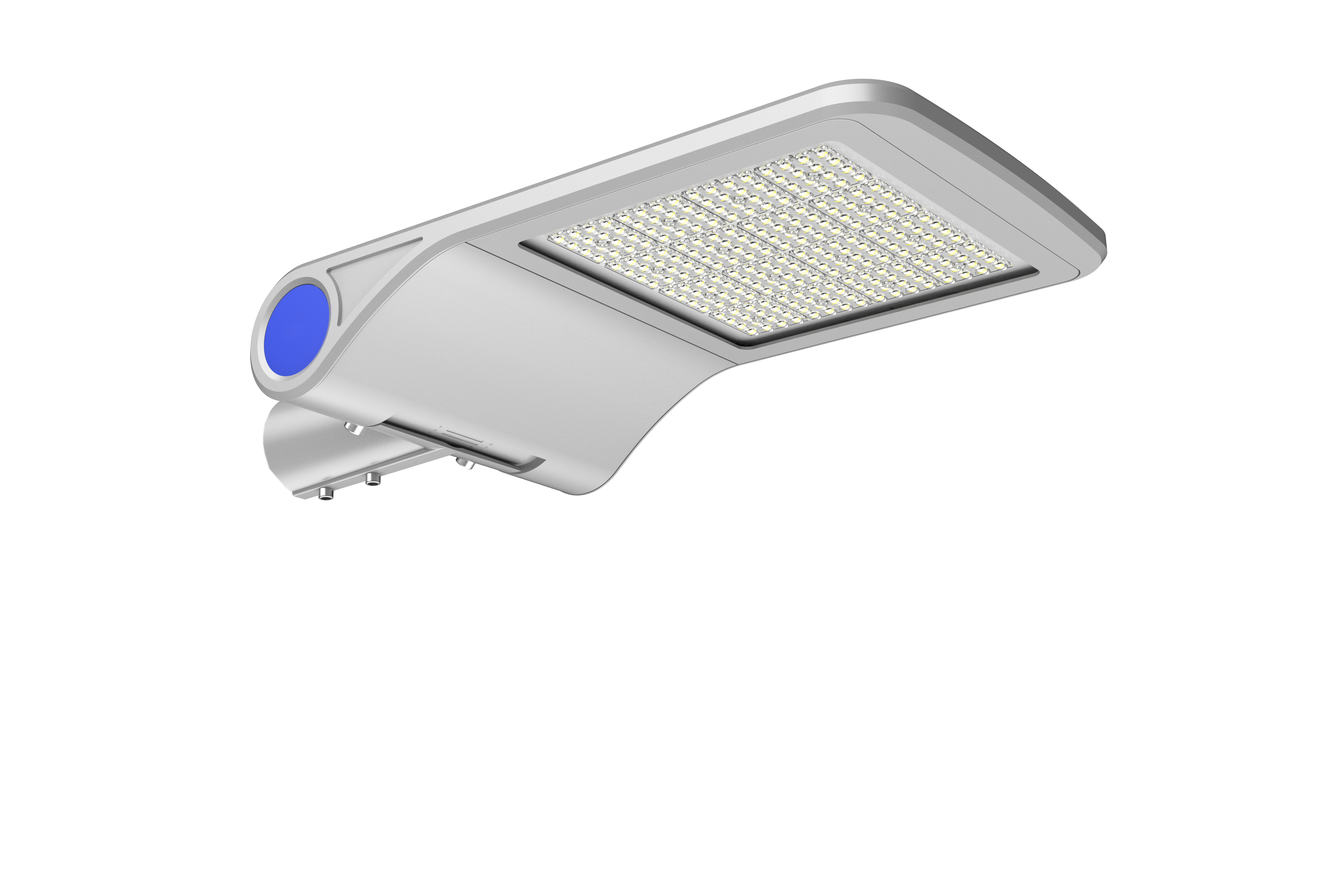

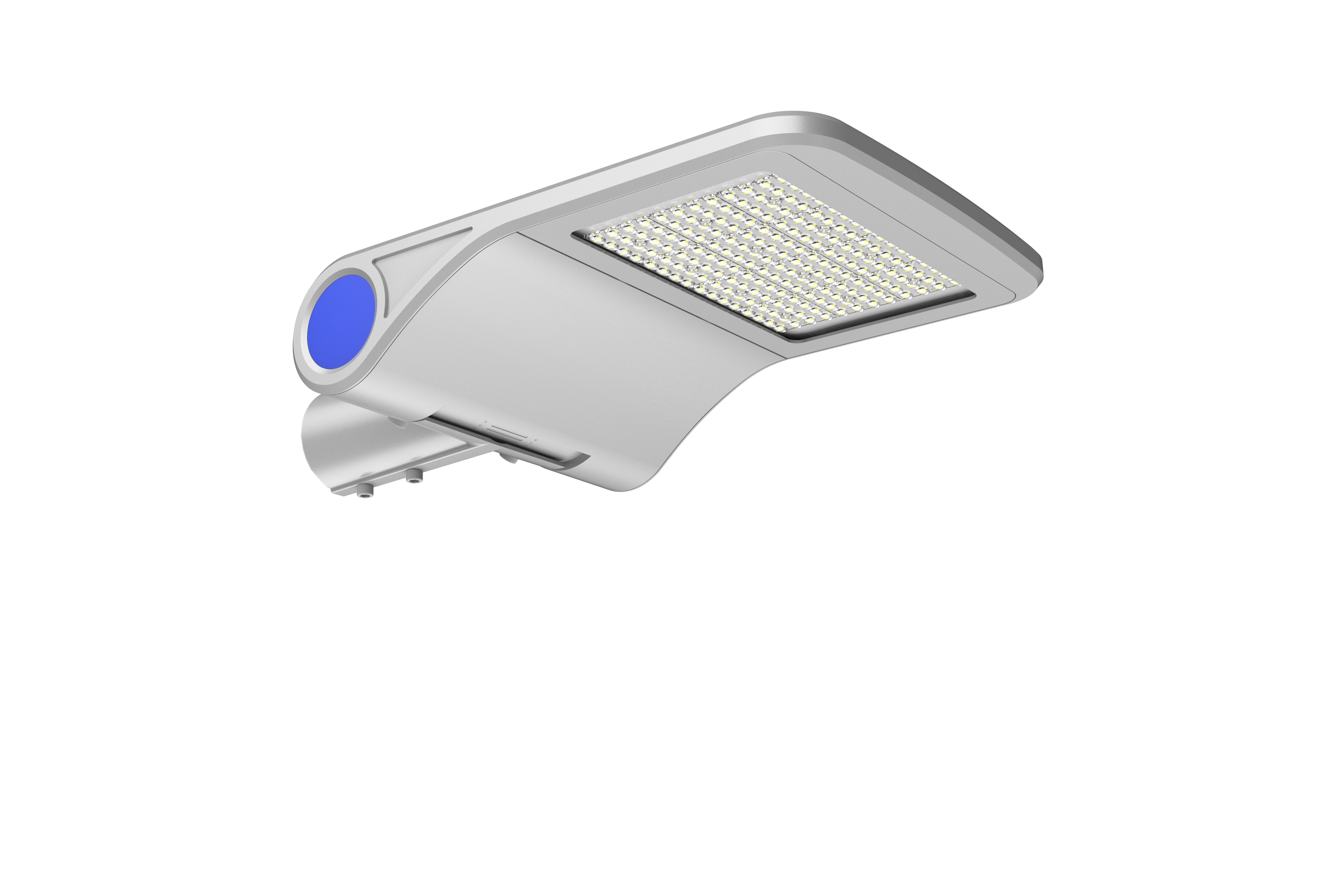

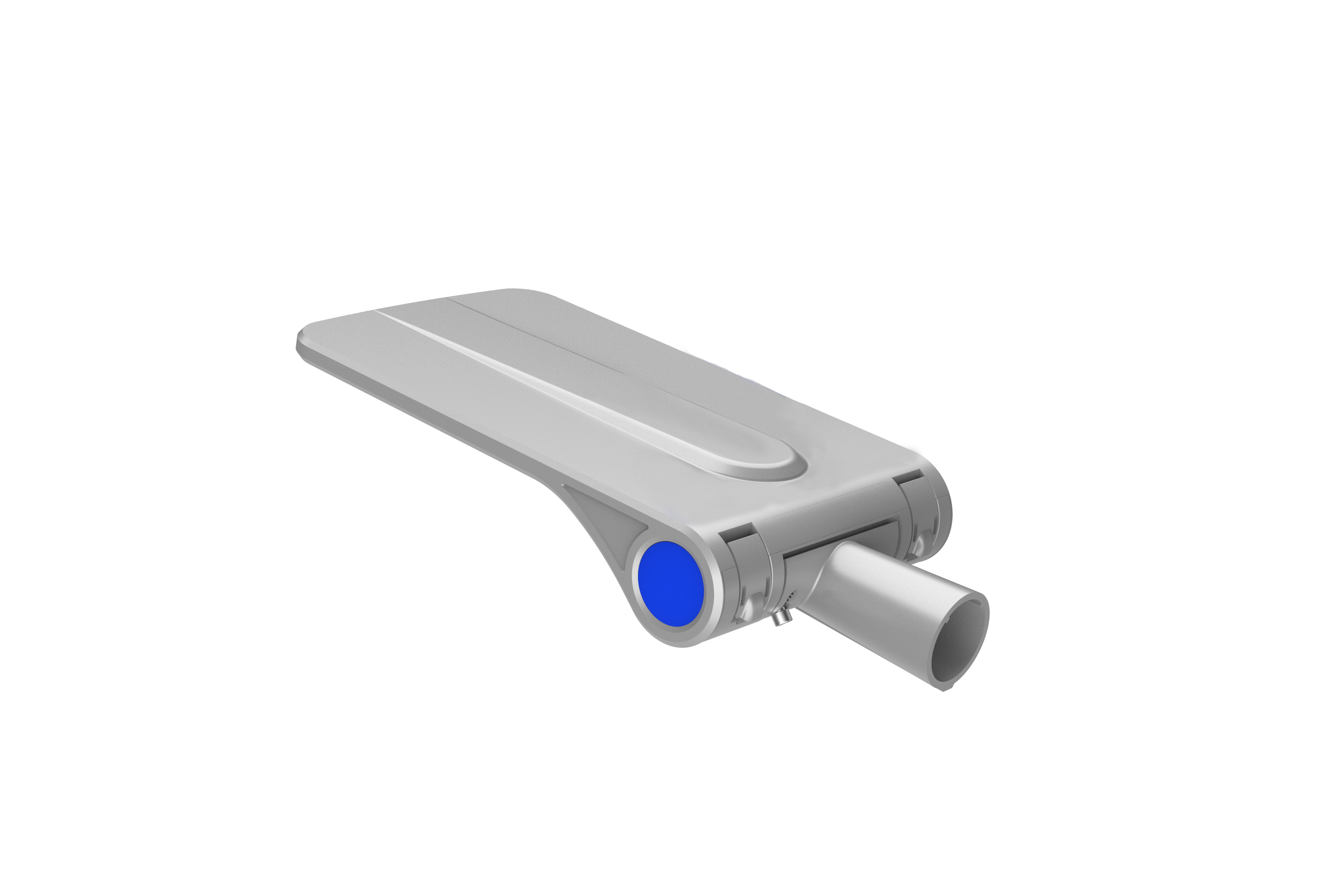

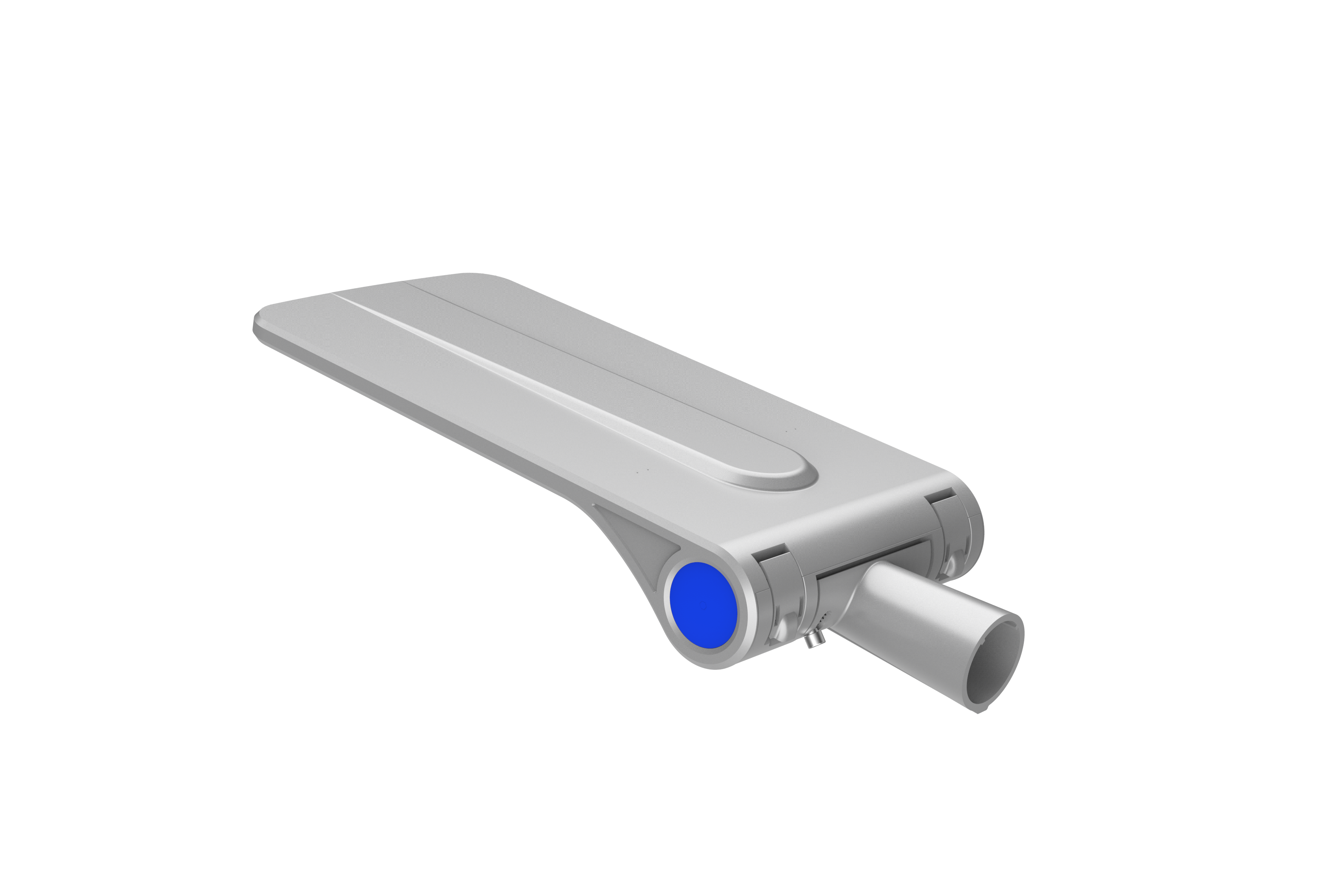

Die Casting Aluminum Housing with Smooth Back Cover Design, no dust and water will stay on the housing
Luminous Efficacy up to 150lm/W, Lifetime: 60,000H
Ingress Protection Rating: IP66

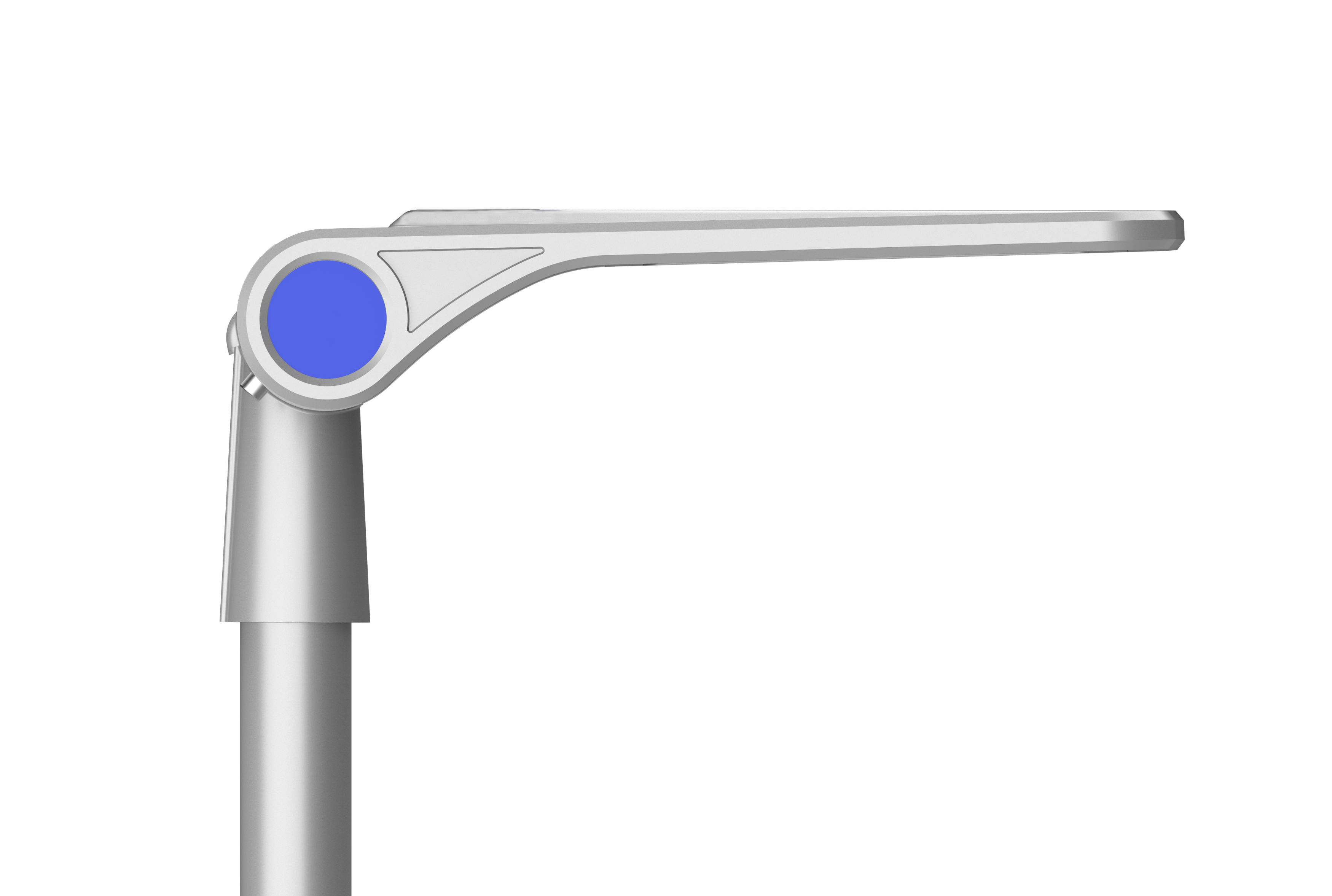

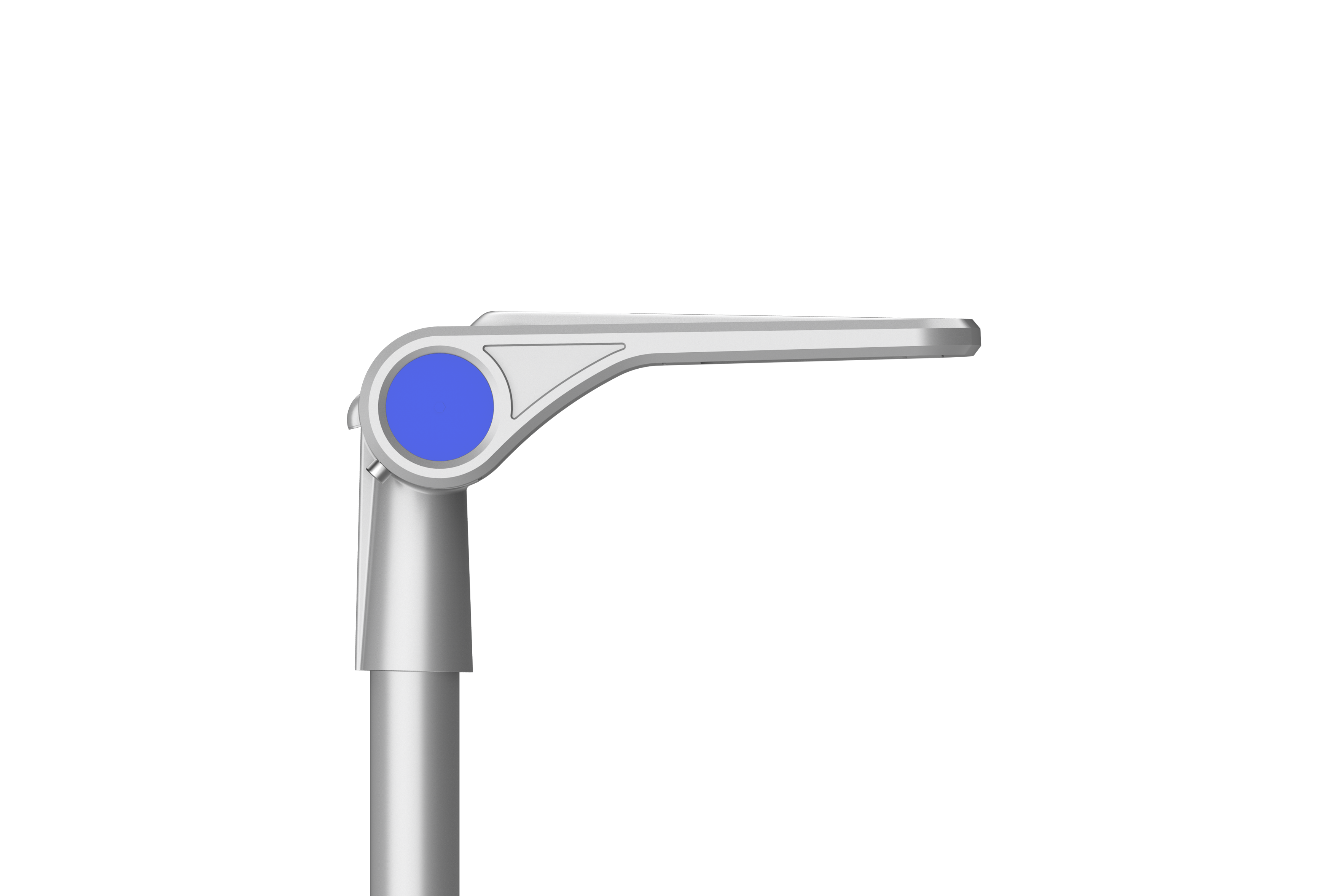

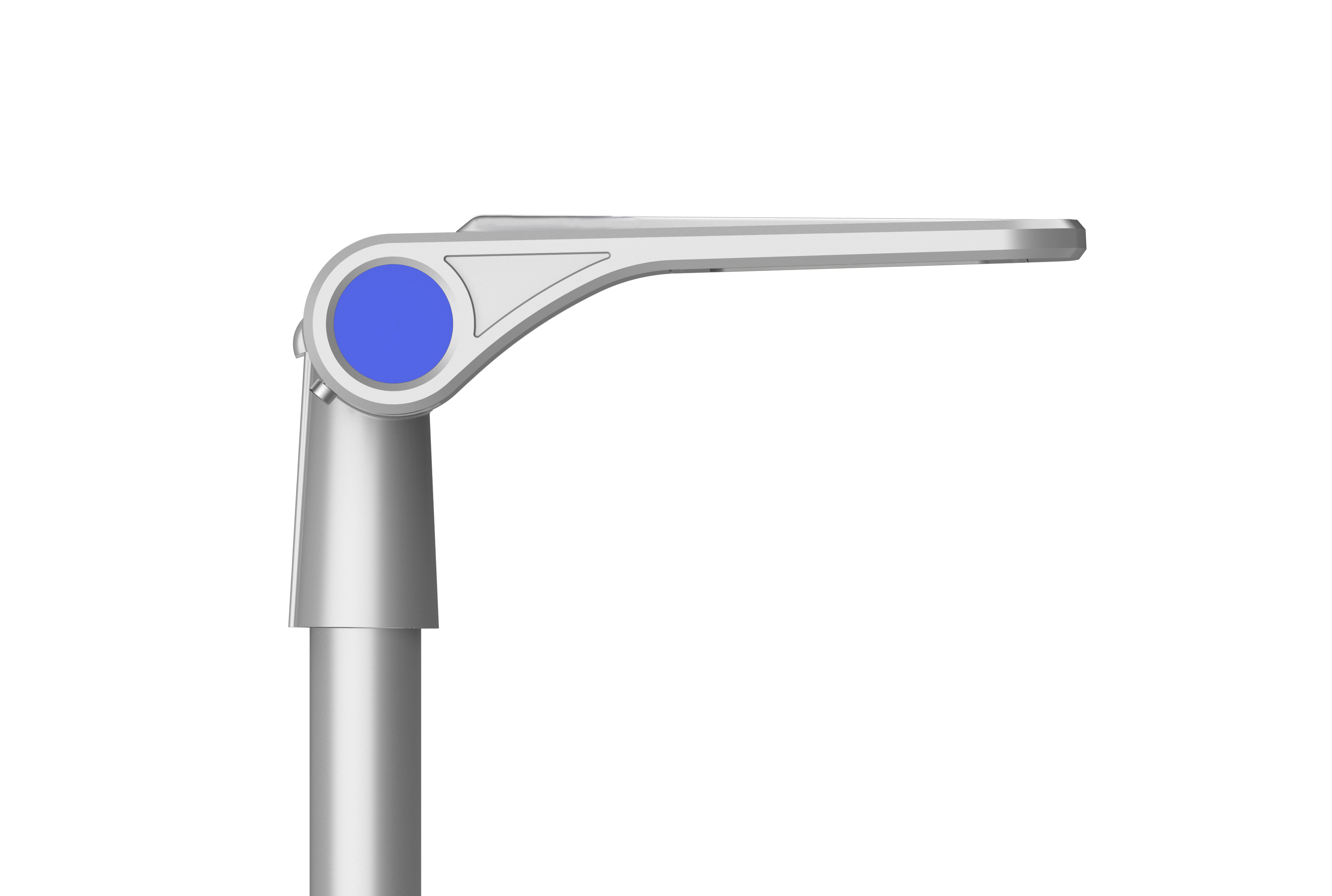

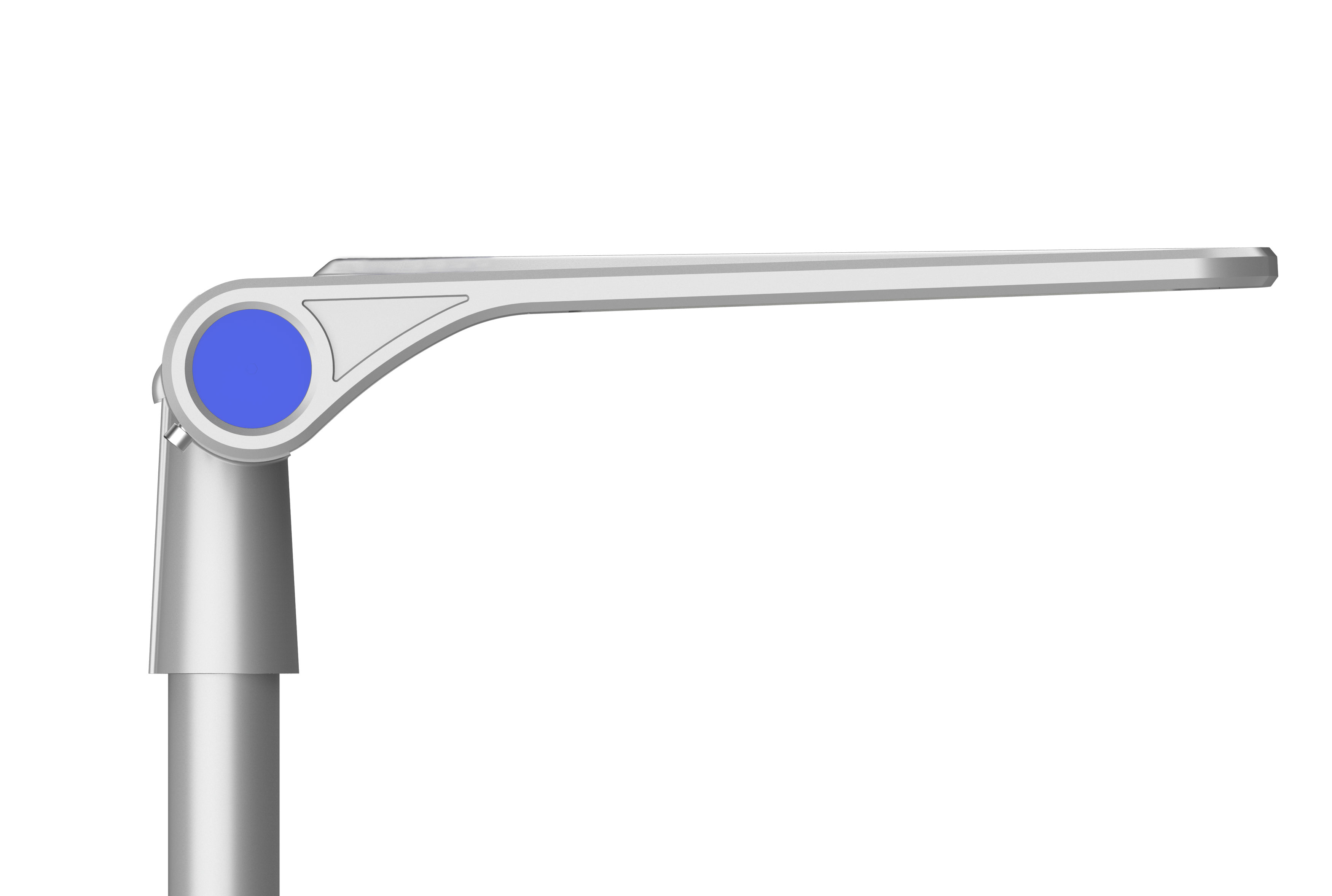

Post Top Or Side Entry, -20°-+20° Title
Opening by two clips, tool-less design
Spirit Level

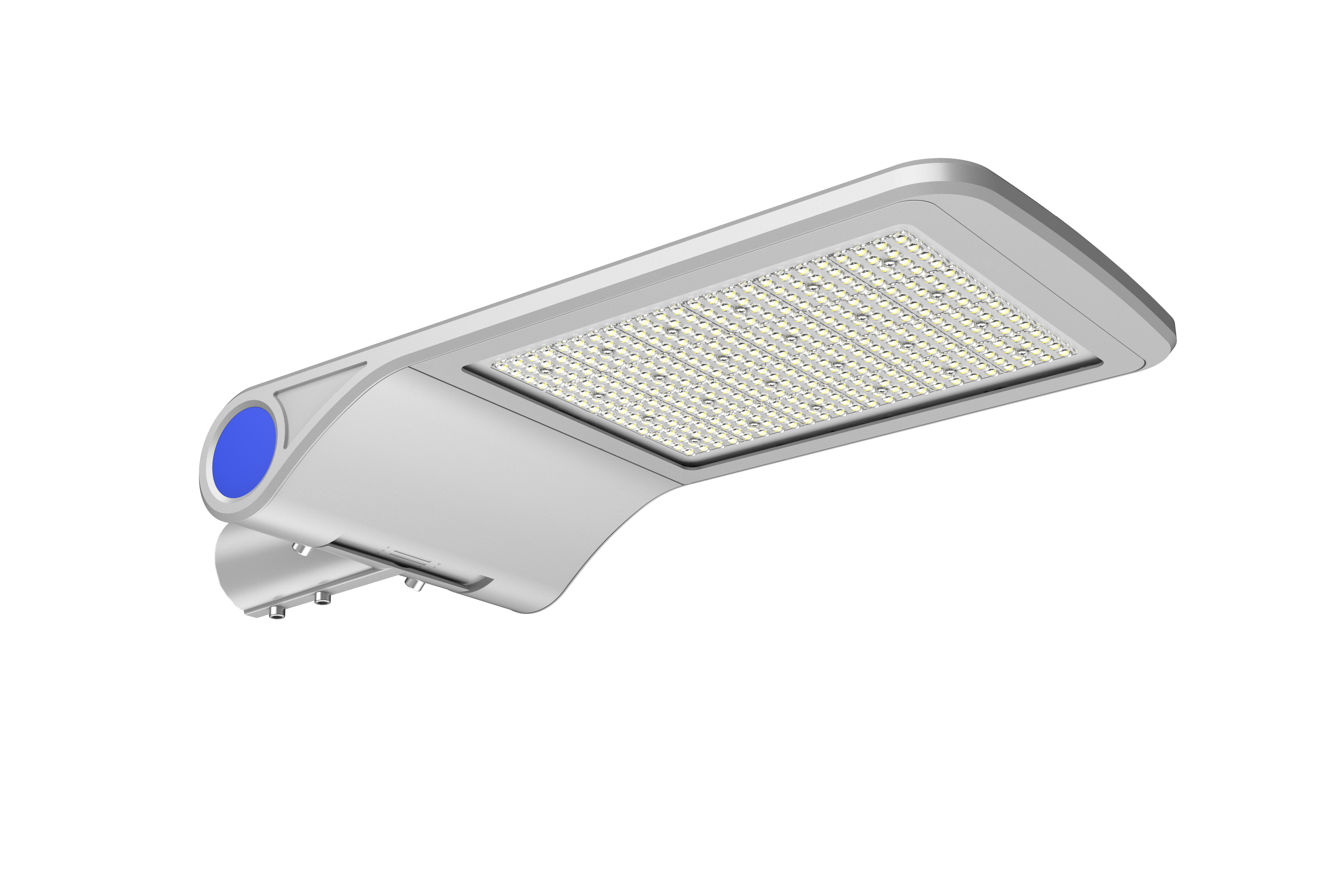

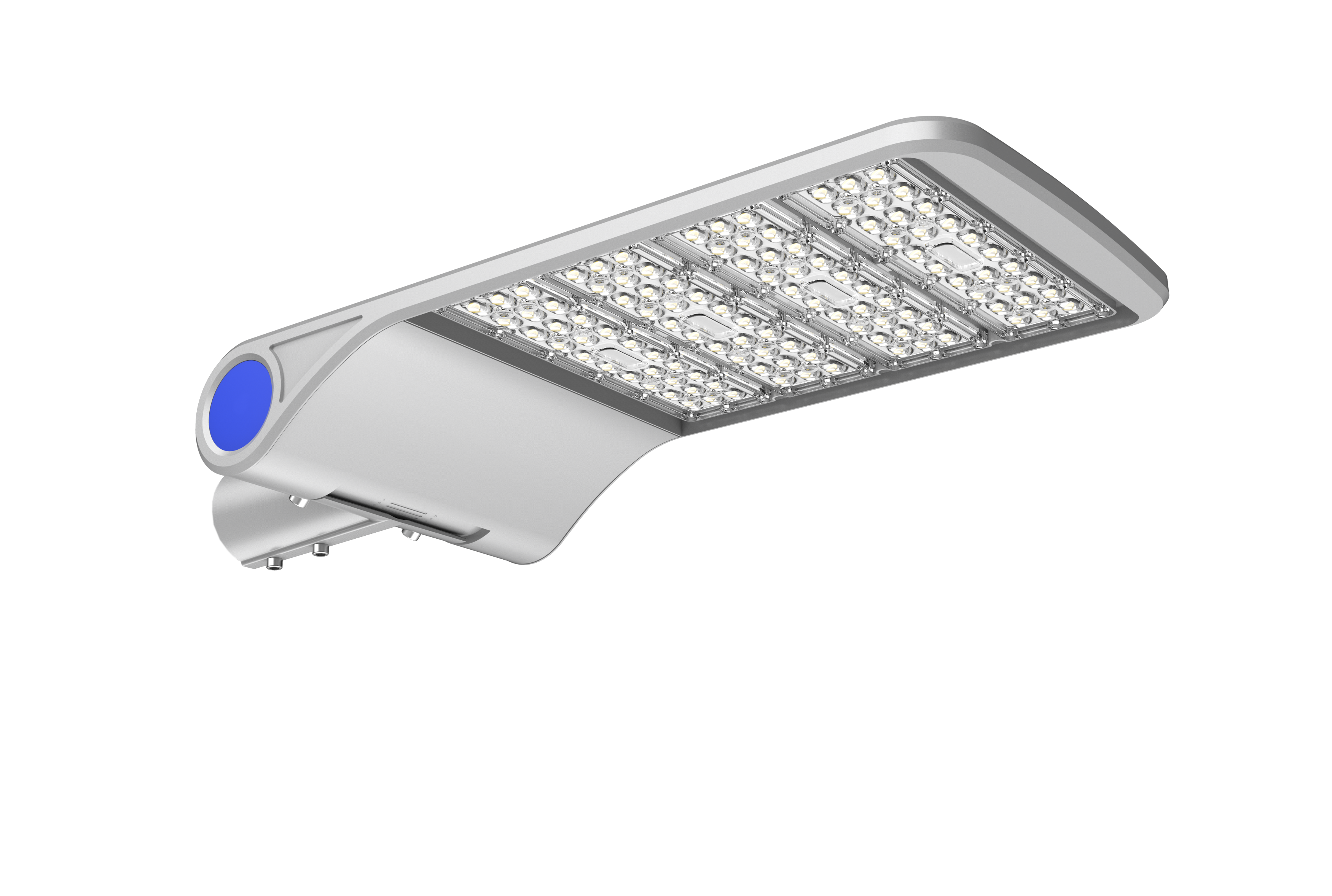

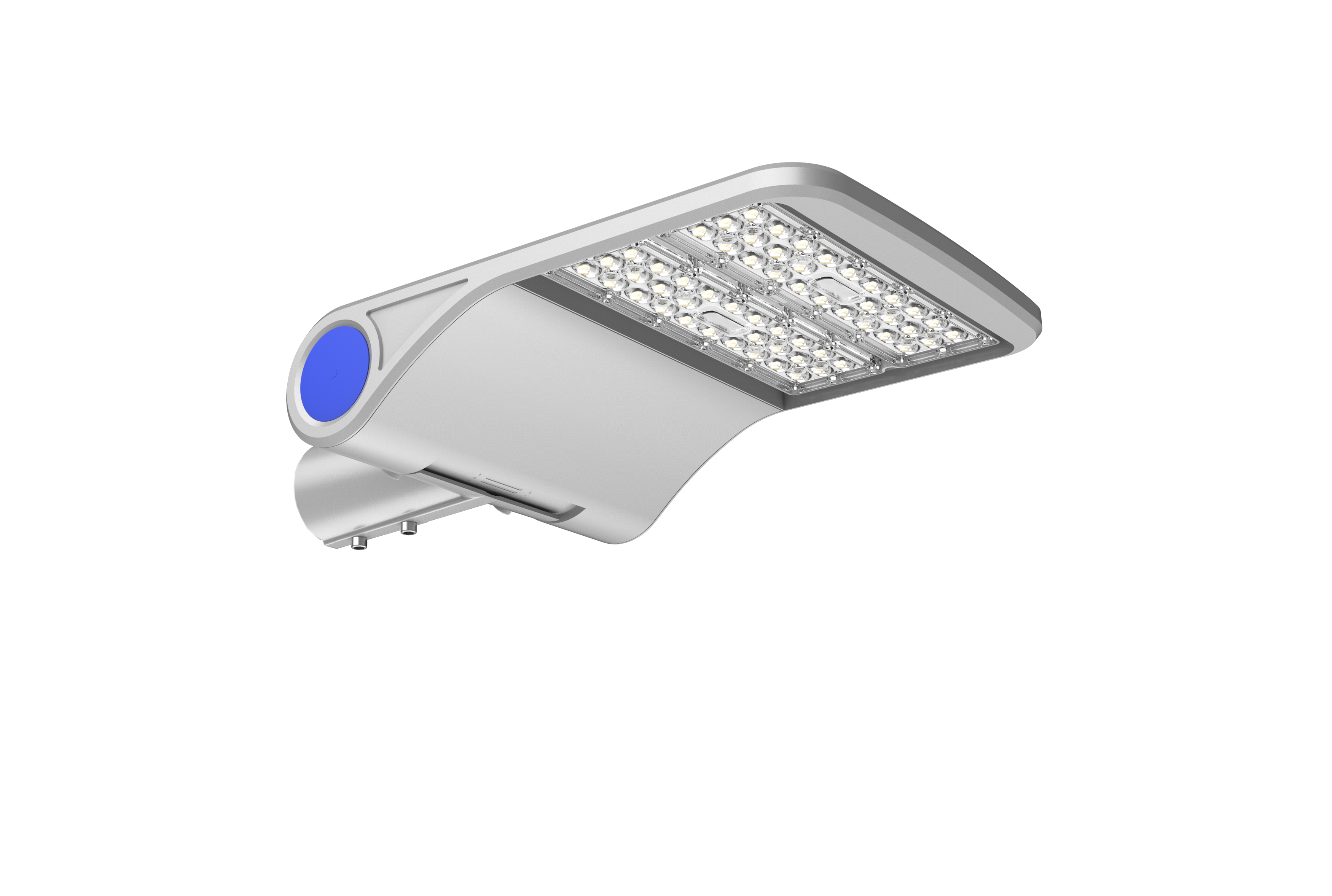

Optical Len with Tempered Glass Cover, High Anti-Corrosion and UV for costal area
Waterproof Breathing Valve，balance the internal & external temperature and humidity
Operation Temperature: -35°~+50°
Internal 10KV SPD, provide extra surge protection
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
| Model No. | ISL-XLD-60W/90W | ISL-XLD-120W/150W | ISL-XLD-180W/210W/240W |
| Rated Power | 60W/90W | 120W/150W | 180W/210W/240W |
| Input Voltage | AC85 ~ 265V / AC100 ~ 277V | ||
| Chip | Lumileds | ||
| CRI | Ra>70, Ra>80 | ||
| Power Factor | >0.95 | ||
| Light Efficacy | 140-150lm/W | ||
| IP Rating | IP65 | ||
| Working Temperature | -35 ~+50 °C | ||
| Beam Angle | EM1~EM5(TI~TIV) | ||
| Warranty | 5years, 7years | ||
Product Size(MM) Carton Size(MM) | 520*300*13 5555*320*140 | 630*300*135 640*320*140 | 720*300*135 755*320*140 |
| N.W/G.W | 5KG/5.3KG | 6.5KG/6.8KG | 8KG/8.5KG |
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as to avoid dropping, electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally
