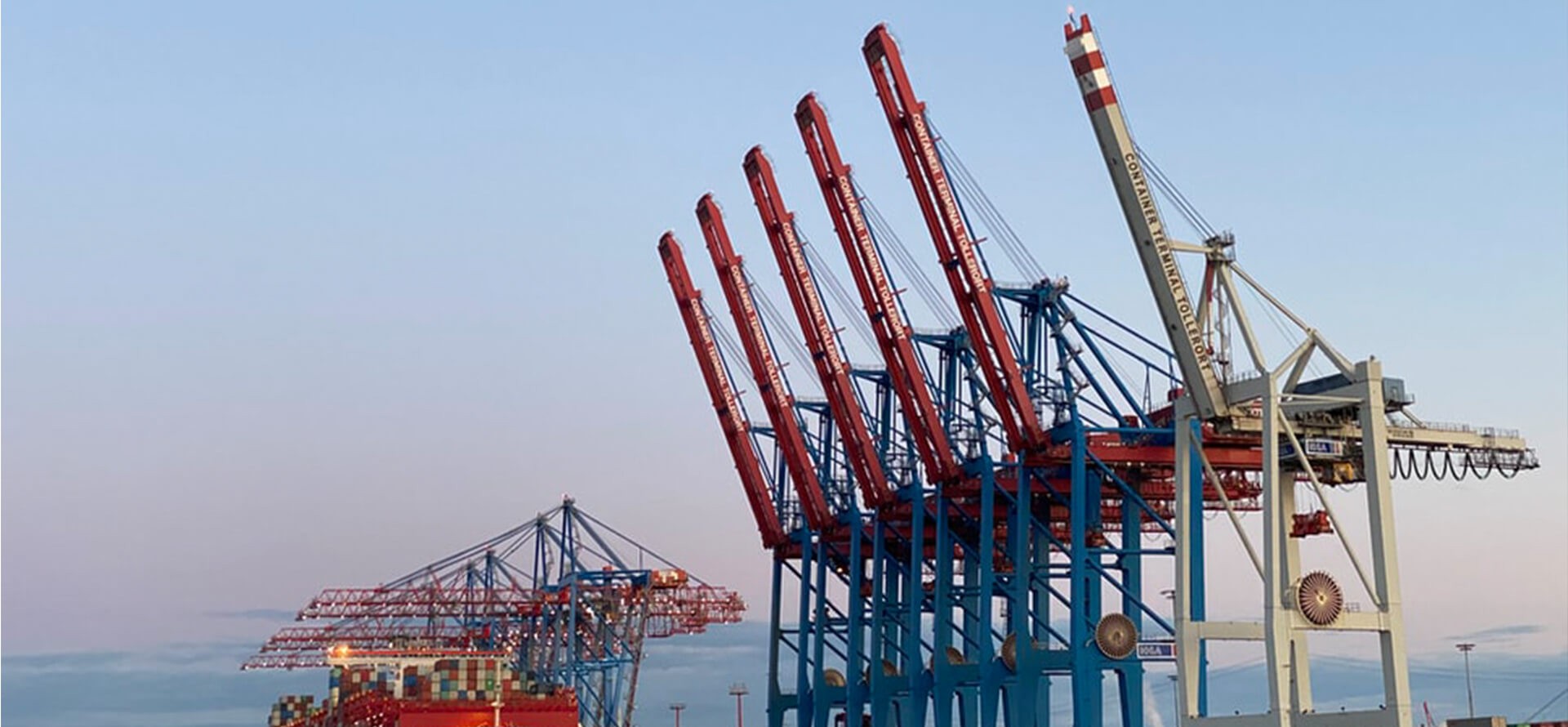

It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

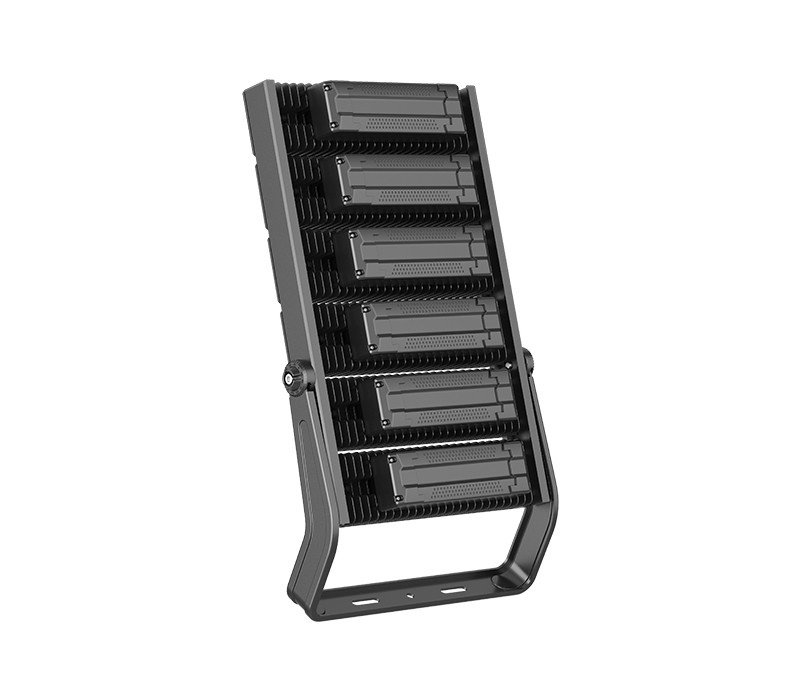

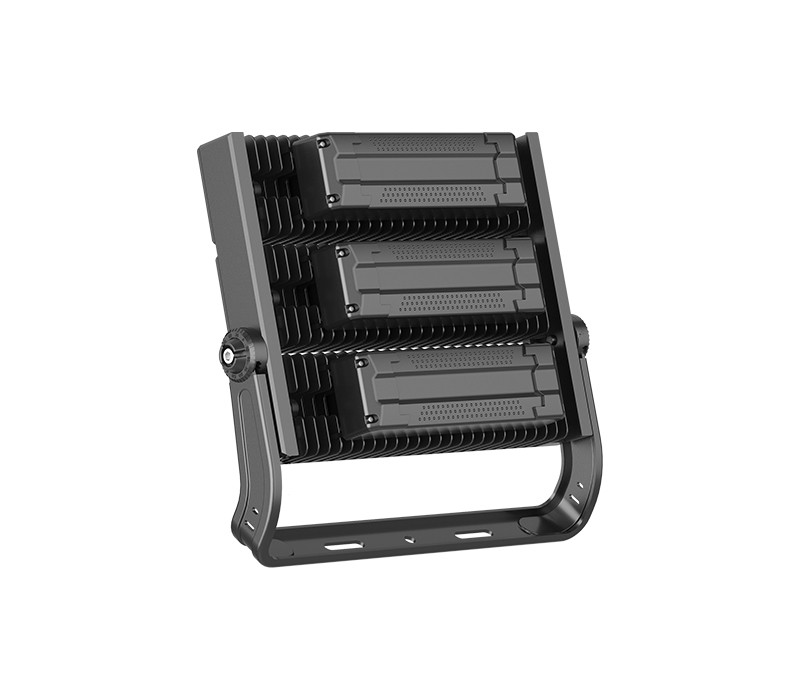

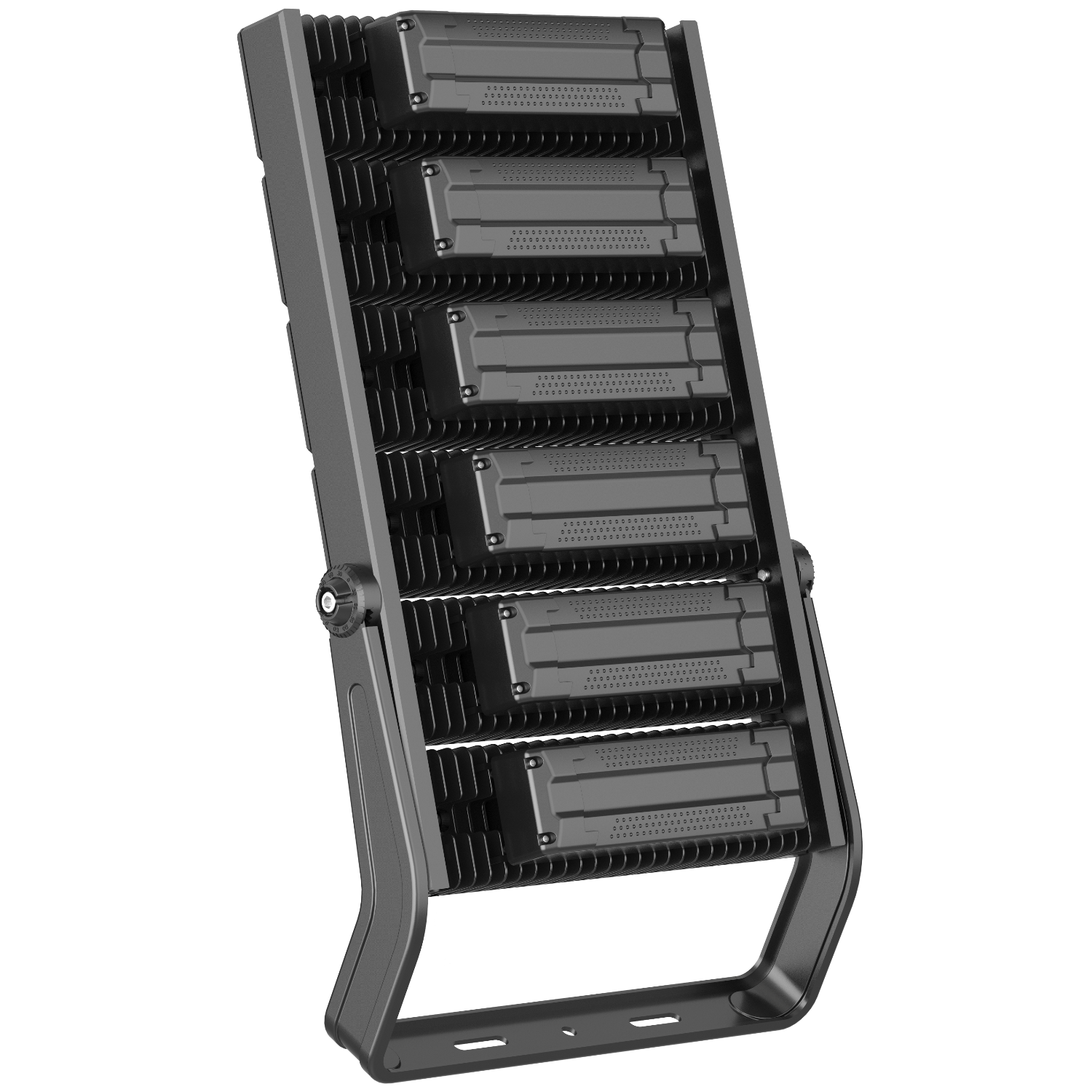

Die Casting Heat Sink: Excellent Thermal Management & Compact Structure

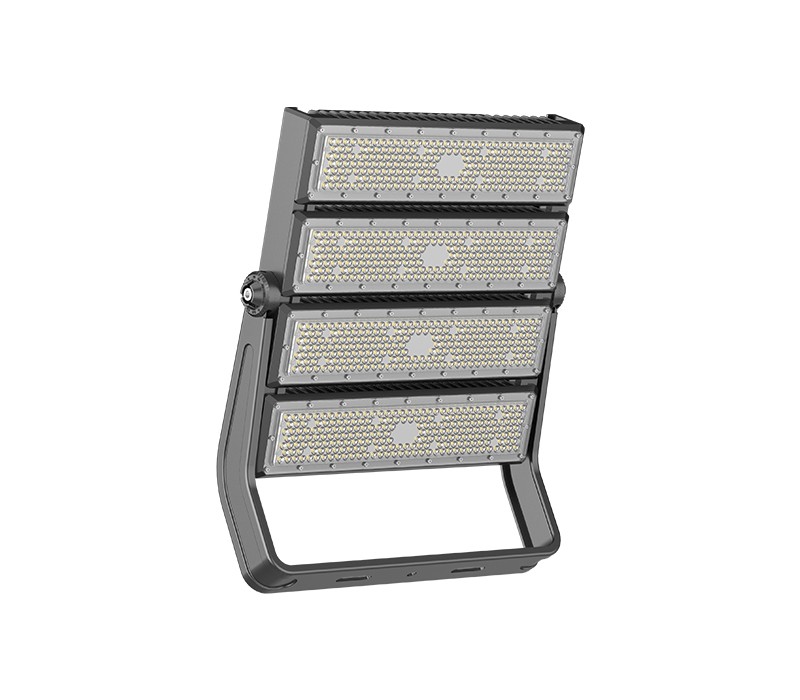

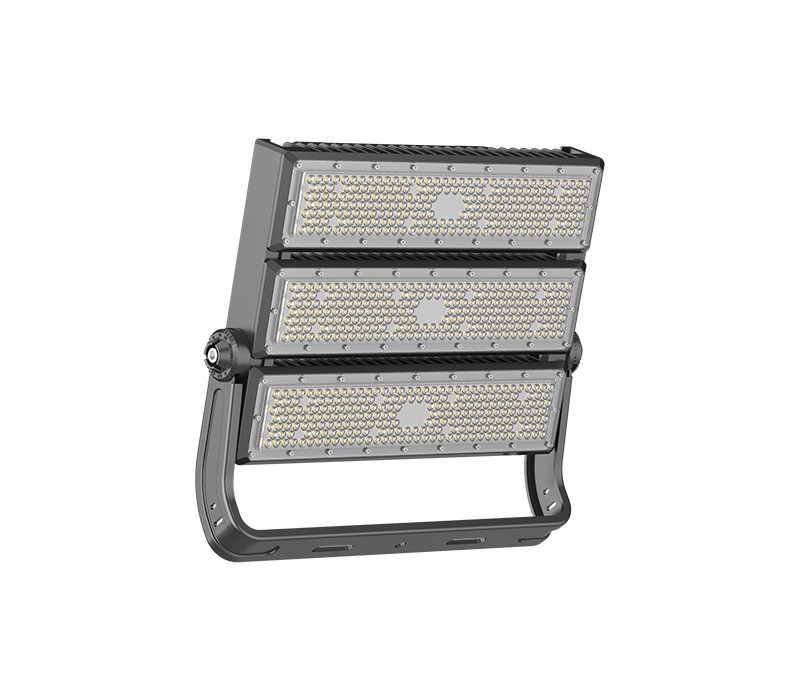

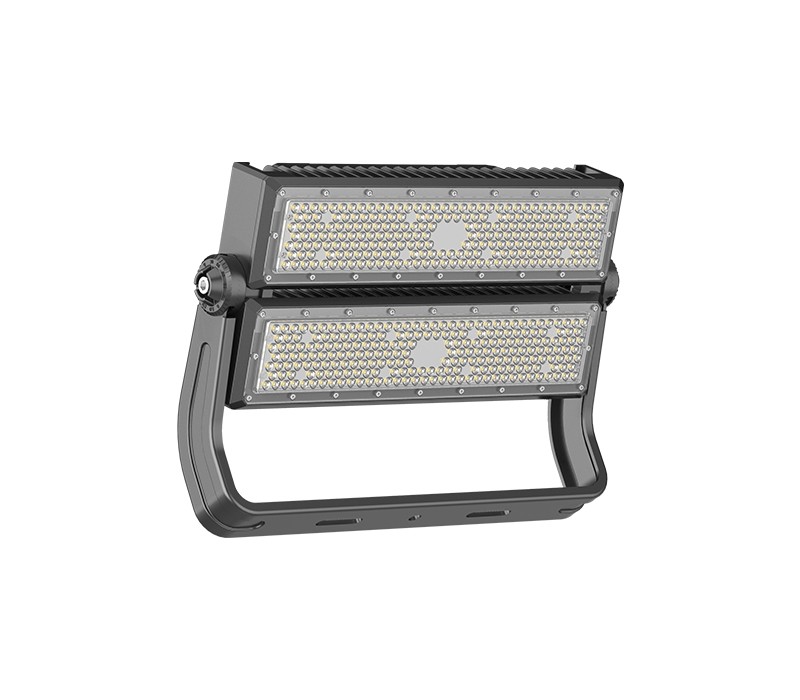

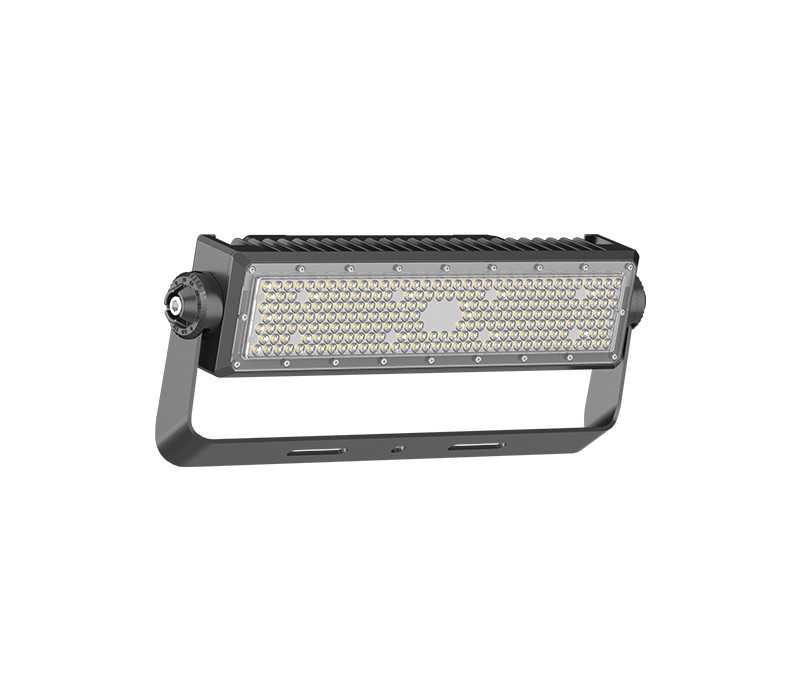

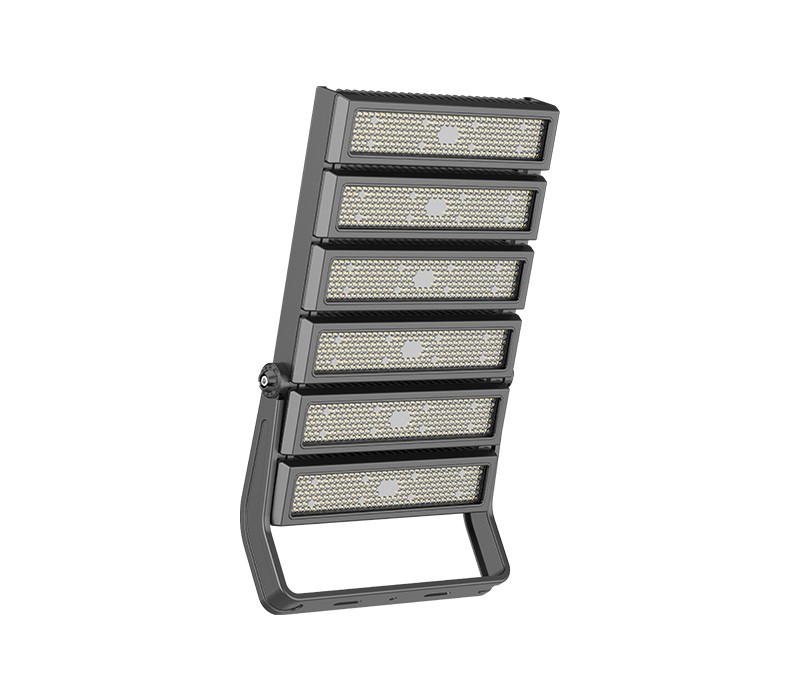

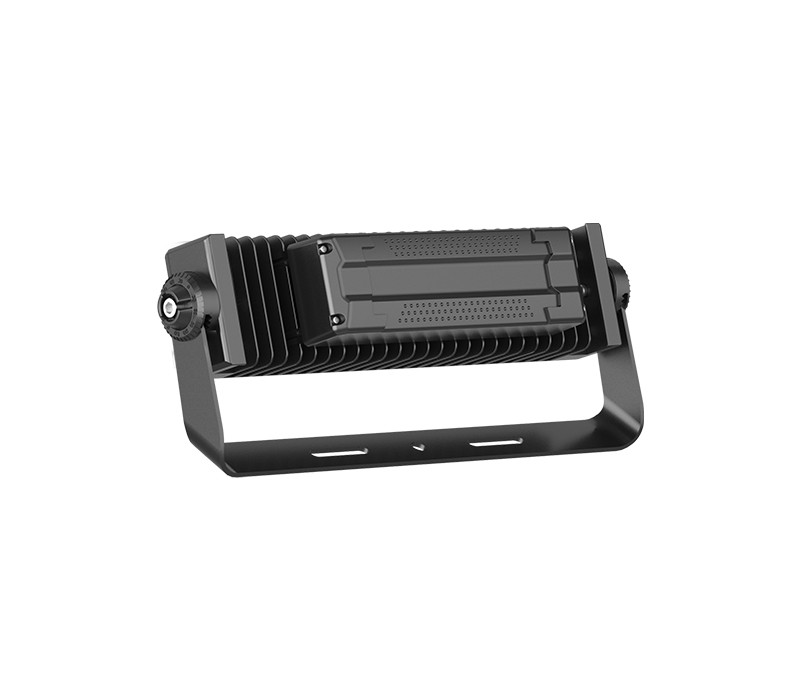

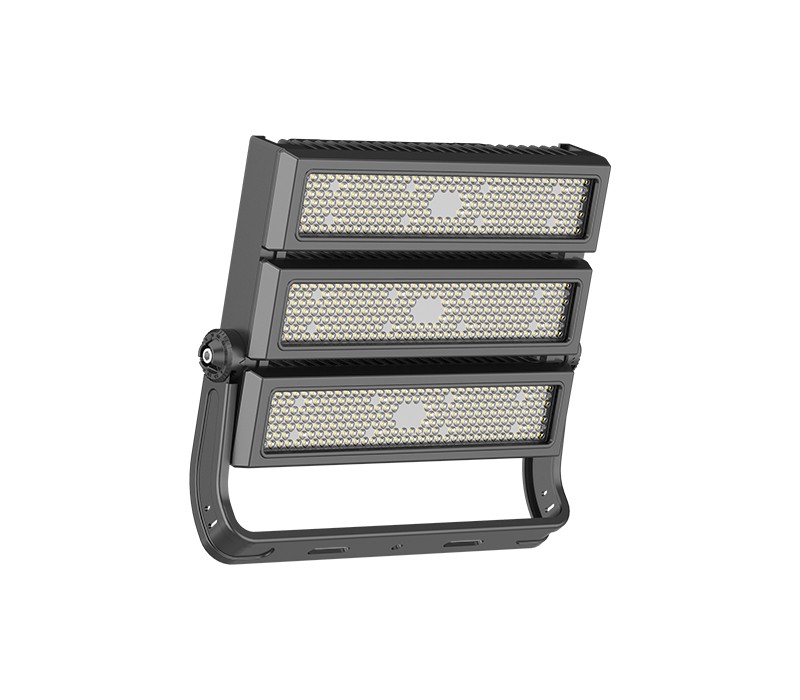

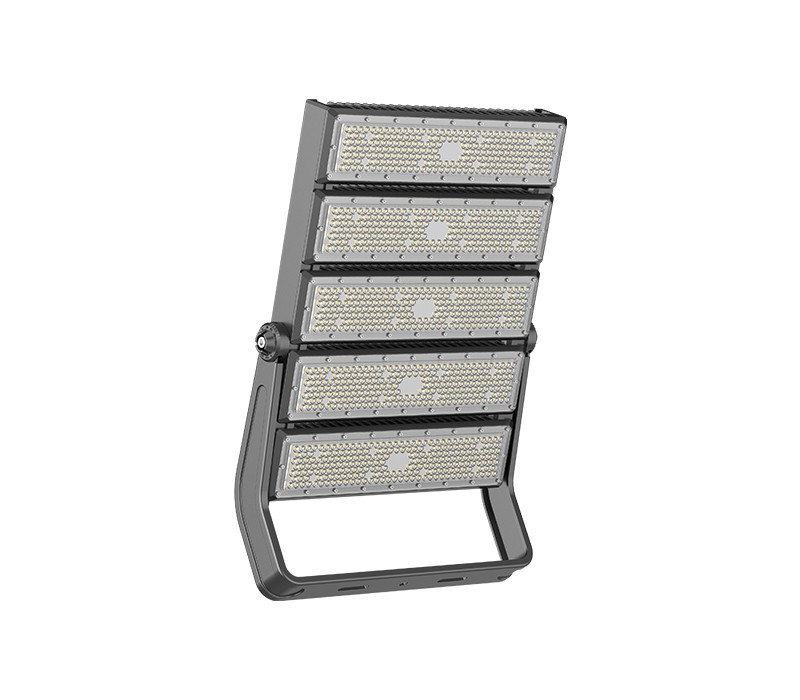

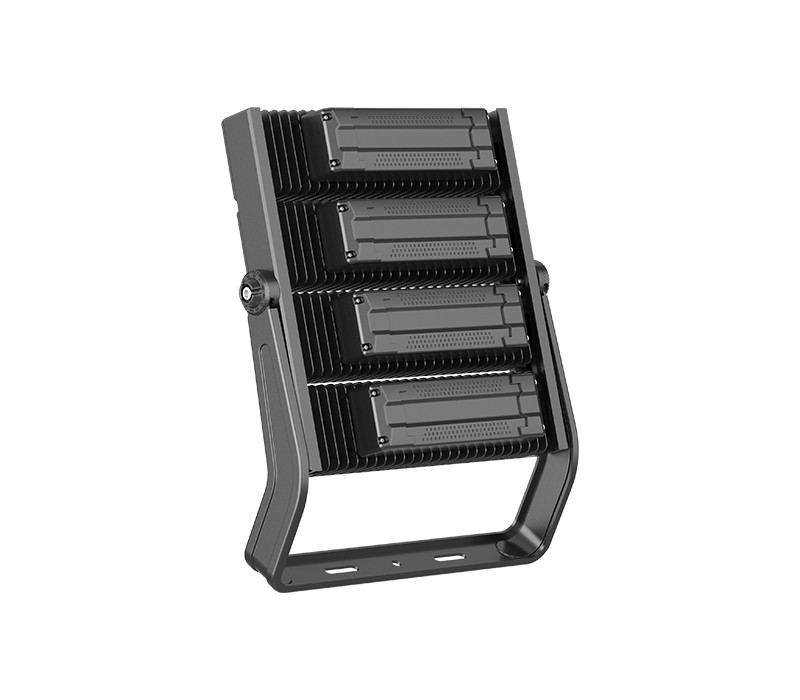

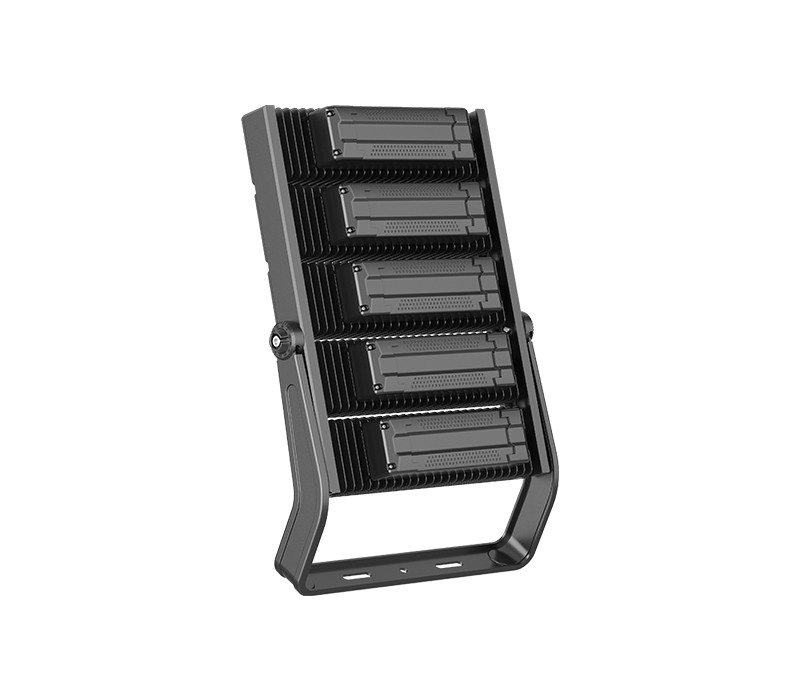

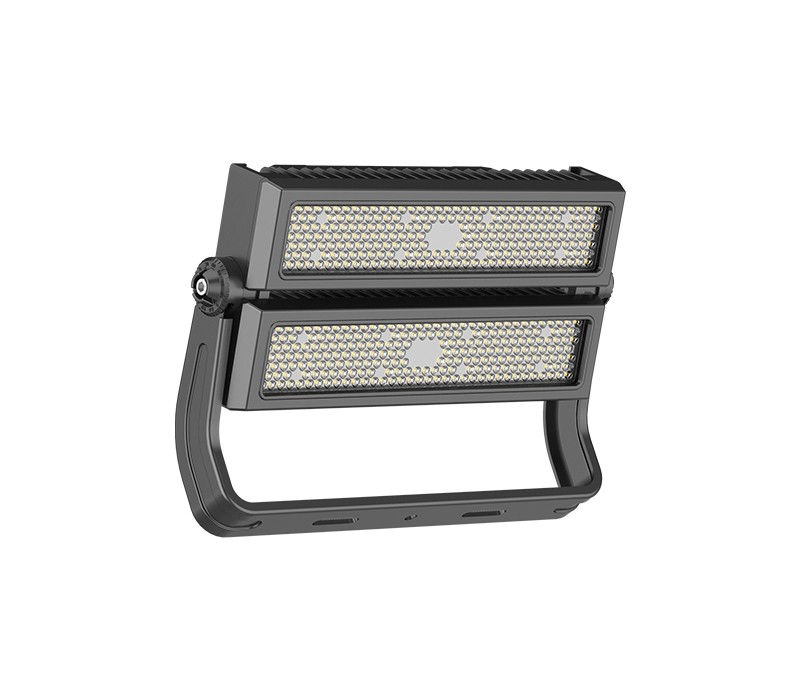

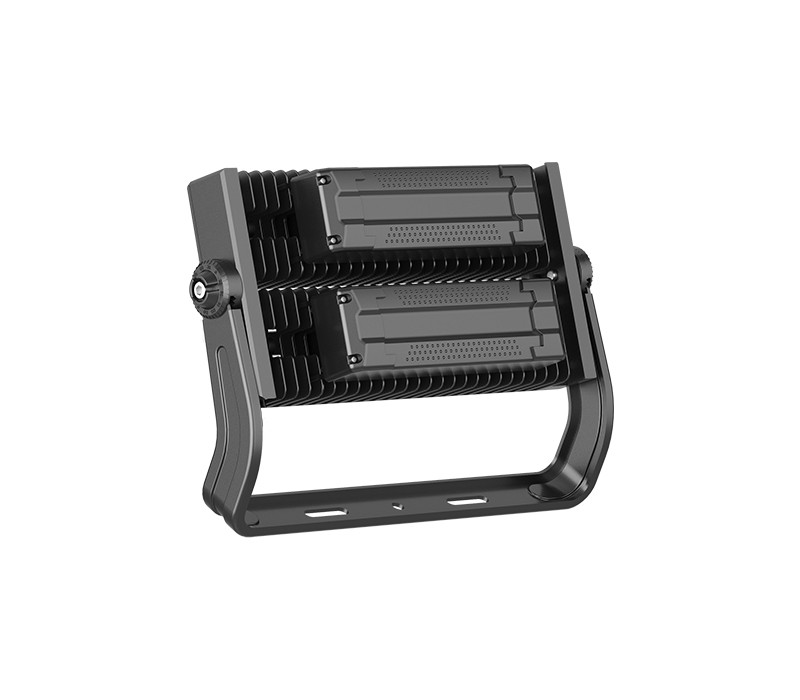

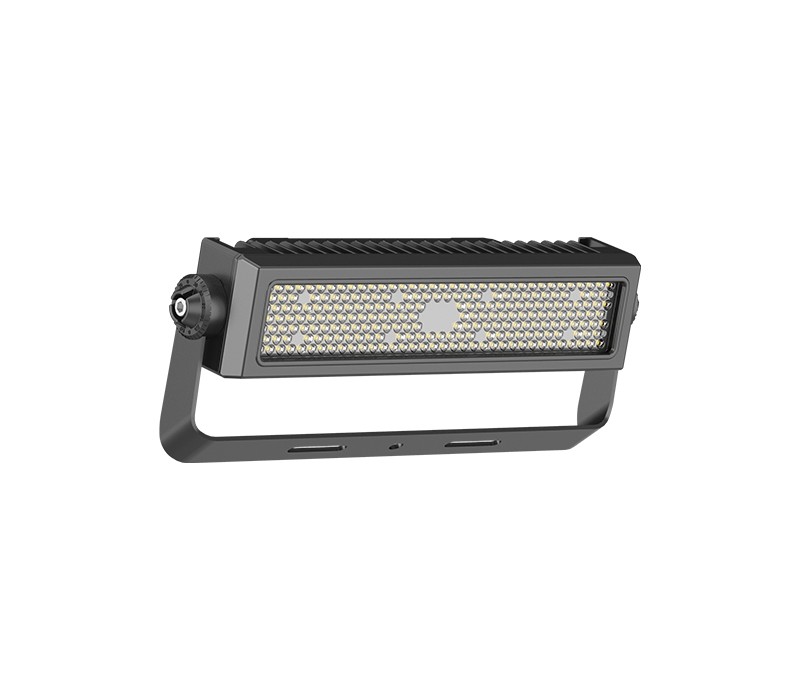

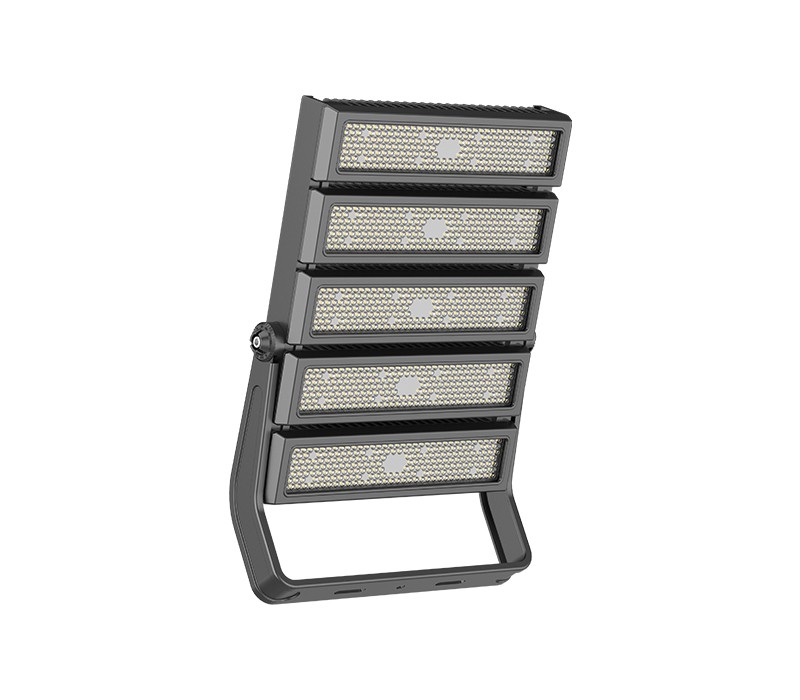

Single Module 120W/ 150W/ 200W, Up To 6 Modules Can Be Combined Into 1200W
Embedded Cable Raceway: Optimize Cable Layout
Racked Angle: Allows For Precise Installation, Up To 270°
4mm Thickness L Shape Bracket: Wind Resistant Rate 17
High Strength Polycarbonate Lens: Realize In IK08
Photometry: Symmetrical 30°/45°/60°/90°, Asymmetric 140°*80°/120°*40°*60°
Integrated Breather Valve: Balances The Internal & External Temperature & Humidity
Tempered Glass Cover Option: To Apply In Harsh Conditions
High Brightness 3030 and 5050 Chip Option: Up To 180lm/W
Top Brand LED Chip and Driver: LumiLeds, MW & Sosen
Ingress Protection: IP66
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%

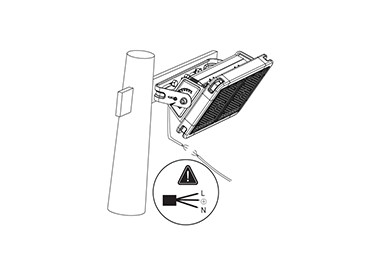

1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping, electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz
1. Don't install the lamp to non-stable place.
2. Installed by qualified eletrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally
| Model No. | ISL-QCD-E120W | ISL-QCD-E240W | ISL-QCD-E360W | ISL-QCD-E480W | ISL-QCD-E600W | ISL-QCD-E720W |
| Rated Power | 120W | 240W | 360W | 480W | 600W | 720W |
| Light Efficacy | 180lm/W | |||||
| Model No. | ISL-QCD-E150W | ISL-QCD-E300W | ISL-QCD-E450W | ISL-QCD-E600W | ISL-QCD-E750W | ISL-QCD-E900W |
| Rated Power | 150W | 300W | 450W | 600W | 750W | 900W |
| Light Efficacy | 140lm/W, 160lm/W | |||||
| Model No. | ISL-QCD-E200W | ISL-QCD-E400W | ISL-QCD-E600W | ISL-QCD-E800W | ISL-QCD-E1000W | ISL-QCD-E1200W |
| Rated Power | 200W | 400W | 600W | 800W | 1000W | 1200W |
| Light Efficacy | 140lm/W, 160lm/W | |||||
| Input Voltage | AC100~277V | |||||
| LED Chip | Lumileds3030/ 5050 | |||||
| LED Driver | Sosen/ Meanwell | |||||
| Beam Angle | 30°/ 45°/ 60°/ 90°/ 80*140°/ 120*30*60° | |||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| CRI | Ra>70/ 80 | |||||
| Power Factor | PF>0.95 | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08, IK10 Available | |||||
| Operation Temperature | ﹣35°C- +50°C | |||||
| Warranty | 5Years | |||||
| Lifespan | 60,000Hrs | |||||
| Dimension | 150*490*140mm | 315*490*155mm | 428*490*155mm | 555*490*155mm | 668*490*155mm | 776*490*155mm |
| Packing | 565*245*175mm | 570*420*190mm | 543*532*185mm | 663*542*185mm | 773*542*185mm | 883*542*185mm |
| N.W. | 5.6KG | 10KG | 14KG | 18.6KG | 23KG | 30.8KG |
| G.W. | 6.2KG | 11.1KG | 15.6KG | 20.4KG | 24.6KG | 32.6KG |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||||
