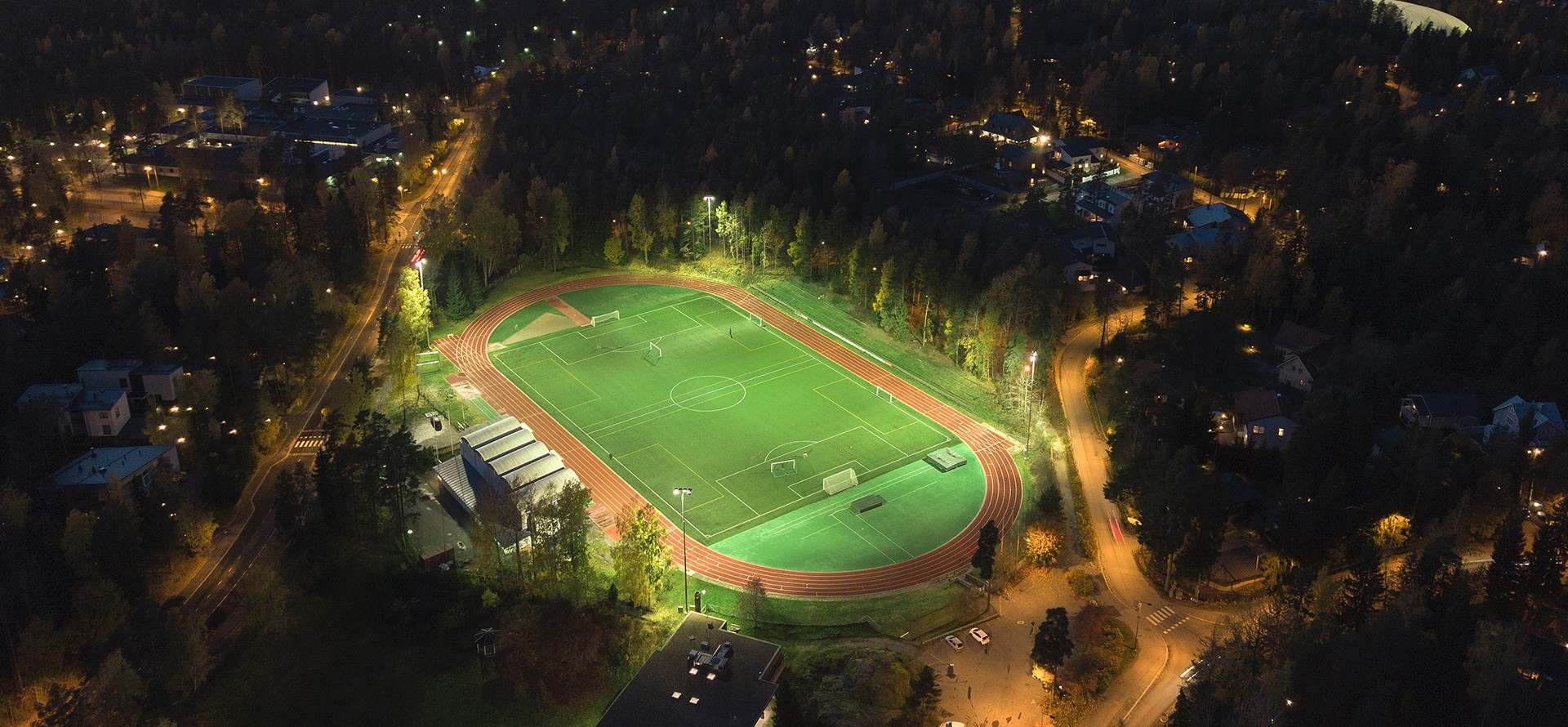

It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.
Die casting heat sink: Excellent thermal management & Compact structure
Single module 250W/ 300W, up to 5 modules can be combined into 1250W/1500W
Embedded cable raceway: Optimize cable layout
Racked angle: Allows for precise installation, up to 270°
4mm thickness L shape bracket: Wind resistant rate 17
Integrated breather valve: Balances the internal & external temperature & humidity
Tempered glass cover option: To apply in harsh conditions
Top brand LED chip and driver, ensure the product quality and lifetime
Optical lighting distributions: 10°, 15°, 25°, 45°, 60°, 90°, 65*25*60°
High luminous efficacy: 150lm/W, 170lm/W
Ingress protection: IP66
Working Temperature:-35~+50℃
Storage Temperature:-35~+50℃
Working Humidity:0%~85%
Storage Humidity:0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
Model No. | ISL-QCD-H250W | ISL-QCD-H500W | ISL-QCD-H750W | ISL-QCD-H1000W | ISL-QCD-H1250W |
Dimension | 560*250*148mm | 560*447*148mm | 560*604*148mm | 560*761*148mm | 560*918*148mm |
Rated Power | 250W/ 300W | 500W/ 600W | 750W/ 900W | 1000W/ 1200W | 1250W/ 1500W |
Input Voltage | AC100-277V, 50/60Hz | ||||
LED Chip | Lumileds, Osram | ||||
LED Driver | Sosen/ Meanwell | ||||
CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
CRI | >70Ra, >80Ra | ||||
Power Factor | 0.95 | ||||
Light Efficiency | 150lm/W, 170lm/W | ||||
Beam Angle | 10°, 15°, 25°, 45°, 60°, 90°, 65*25° | ||||
IP Rating | IP66 | ||||
Warranty | 5Years | ||||
Lifespan | 50,000H | ||||
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS |
