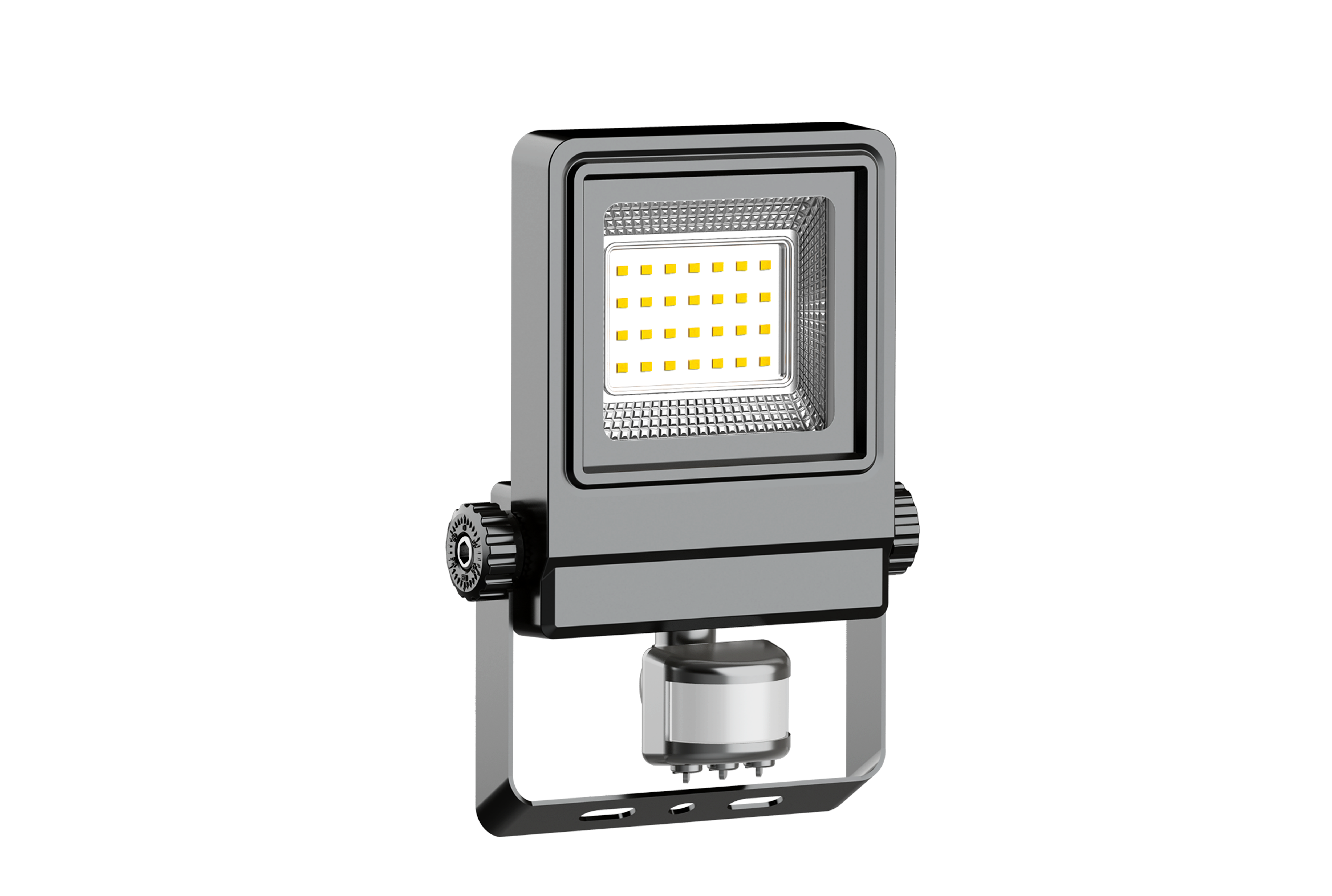

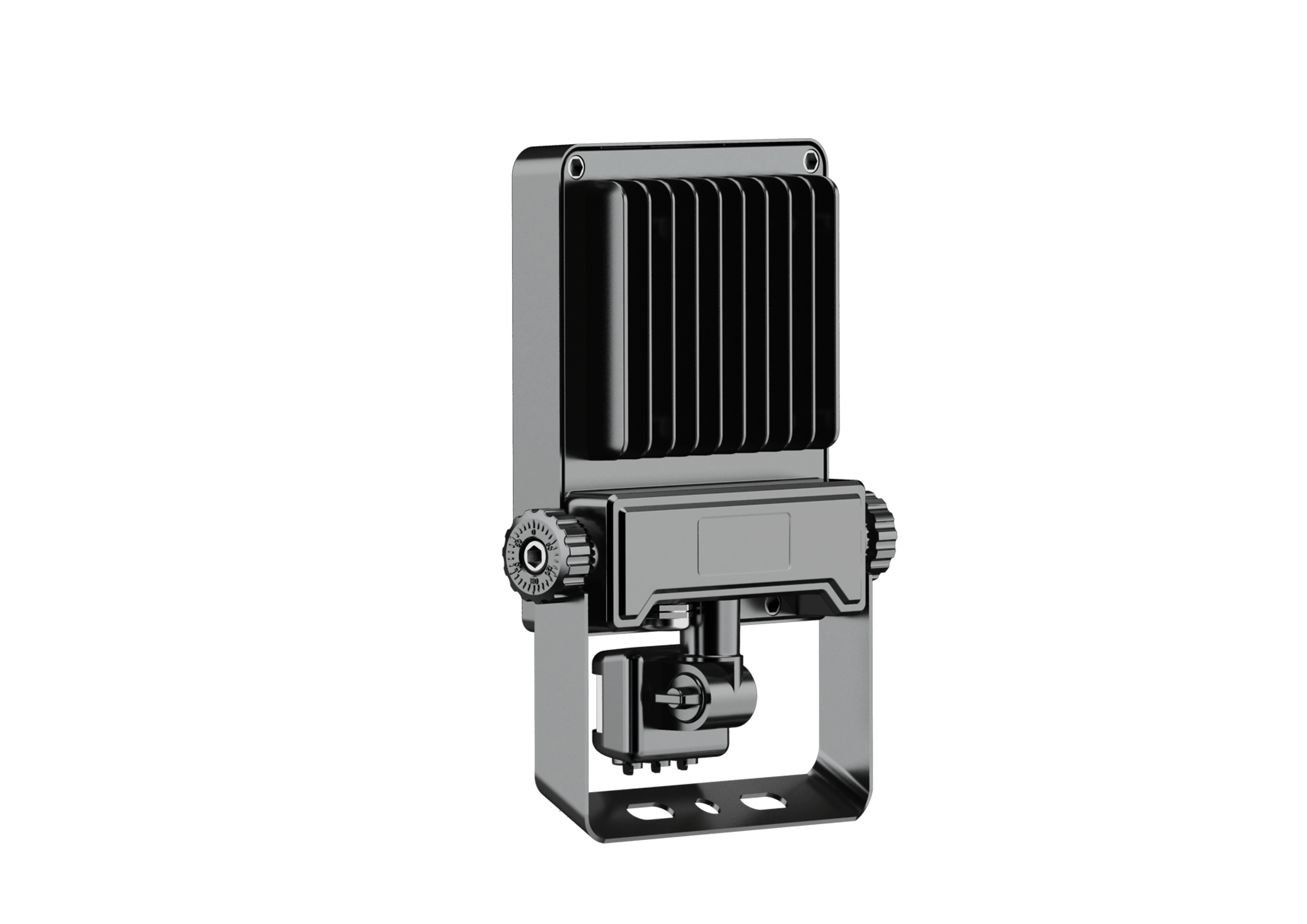

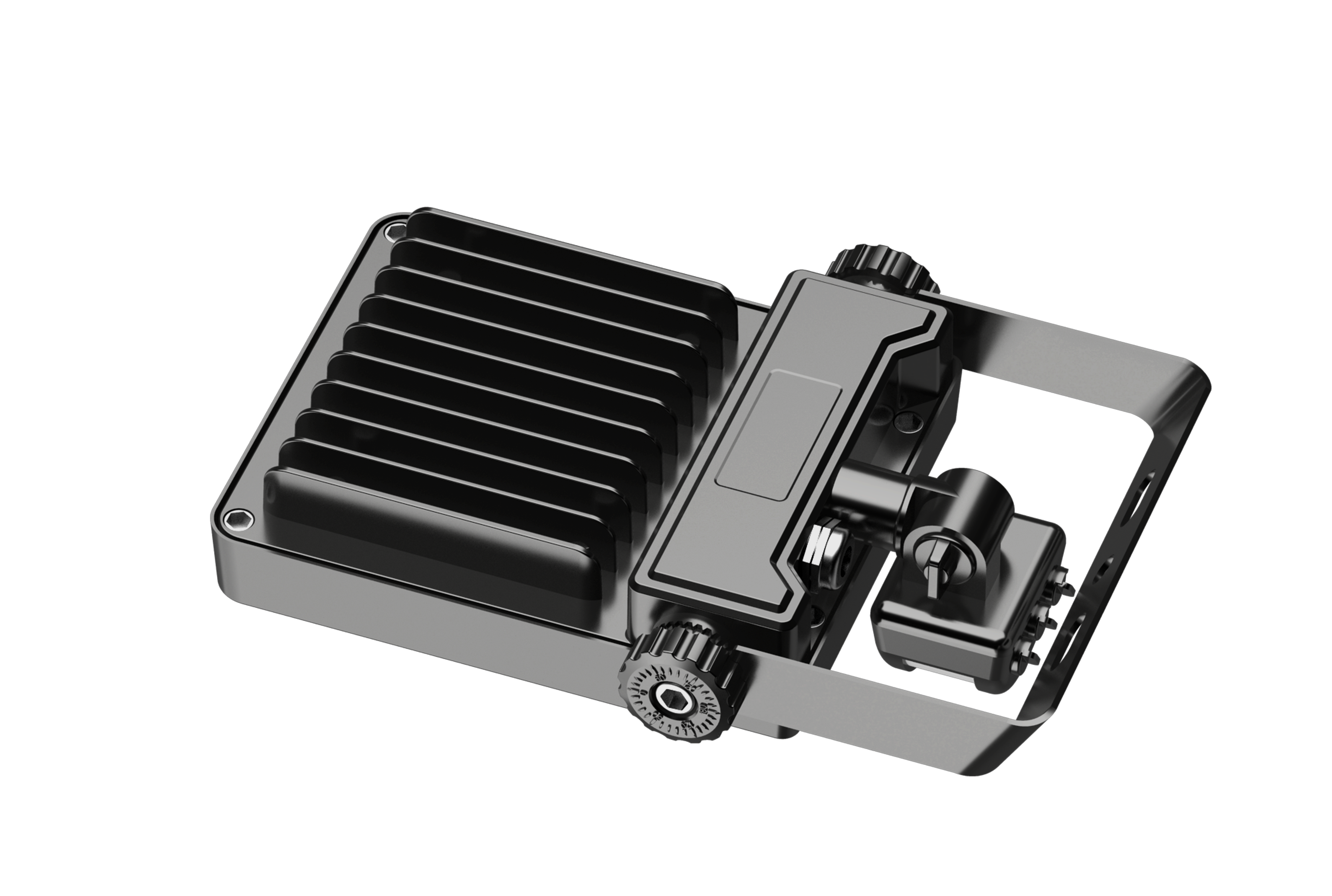

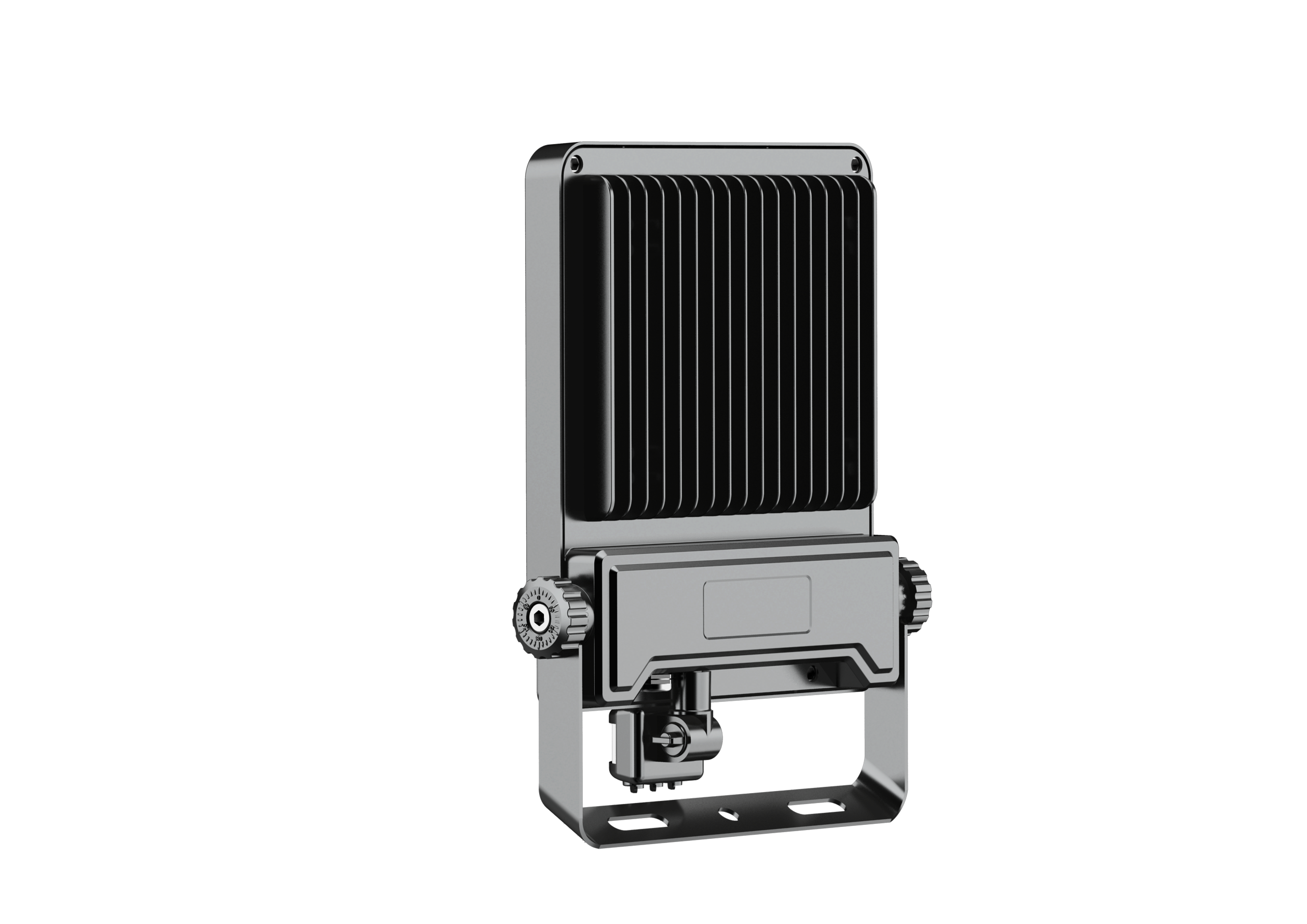

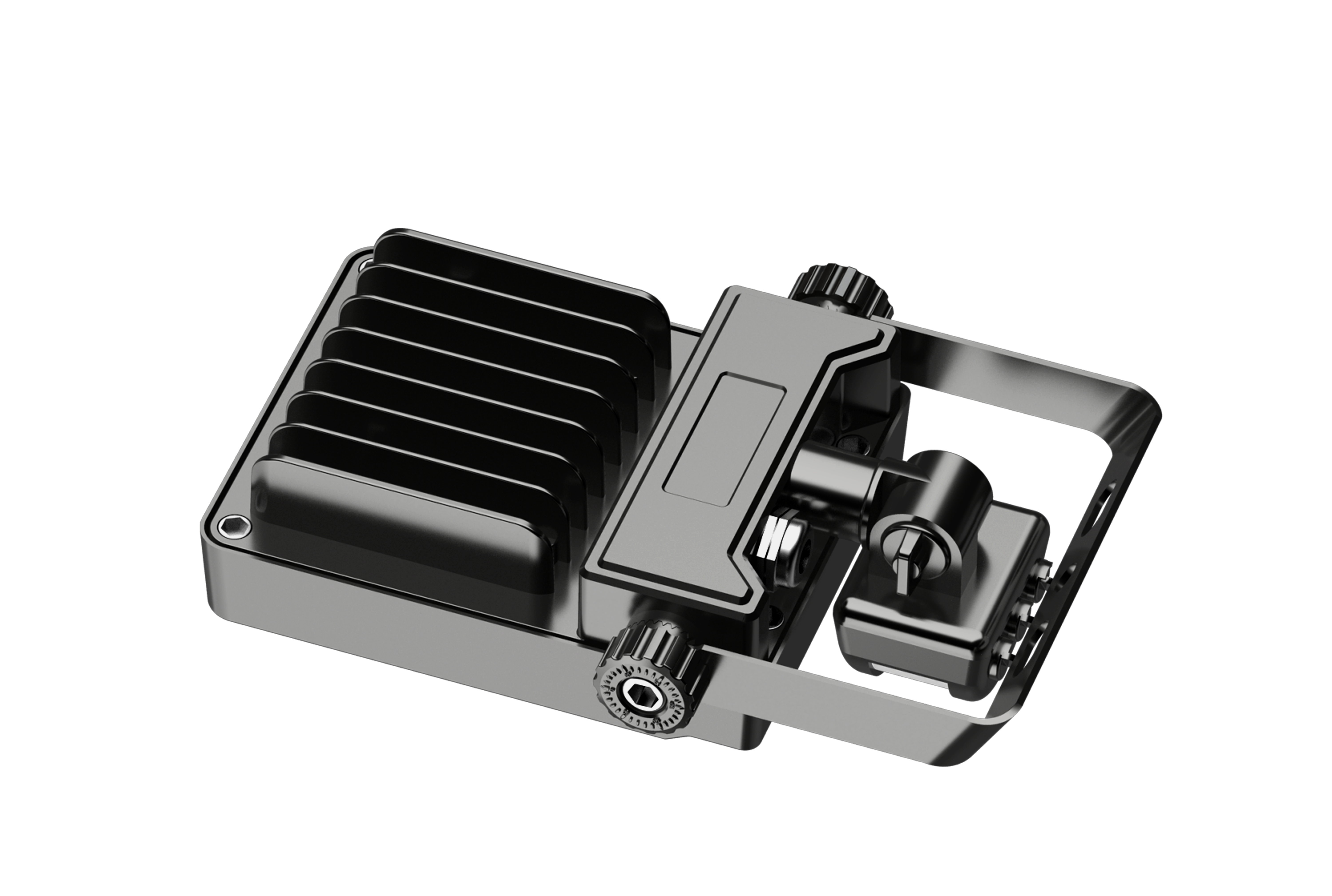

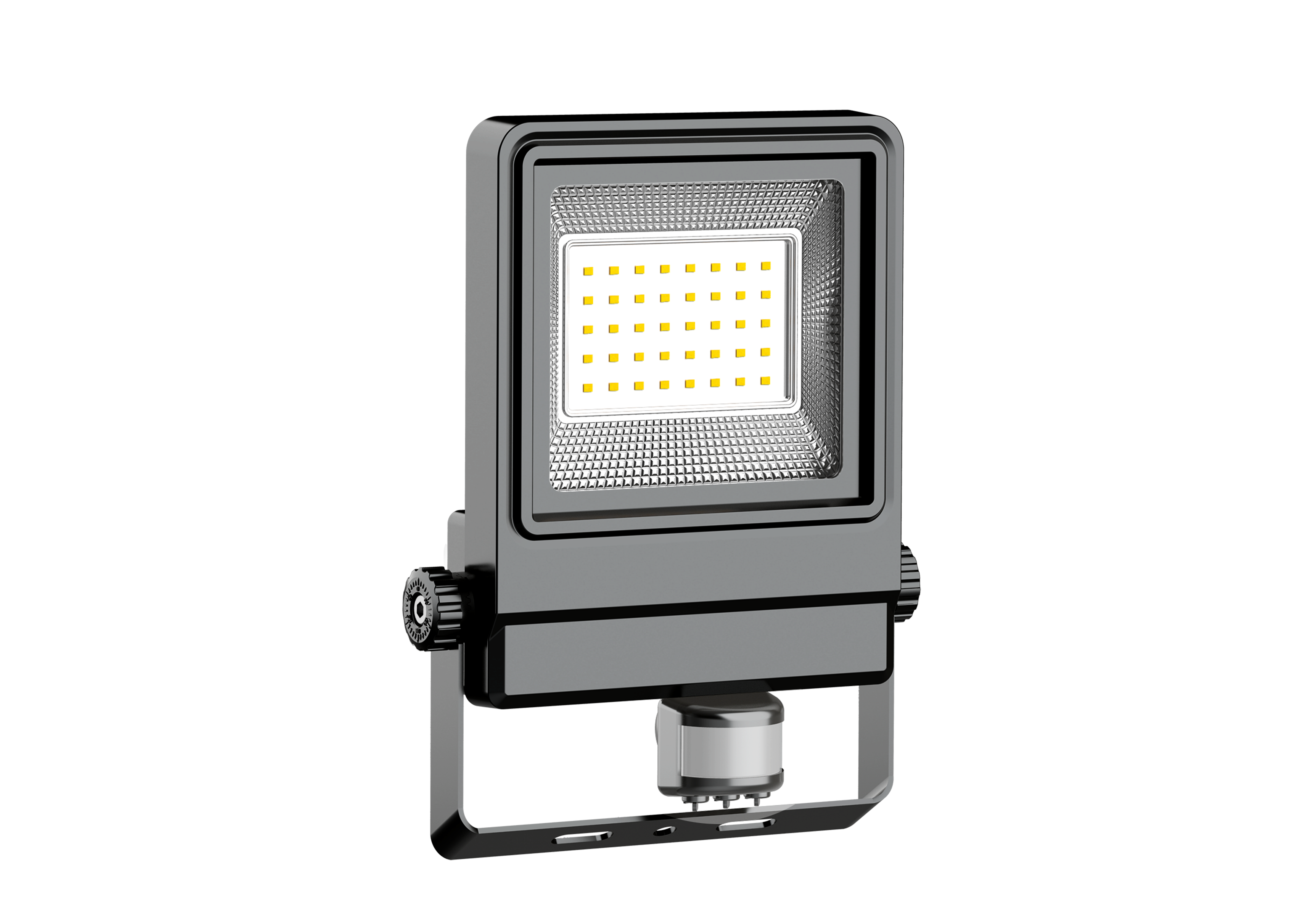

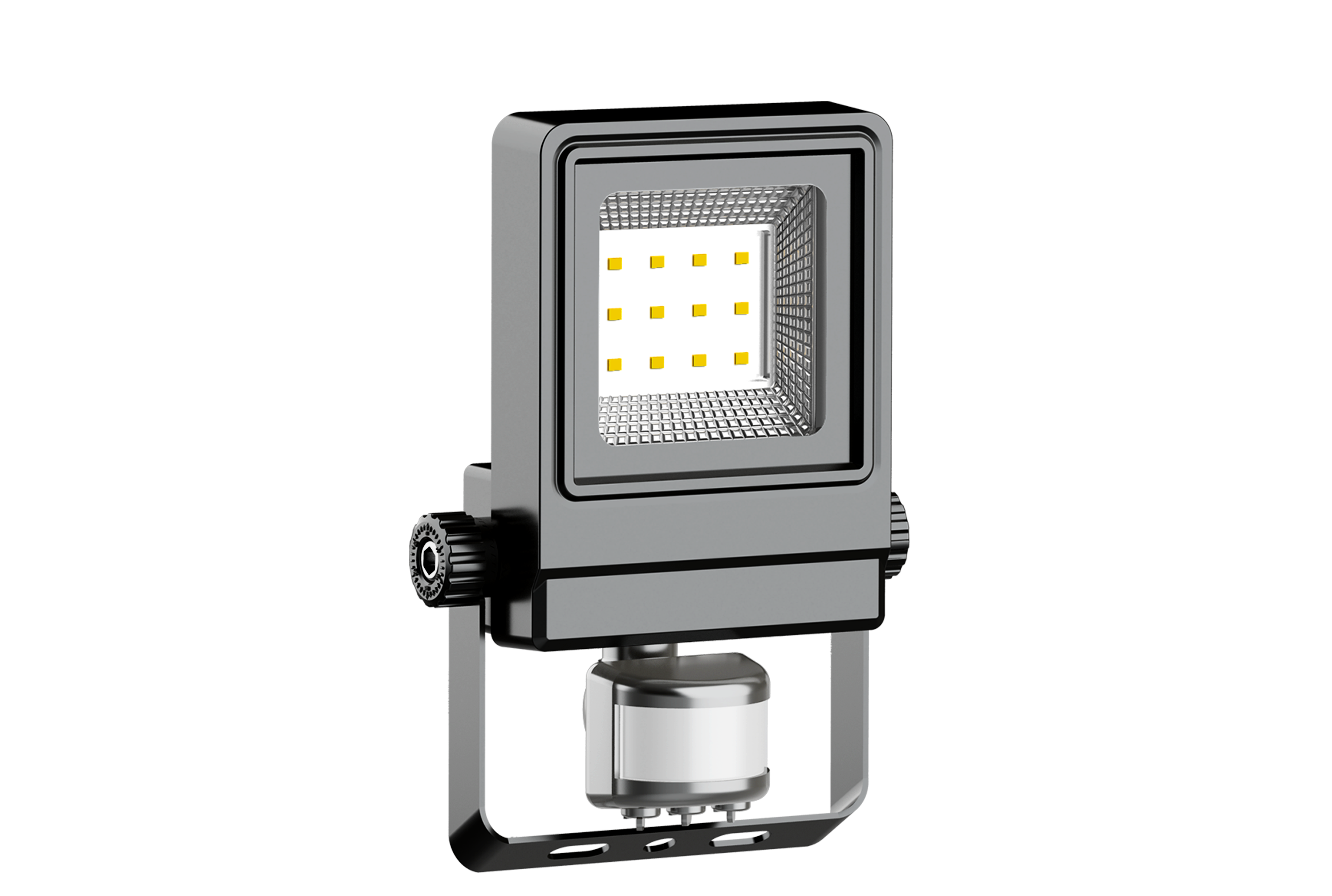

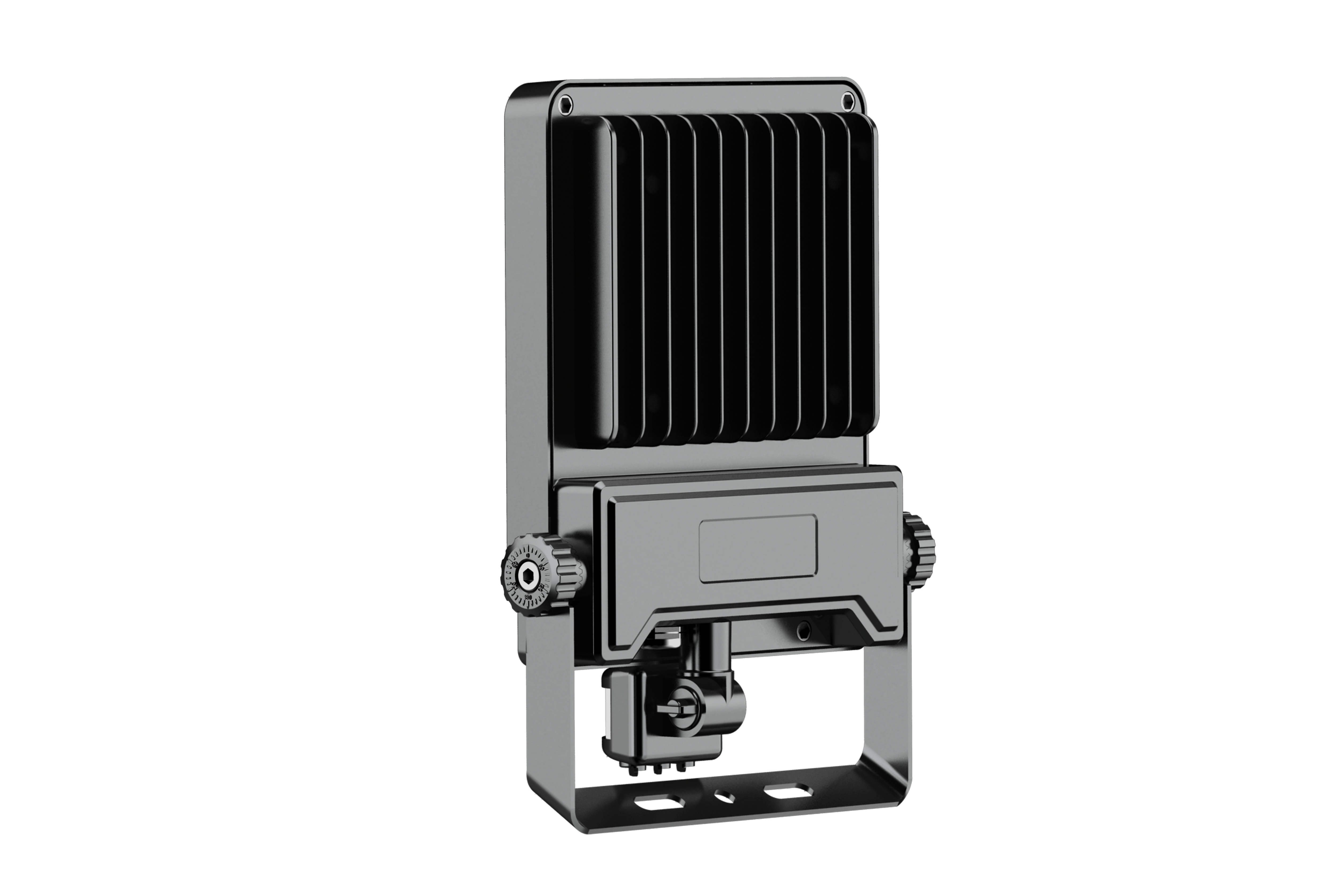

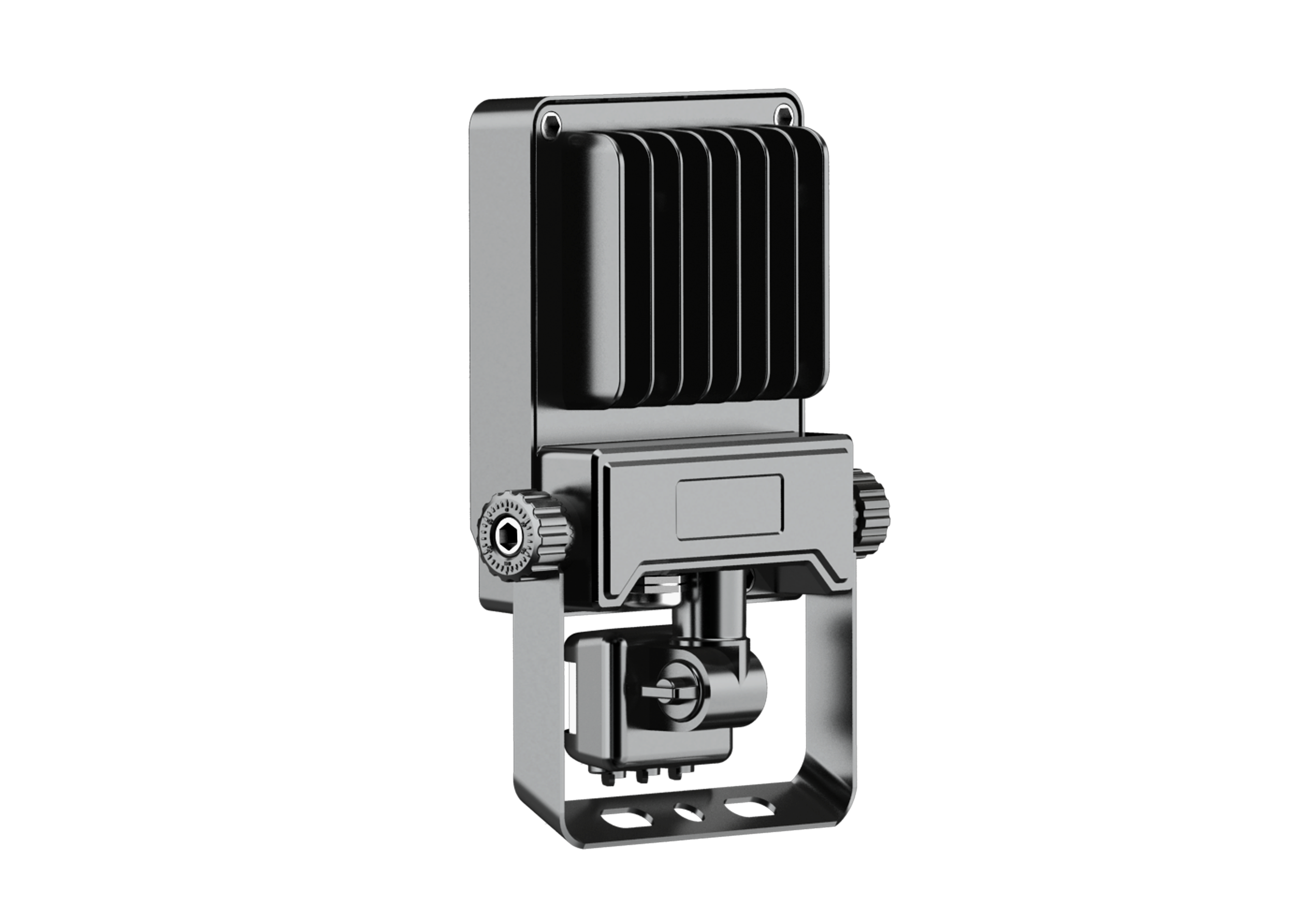

DIAMOND II PIR FLOOD LIGHT

Inquiry now

Applications

Suitable for underground parking lot, warehouse...etc

Features

Environment Requirement

Working Temperature:-35~+50℃

Storage Temperature:-35~+50℃

Working Humidity:0%~85%

Storage Humidity:0%~90%

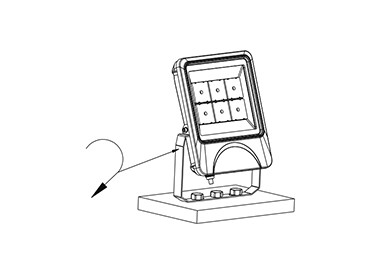

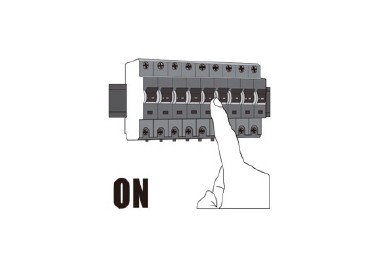

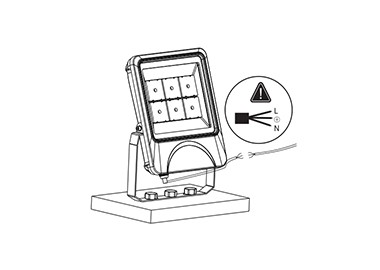

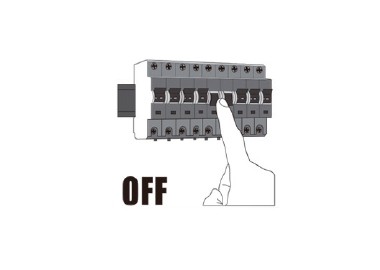

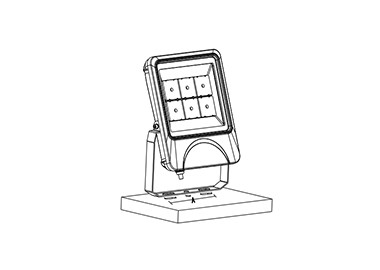

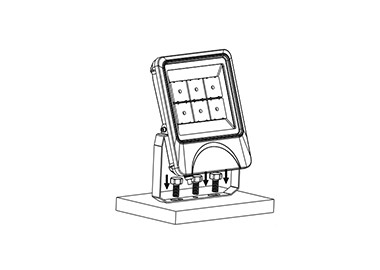

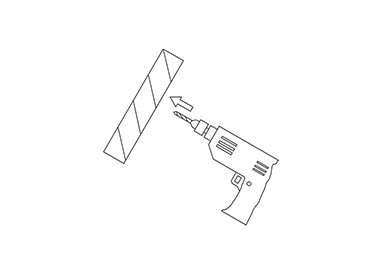

Installation instruction

Note: The installation base must be able to support 10 times weight of the products

Warning

1. Please install the lamp according to the installation to avoid dropping and electric shock.

2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.

3. Working voltage is not to be exceeded AC100-277V 50/60Hz


Attention

1. Don't install the lamp to non-stable place.

2. Installed by qualified eletrician.

3. Switch off the switch box and contact certified electrician if the lamp works abnormally.


Product parameter

Model No.ISL-TGB-B10WISL-TGB-B20WISL-TGB-B30WISL-TGB-B50WISL-TGB-B100W
Rated Power10W20W30W50W100W
Input VoltageAC100-277V
ChipOSRAM
CRIRa>80
Power Factor>0.95
Light Efficacy100lm/w
IP RatingIP66
Working Temp-20°~+50°
Beam Angle120°
Warranty3years, 5years
Dimension127*127*44mm148*148*44mm201*193"46mm247*237*47mm301*280*55mm
CertificateCCC/CQC/TUV/CB/FCC/SAA/CE/RoHS


Download

Specification

IES Files

Integrating Sphere

TDS- Diamond_Sensor_.pdf

Download
