Tunnel, Square, Plaza, Garden, Lawn, Playground, Tennis stadium, Golf course, Bus station, Airport, Street, factory, workshop, sidewalk, etc.

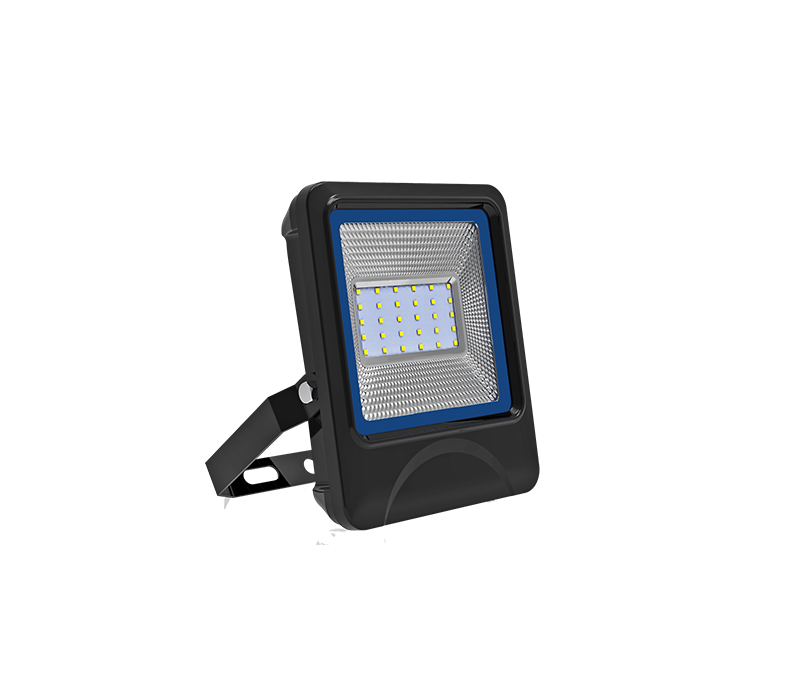

High performance and reputable brand LED chips and driver
Clear tempered glass decrease risk of lamp breaking for strong industrial applications
Optimized aluminum alloy housing design for superior thermal management
Instant light up with no warm up time
No cool down needed before restart
High mechanical impact resistance and ingress protection rating
Compact in size and easy for transportation

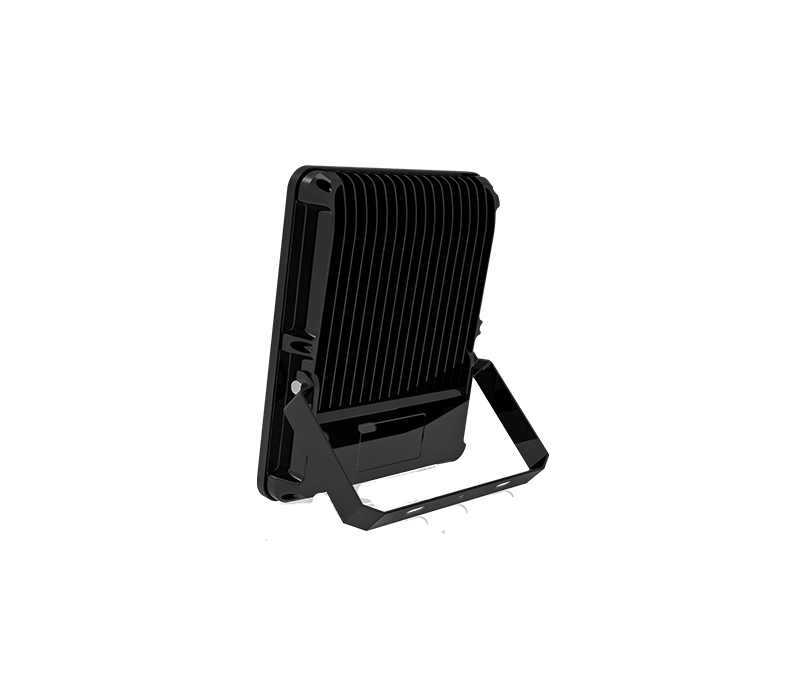

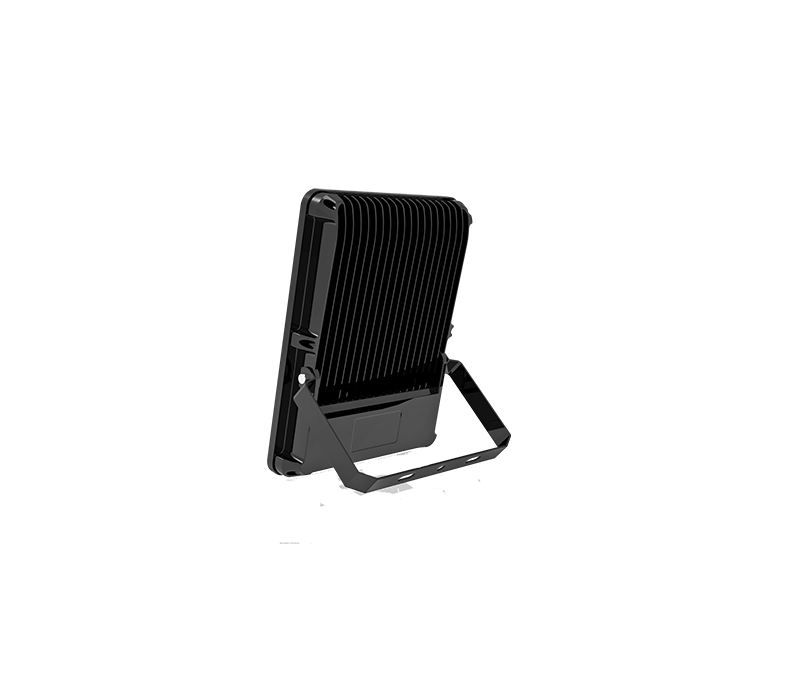

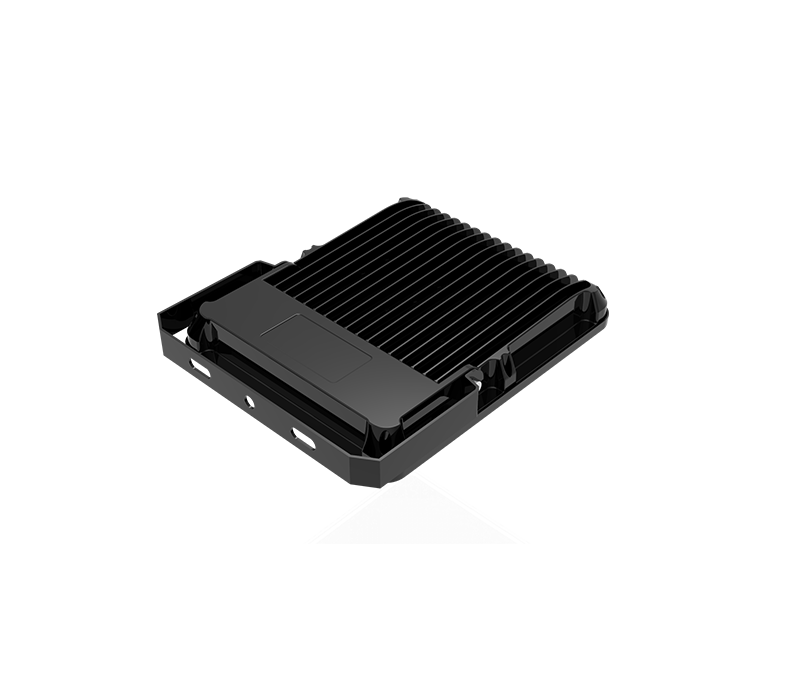

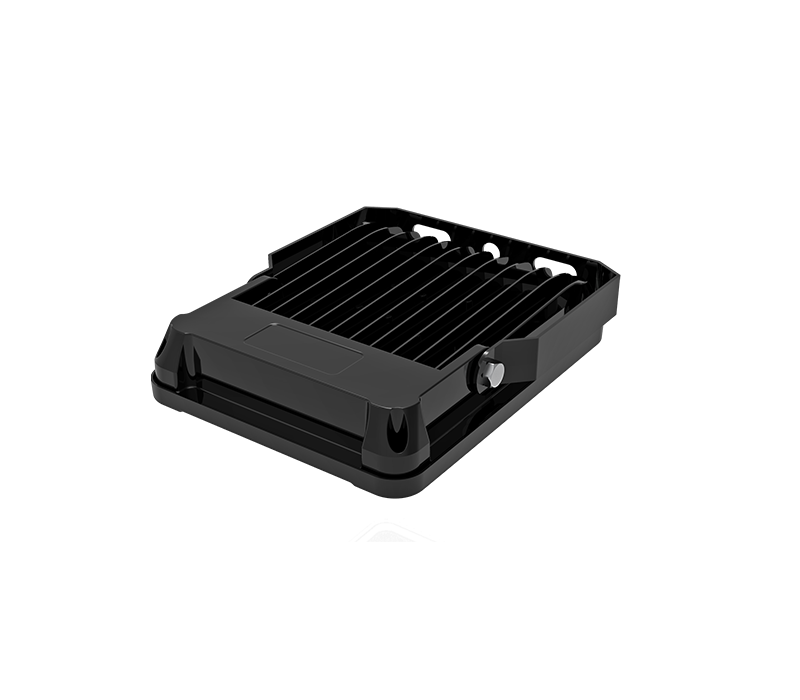

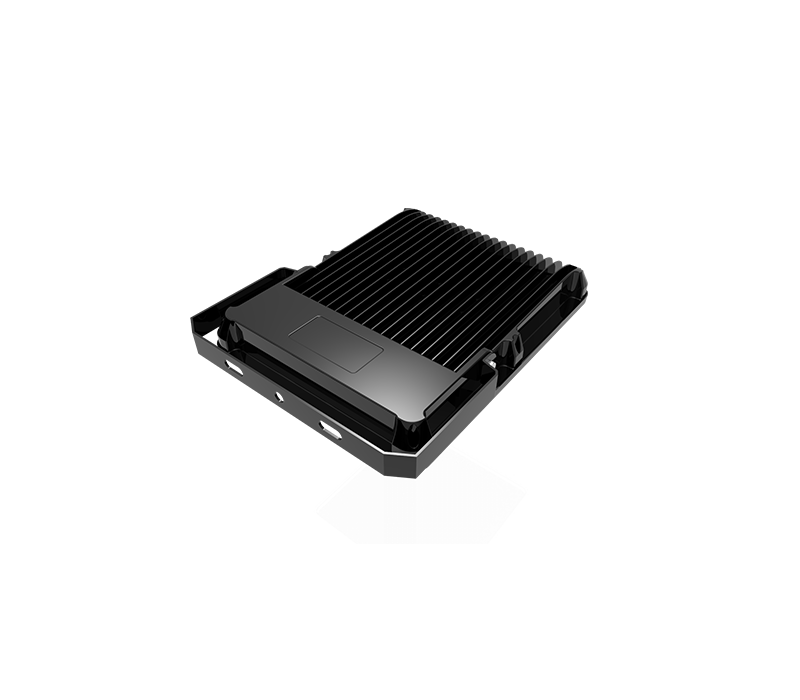

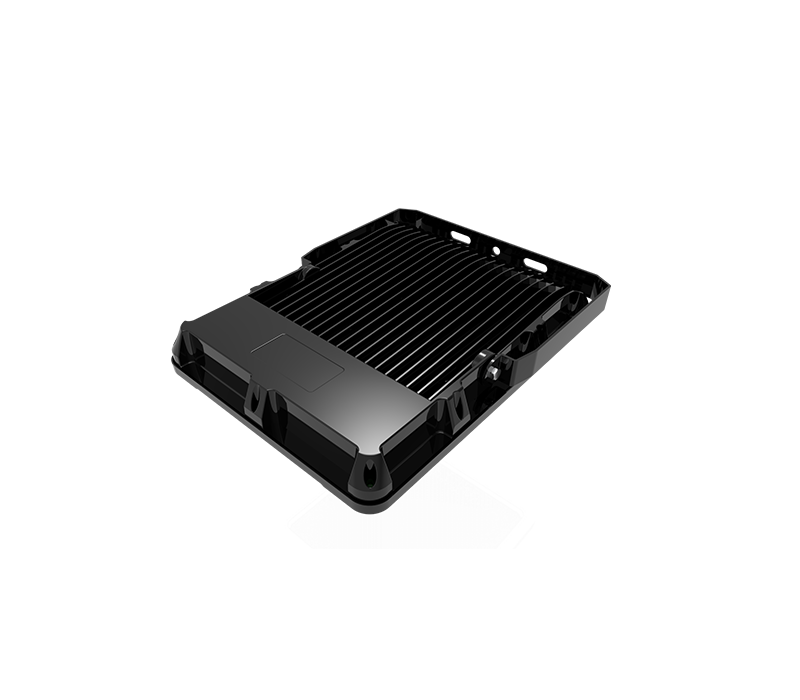

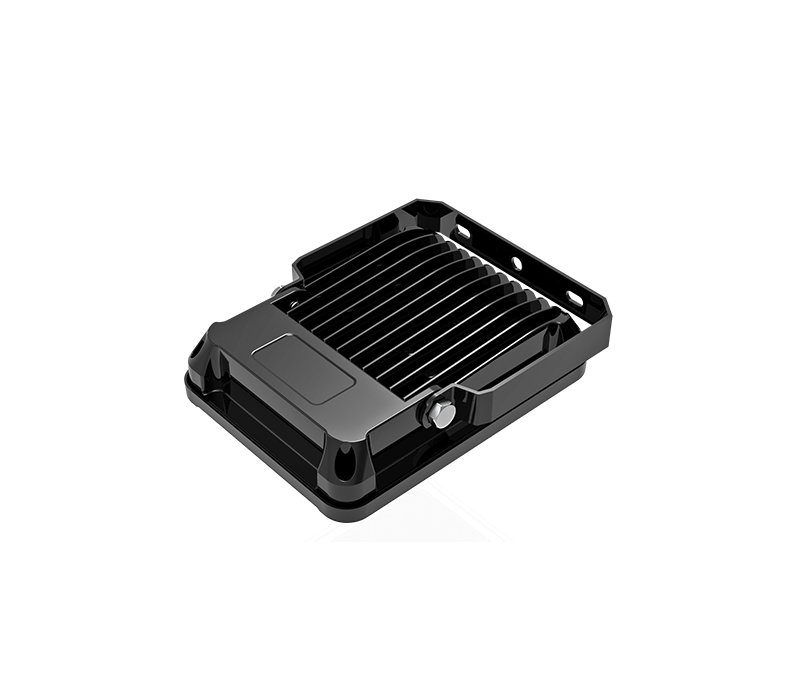

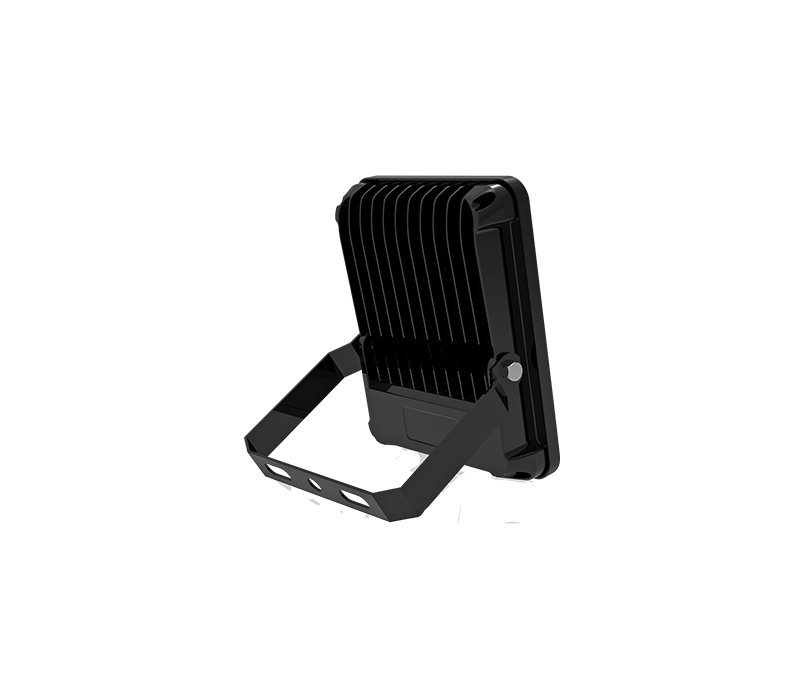

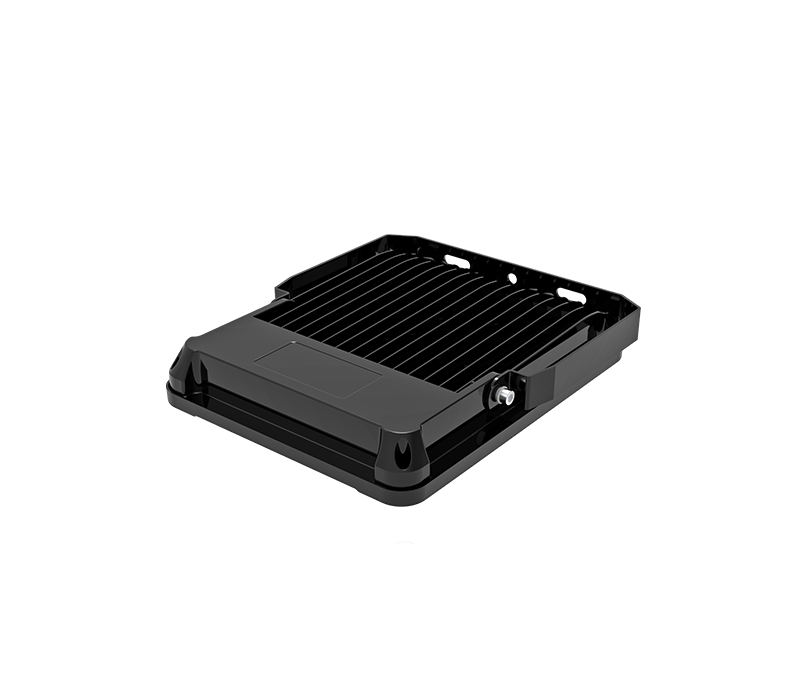

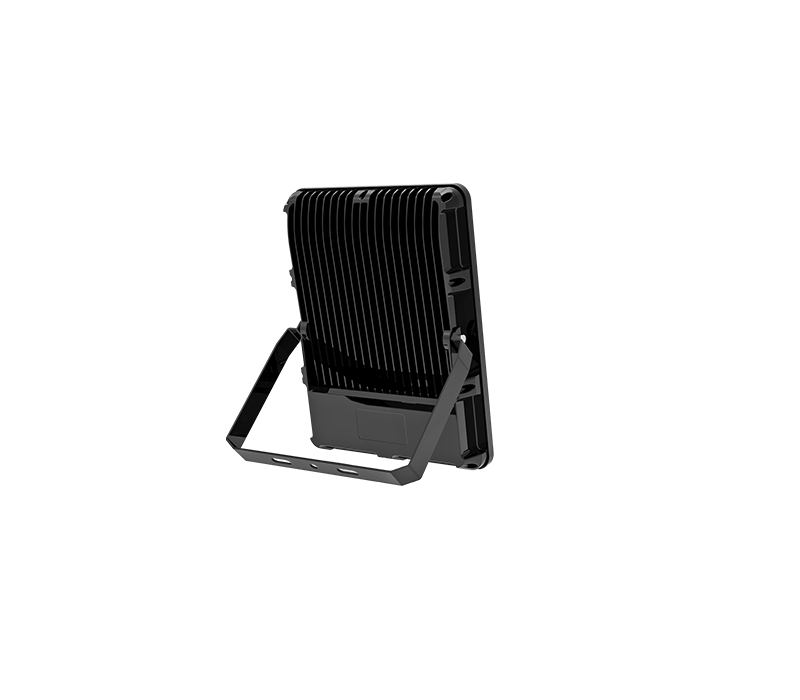

Straight fifin structure with pillars, greatest heat dissipation
304 stainless steel screw, corrosion resistant treatment，suitable for coastal area.
Galvanized bracket, corrosion resistant
Breather Valve, balance the internal and external pressure and humidity.
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V
1. Don't install the lamp to non-stable place.
2. Installed by qualified eletrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally
| Model No. | ISL-XTGD-010A | ISL-XTGD-020A | ISL-XTGD-030A | ISL-XTGD-050A | ISL-XTGD-0100A | ISL-XTGD-0150A | ISL-XTGD-0200A |
| Rated Power | 10W | 20W | 30W | 50W | 100W | 150W | 200W |
| Input Voltage | AC100~277V，50-60Hz | ||||||
| LED Chip | Osram | ||||||
| LED Driver | ZH / Sosen / Meanwell | ||||||
| Material | Die-casting ADC12 + Tempered glass | ||||||
| CRI | Ra>70, Ra>80 | ||||||
| Power Factor | PF>0.95 | ||||||
| CCT | 2800-6500K | ||||||
| Light Efficacy | 120LM/W | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣35°C- +50°C | ||||||
| Beam Angle | 120 ° | ||||||
| Warranty | 3years, 5years | ||||||
| Lifespan | 50,000Hrs | ||||||
| Dimension | 129*99*44mm | 175*135*44mm | 215*175*47mm | 275*225*48mm | 325*275*53mm | 385*305*58mm | 465*354*65mm |
| Packing | 570*375*175mm | 600*335*215mm | 620*330*250mm | 525*37*315mm | 450*325*383mm | 372*362*448mm | 388*290*490mm |
| Packing Quantity | 30pcs/ctn | 40pcs/ctn | 15pcs/ctn | 10pcs/ctn | 5pcs/ctn | 4pcs/ctn | 3pcs/ctn |
| Weight | N.W:16KG/G.W:18KG | N.W:17.5KG/G.W:19KG | N.W:22.5KG/G.W:23.1KG | N.W:21.5KG/G.W:22.7KG | N.W:20.25KG/G.W:21KG | N.W:20.8KG/G.W:21.3KG | N.W:21.3KG/G.W:21.8KG |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | ||||||
