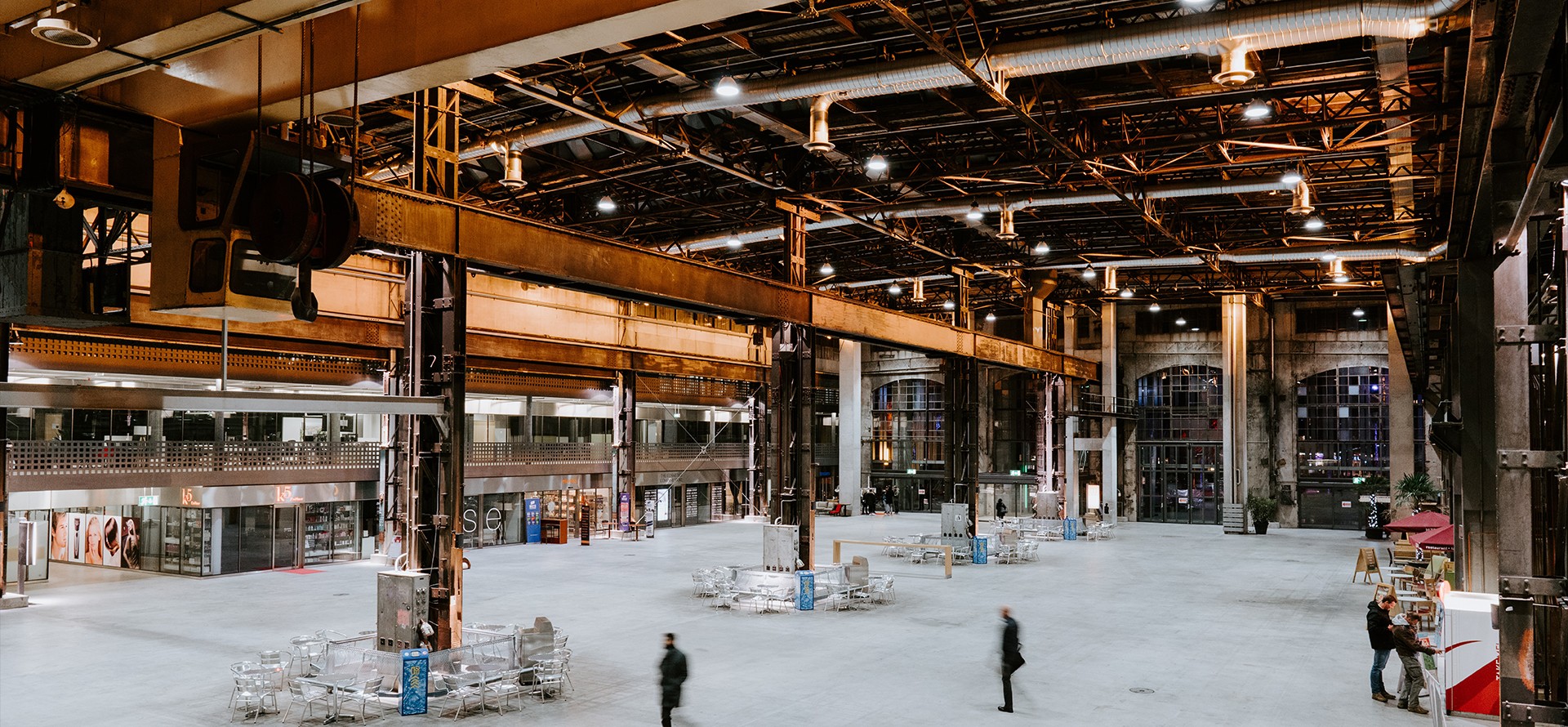

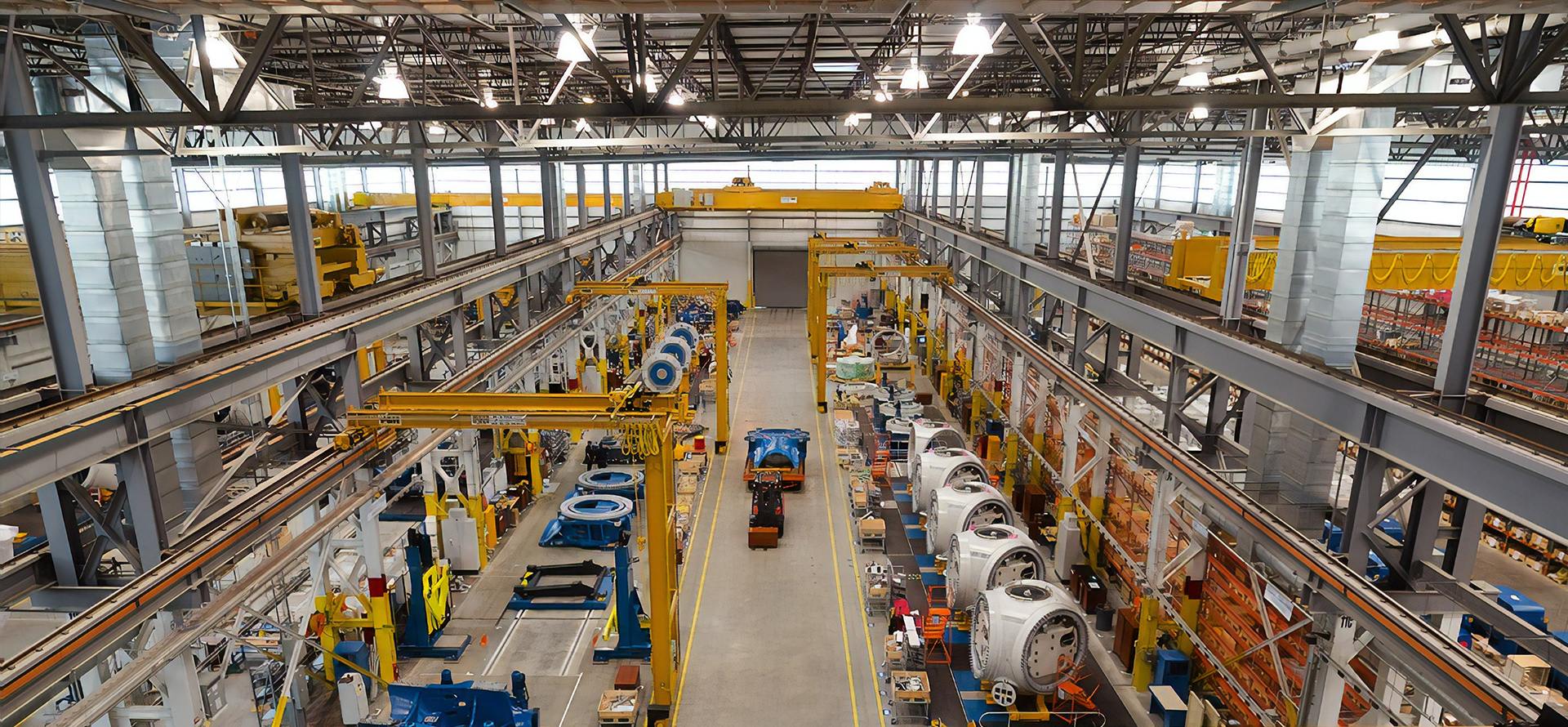

It can be widely used in Workshops, Warehouse, Exhibition halls, Supermarkets, Gyms, Indoor stadiums, Gas stations, Logistics centers, Underground parking lots, etc
Offered in 100W, 150W, 200W and 240W
Up to 130lm/W, 150lm/W, 170lm/W
Optical UV resistant PC lens with 94% light transmittance, IK08

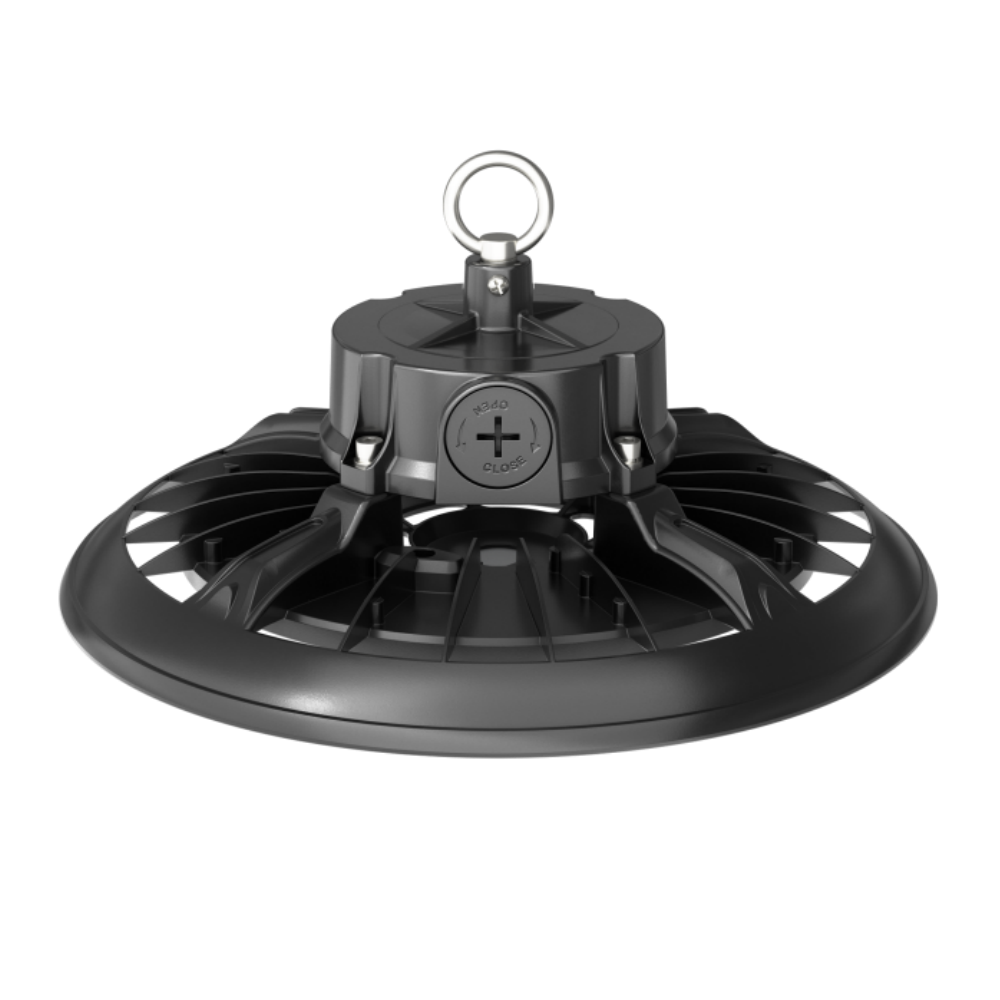

Die-casting technology by ADC12, excellent thermal management
Top brand LED chip and driver, ensure the product quality and lifetime
3/ 5Years warranty

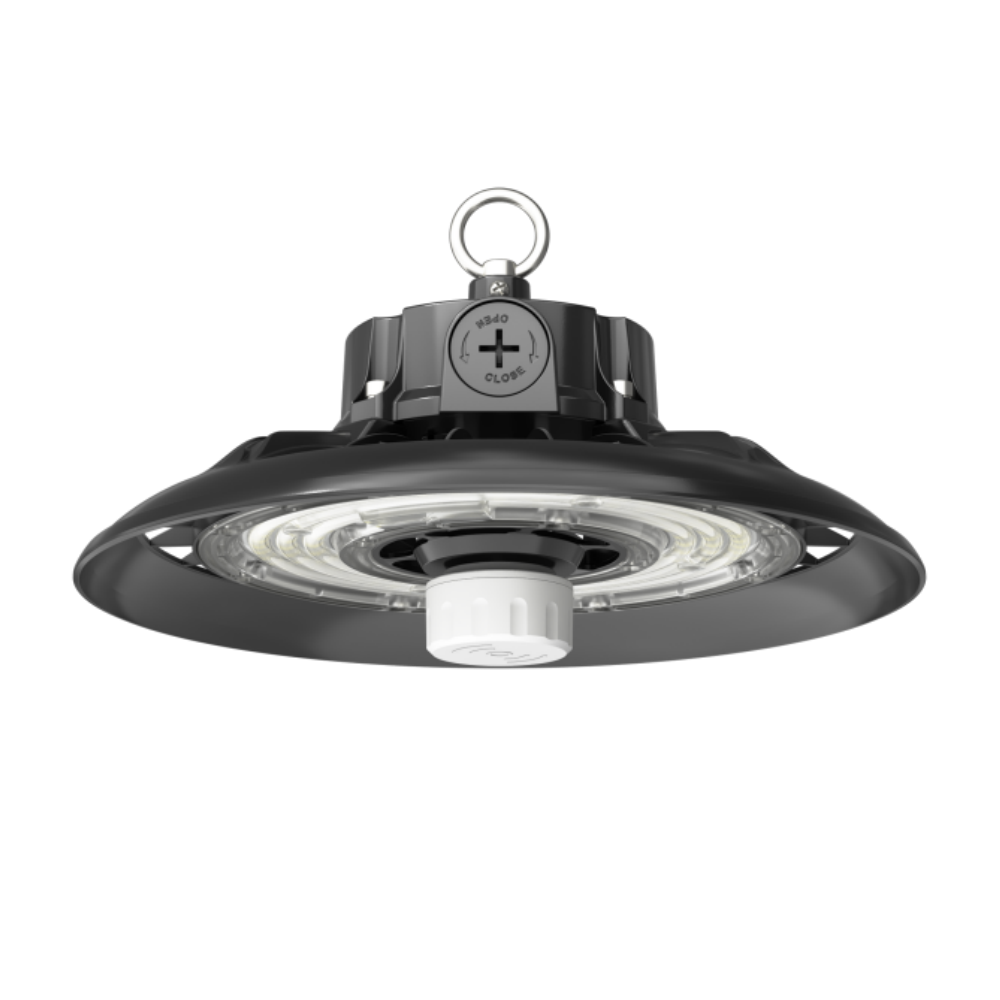

Options: Motion Sensor (plug and play)
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC220-240V/ AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.

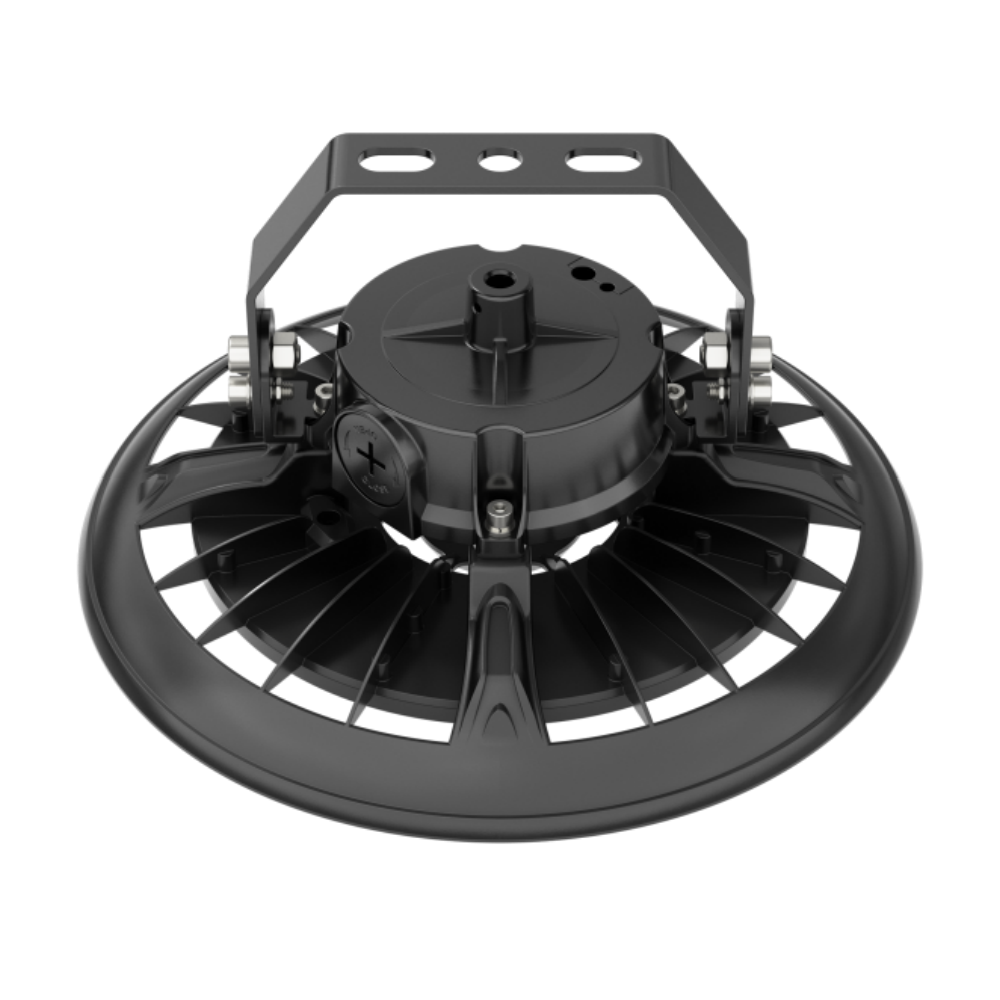

| Model No. | ISL-HB23-100W | ISL-HB23-150W | ISL-HB23-200W | ISL-HB23-240W |
| Power | 100W | 150W | 200W | 240W |
| Dimmension | ø252*138mm | ø286*145mm | ø309*149mm | ø309*149mm |
| Input Voltage | AC220-240V, AC100-277V 50/60Hz | |||
| Light Efficiency (±5%) | 130lm/W, 150lm/W, 170lm/W | |||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||
| CRI | 80 | |||
| Beam Angle | 60°/90°/120° | |||
| LED | Lumileds/ San'an | |||
| Driver | Philips/ Sosen/ ZH | |||
| Options | Microwave Sensor | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 3/ 5Years | |||
