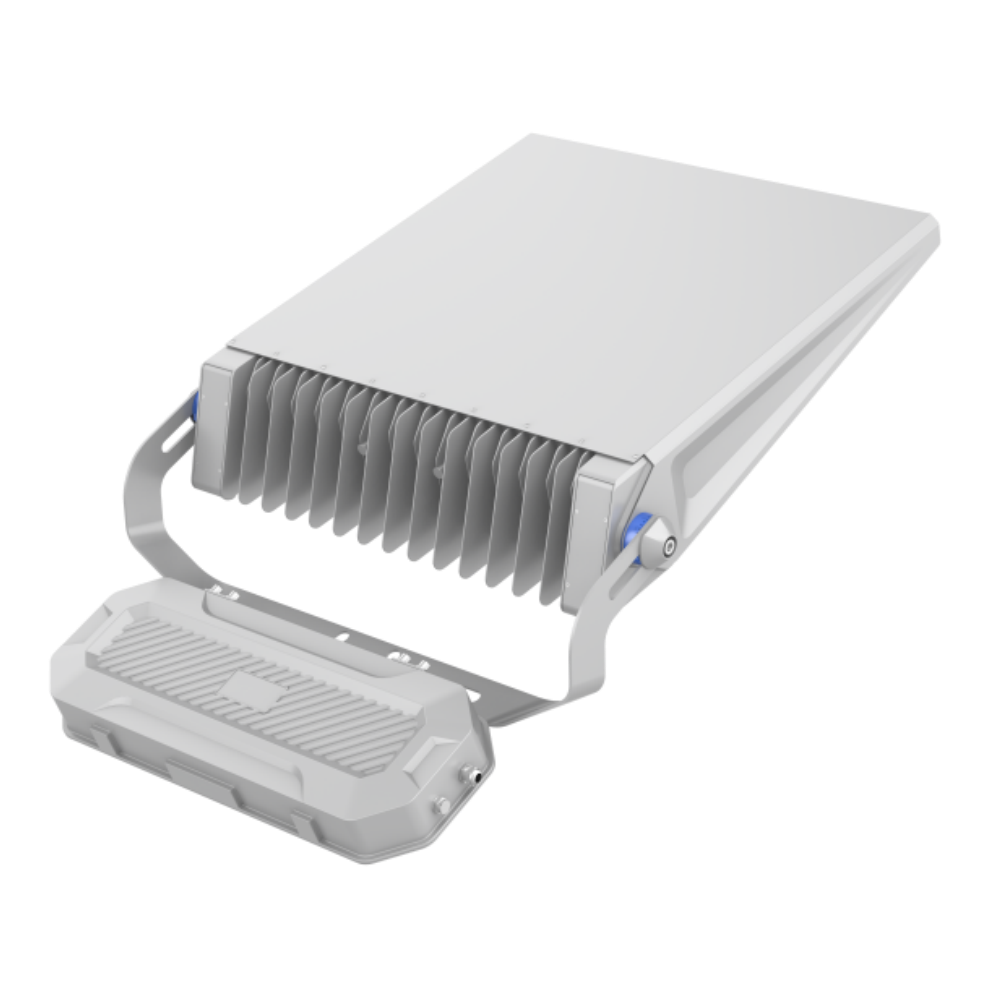

This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:

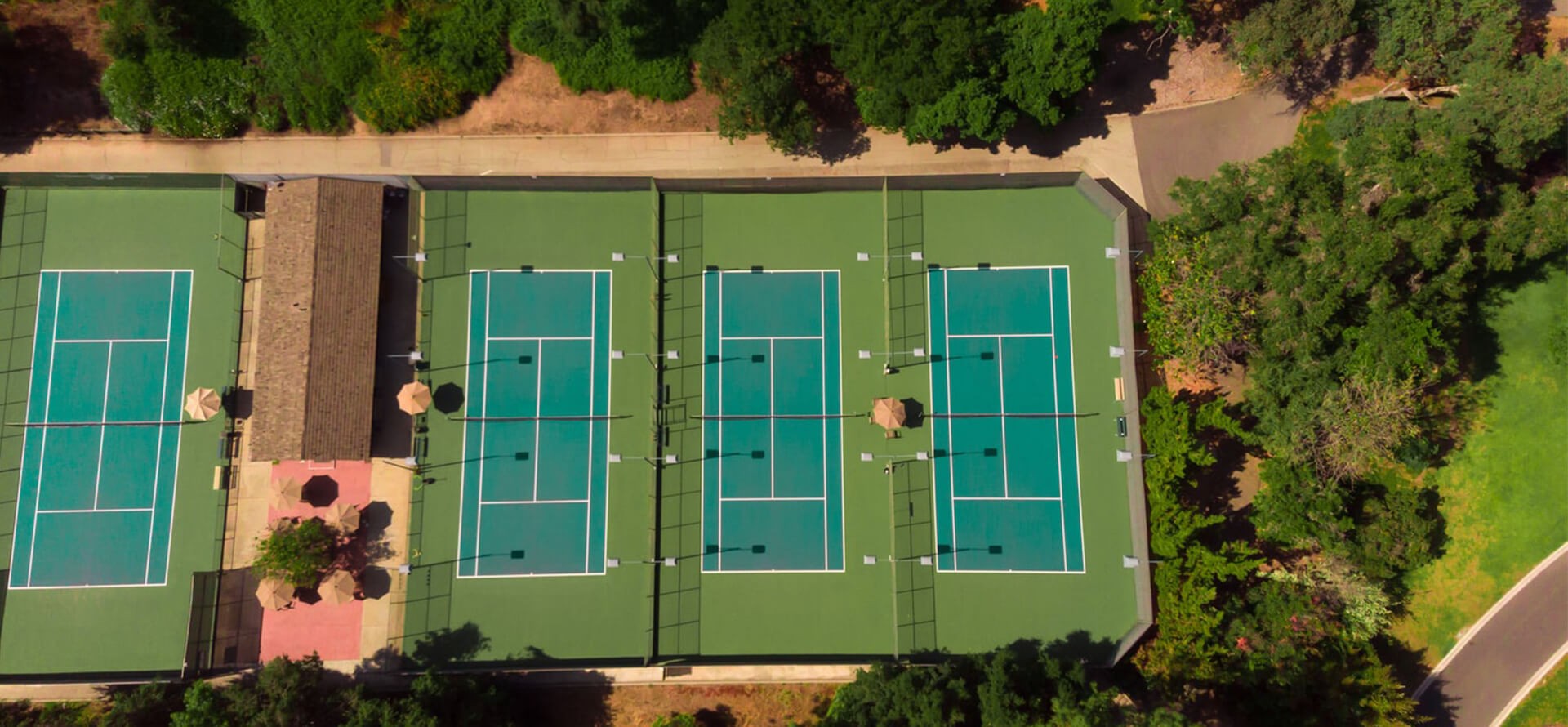

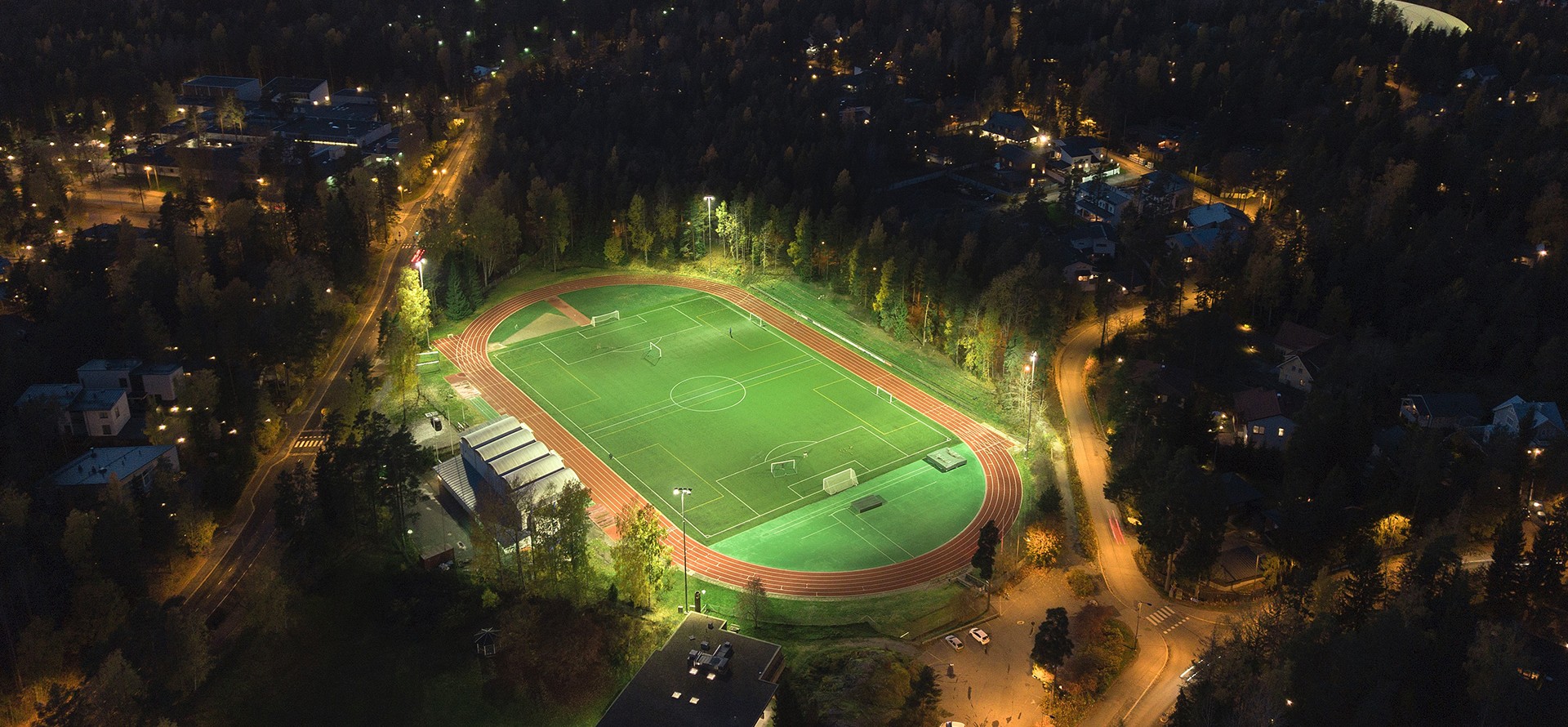

Soccer Fields and Stadiums, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas, Rugby Fields and Cricket Grounds, Track and Field Arenas, Golf Courses, Baseball Diamonds.
High Power: 400W–650W for wide-area illumination

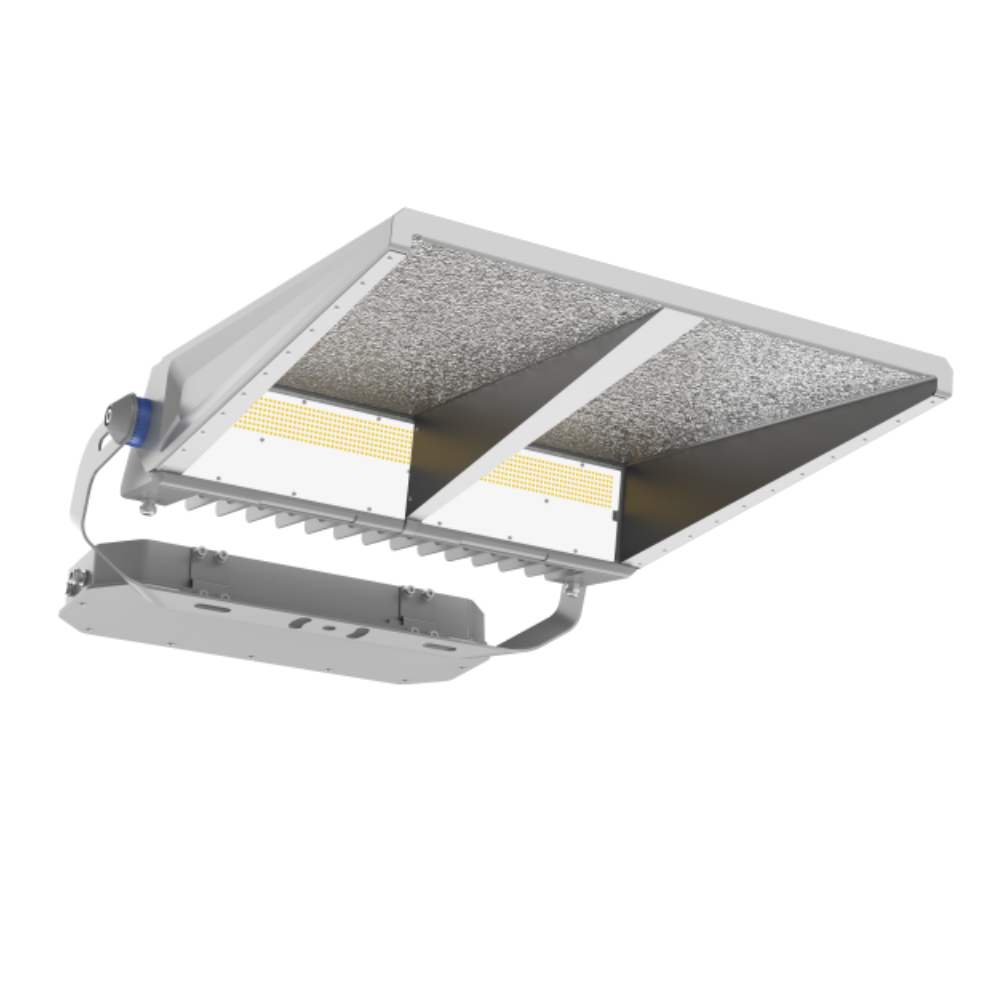

Optical Lens: 60° asymmetric beam, clear and focused lighting

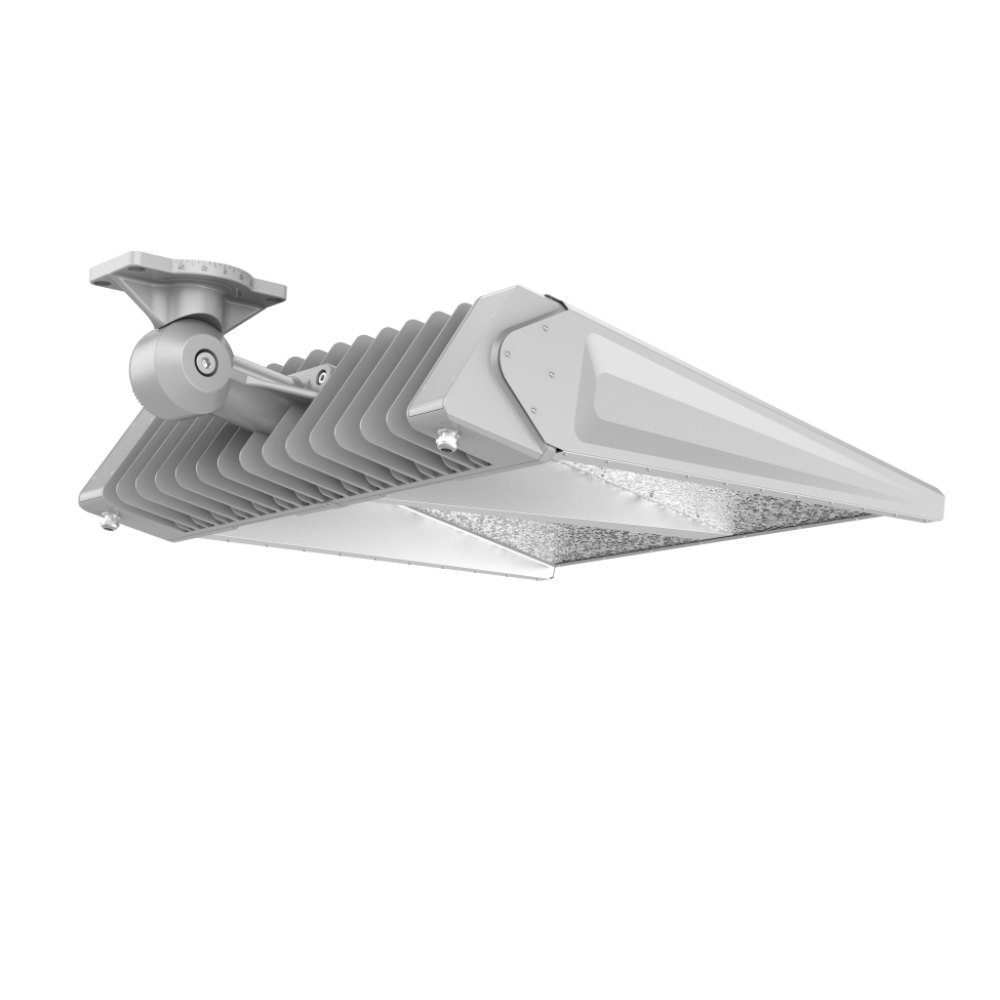

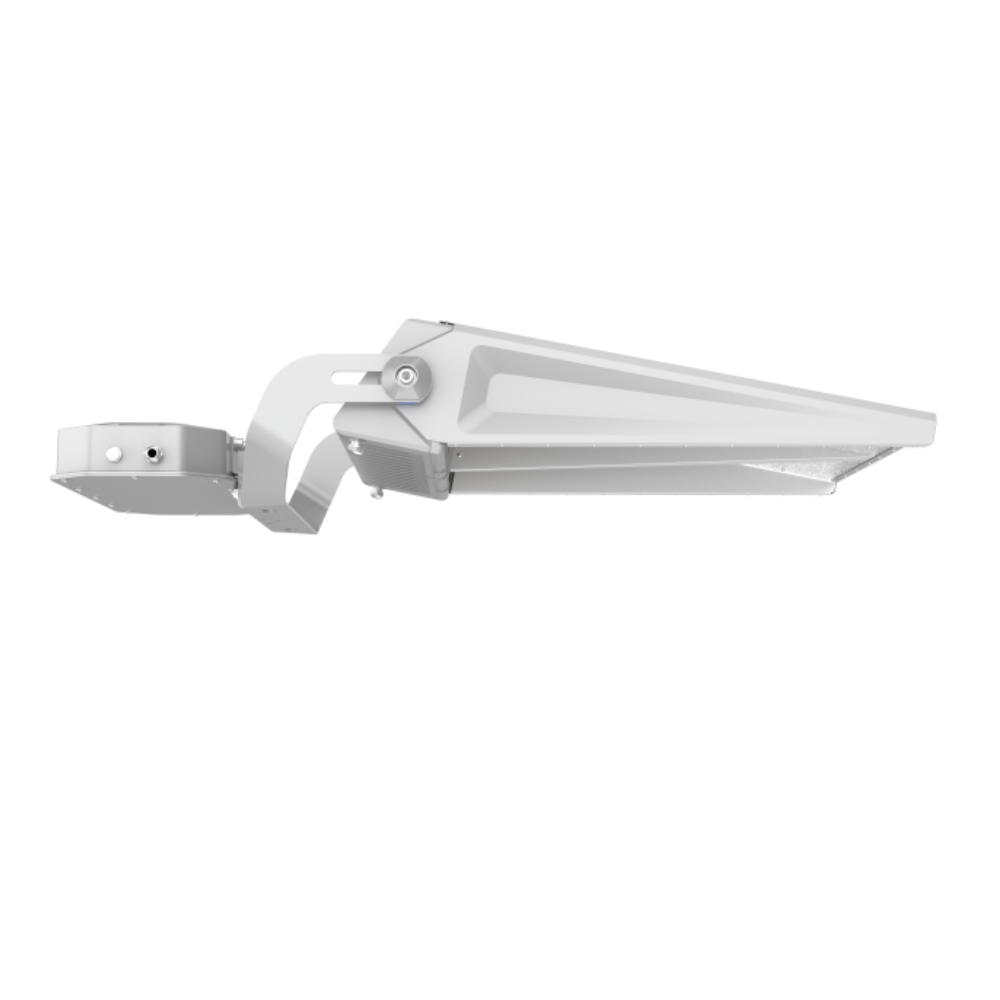

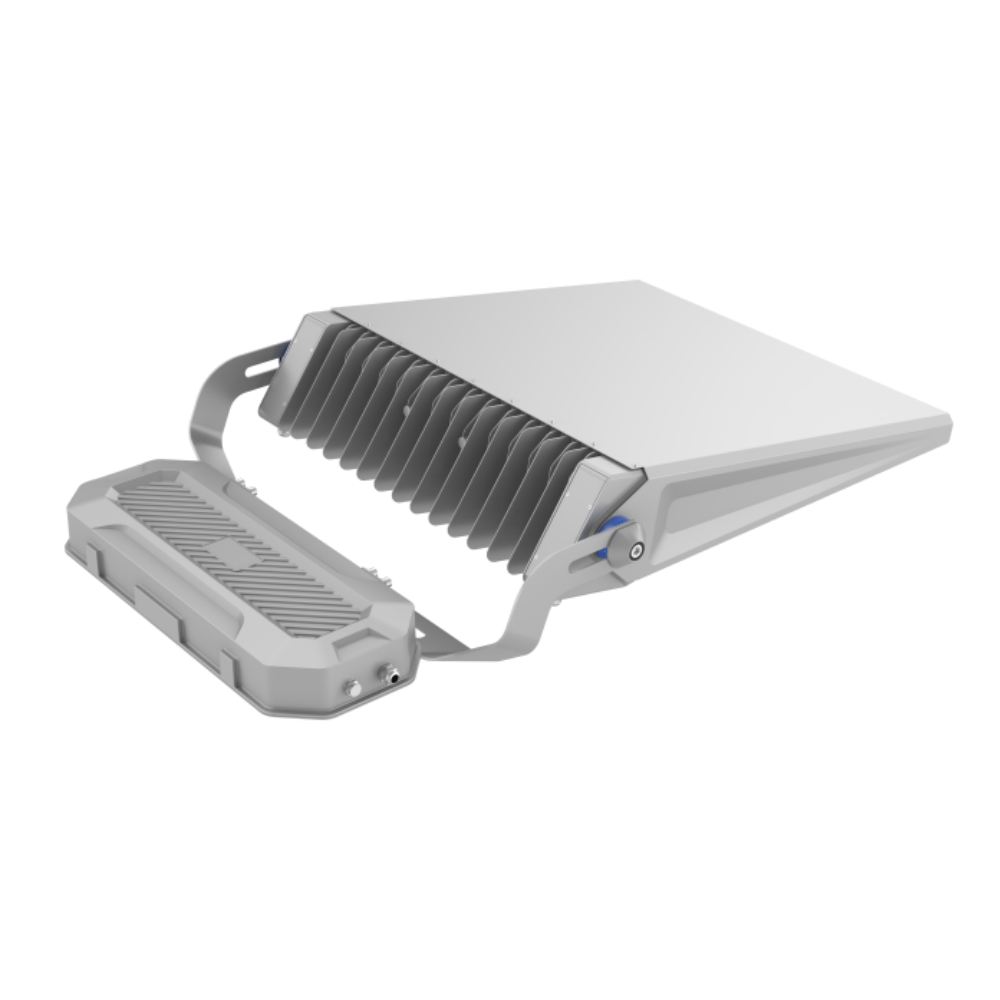

Sturdy Build: Die-cast aluminum arm and bracket

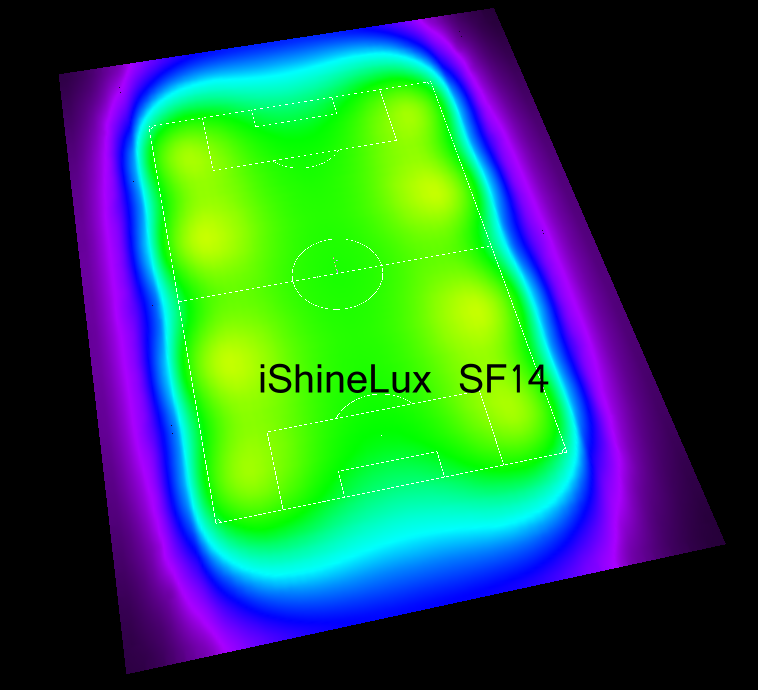

Low Light Spill: Optimized optical design minimizes unwanted spill light and prevents light pollution in surrounding areas.
Reliable Quality: Top-brand LED chip and driver
IP66 Rated: Dustproof and waterproof for outdoor use
Double Surge Protection: Built-in driver and 10KV SPD
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-SF14-400W | ISL-SF14-500W | ISL-SF14-650W |
| Power | 400W | 500W | 650W |
| Dimmension | 923*684*190mm | 923*684*190mm | 923*684*190mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||
| Light Efficiency (±5%) | 110lm/W | ||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||
| CRI | 80 | ||
| Beam Angle | ASY60° | ||
| LED | Lumileds | ||
| Driver | Sosen | ||
| SPD | 10KV | ||
| Housing | Die-casting technology by ADC12 | ||
| IP Rating | IP66 | ||
| IK Rating | IK08 | ||
| Operation Temperature | ﹣35°C- +50°C | ||
| Lifespan | 50,000H | ||
| Warranty | 5Years | ||
