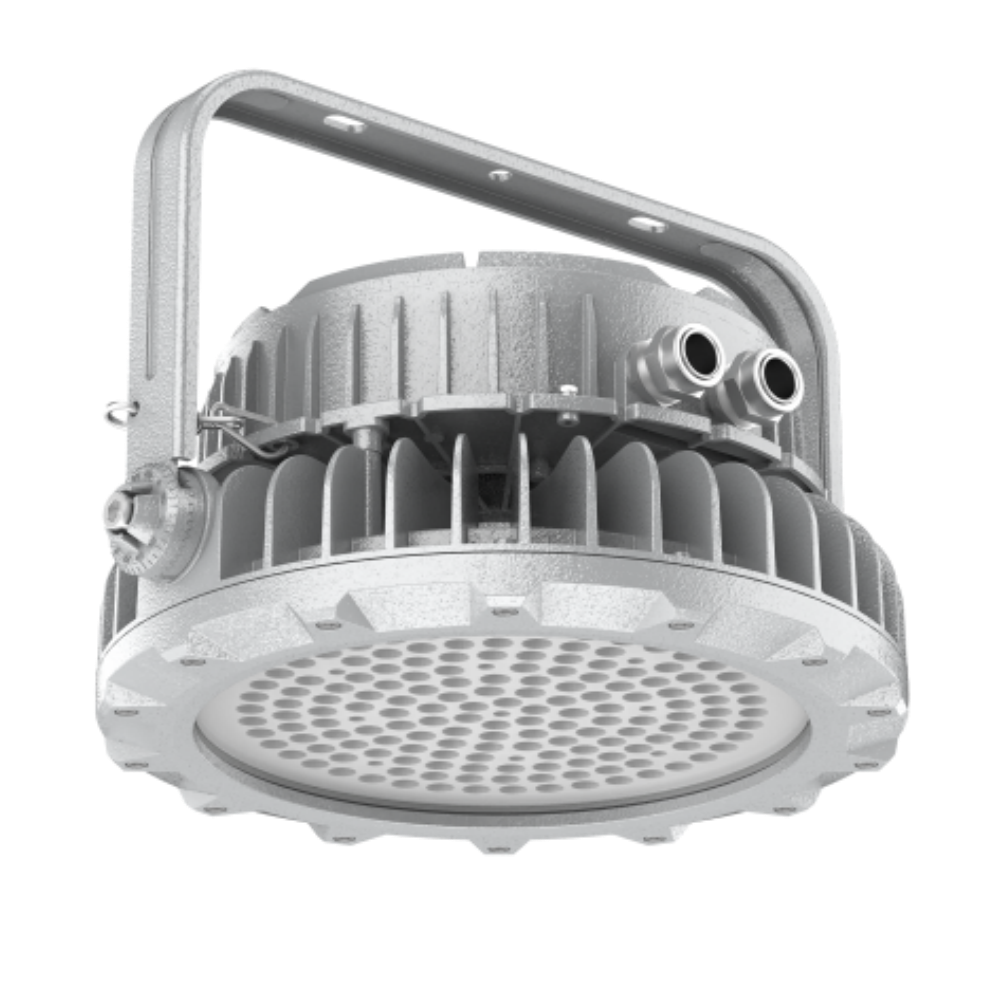

ROBUS Ex02 Ex High Bay Light 50W-400W_Shenzhen iShineLux Technology Co.,ltd.

Inquiry now

Ideal for Petroleum, chemical industry, coal mine, mining industry, shipbuilding, port industry, petrochemical, metallurgical industry

ExII 2G Ex db lIB+H₂ T6 Gb; ExII 2D Ex tb llIC T85°C Db

High Temperature silicone gasketing.

Safe and reliable heat transfer - Offering a T-rating of T6

Anti-corrosion housing tested 1000hrs to standard lSO9227

All exposed fasteners with quality stainless steel 304, 316 optional.

Valid over the entire temperature range from -40°C~+65°C

Diversifed optic solutions options 30°/45°/60°/90°/120° and other optional optics.

Thermal shock and impact resistant tempered glass up to 10mm thickness

Shock and vibration resistant-Durable LEDs with solderless board connection, 4mm thick mounting bracket wall thickness, M8 hexagon socket cap screws.

Optional 15W; 20W; 25W, 30W (90 to 180 minutes duration) emergency lighting kit.

Optional CCT & Power Adjustment via DlP Switch.

Working Temperature: -40℃ to +65℃

Storage Temperature: -35℃ to +50℃

Working Humidity: 0%~85%

Storage Humidity: 0%~90%

Warning

1. Please install the lamp according to the installation to avoid dropping and electric shock.

2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.

3. Working voltage is not to be exceeded AC100-277V 50/60Hz.

Attention

1. Don't install the lamp to non-stable place.

2. Installed by qualified electrician.

3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
