It can be widely applied in workshops, warehouses,exhibition halls, supermarkets, gyms, indoor stadiums, gas stations, logistics centers, underground parking lots, etc.

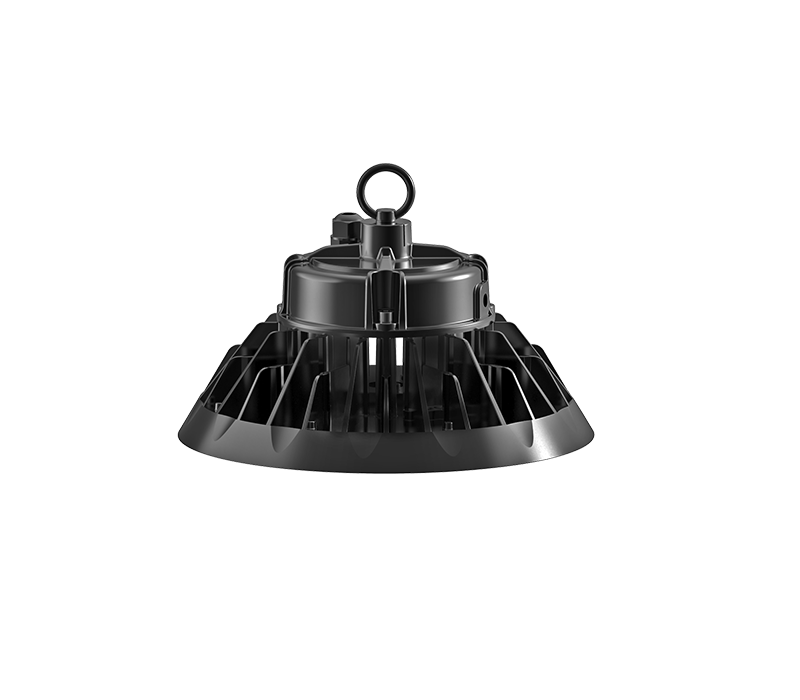

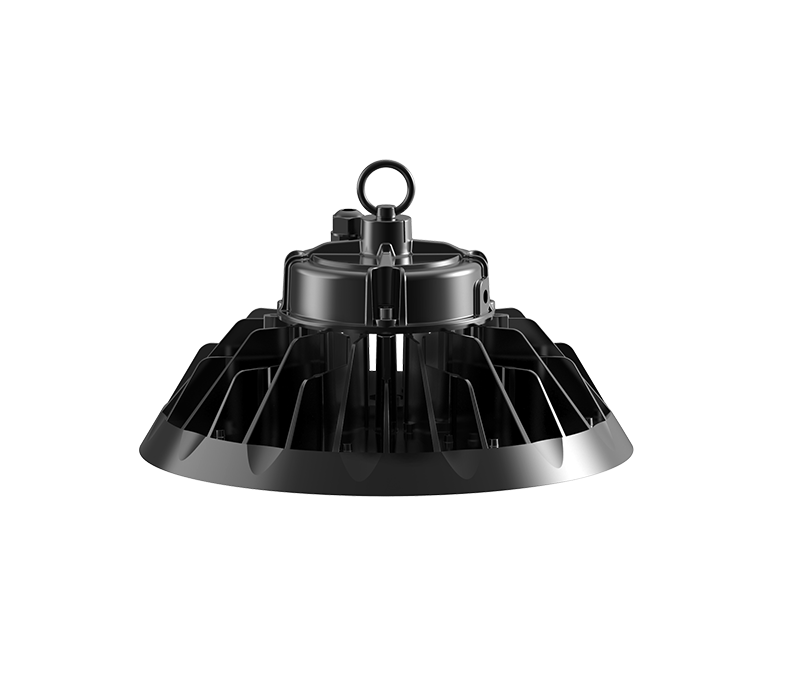

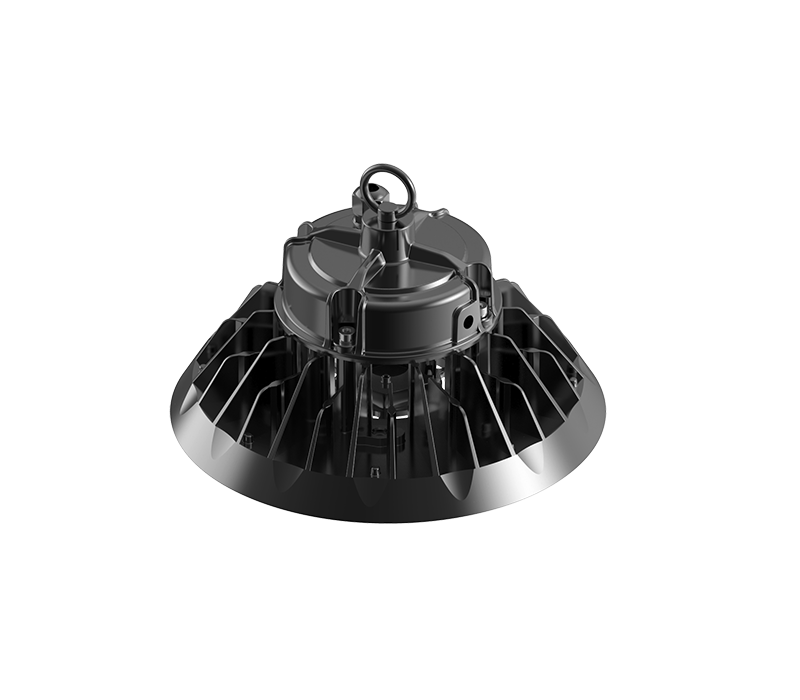

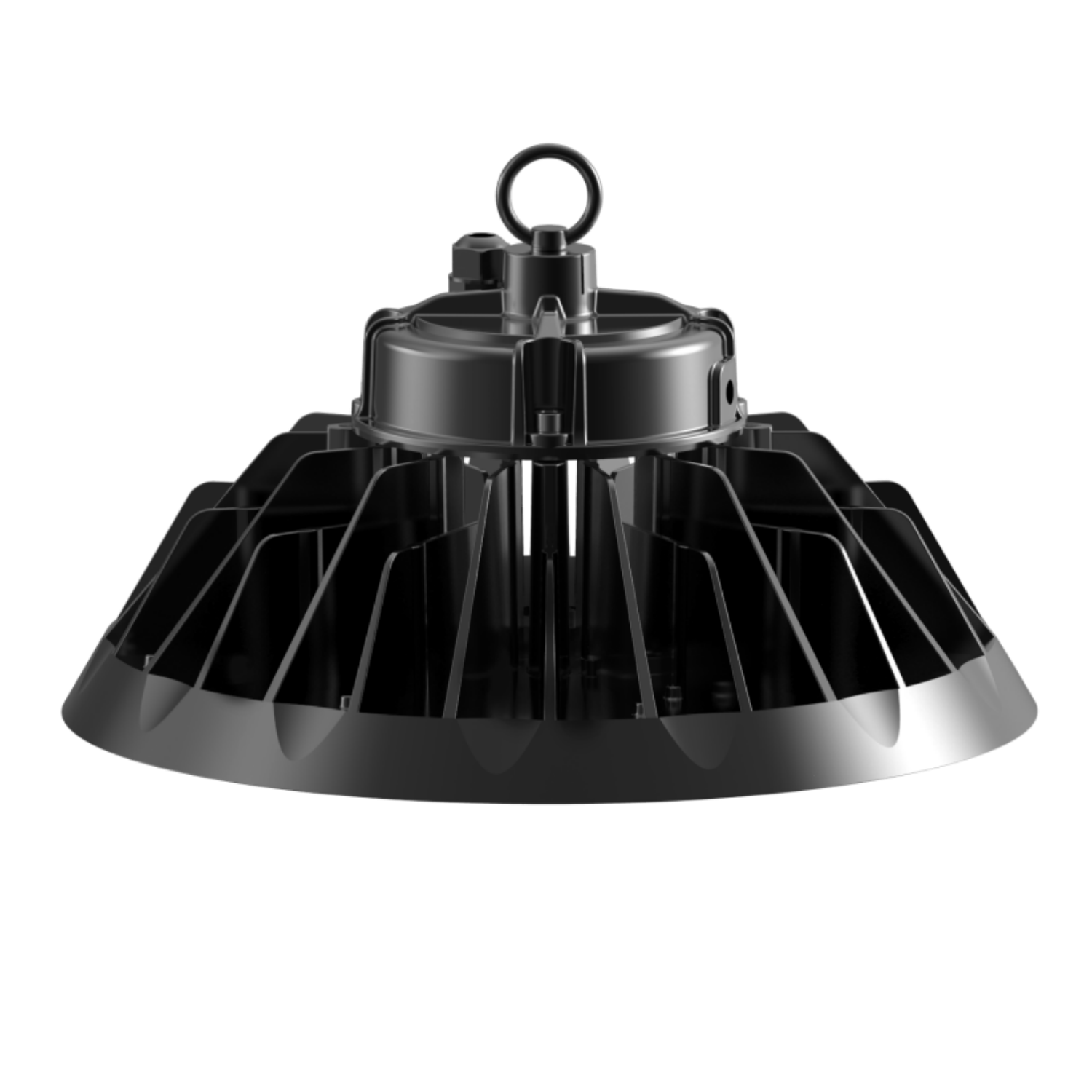

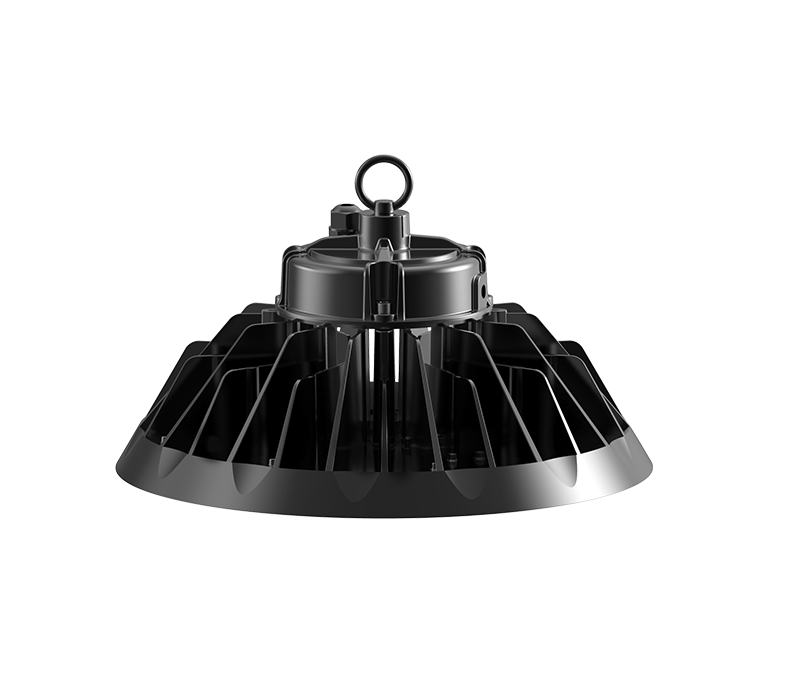

Hollow design, increases the industrial appearance, maximizes the heat dissipation area to achieve excellent thermal management
Incorporates die-casting technology into the heat sink, ADC12 with 92% purity, thermal conductivity 96W/(m*k)@25℃

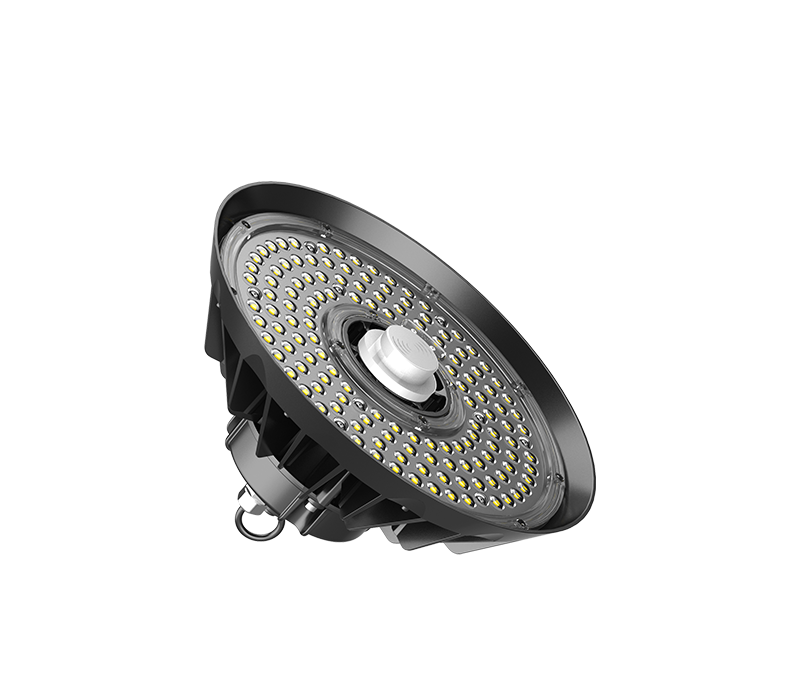

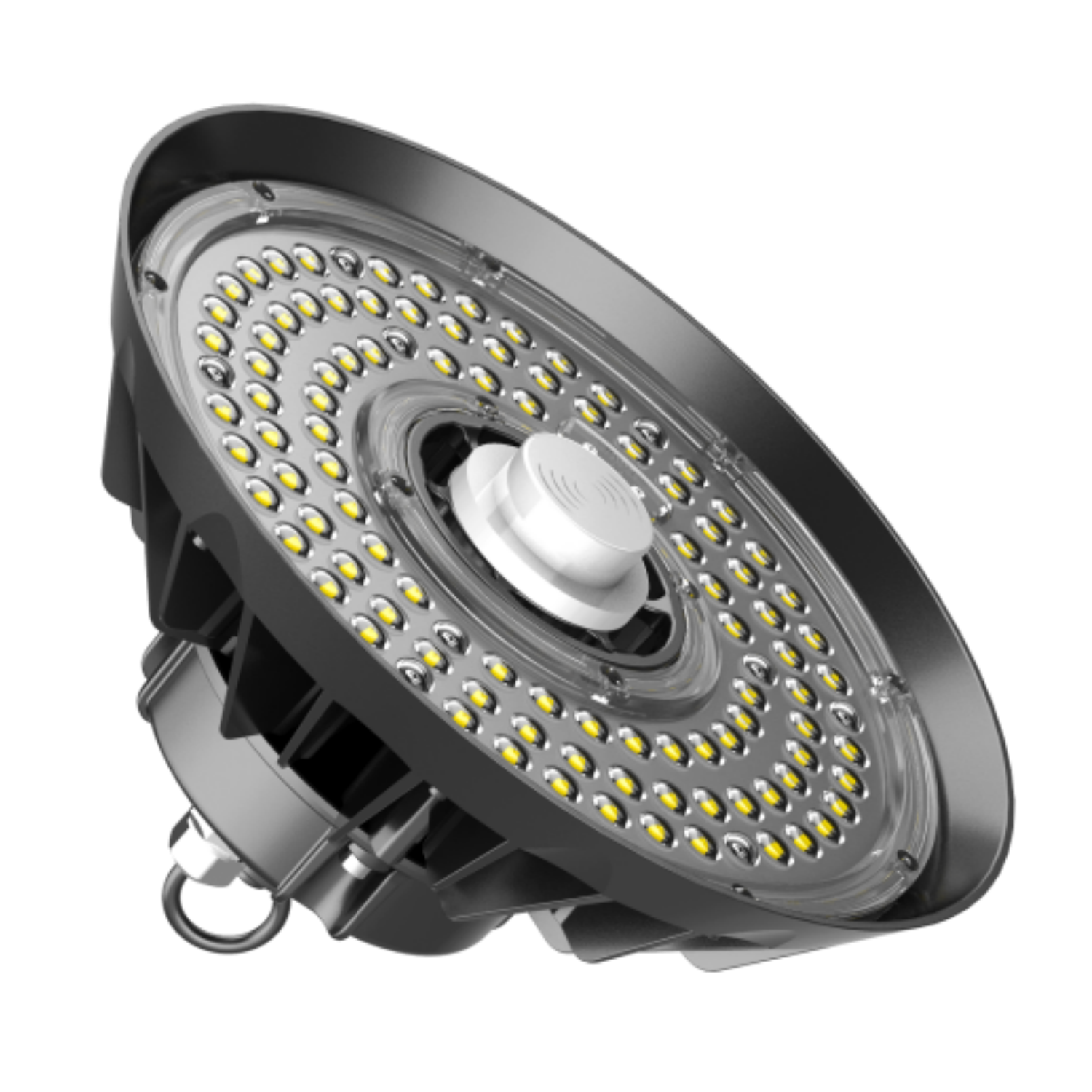

Smart lighting control options: PIR sensor, Microwave sensor, Zigbee etc.
Top LED brand chips and drivers, ensures product high luminous efficacy & longevity, OSRAM & Sosen
Optical lighting distributions: 60°, 90°,120°
High luminous efficacy: 140-150lm/W, 190lm/W
Ingress protection & impact protection rating: IP65 & IK08
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.

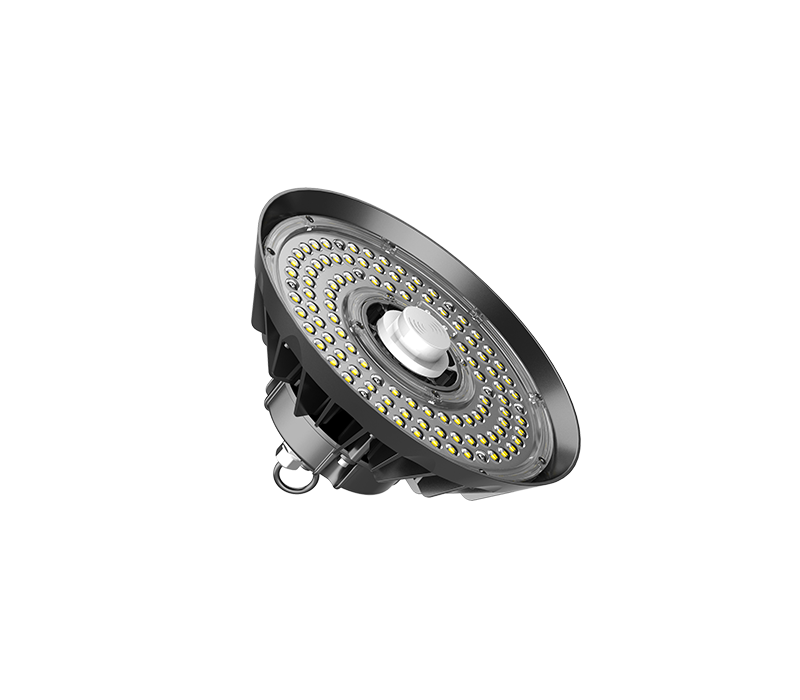

| Model No. | ISL-UFO-E100W | ISL-UFO-E150W | ISL-UFO-E200W | ISL-UFO-E240W |
| Rated Power | 100W | 150W | 200W | 240W |
| Input Voltage | AC85~265V / AC100~277V | |||
| LED Chip | Lumileds/OSRAM | |||
| LED Driver | MeanWell/Sosen/ZH | |||
| Material | Aluminum +Lens | |||
| CRI | Ra>80 | |||
| Power Factor | PF>0.95 | |||
| CCT | 2700-6500K | |||
| Light Efficacy | up to 190lm/W | |||
| IP Rating | IP65 | |||
| IK Rating | IK06 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Beam Angle | 60/90/120° | |||
| Warranty | 3 years, 5years | |||
| Lifespan | 50,000Hrs | |||
| Dimension | 248*129mm | 295*140mm | 320*154mm | 320*154mm |
| Packing | 305*305*180mm | 3305*335*190mm | 380*380*200mm | 380*380*200mm |
| Weight | G.W:2.8KG | G.W:3.6KG | G.W:4.4KG | G.W:4.5KG |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||
