Roads, highways, viaducts, city streets, overpasses, sidewalks, and outdoor lighting places such as squares, schools, residential areas and parks.>

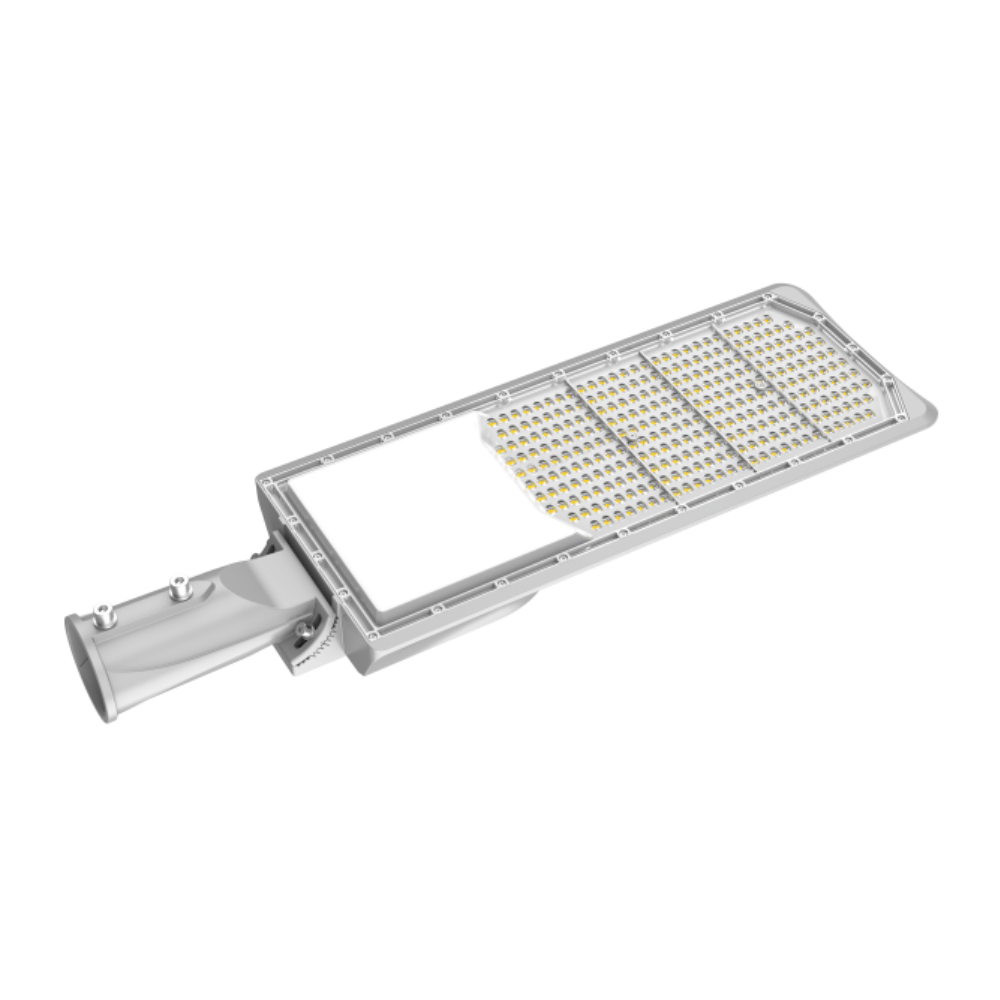

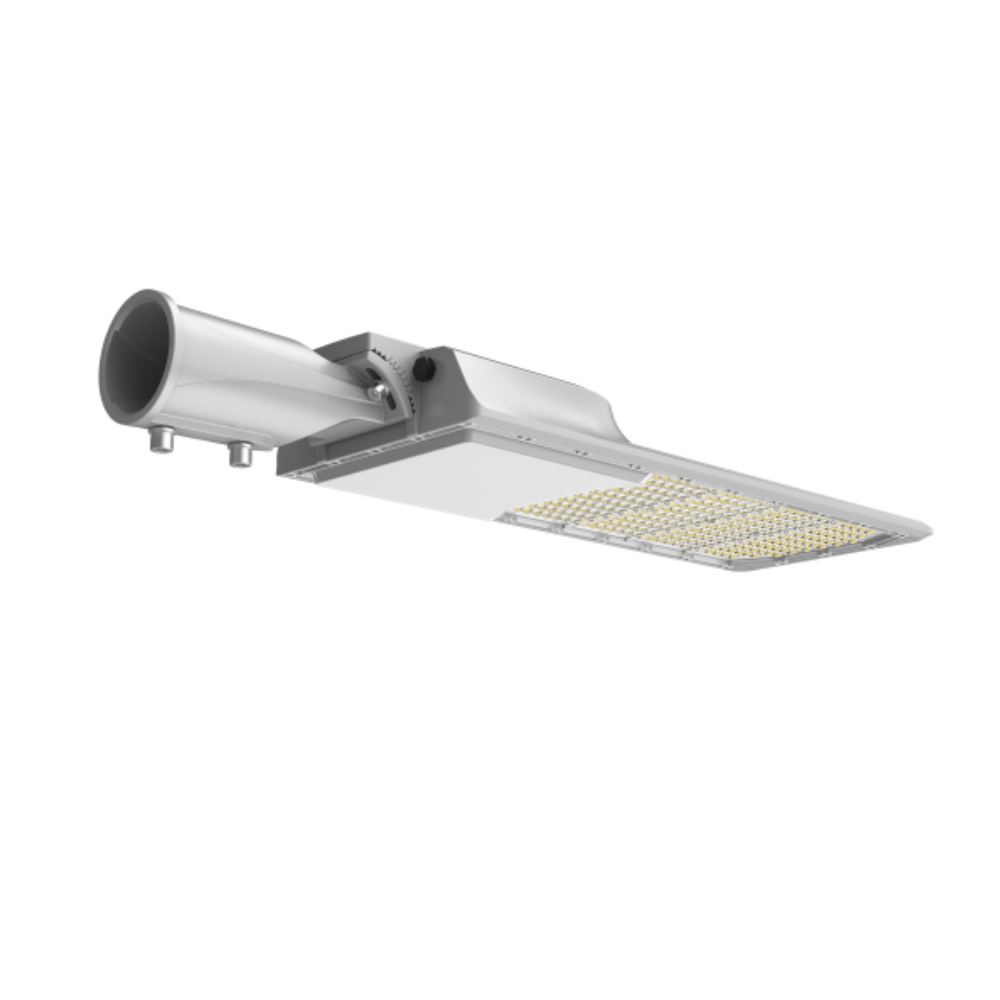

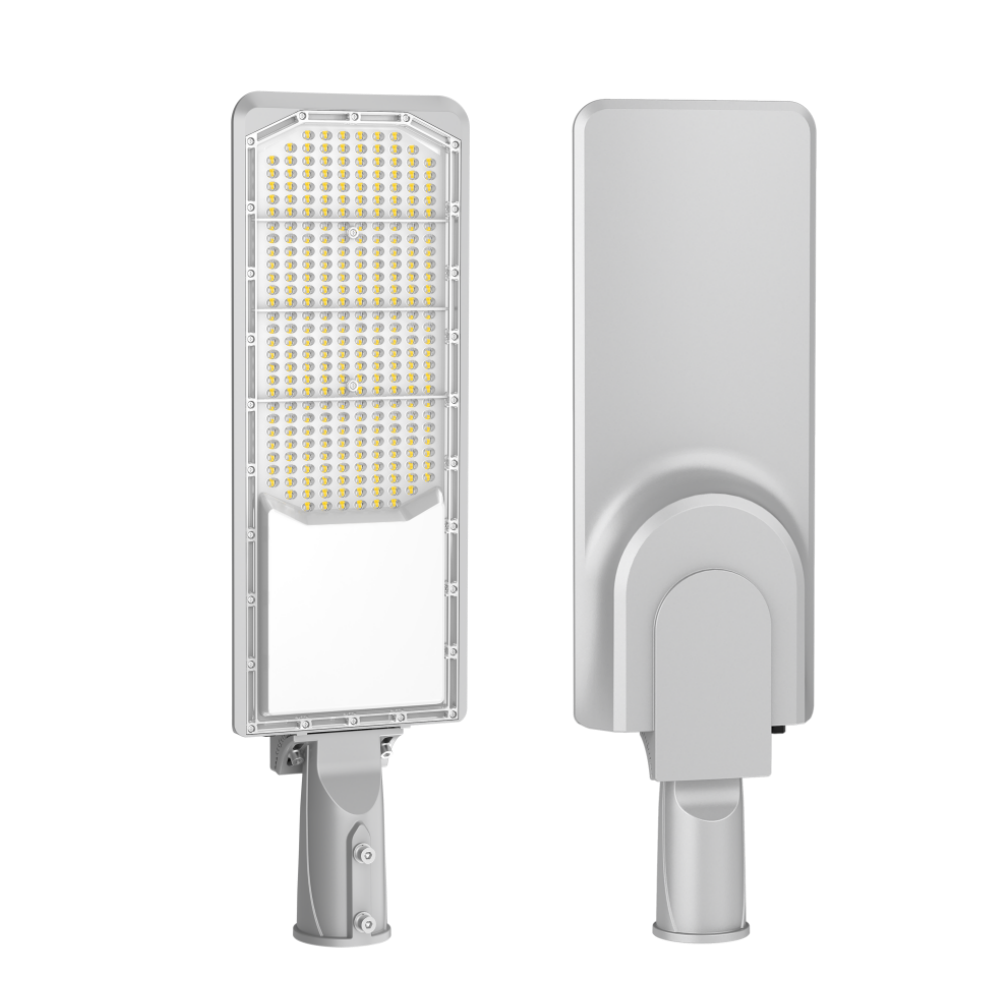

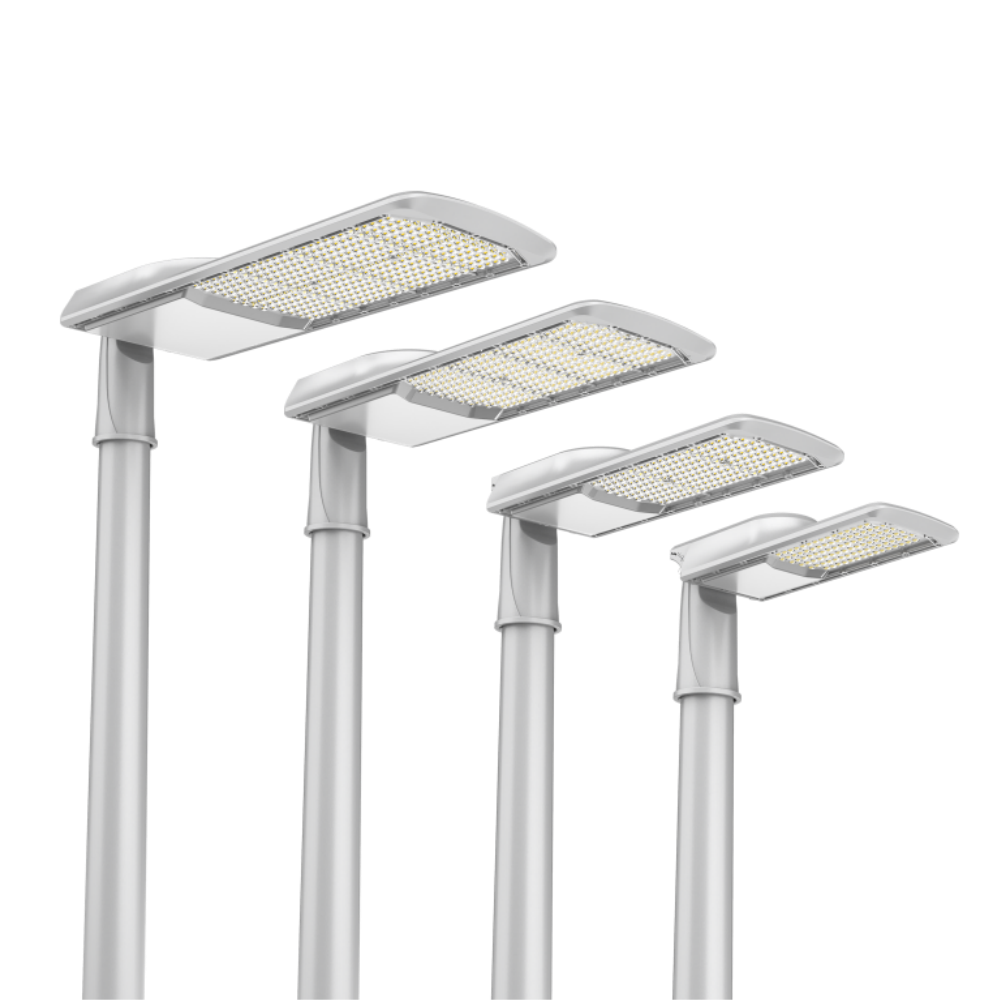

Offered in 50W-200W
Light efficacy up to 140lm/W
Light Distribution: 70*140°
Optical UV resistant PC lens with 94% light transmittance, IK08
Die-casting technology with ADC12, excellent thermal management
Lumileds chips, high brightness, low light decay & long lifetime
Ingress protection: IP66 waterproof
Double surge protection: Driver & extra 10KV SPD
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
| Model No. | ISL-SL08-50W | ISL-SL08-100W | ISL-SL08-150W | ISL-SL08-200W |
| Power | 50W | 100W | 150W | 200W |
| Dimmension | 505*129*58mm | 587*167*62mm | 680*203*65mm | 743*235*65mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||
| Light Efficiency (±5%) | 140lm/W | |||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||
| CRI | 80 | |||
| Beam Angle | 70*140° | |||
| LED | Lumileds/ San'an | |||
| Driver | Sosen/ iShineLux | |||

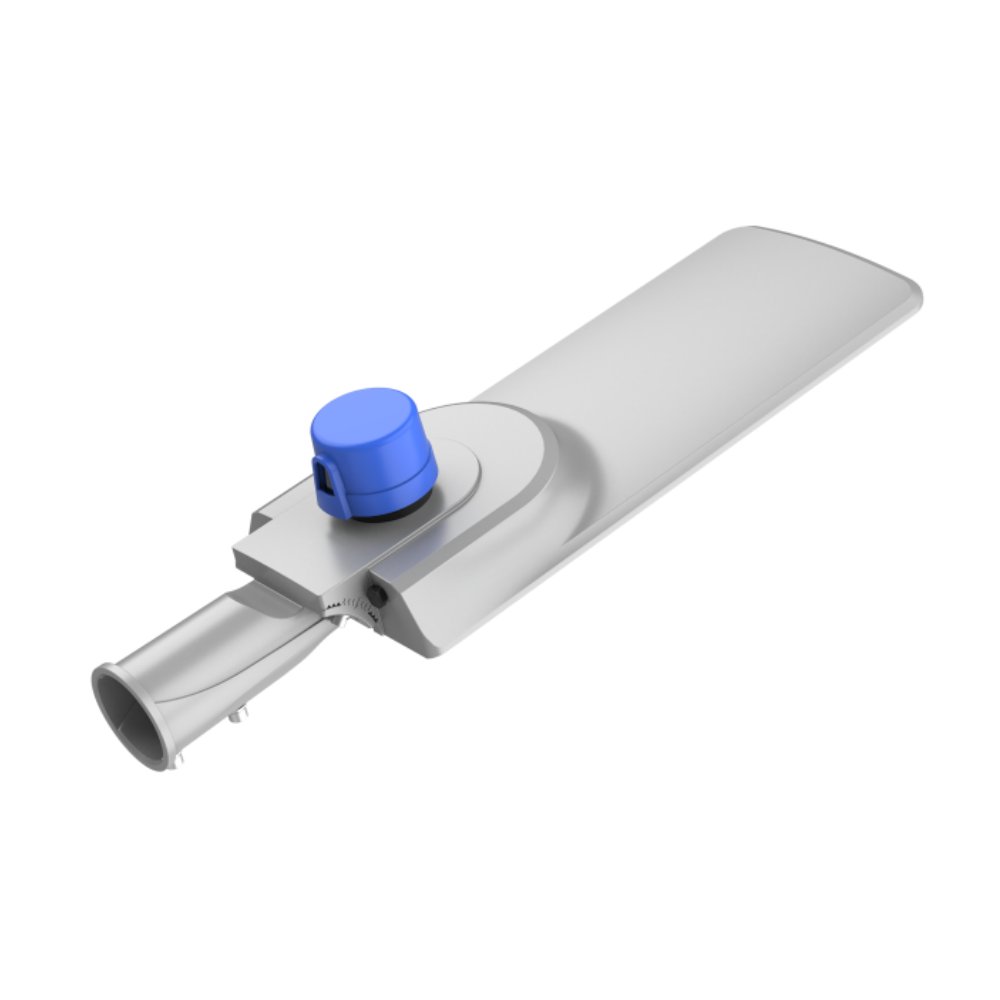

| Options | Photocell | |||
| Housing | Die-casting technology by ADC12 | |||
| IP Rating | IP66 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Lifespan | 50,000H | |||
| Warranty | 3/ 5Years | |||
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
