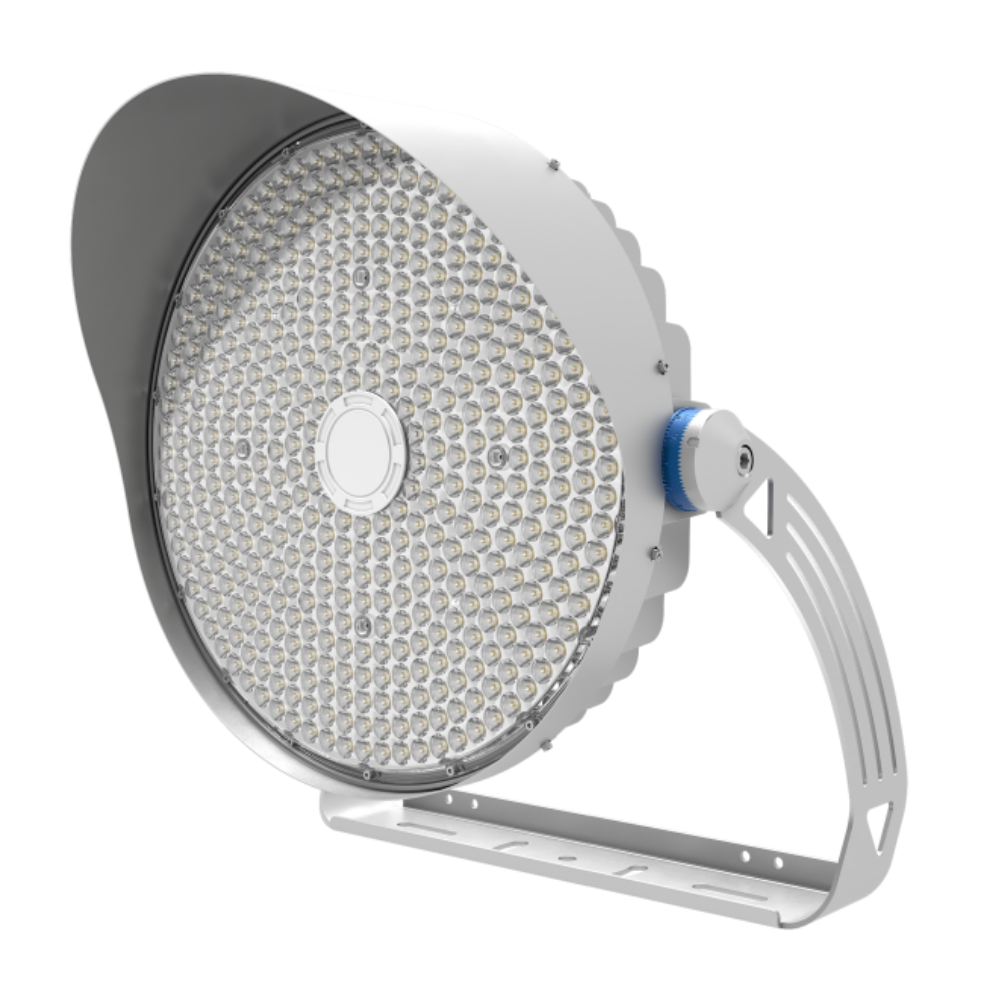

This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:

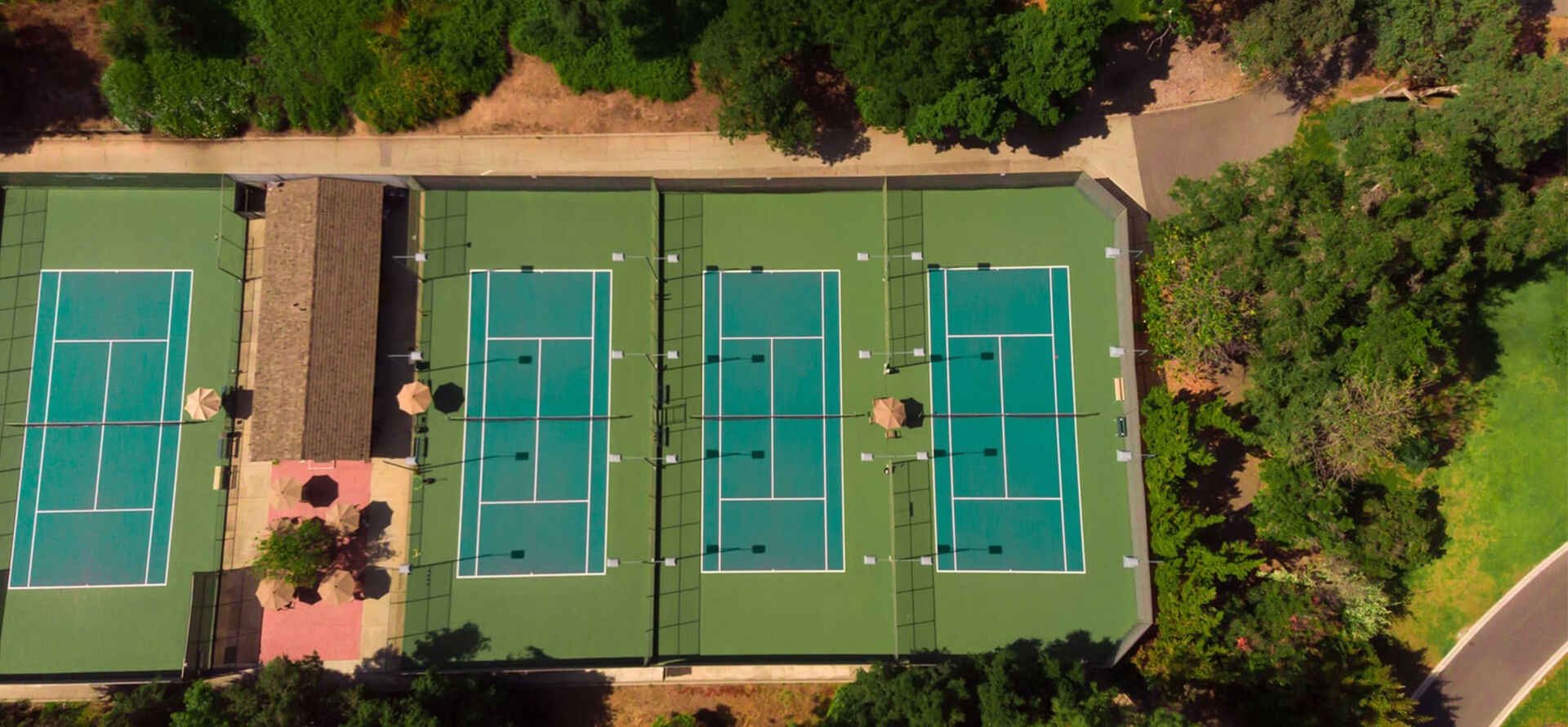

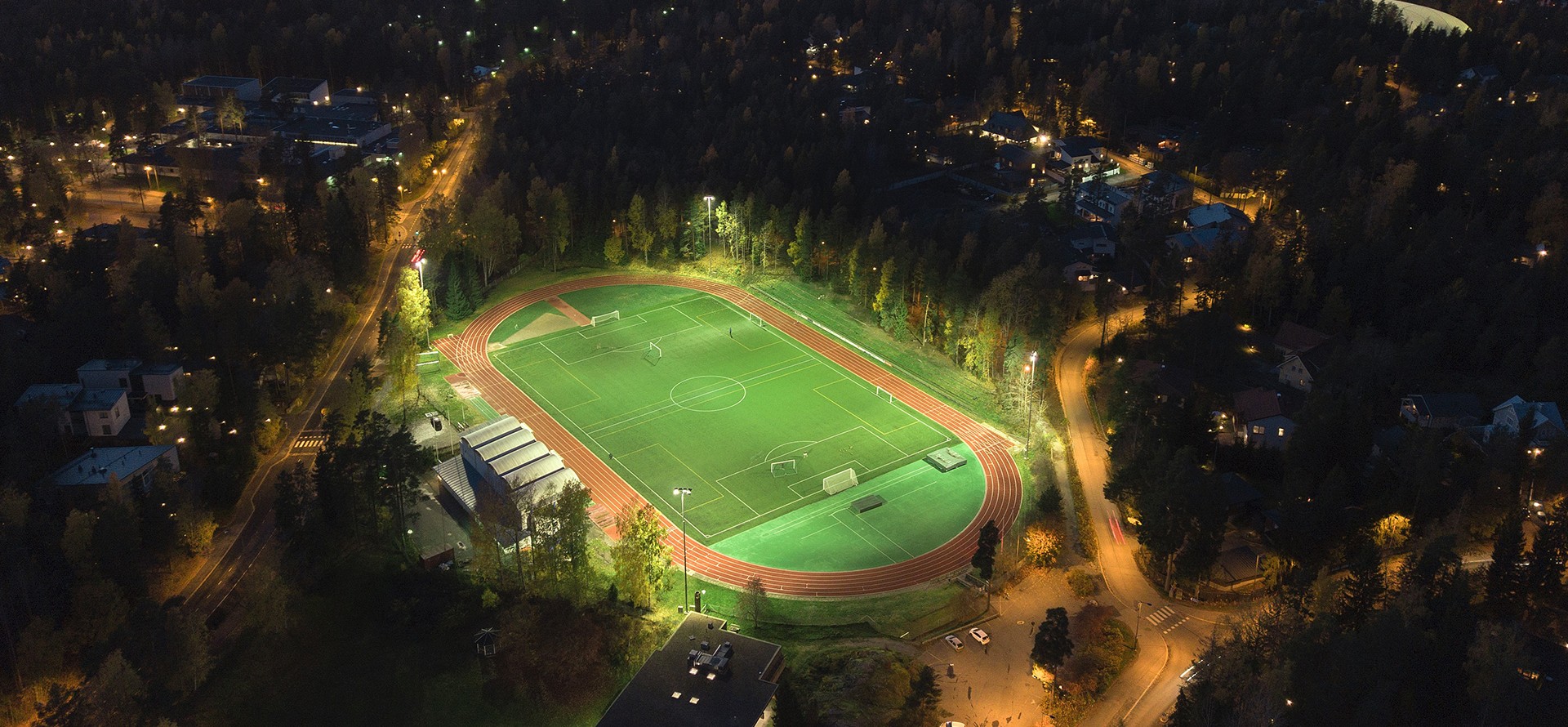

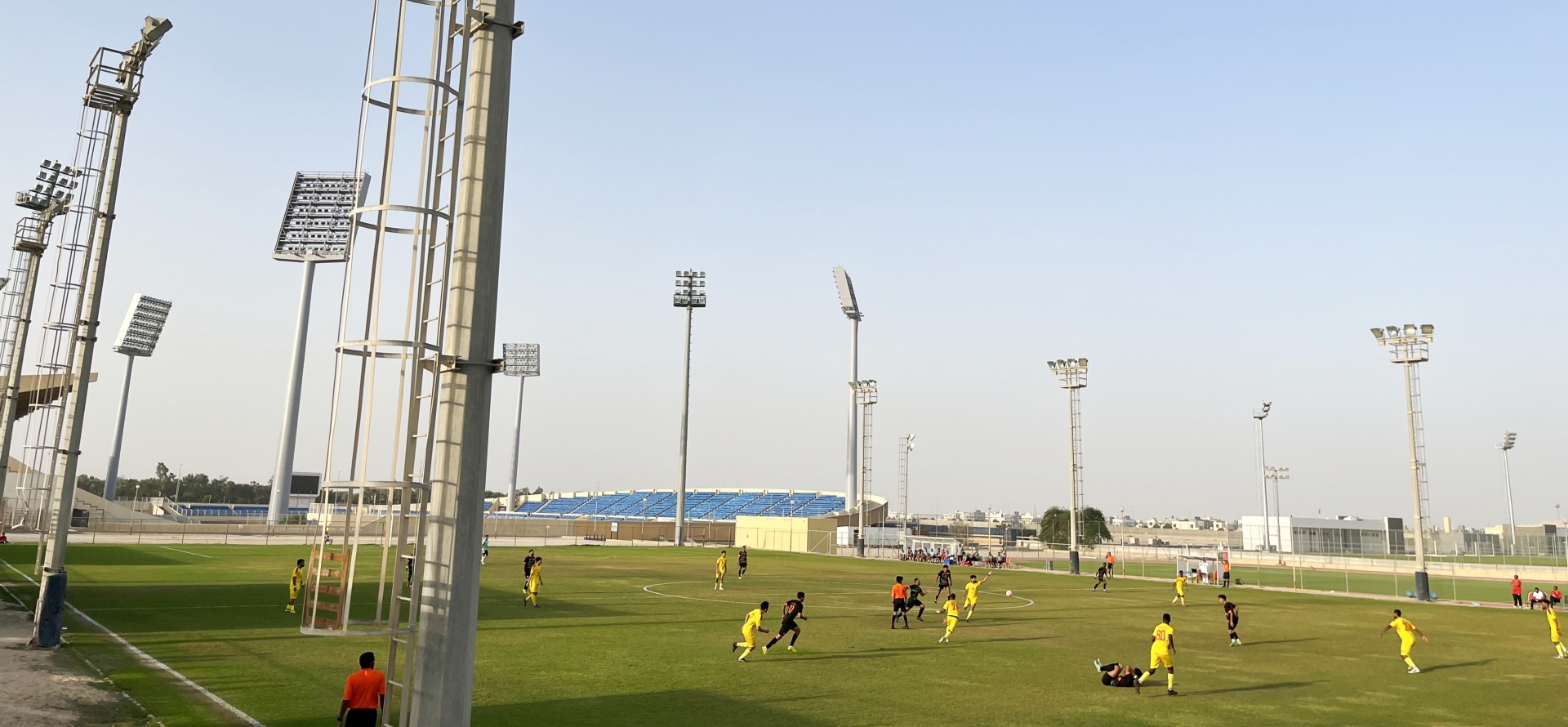

Soccer Fields and Stadiums, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas, Rugby Fields and Cricket Grounds, Track and Field Arenas, Golf Courses, Baseball Diamonds.
High-Power Performance - Output range from 500W to 1500W, delivering exceptional brightness for large-scale area lighting applications.
Precision Optical Control-Available beam angles of 12°/ 25°/45°/ 60° ensure optimal light distribution for various installation needs.

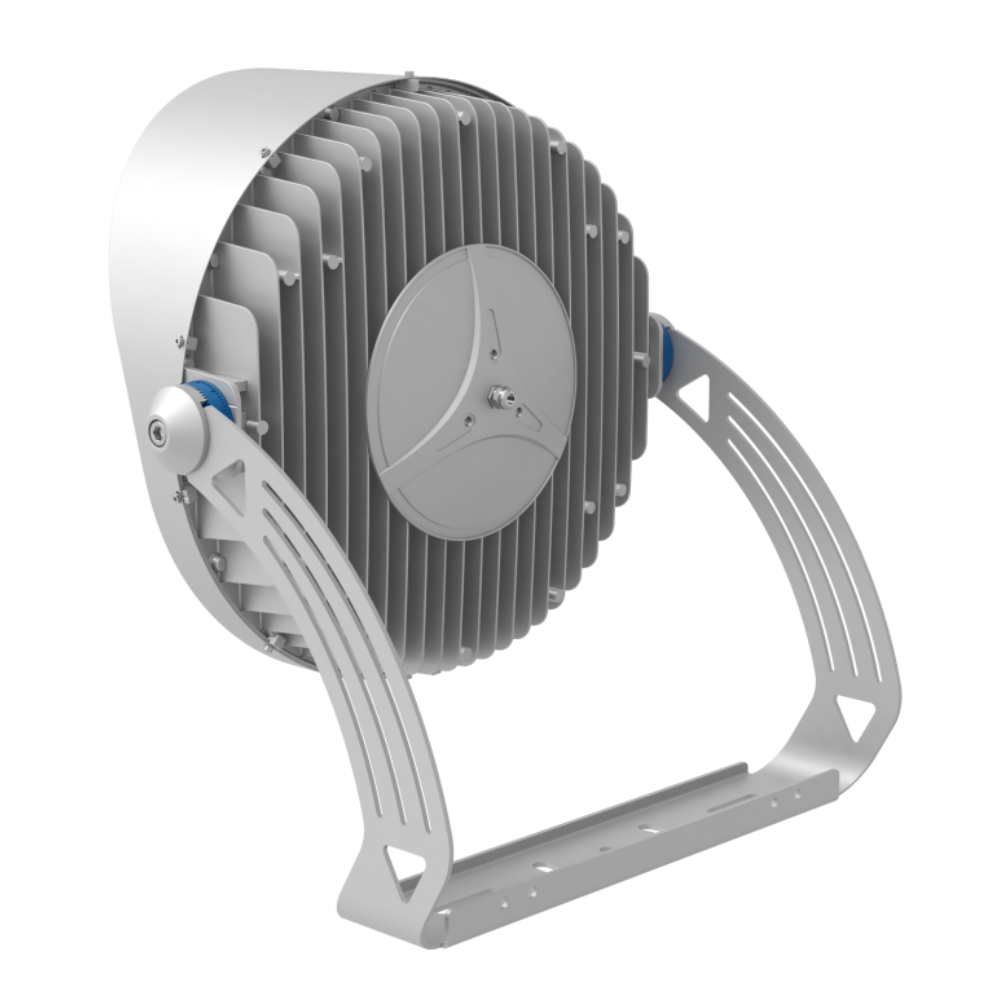

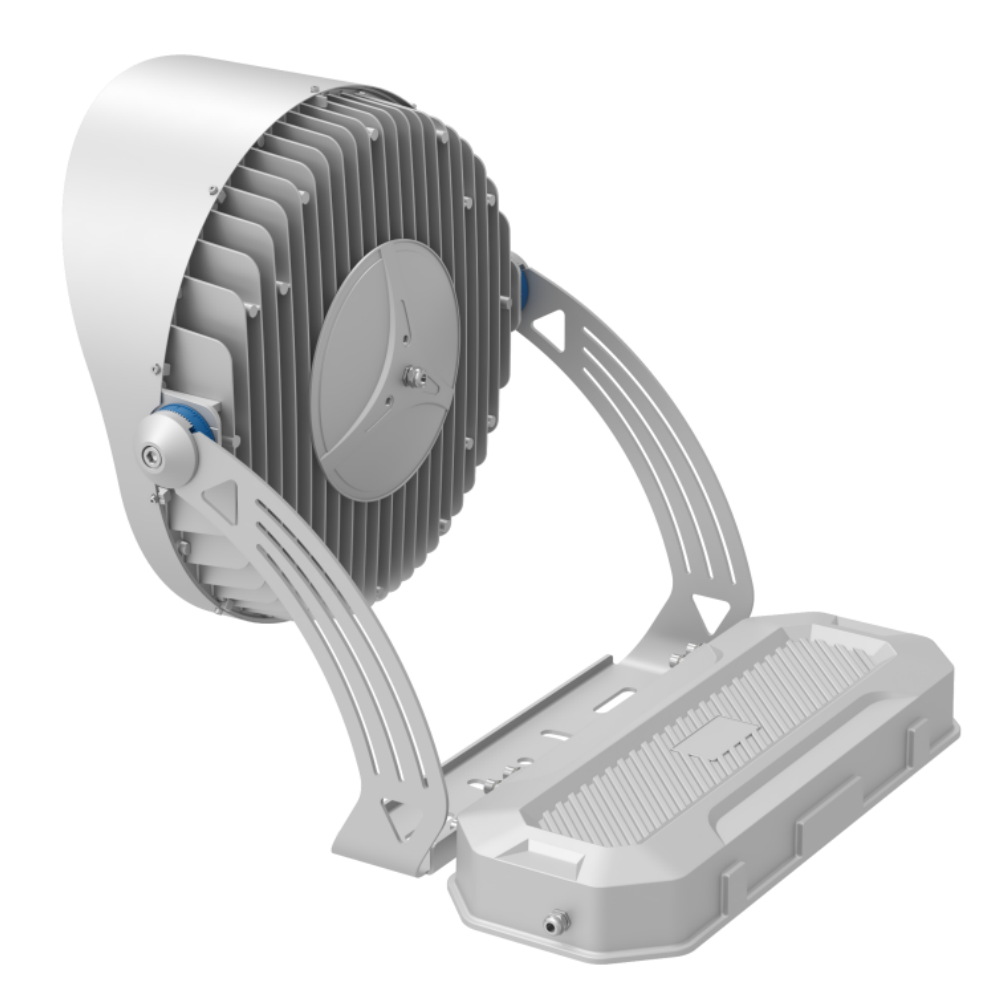

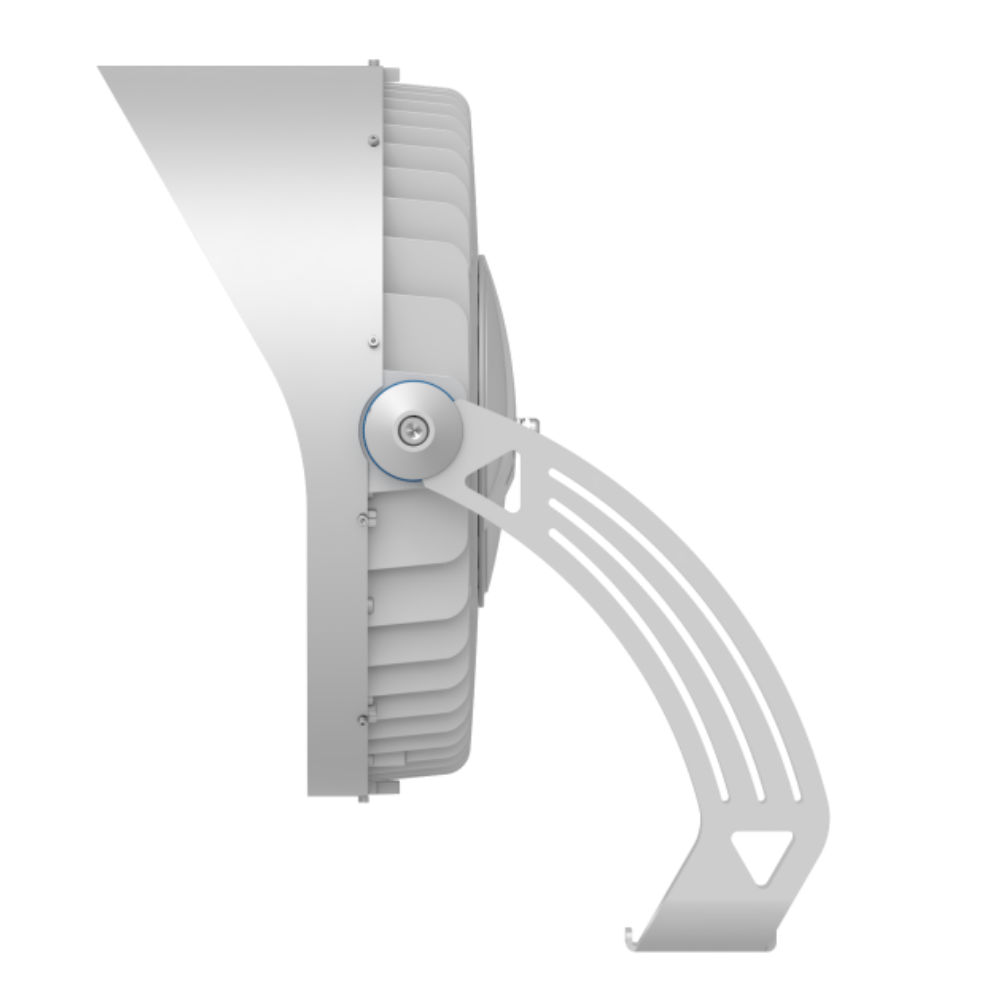

Rugged Construction - Die-cast aluminum housing provides excellent strength, impact resistance and efficient heat dissipation.
Premium Components- Equipped with top-tier LED chips and high-quality drivers for superior luminous efficacy and long service life.
Outdoor-Ready Protection - lP66 rating ensures complete dust ingress prevention and strong water resistance, suitable for harsh environments.
Enhanced Electrical Safety- Double surge protection with 10KV SPD safeguards the fixture against voltage spikes and lightning surges.
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-SF16-A-500W | ISL-SF16-A-650W | ISL-SF16-A-720W | ISL-SF16-A-800W | ISL-SF16-A-1000W | ISL-SF16-A-1200W | ISL-SF16-A-1500W |
| Power | 500W | 650W | 720W | 800W | 1000W | 1200W | 1500W |
| Dimmension | ø432mm | ø432mm | ø432mm | ø512mm | ø512mm | ø562mm | ø562mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||||
| Light Efficiency (±5%) | 150lm/W | ||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||
| CRI | 80 | ||||||
| Beam Angle | 12°/25°/45°/60° | ||||||
| LED | San'an | ||||||
| Driver | Sosen | ||||||
| SPD | 10KV | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣35°C- +50°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 5Years | ||||||
