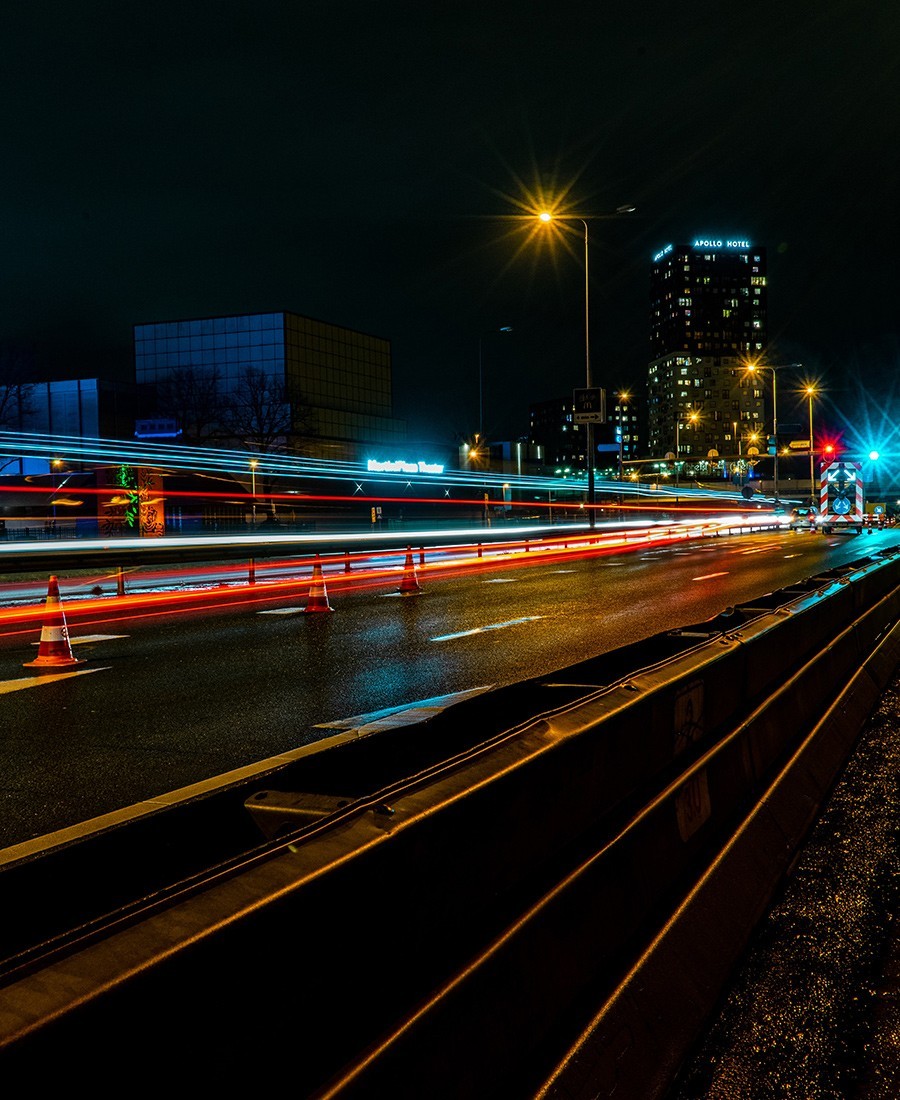

Roads, highways, viaducts, city streets, overpasses, sidewalks, and outdoor lighting places such as squares, schools, residential areas and parks.>
Power Range: 50W–320W
High Efficiency: Up to 150 / 180 lm/W for energy-saving road lighting
Durable Housing: ADC12 die-cast aluminum for effective heat dissipation
High-Transmittance Lens: UV-resistant PC lens with up to 94% light output and IK08 impact protection
Optimized Light Distribution: T2-M / T3-M optics for uniform road illumination
Quality Components: Top-brand LED chips and drivers for long service life
Protection: IP66 waterproof with dual surge protection (driver + 10KV SPD)

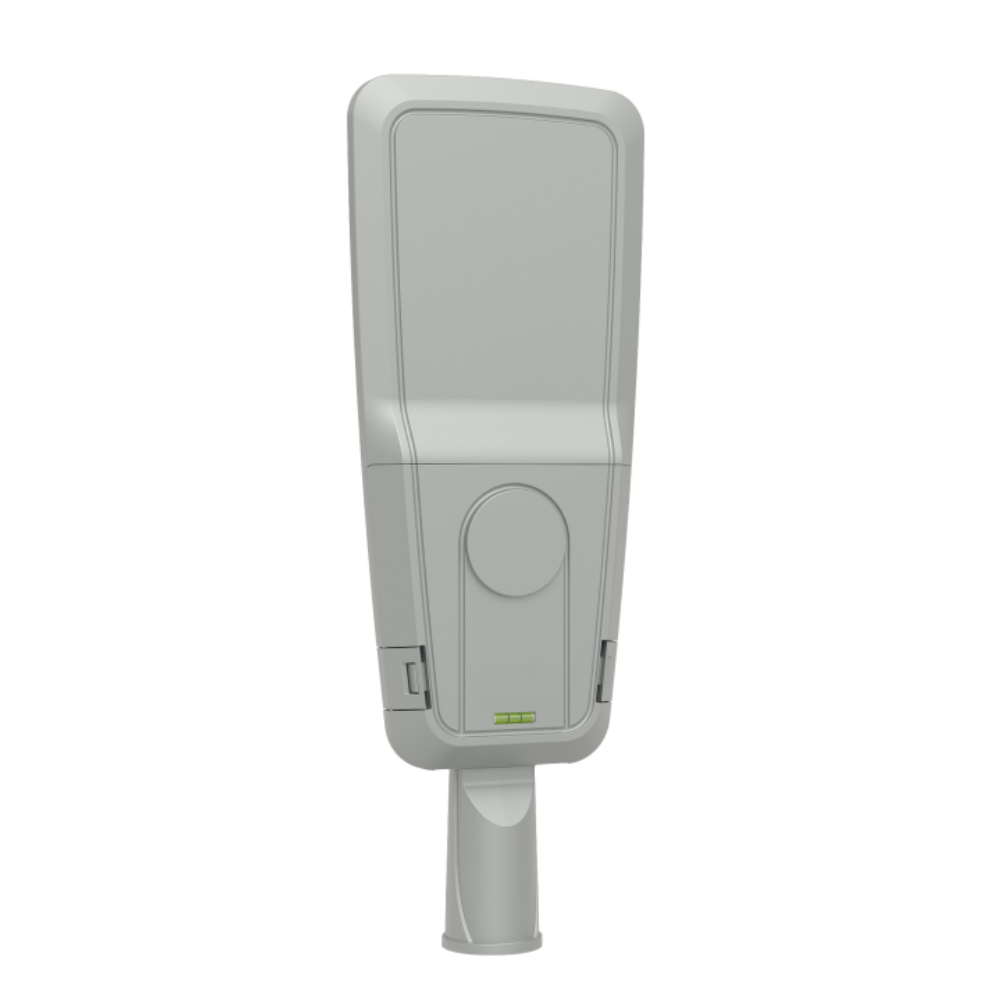

Easy Maintenance: Tool-free design for quick access and servicing
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%

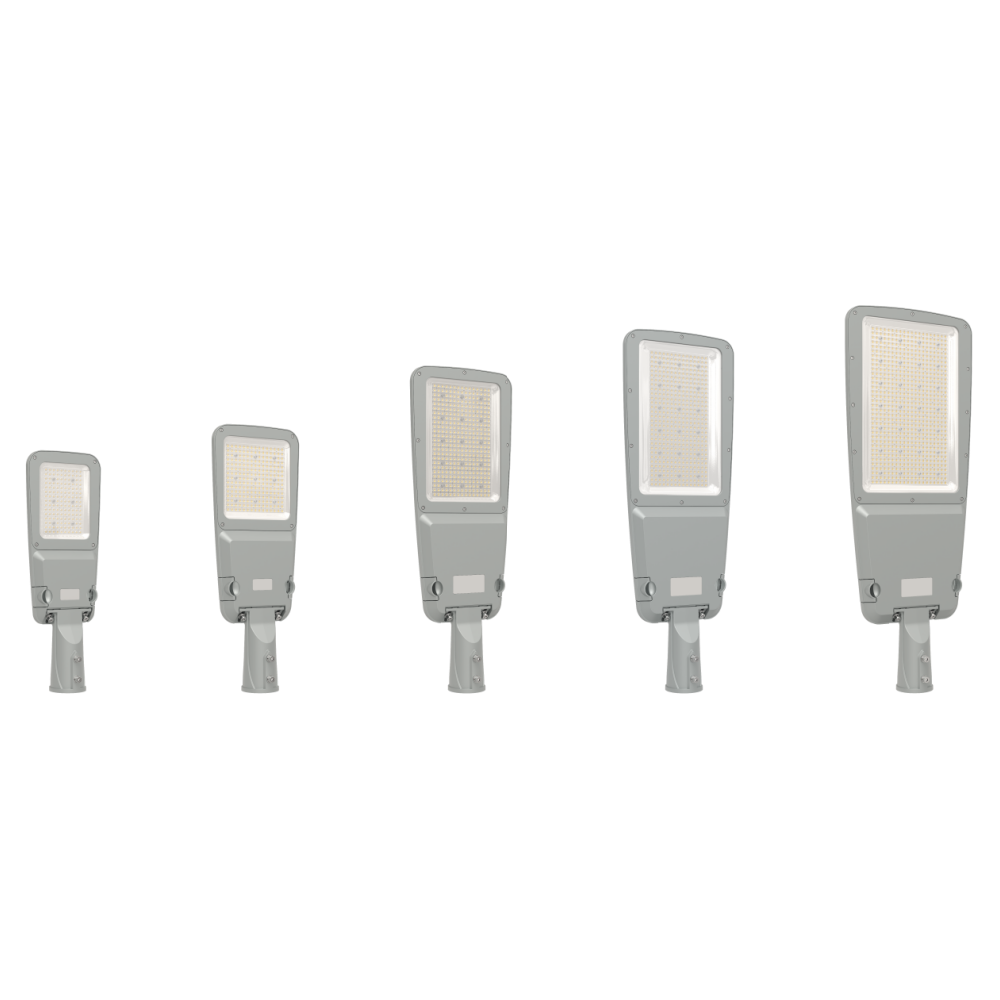

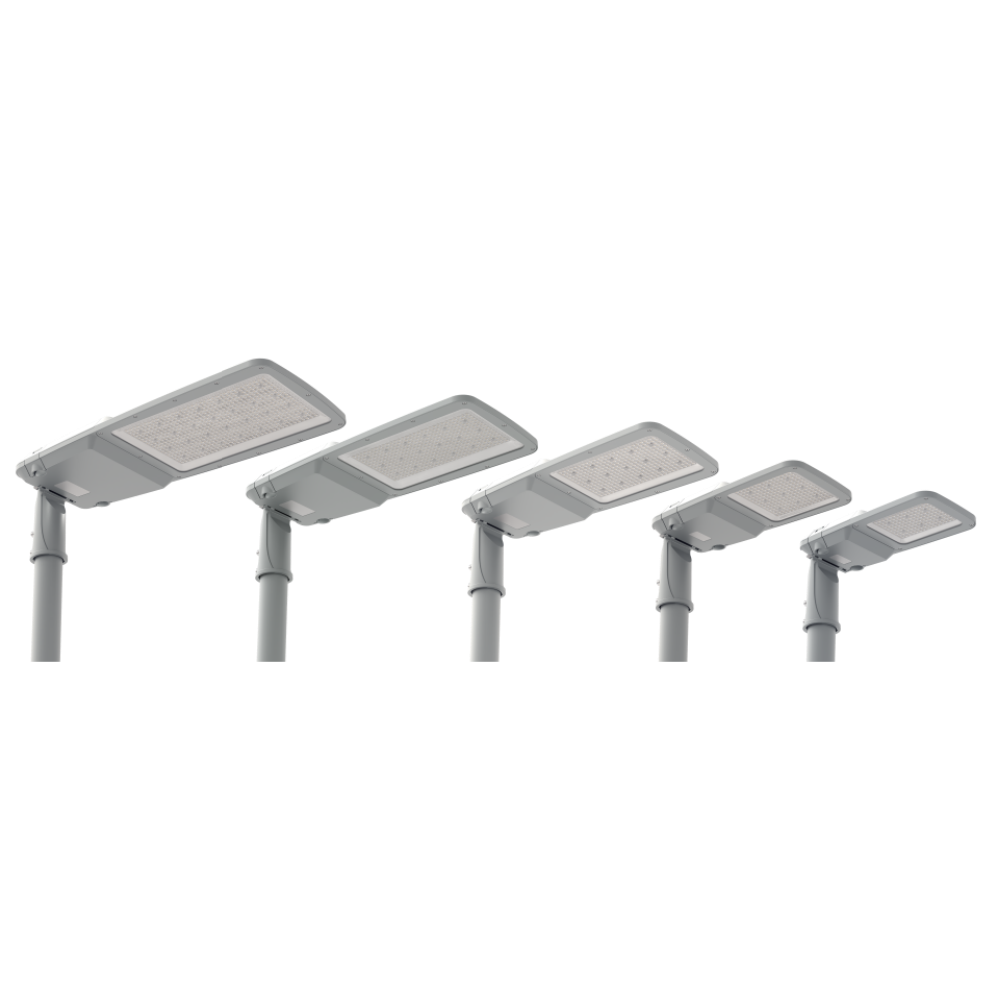

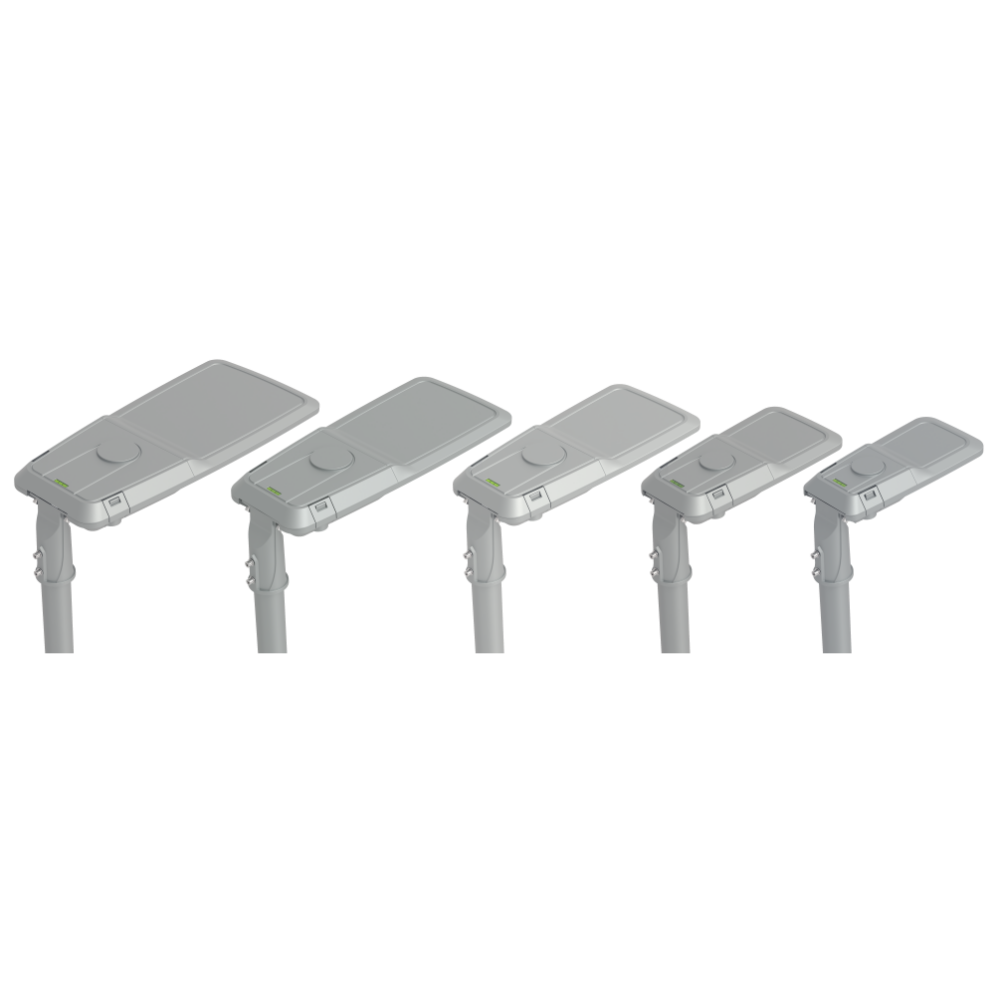

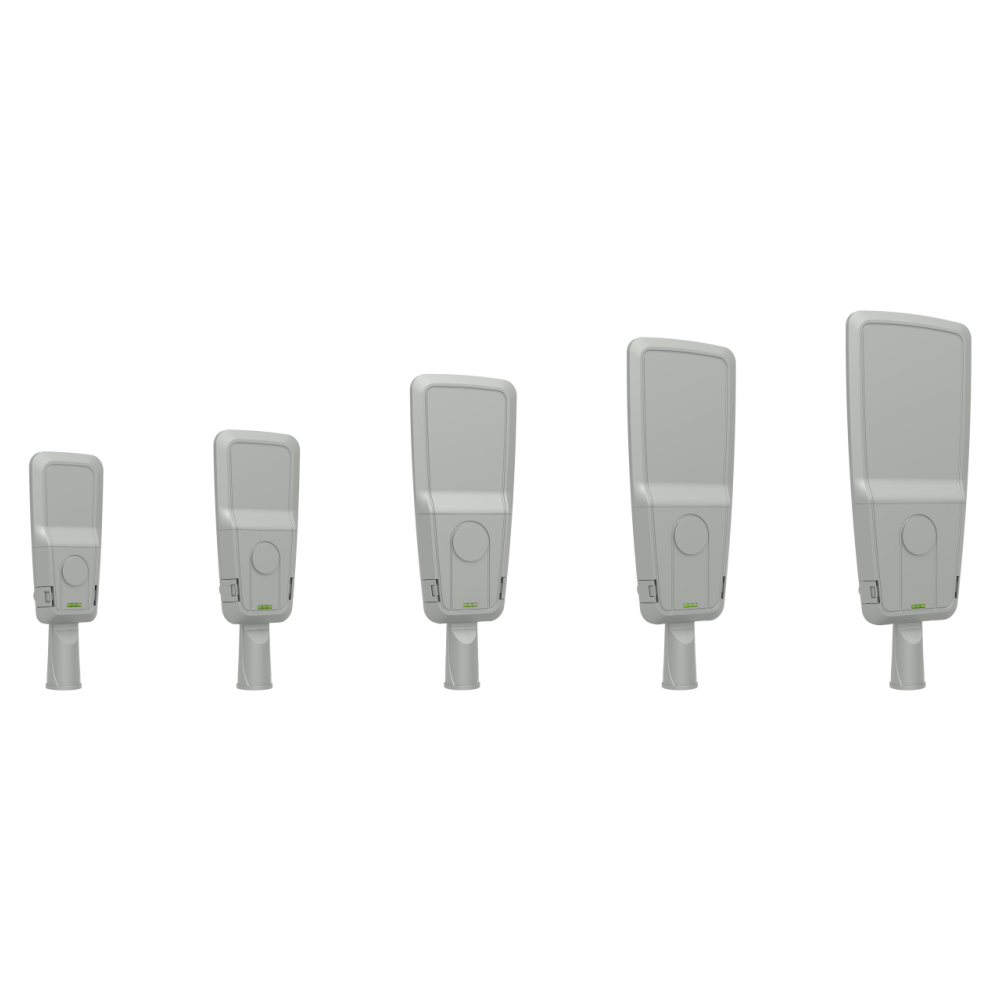

| Model No. | ISL-SL07-50W | ISL-SL07-100W | ISL-SL07-150W | ISL-SL07-200W | ISL-SL07-240W | ISL-SL07-320W |
| Power | 50W | 100W | 150W | 200W | 240W | 320W |
| Dimmension | 542*189*66mm | 590*219*66mm | 717*259*66mm | 797*280*66mm | 797*280*66mm | 857*324*66mm |
| Input Voltage | 100-277VAC, 50/60Hz | |||||
| Light Efficiency (±5%) | 150lm/W, 180lm/W | |||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| CRI | 80 | |||||
| Beam Angle | T2-M/ T3-M | |||||
| LED | Lumileds | |||||
| Driver | Sosen/ Meanwell | |||||

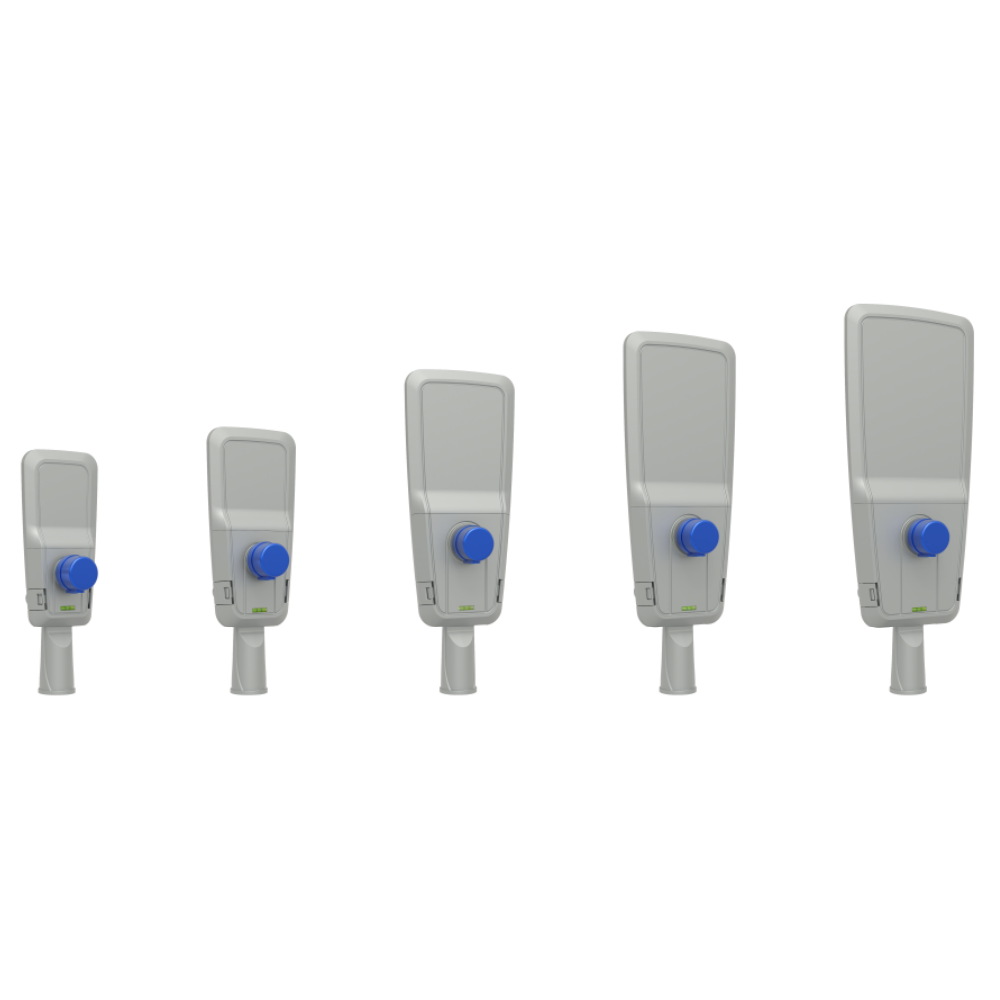

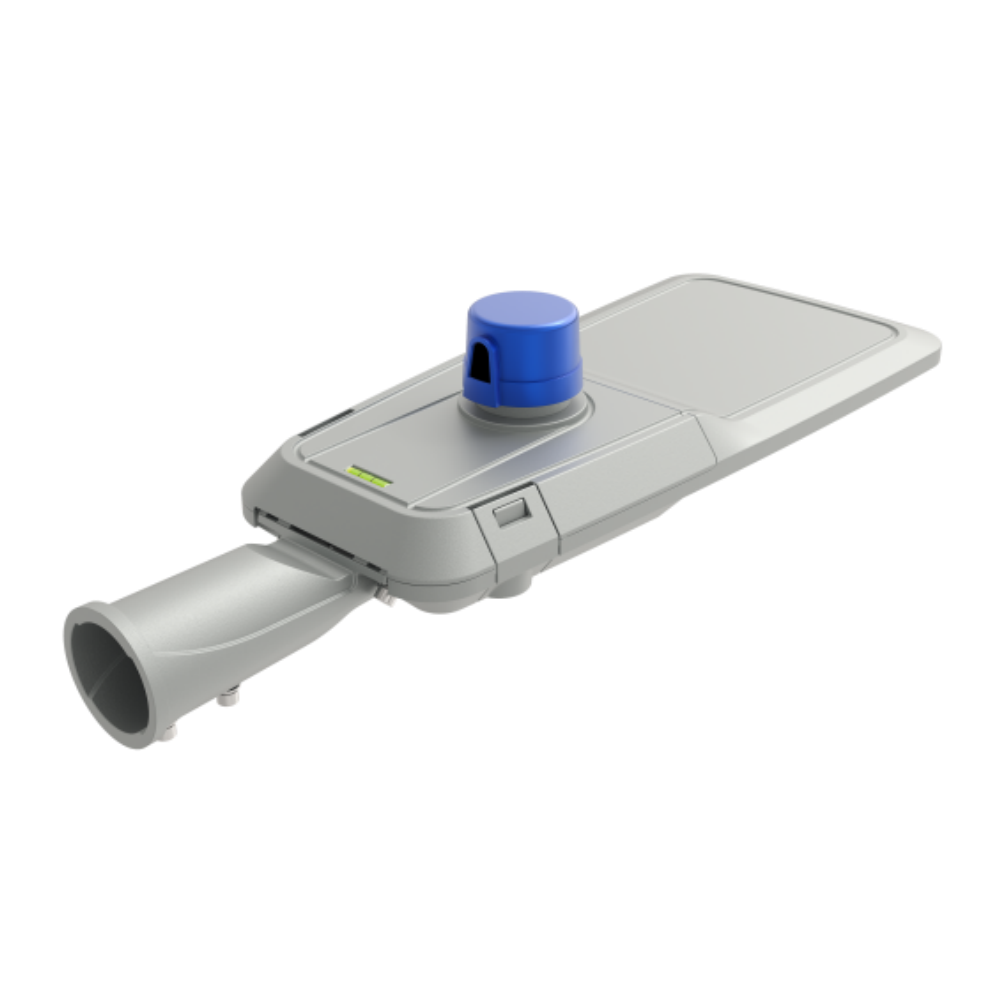

| Options | Photocell/ Shorting Cap | |||||
| Housing | Die-casting technology by ADC12 | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08 | |||||
| Operation Temperature | ﹣35°C- +50°C | |||||
| Lifespan | 50,000H | |||||
| Warranty | 5Years | |||||
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
