Sports fields: tennis courts, football fields, training grounds
Industrial sites: warehouse exteriors, loading docks, fence line security

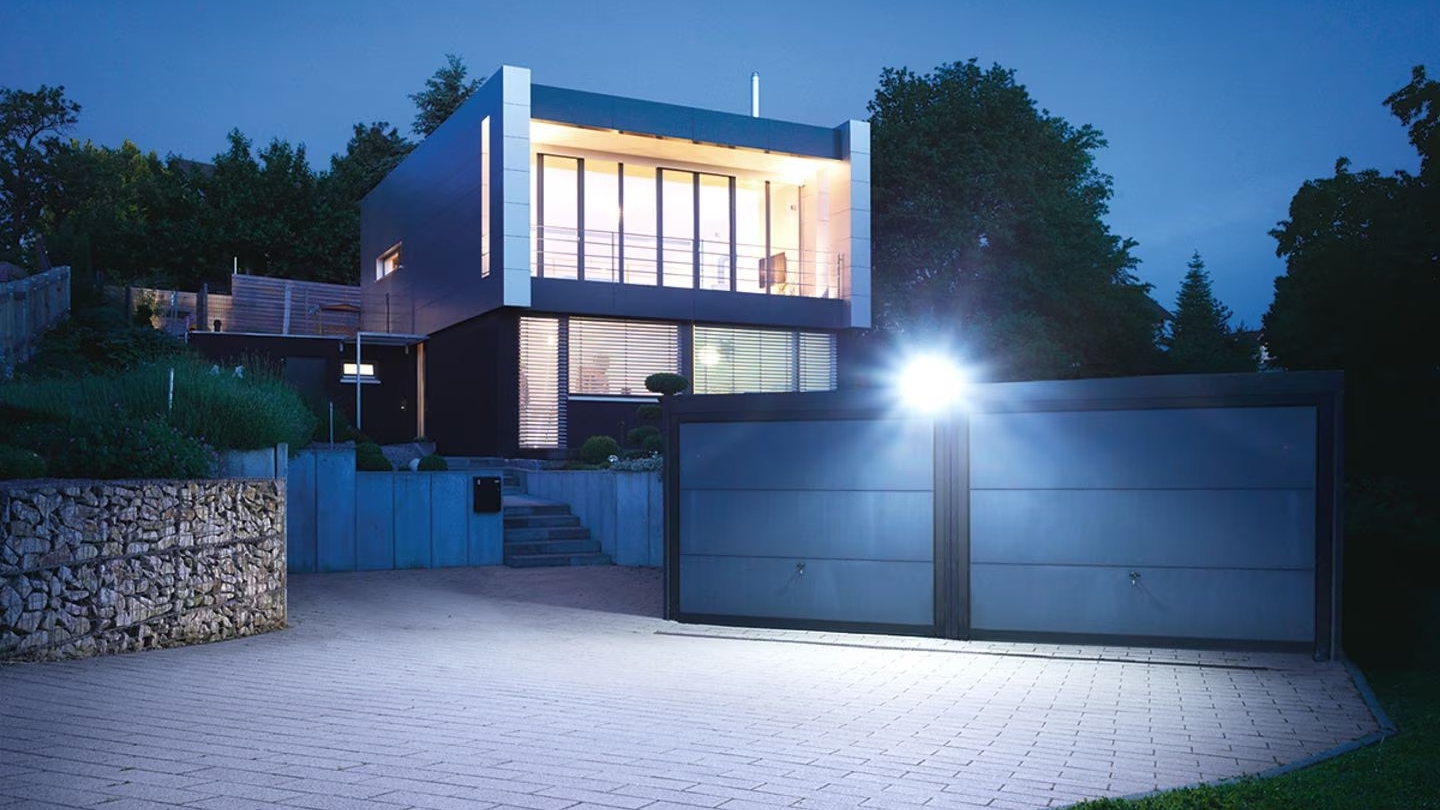

Commercial spaces: parking lots, building facades, retail logistics hubs

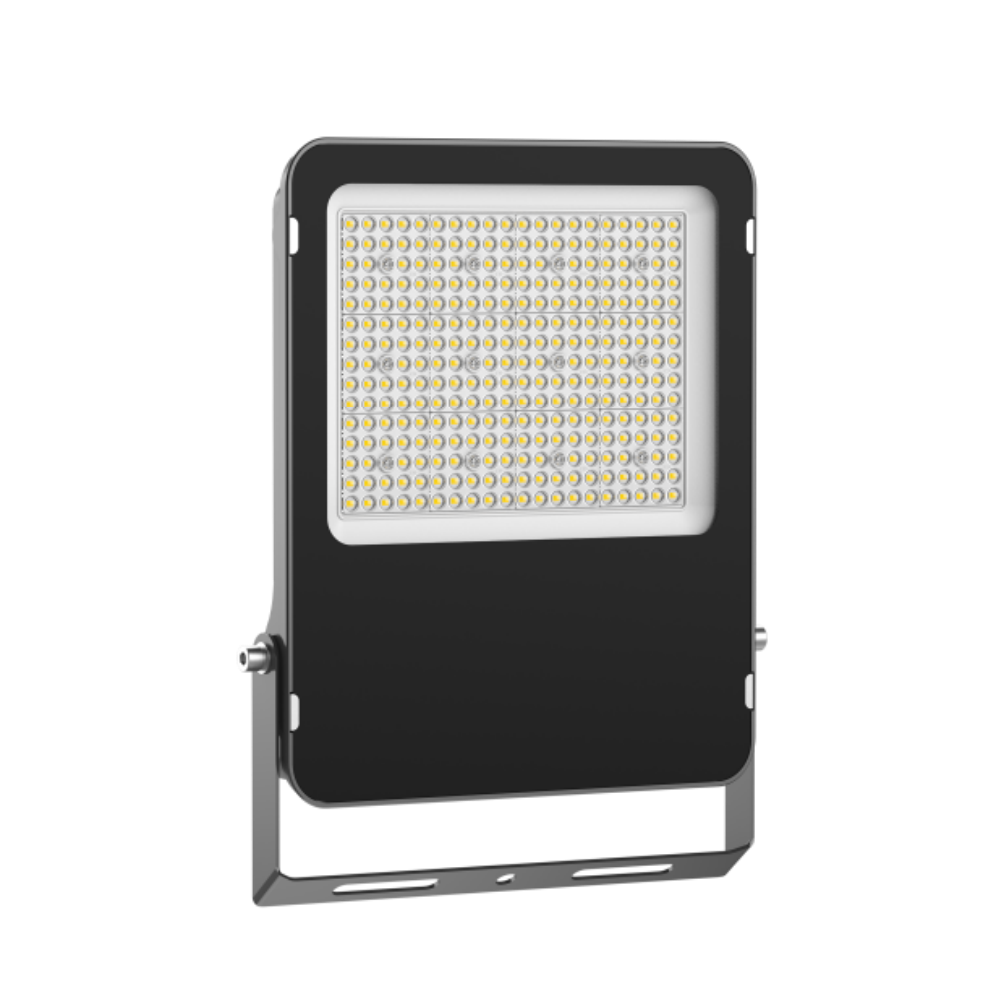

Power Range Options: Offered in 30W–300W to suit various outdoor floodlighting applications.
High Efficiency: Up to 140 lm/W for bright output and reduced energy use.
Multiple Beam Angles: 30°, 45°, 60°, 90°, 120°, and 70×150° options for flexible applications.
Configurable Output: Tri-Power + Single CCT or Tri-Power & Tri-CCT models available.

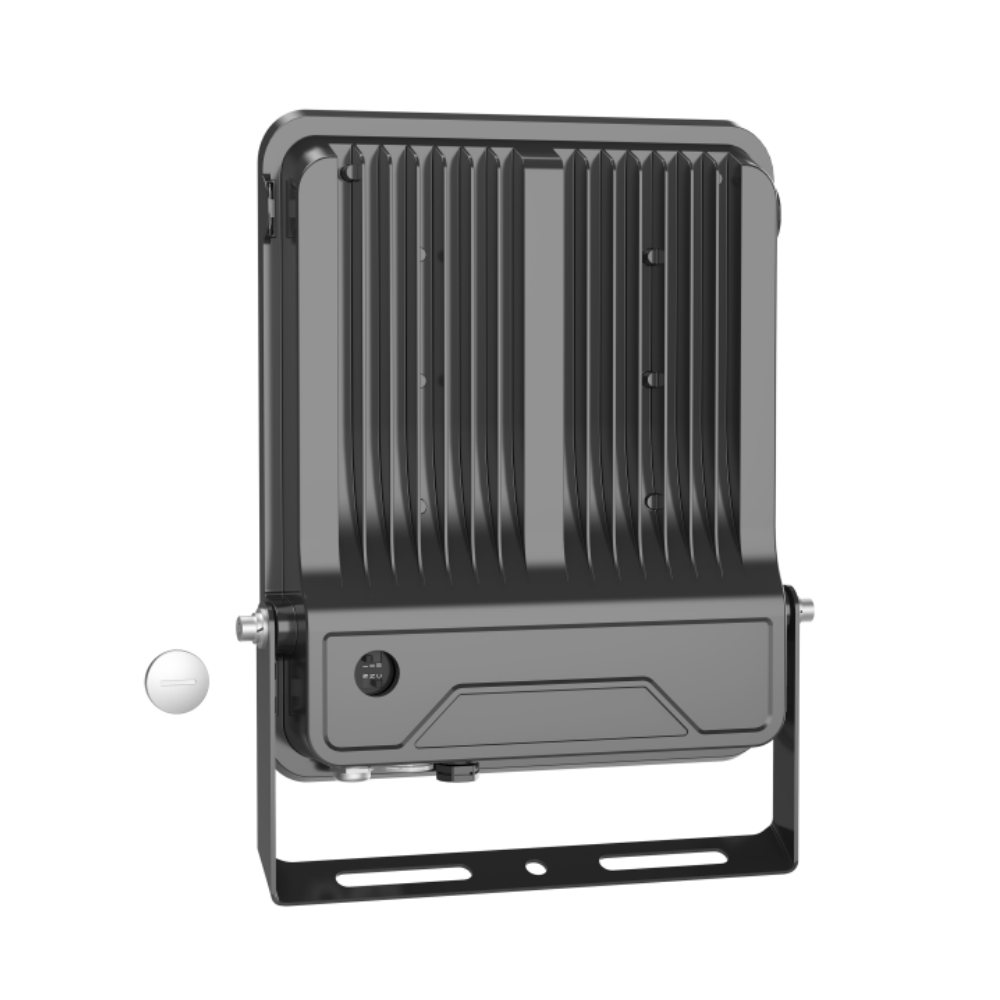

Smart Control Ready: Optional motion sensor for energy-saving, auto-on/off control.

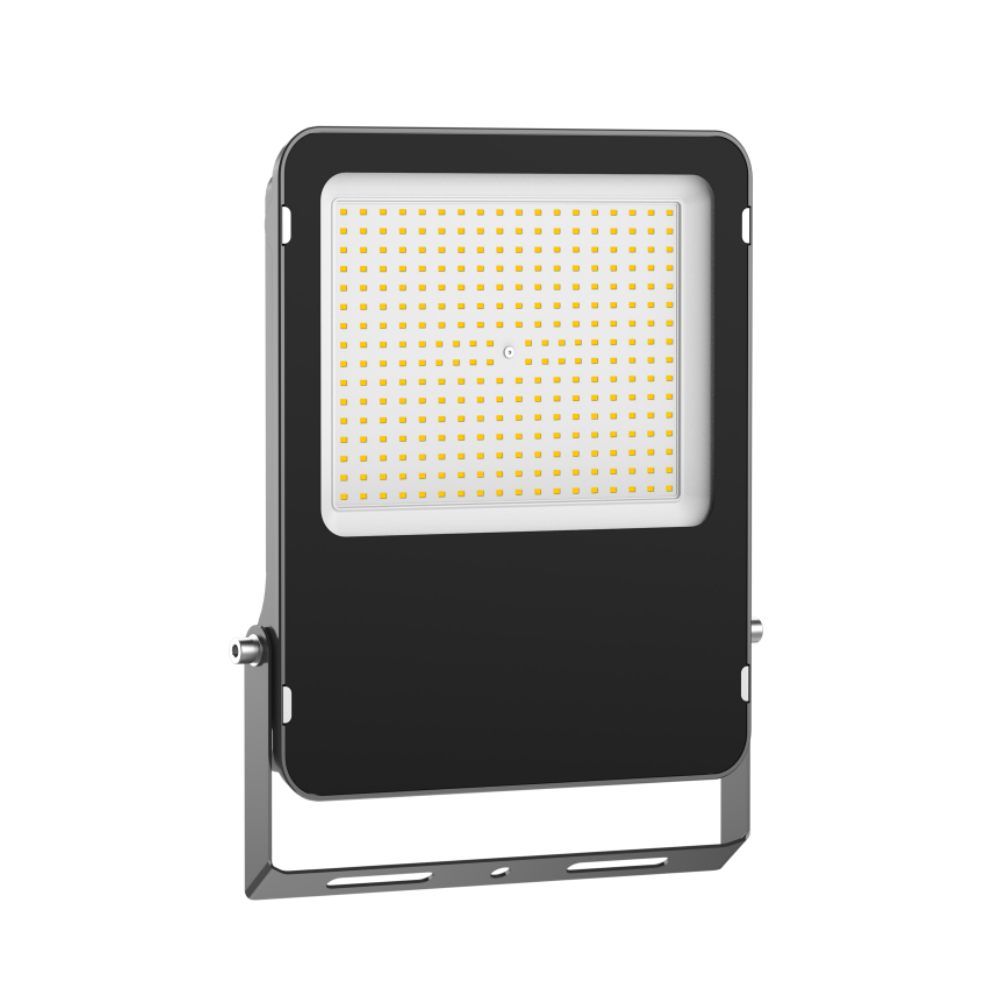

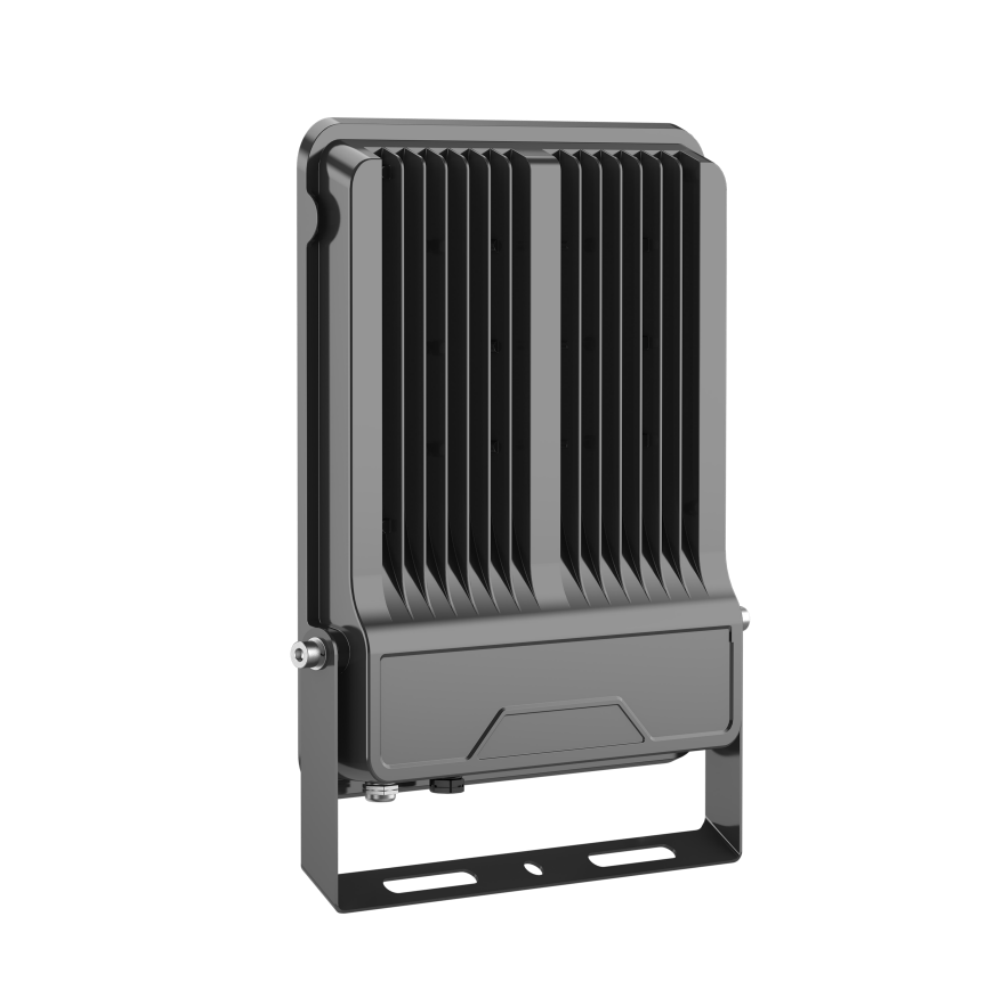

Durable & Compact: ADC12 die-cast aluminum for strength and efficient heat dissipation.
IP66 Waterproof: Built for reliable performance in harsh outdoor conditions.

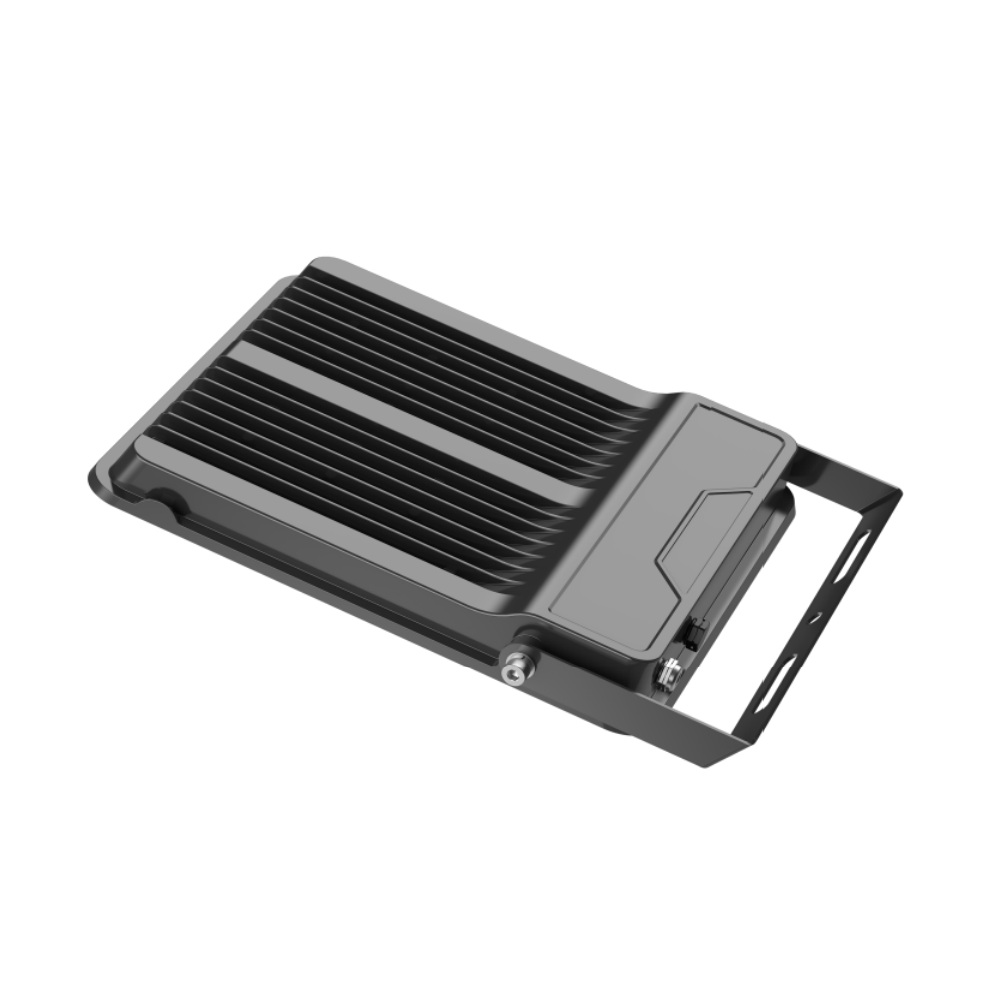

Adjustable Bracket: Rotatable design enables precise lighting angle adjustment.

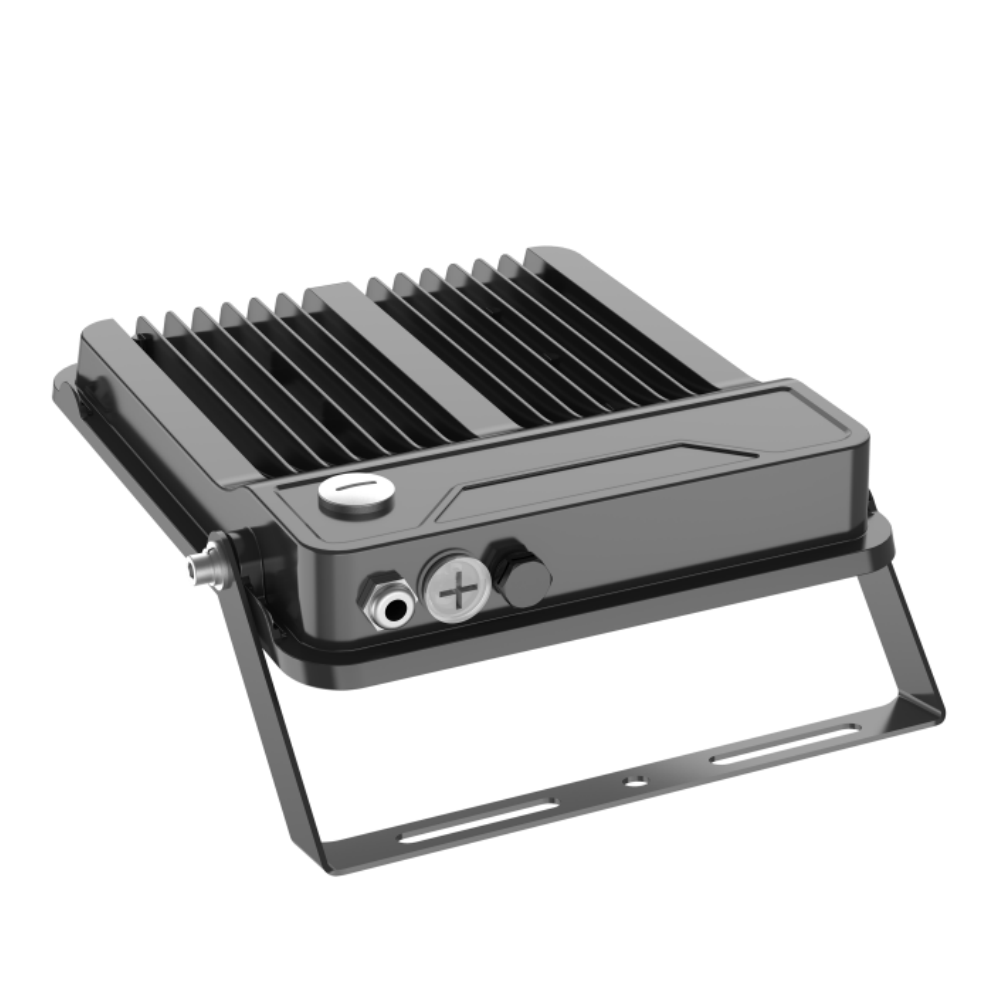

Anti-Condensation: Breather valve prevents moisture build-up.
Wide Temp Range: Operates stably from -25°C to +40°C.
Working Temperature：-25℃ to +40℃
Storage Temperature：-25℃ to +40℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-FL05-30W | ISL-FL05-50W | ISL-FL05-100W | ISL-FL05-150W | ISL-FL05-200W | ISL-FL05-250W | ISL-FL05-300W |
| Power | 30W | 50W | 100W | 150W | 200W | 250W | 300W |
| Dimmension | 198*172*36mm | 224*180*36mm | 276*228*39mm | 314*245*42mm | 384*305*43mm | 457*366*44mm | 457*366*44mm |
| Light Efficiency (±5%) | 140lm/W | ||||||
| Beam Angle | 120°/ 30°/45°/60°/90°/70*150° | ||||||
| Input Voltage | 120-277VAC, 50/60Hz | ||||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||||
| CRI | 70 | ||||||
| LED | Lumileds/ San'an | ||||||
| Driver | iShineLux | ||||||
| Housing | Die-casting technology by ADC12 | ||||||
| IP Rating | IP66 | ||||||
| IK Rating | IK08 | ||||||
| Operation Temperature | ﹣25°C- +40°C | ||||||
| Lifespan | 50,000H | ||||||
| Warranty | 3/ 5Years | ||||||
