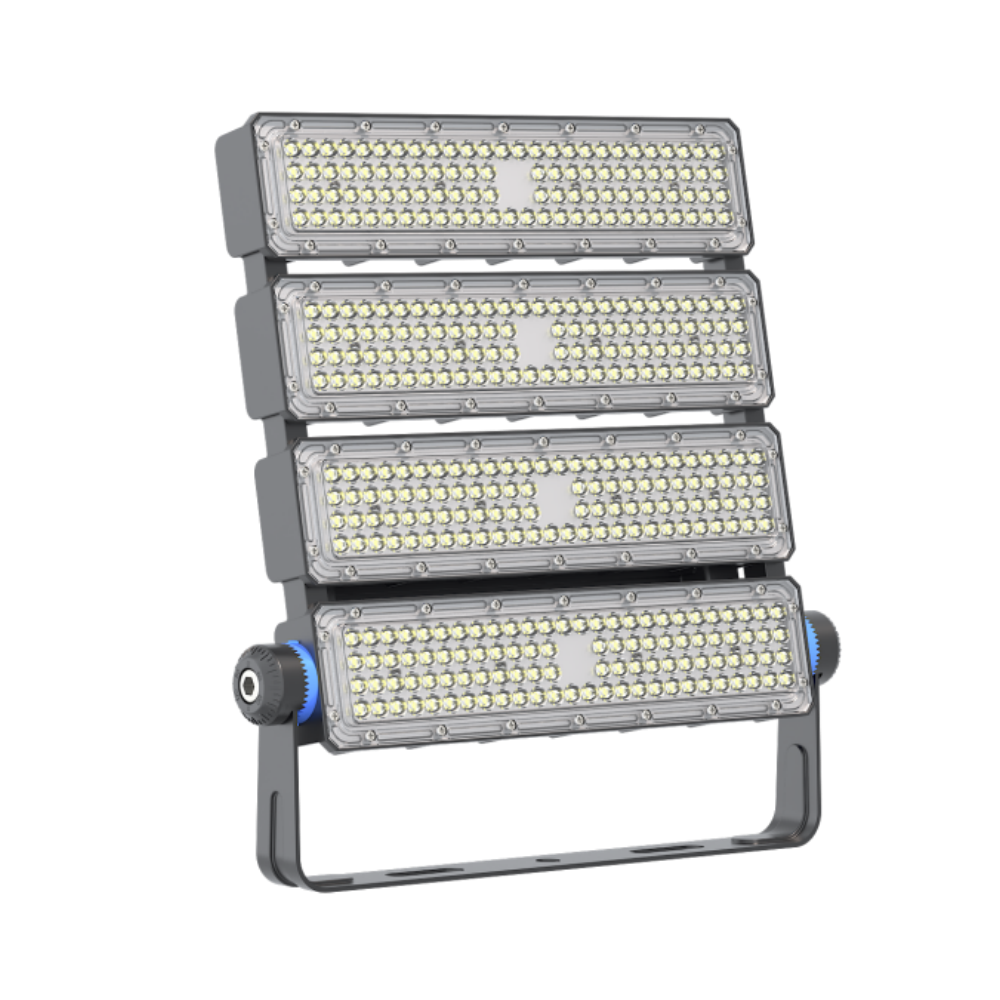

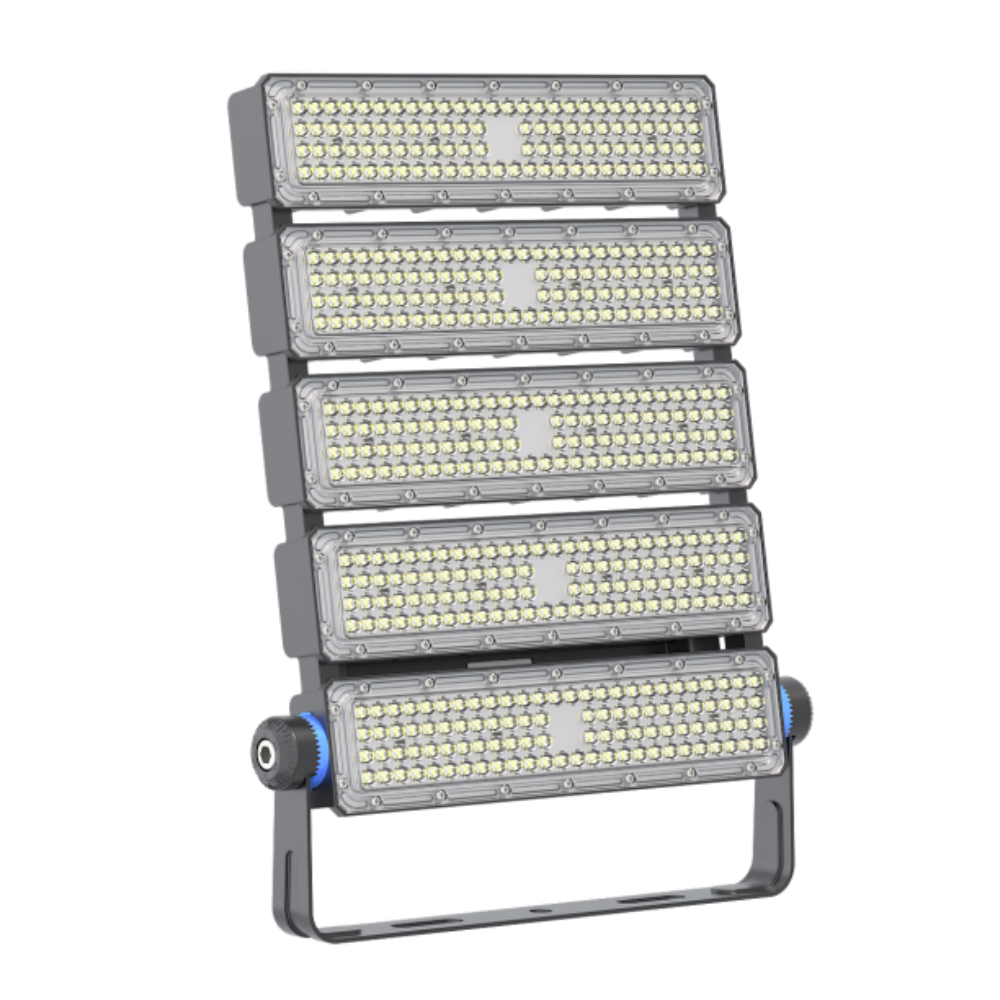

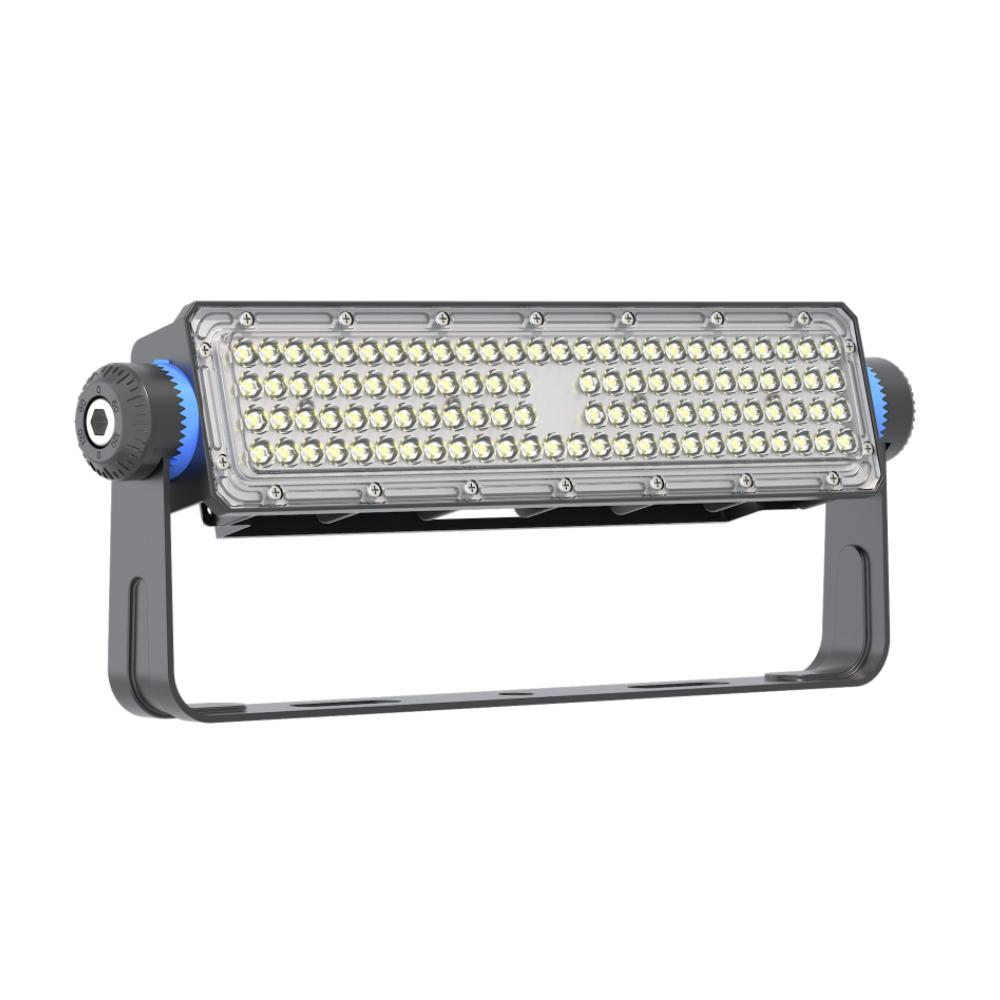

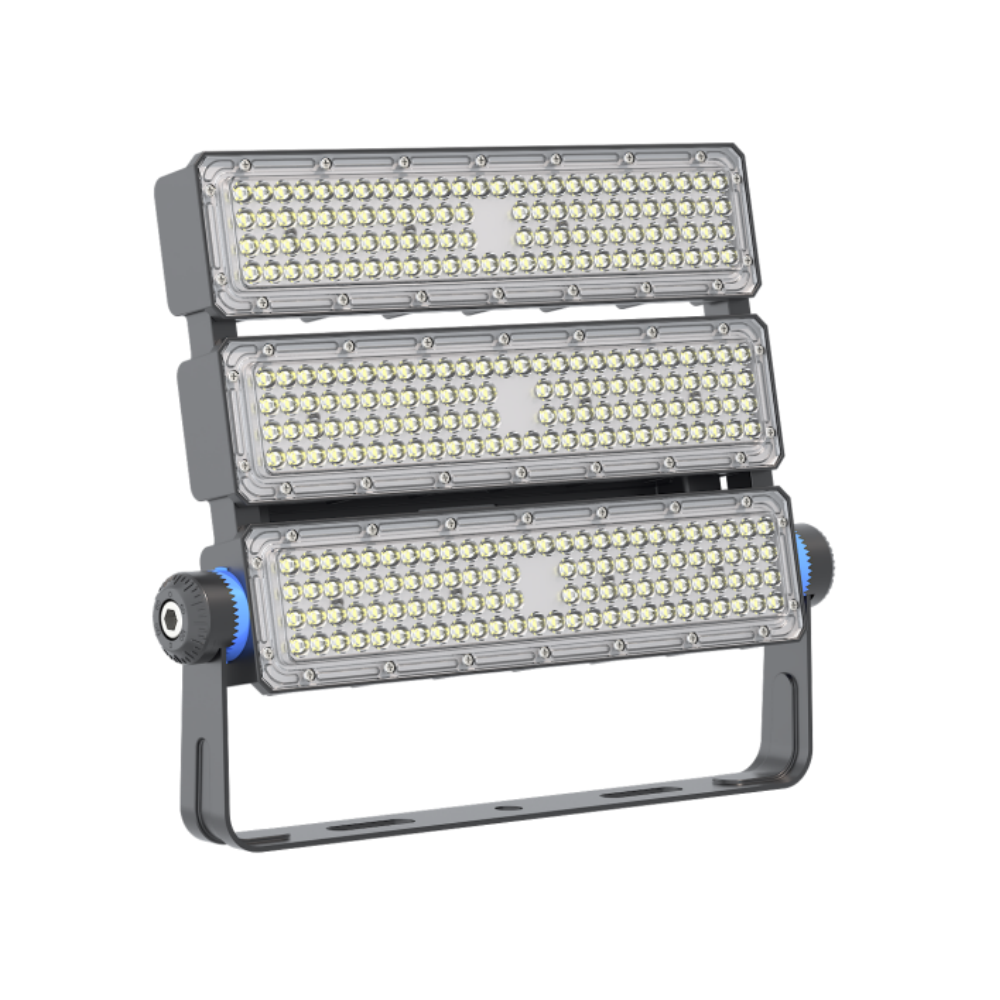

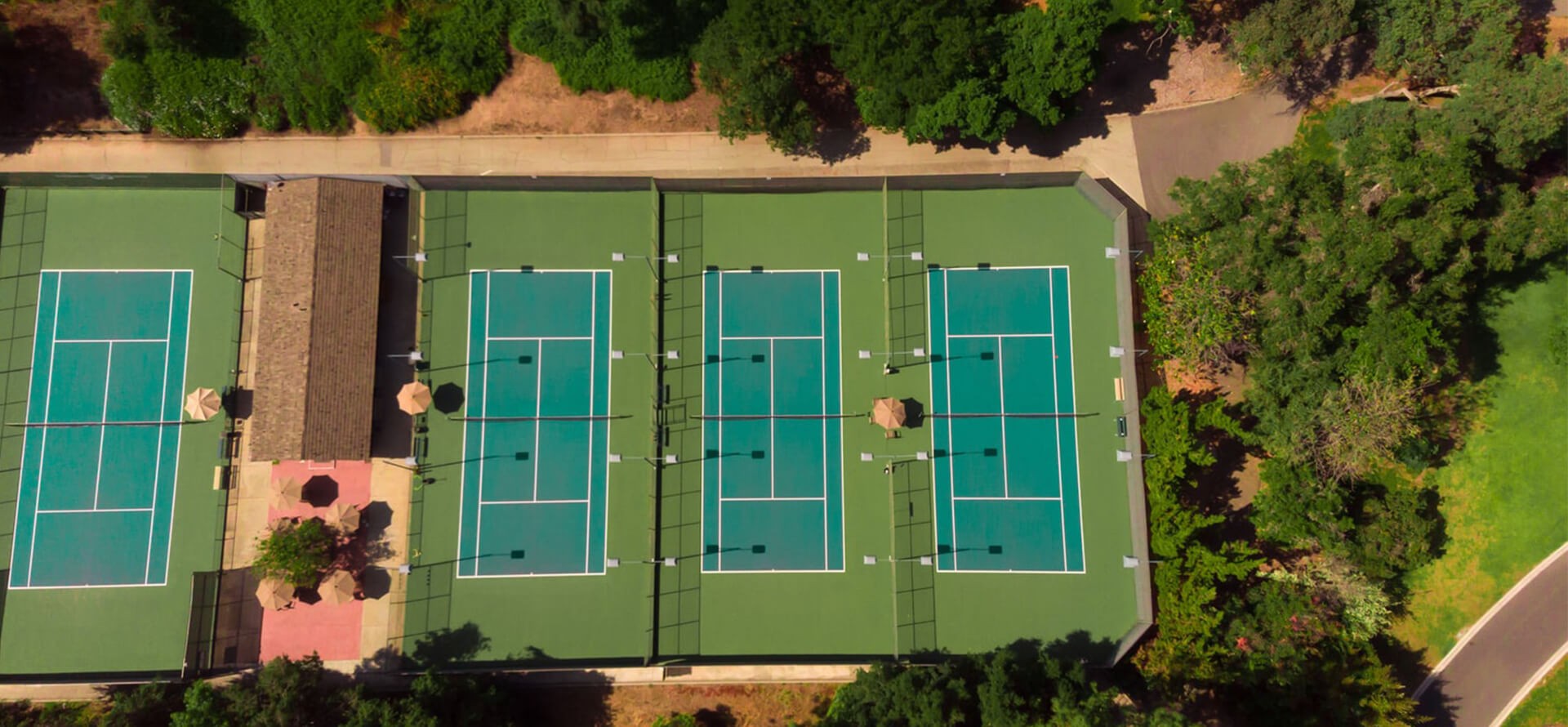

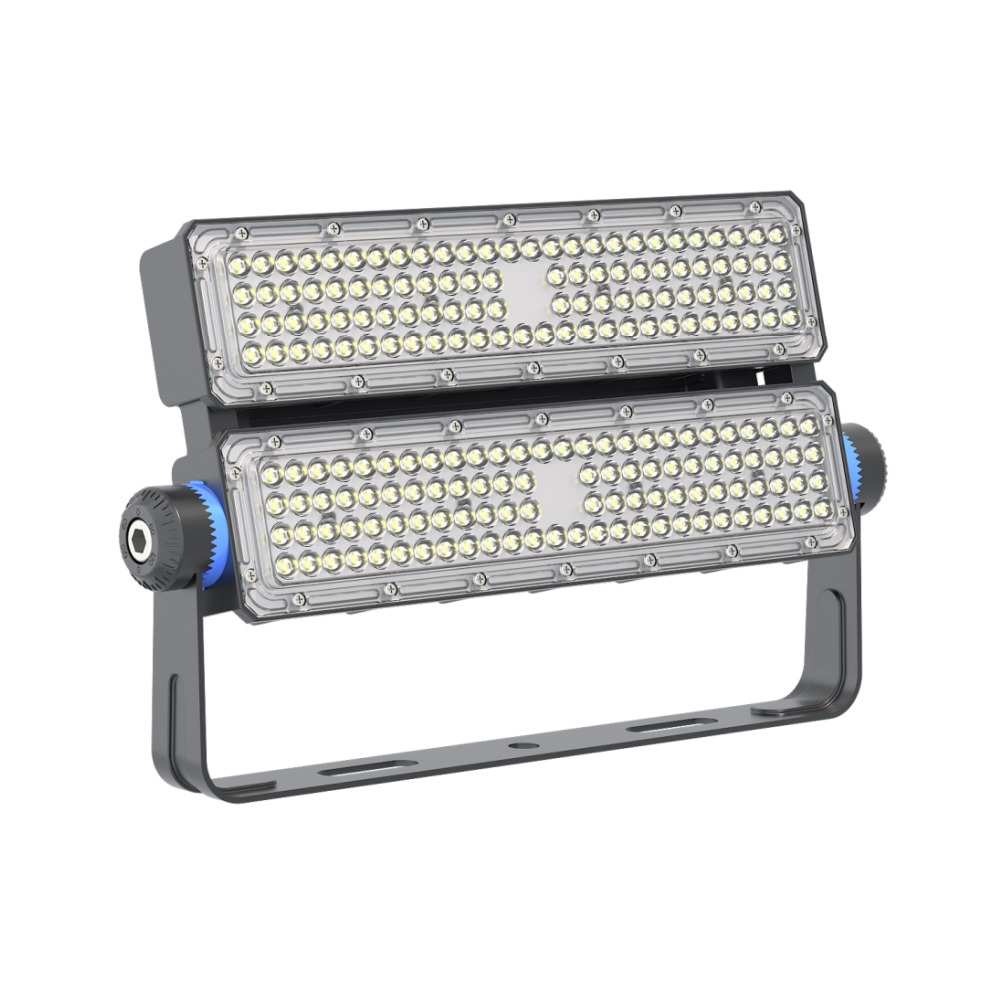

Ideal for Port, Wharf, Tower Crane, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas.
Offered in 50W-300W
Light efficiency up to 140lm/W

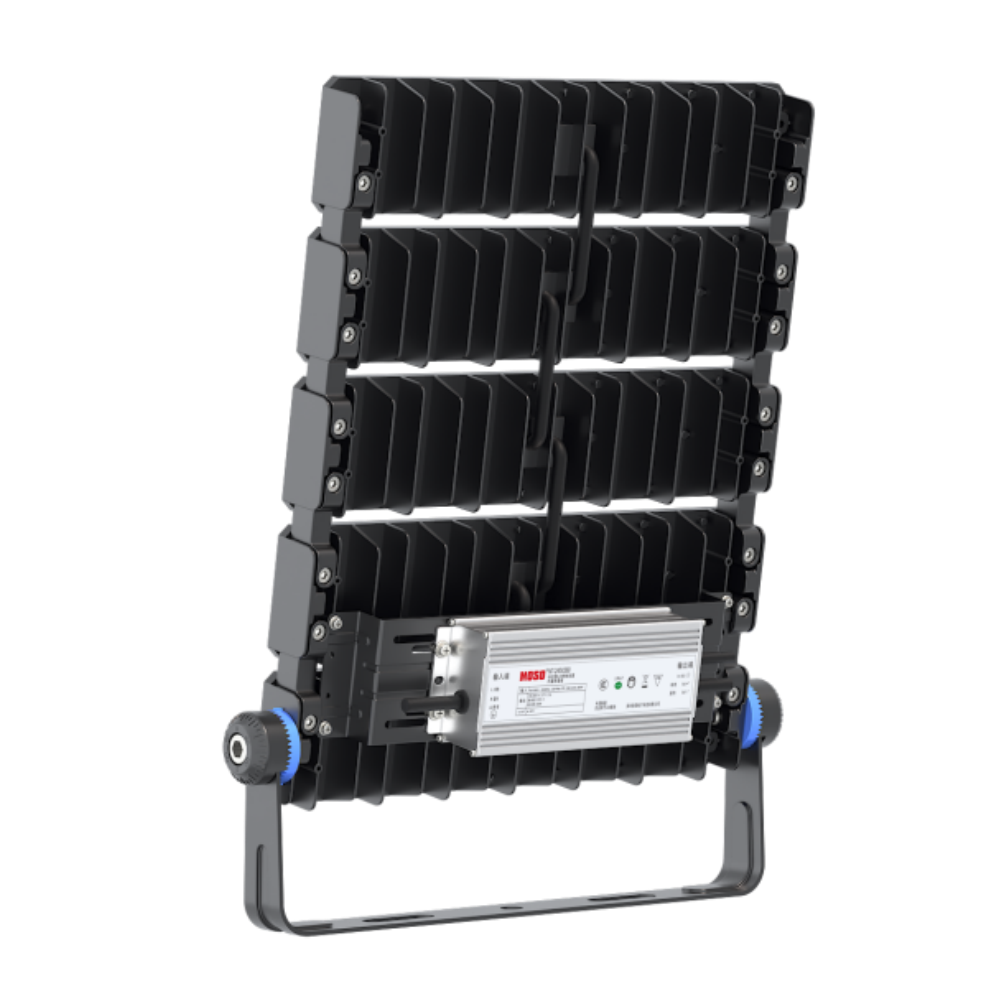

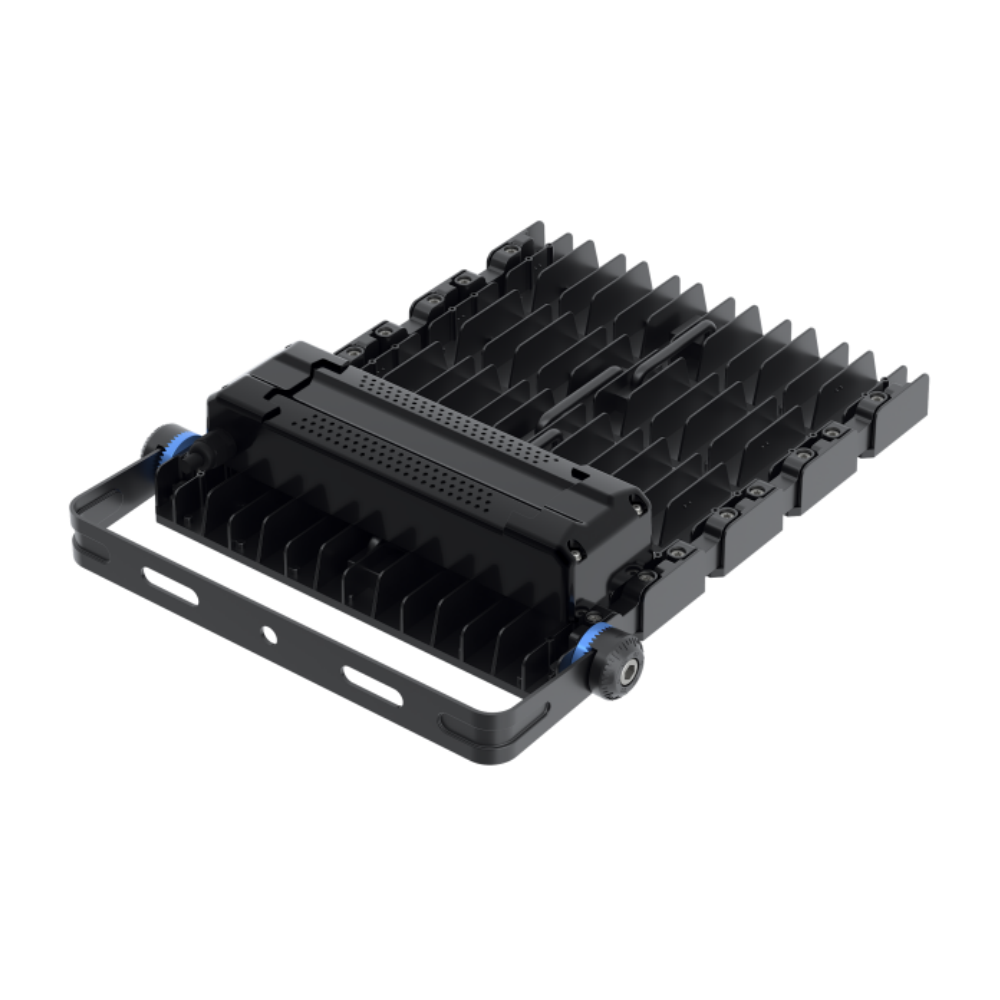

Die casting heat sink: Excellent thermal management & compact structure
Embedded cable raceway: Optimized cable layout
Racked angle, angle adjustable 180, achieving precise installation
4mm thickness arm & brackets
Top brand LED chip and driver, ensure the product quality and lifetime
Optional polycarbonate lenses provide high impact resistance IK08, light transmittance up to 94% and multiple lighting distributions: 25°/45°/60°/90°/90*120°/80*150°
Ingress protection rating: IP66
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-MFL03-50W | ISL-MFL03-100W | ISL-MFL03-150W | ISL-MFL03-200W | ISL-MFL03-250W |
| Power | 50W | 100W | 150W | 200W | 250W |
| Model No. | ISL-MFL03-60W | ISL-MFL03-120W | ISL-MFL03-180W | ISL-MFL03-240W | ISL-MFL03-300W |
| Power | 60W | 120W | 180W | 240W | 300W |
| Dimmension | 352*72*88mm | 352*151*88mm | 352*230*88mm | 352*310*88mm | 352*390*88mm |
| Input Voltage | 100-277VAC, 50/60Hz | ||||
| Light Efficiency (±5%) | 135-140lm/W | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | 80 | ||||
| Beam Angle | 25°/ 45°/ 60°/ 90°/ 90*120°/ 80*150° | ||||
| LED | Lumileds | ||||
| Driver | Moso/ Meanwell | ||||
| SPD | 10KV | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5 Years | ||||
