It can be widely applied in workshops, warehouses, exhibition halls, supermarkets, gyms, indoor stadiums, gas stations, logistics centers, underground parking lots, etc.
Die-casting technology, ADC12 with 92% purity, thermal conductivity 96W/m*25°C, excellent thermal management
Integrated valve to balance internal and external pressure and humidity
Light transmittance up to 92% 4. IP65 ingress protection rating
High performance and reputable brand led chips and driver
Instant light up with no warm up time
No cool down needed before restart
High mechanical impact resistance and ingress protection rating IK08
Compact in size and easy for transportation
Power Consumption: 100-300W Luminous Flux: 14,000lm to 42,000lm
Warranty: 5 years
Working Temperature：-35~+50℃
Storage Temperature：-35~+50℃
Working Humidity：0%~85%
Storage Humidity：0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.

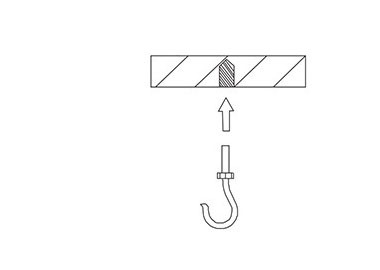

4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
| Category | LED High bay light | ||||
| Wattage | 100W | 150W | 200W | 240W | 300W |
| Light Efficacy | Up to 150lm/W | ||||
| Beam Angle | 60°/90°/110°/120° | ||||
| Input Voltage | AC 100-277V | ||||
| CCT | 2700-6500K | ||||
| CRI | 80 | ||||
| Working Temperature | -35~+50°C | ||||
| Lifespan | 50000H | ||||
| IP Grade | IP 66 | ||||
