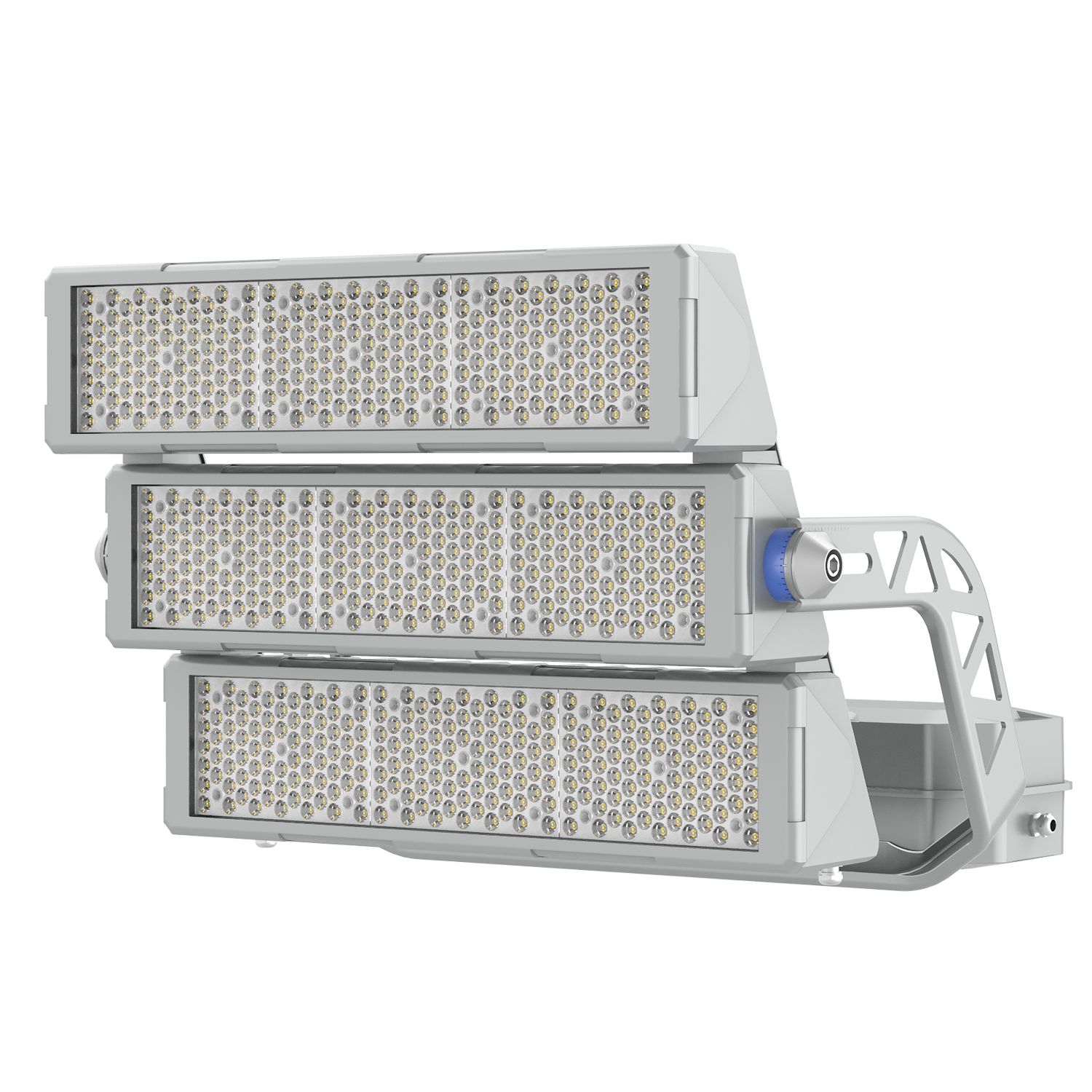

This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:
Soccer Fields and Stadiums, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas, Rugby Fields and Cricket Grounds, Track and Field Arenas, Golf Courses, Baseball Diamonds.
High wattage from 400W to 2400W
Light efficiency up to 150lm/W
High strength polycarbonate lens, optical lighting distribution: 10°/ 15°/ 25°/ 45°/ 60°/ 90°
Integrated die casting heat sink: Excellent thermal management & compact structure
Die-casting aluminum arm &bracket: Anti-typhoon 17 & high corrosion resistance for coastal area
Integrated breather valve: Balance the internal & external temperature and humidity
Tempered glass cover: To apply in harsh conditions
Top brand LED chip and driver, ensure the product quality and lifetime
Ingress protection: IP66 waterproof
Double surge protection: Driver & extra 10KV SPD
Options: DALI, DMX
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
| Model No. | ISL-UFO-A50W | ISL-UFO-A100W | ISL-UFO-A150W | ISL-UFO-A200W | |
| Rated Power | 50W | 100W | 150W | 200W | |
| Input Voltage | AC85~265V / AC100~277V | ||||
| LED Chip | OSRAM 2835/5050 | ||||
| LED Driver | ZH/Sosen/Meanwell HBG | ||||
| Material | Alu+lens | ||||
| CRI | Ra>80 | ||||
| Power Factor | PF>0.95 | ||||
| CCT | 2700-6500K | ||||
| Light Efficacy | 150lm/W up to 170lm/W | ||||
| IP Rating | IP65 | ||||
| IK Rating | IK06 | ||||
| Operation Temperature | ﹣25°C- +50°C | ||||
| Beam Angle | 60/90/110° | ||||
| Warranty | 5years | ||||
| Lifespan | 50,000Hrs | ||||
| Dimension | 290*179mm | 290*179mm | 340*185mm | 360*191mm | |
| Packing | 400*400*155mm | 400*400*155mm | 420*420*165mm | 445*445*170mm | |
| Weight | G.W: 2KG | G.W: 2.2KG | G.W: 3.5KG | G.W: 3.7KG | |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | ||||
