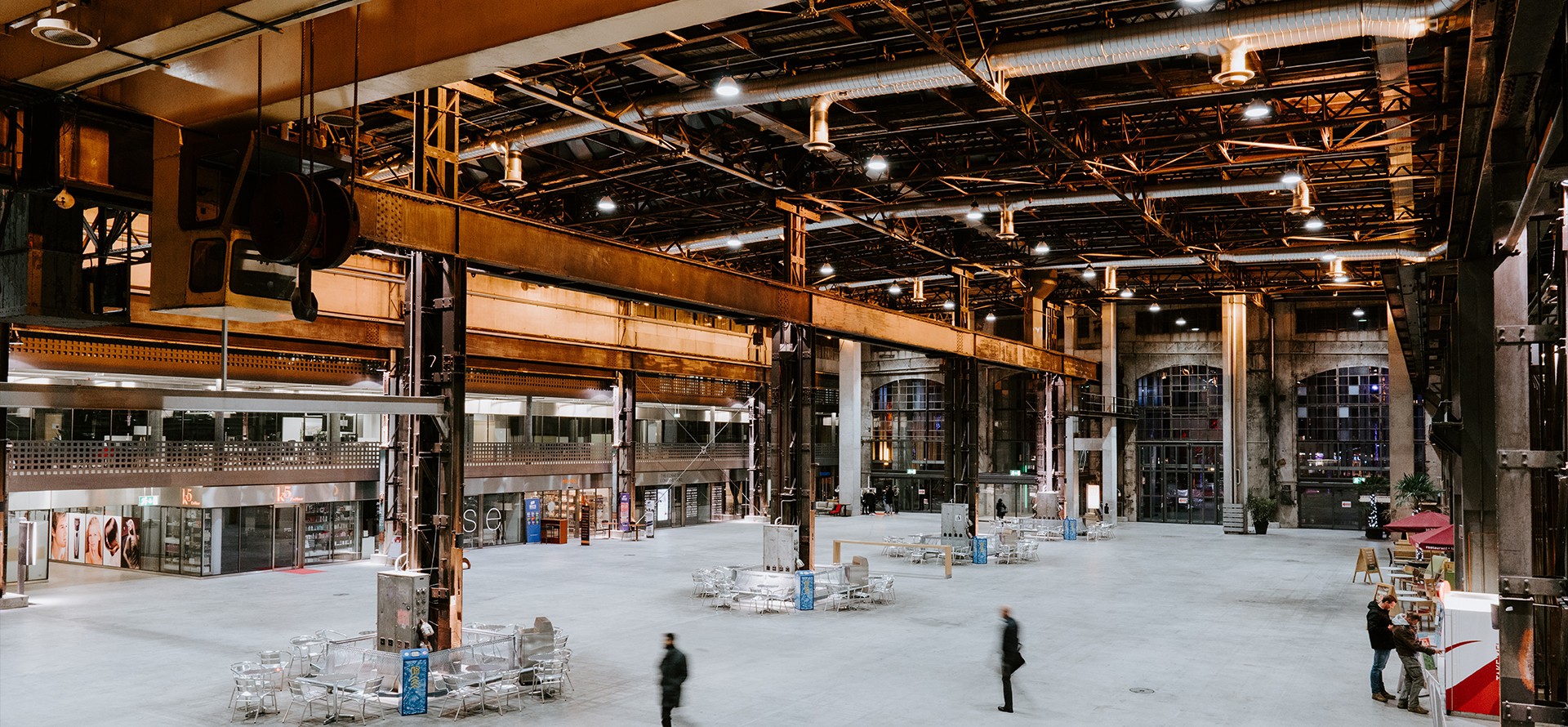

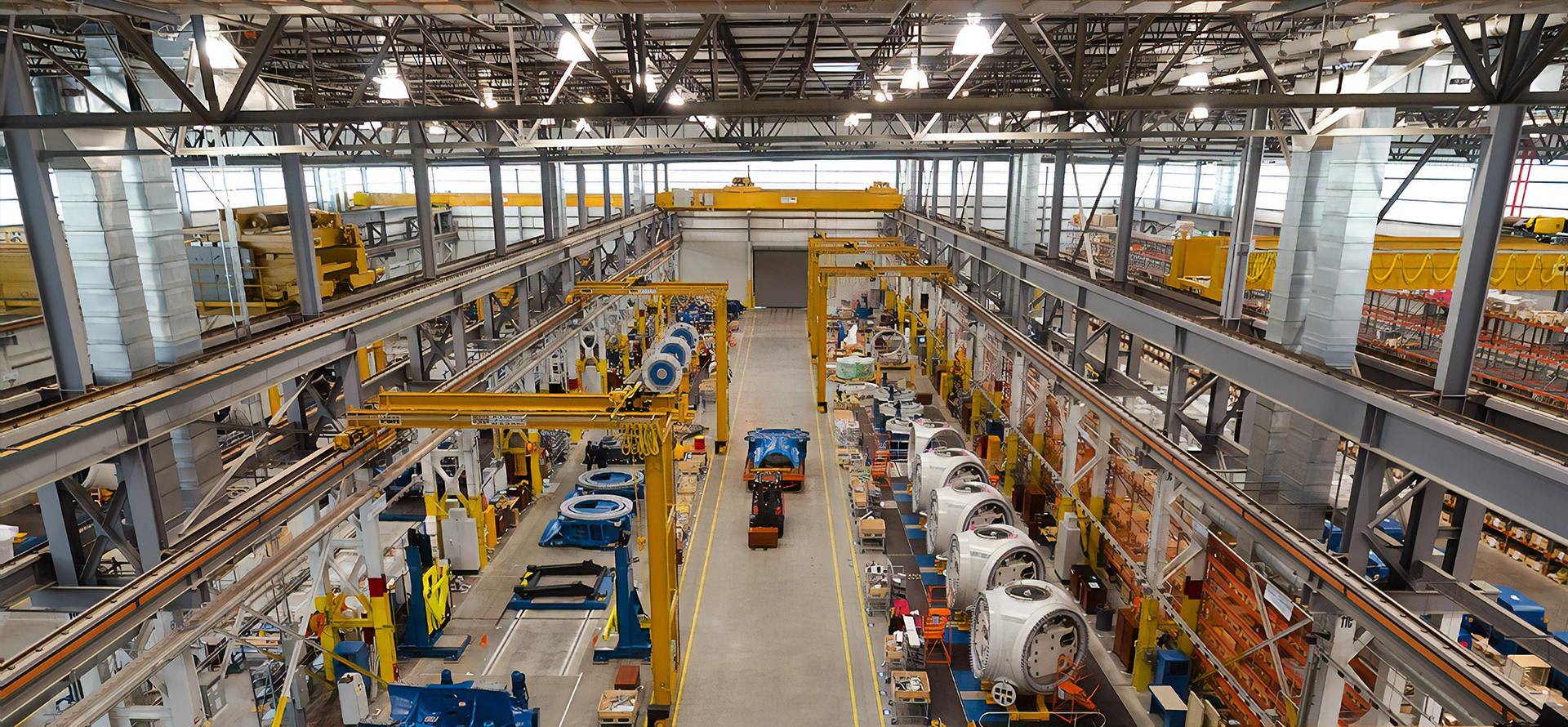

It can be widely used in Workshops, Warehouse, Exhibition halls, Supermarkets, Gyms, Indoor stadiums, Gas stations, Logistics centers, Underground parking lots, etc
Power Options: 100W / 150W / 200W / 240W / 300W
High Efficiency: Up to 150 / 170 lm/W
Die-Cast Housing: ADC12 aluminum for efficient heat dissipation
Quality Components: Top-brand LED chips and drivers for stable performance
Adjustable Options: 3CCT & Power Adjustable for flexible use

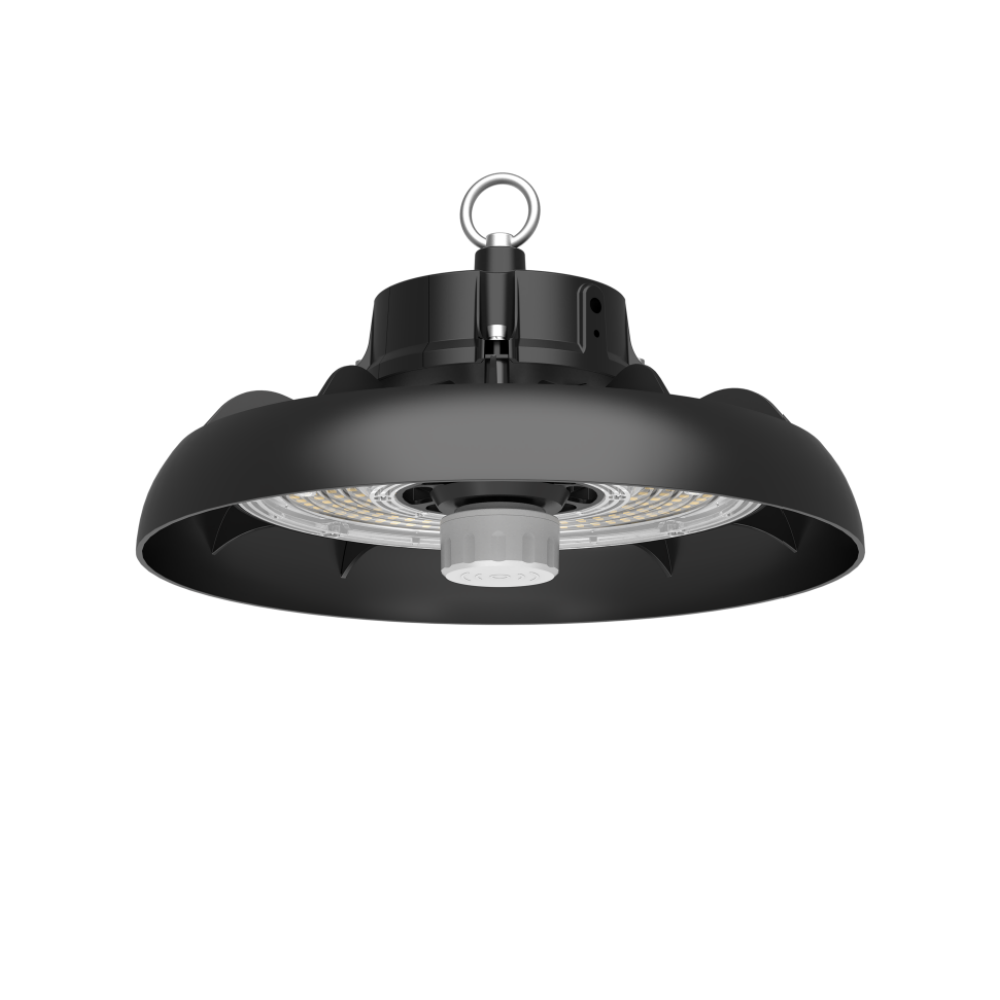

Sensor Ready: Optional plug-and-play motion sensor
Warranty: 5 Years
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-HB25-100W | ISL-HB25-150W | ISL-HB25-200W | ISL-HB25-240W | ISL-HB25-300W |
| Power | 100W | 150W | 200W | 240W | 300W |
| Dimmension | ø245*156mm | ø270*162mm | ø302*167mm | ø332*173mm | ø332*173mm |
| Input Voltage | AC100-277V 50/60Hz | ||||
| Light Efficiency (±5%) | 150lm/W, 170lm/W | ||||
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K, 3-CCT | ||||
| CRI | 80 | ||||
| Beam Angle | 60°/90°/120° | ||||
| LED | Lumileds/ San'an | ||||
| Driver | Philips/ Sosen/ ZH | ||||
| Options | Microwave Sensor | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP65 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
