This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:

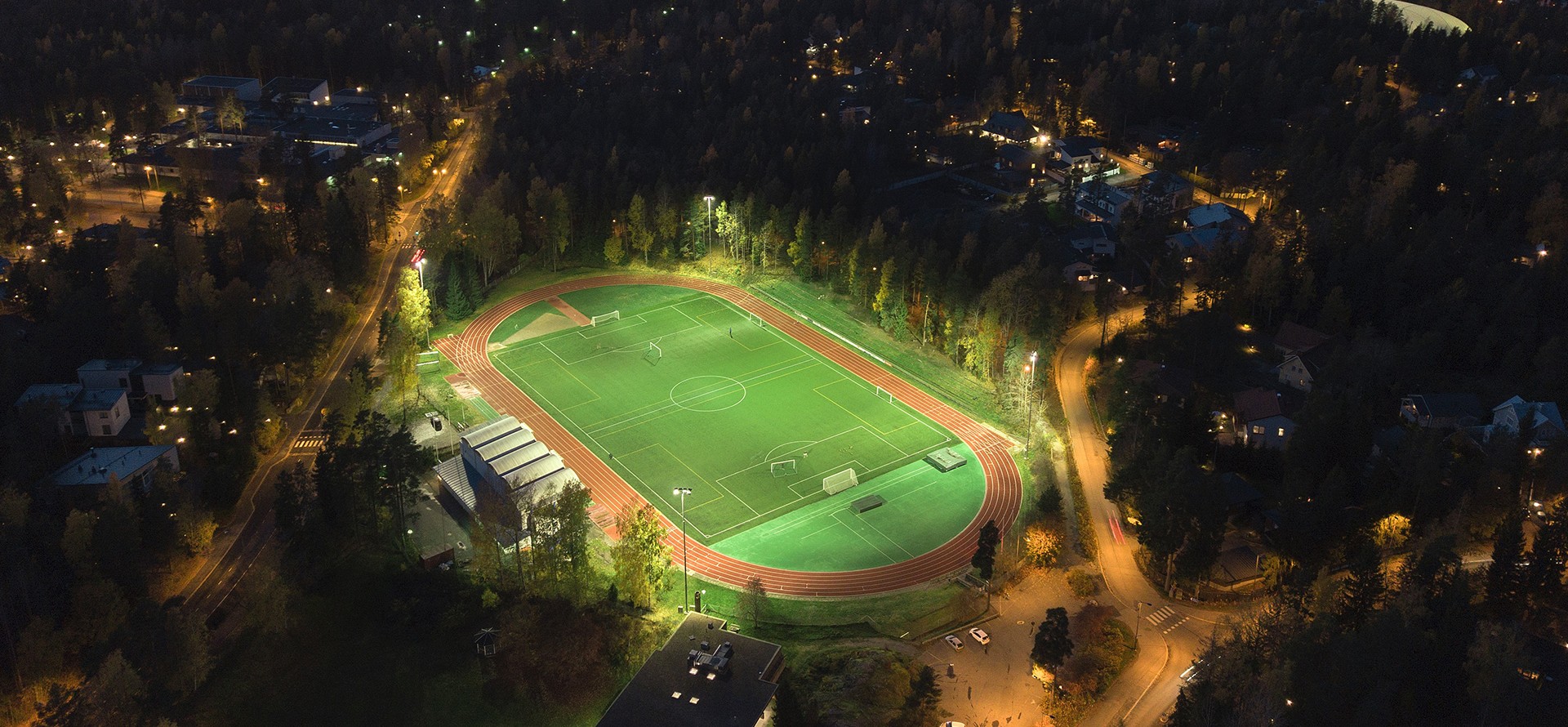

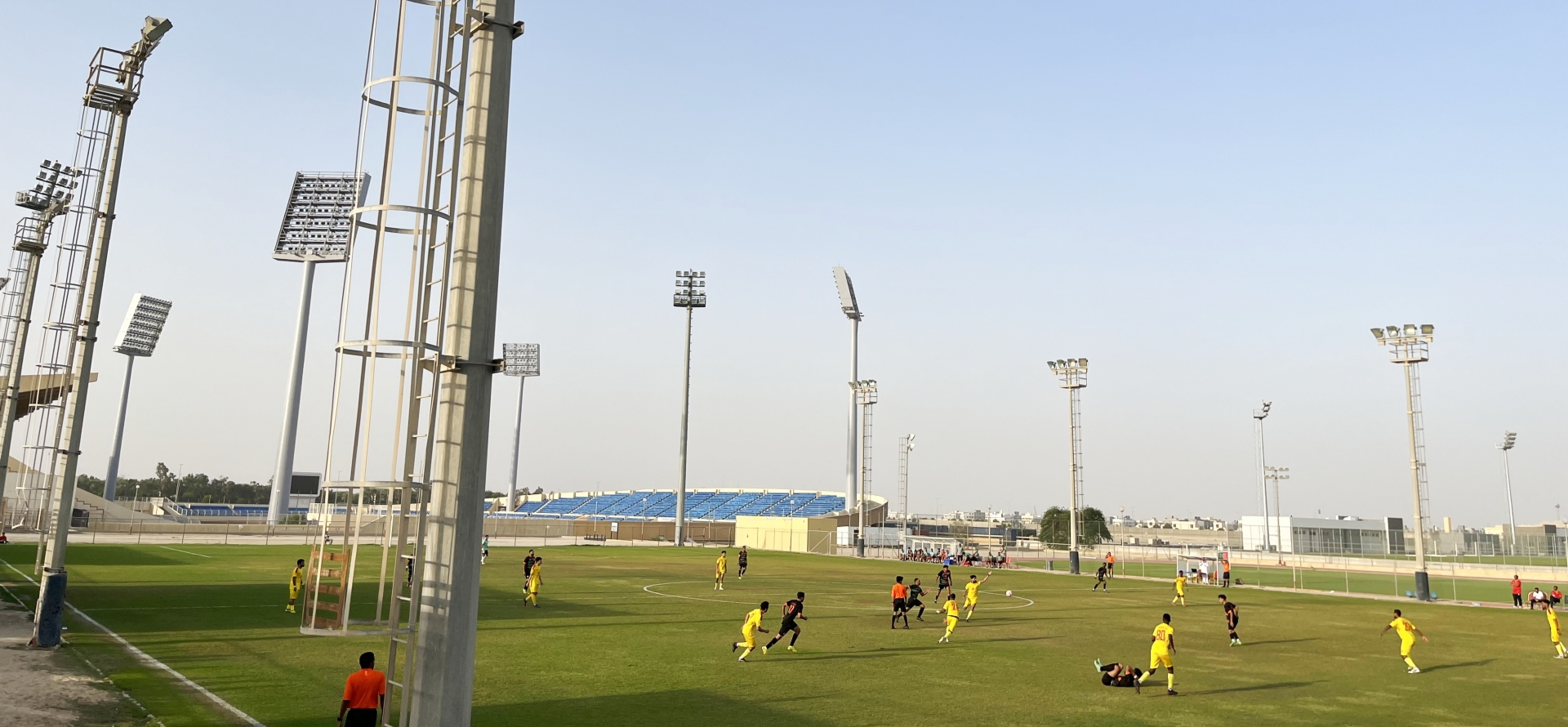

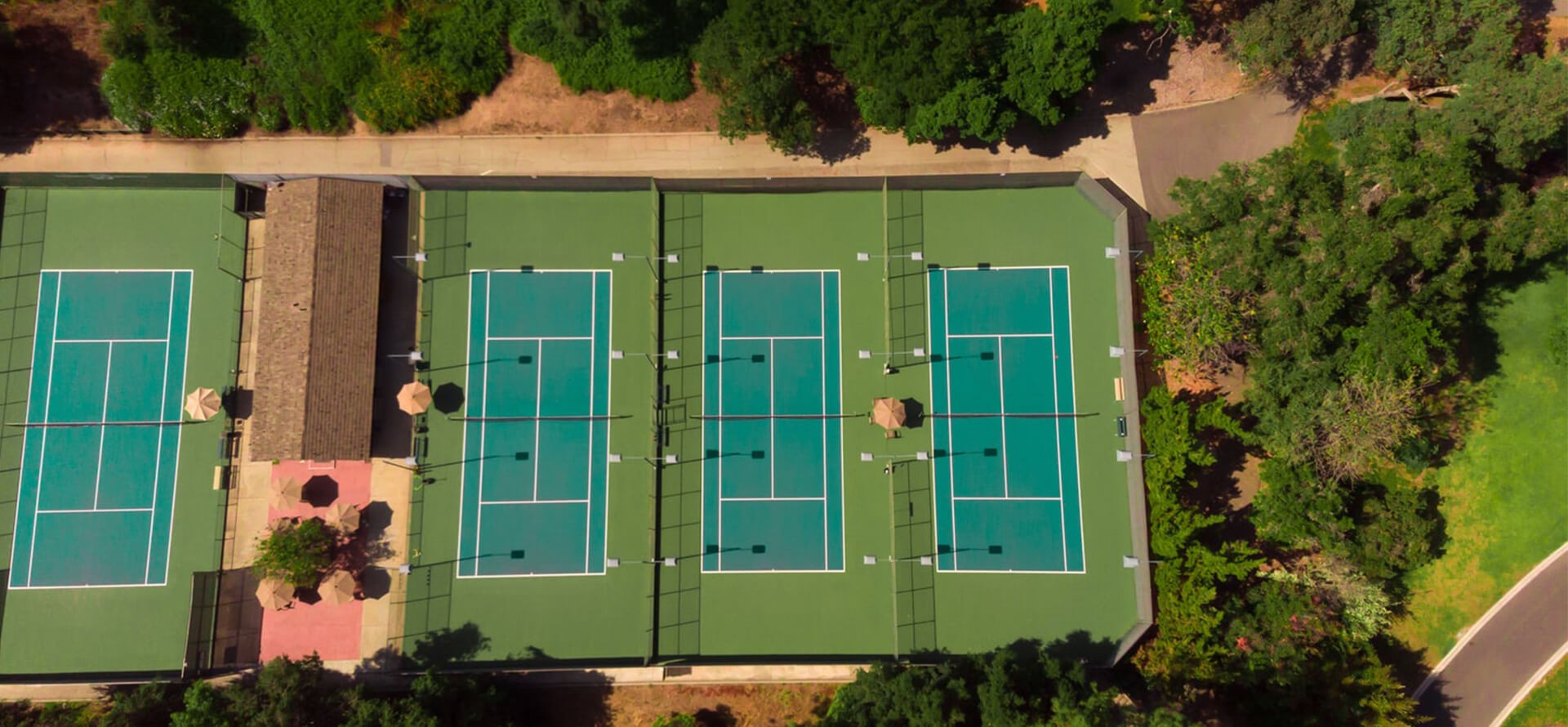

Soccer Fields and Stadiums, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas, Rugby Fields and Cricket Grounds, Track and Field Arenas, Golf Courses, Baseball Diamonds.

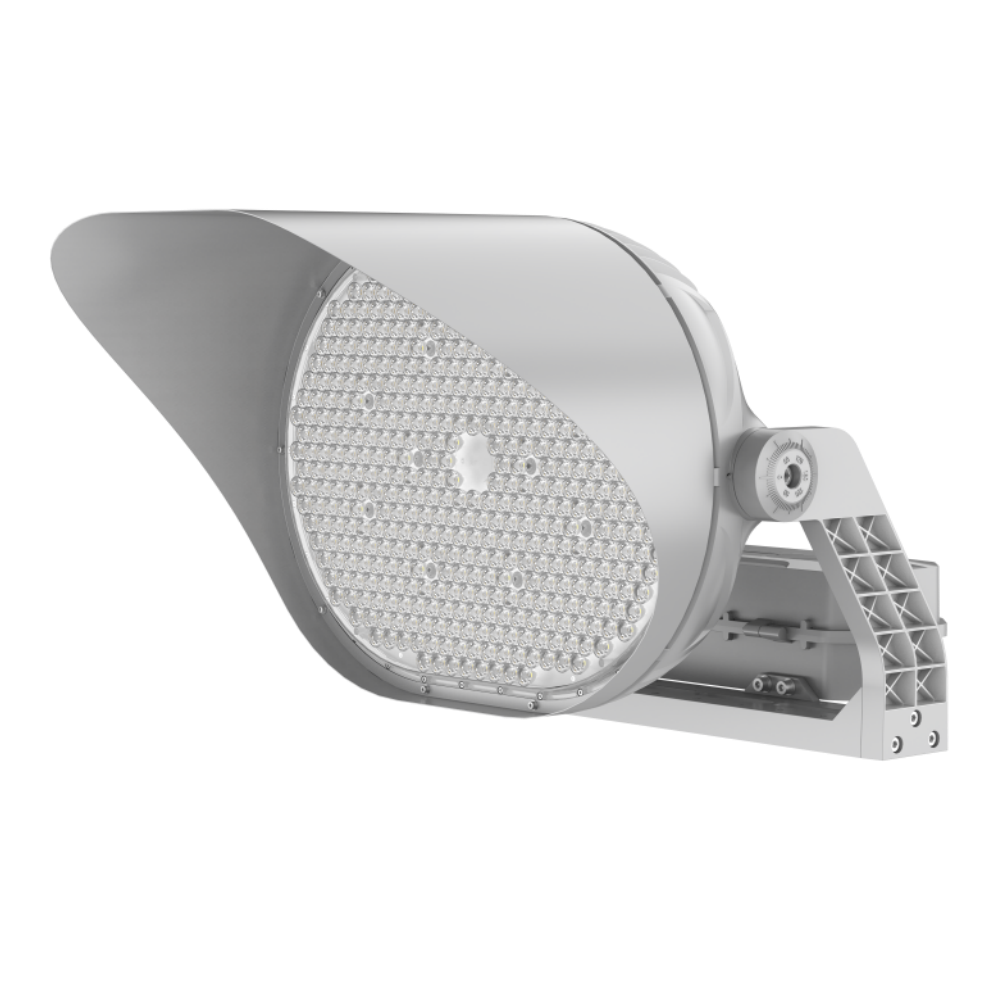

High-Power Stadium Lighting | 500W–1350W.
Up to 160 lm/W Standard, 180 lm/W Optional.
Multiple Beam Angles for Precise Light Distribution.

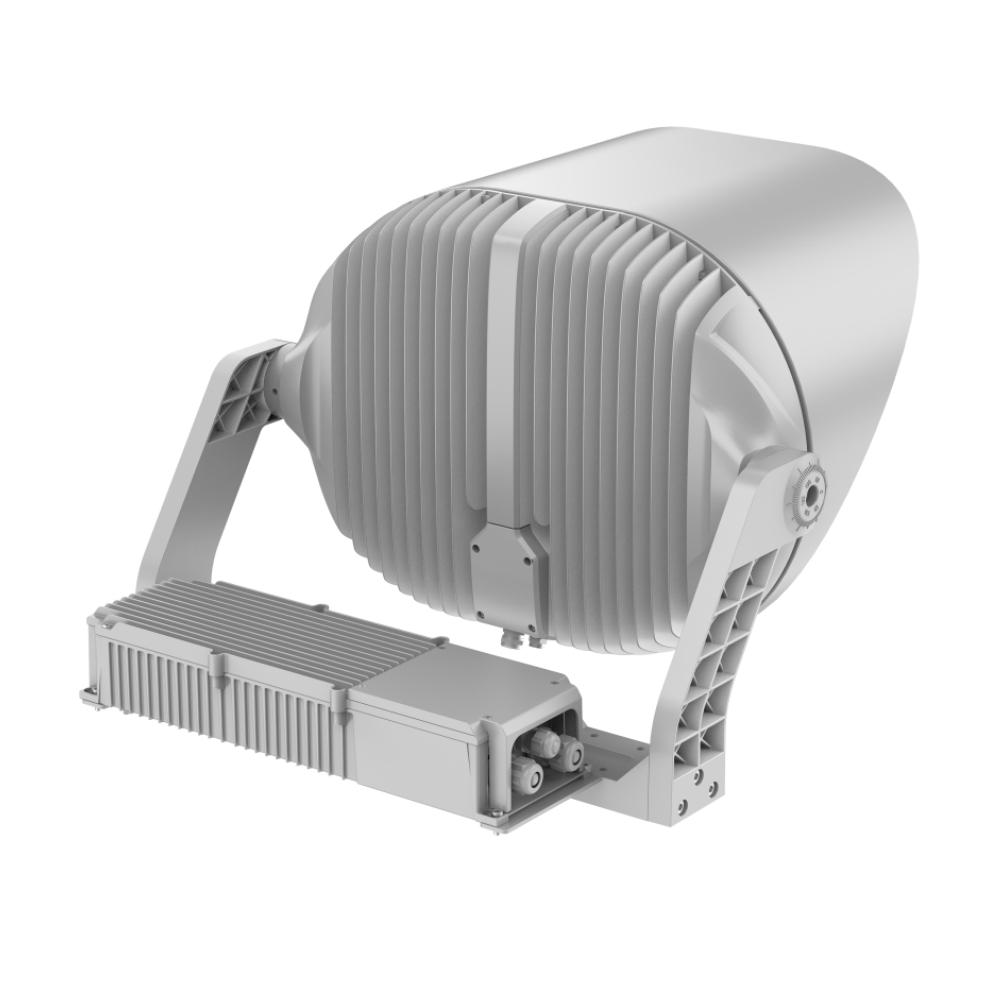

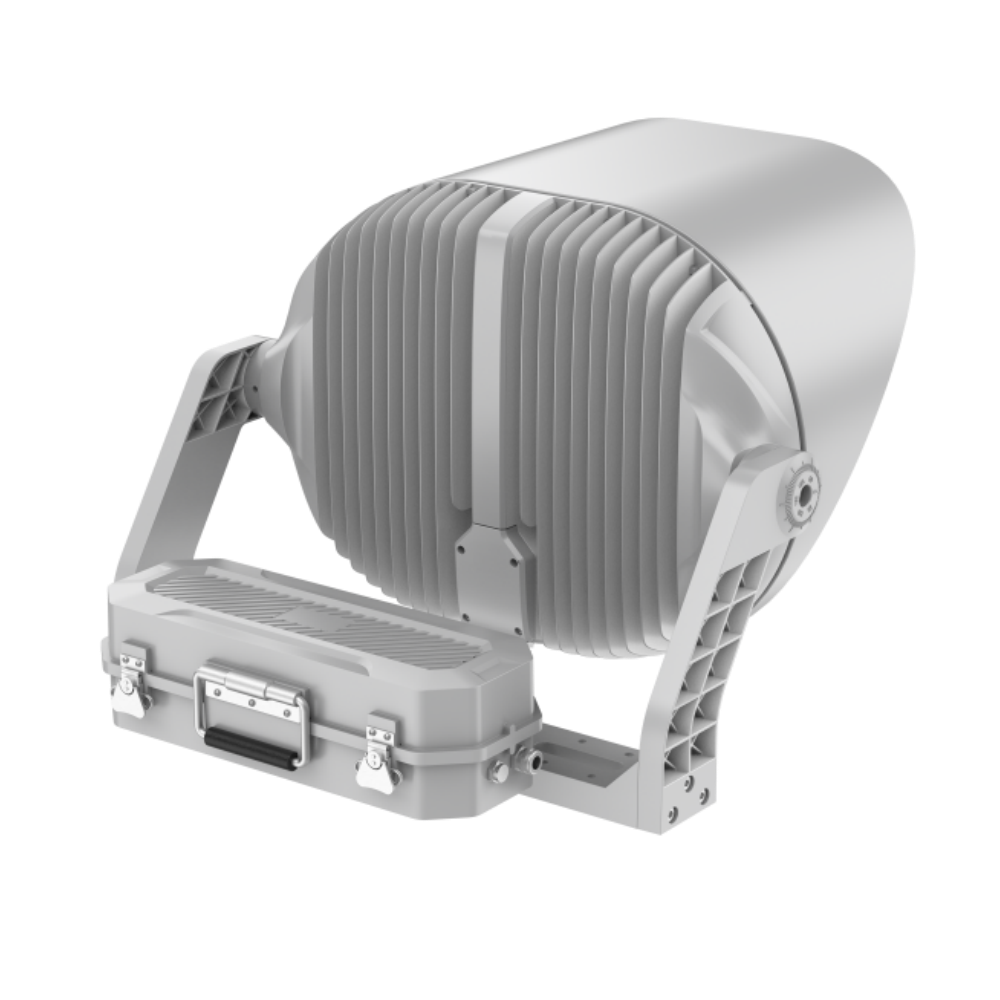

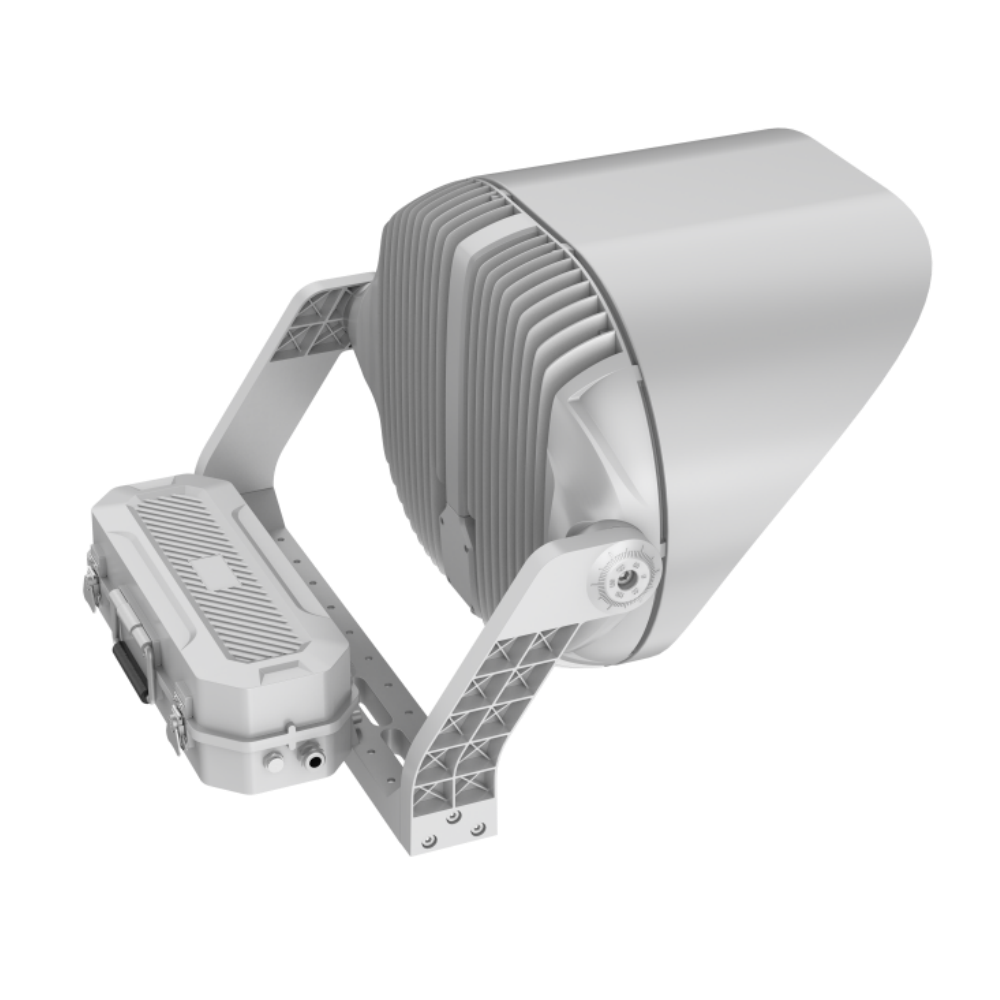

Die-Cast Aluminum U-Bracket Provides an Optimal Combination of High Structural Strength, Lightweight Design, Thermal Conductivity, and Corrosion Resistance.
Angle Adjustment - Adopting an automotive brake pad structure, allows infinitely variable angle positioning without fixed steps.
Designed for Professional Sports Lighting Applications.Ideal for Football Fields, Tennis Courts, Stadiums & High Mast Installations
Working Temperature: -20℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V/ AC200-480 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-SF18-500W | ISL-SF18-600W | ISL-SF18-800W | ISL-SF18-1000W | ISL-SF18-1200W | ISL-SF18-1350W |
| Power | 500W | 600W | 800W | 1000W | 1200W | 1350W |
| Dimmension | 728*530*429mm | 800*662*478mm | ||||
| Input Voltage | 100-277VAC/ 200-480VAC | |||||
| Light Efficiency (±5%) | 160lm/W (standard), 180lm/W (optional) | |||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |||||
| CRI | 80 | |||||
| Beam Angle | 10°/ 15°/ 25°/ 45°/ 60°/ 90° | |||||
| LED | SMD 3030 | |||||
| Driver | Sosen/ Moso | |||||
| SPD | 10KV | |||||
| Housing | Die-casting technology by ADC12 | |||||
| IP Rating | IP66 | |||||
| IK Rating | IK08 | |||||

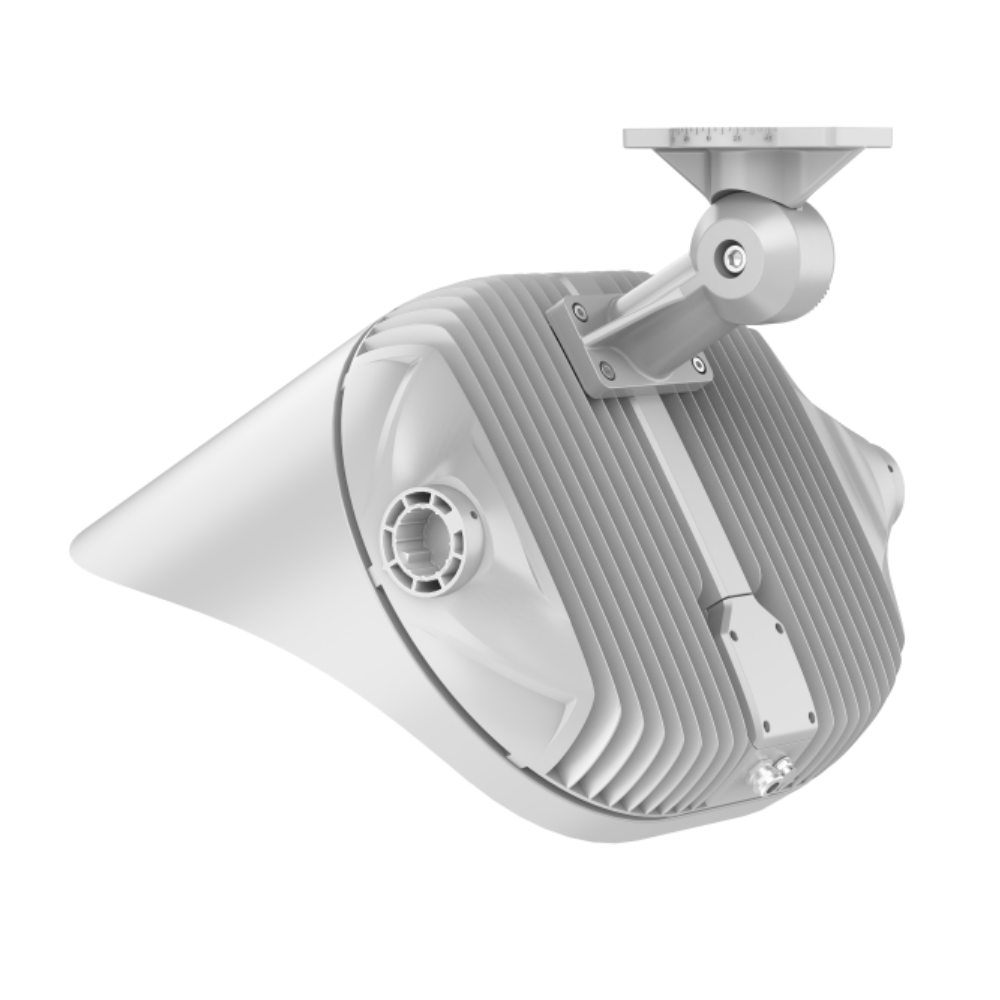

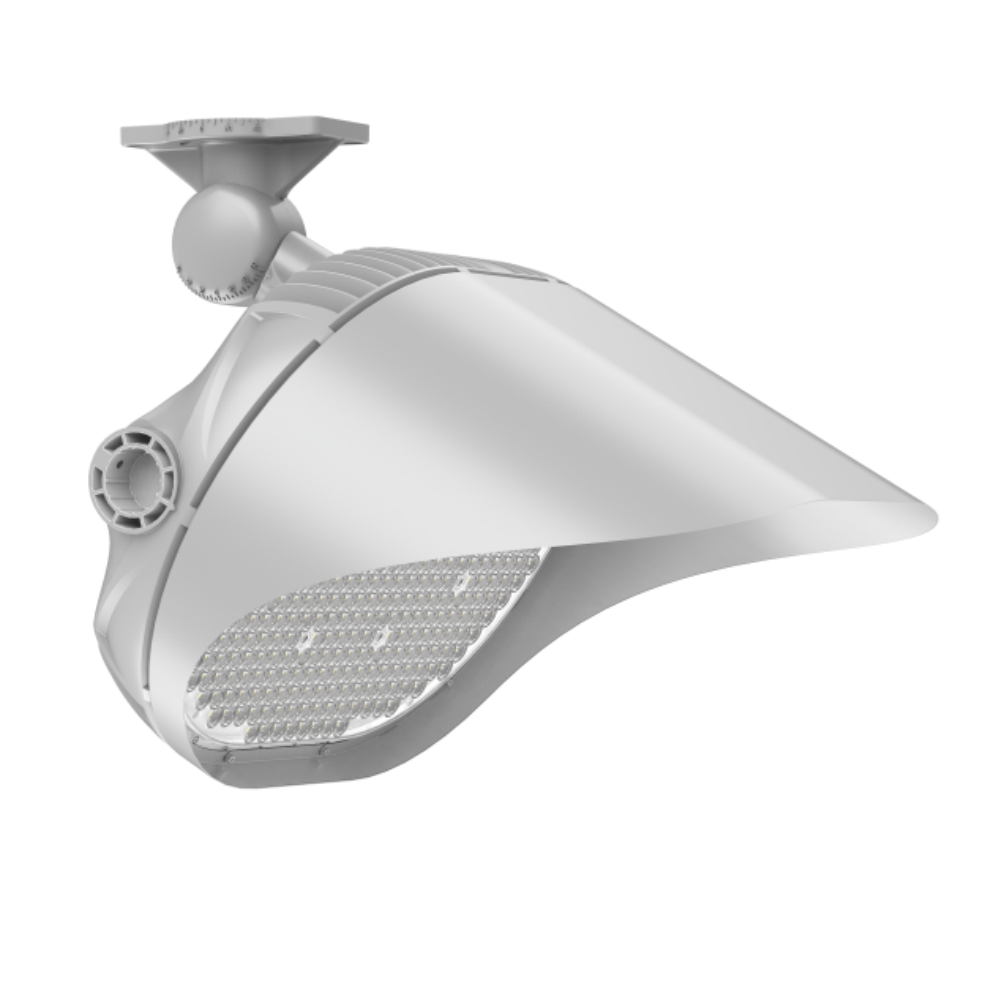

| Installation | Bracket Mounting/ Suspended Mounting | |||||
| Operation Temperature | ﹣20°C- +50°C | |||||
| Lifespan | 50,000H | |||||
| Warranty | 5Years | |||||
