This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:

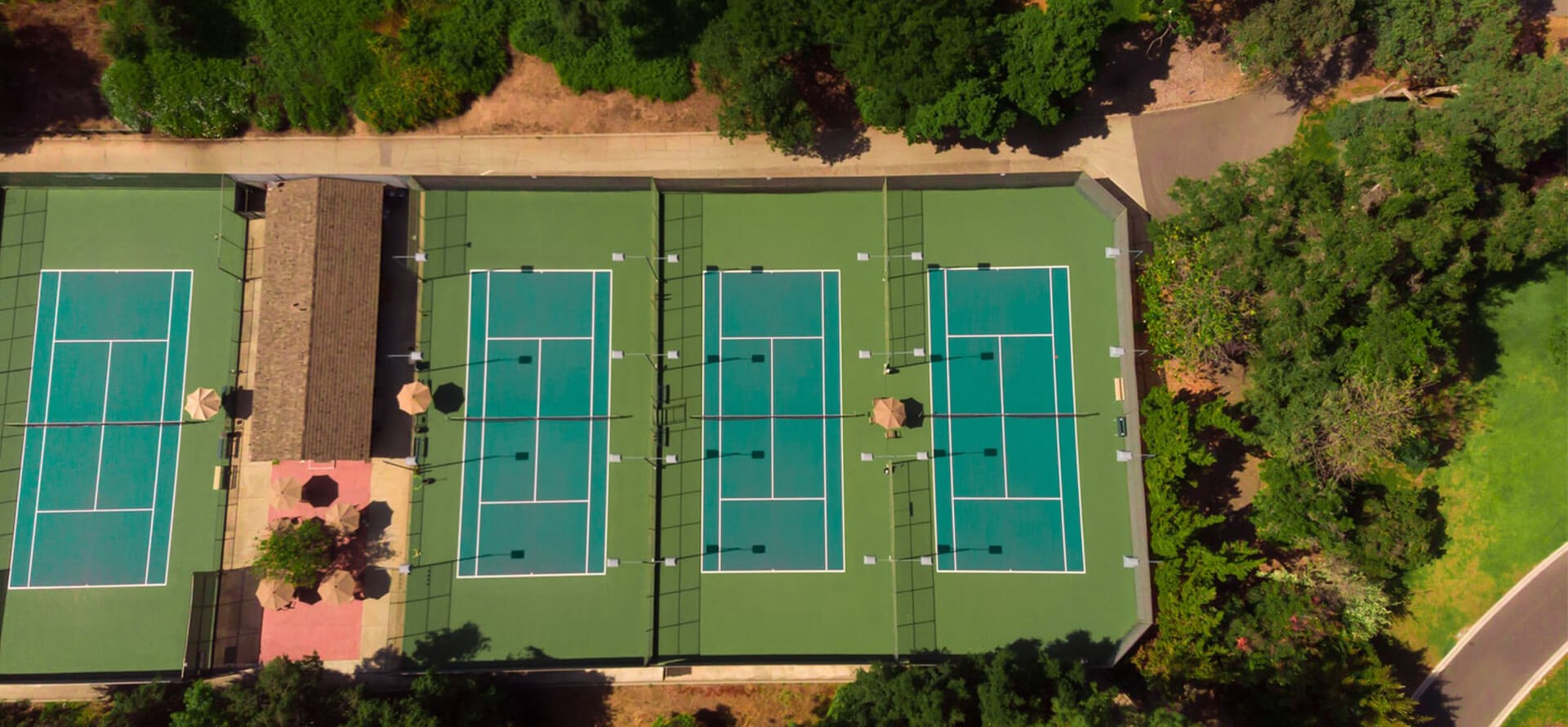

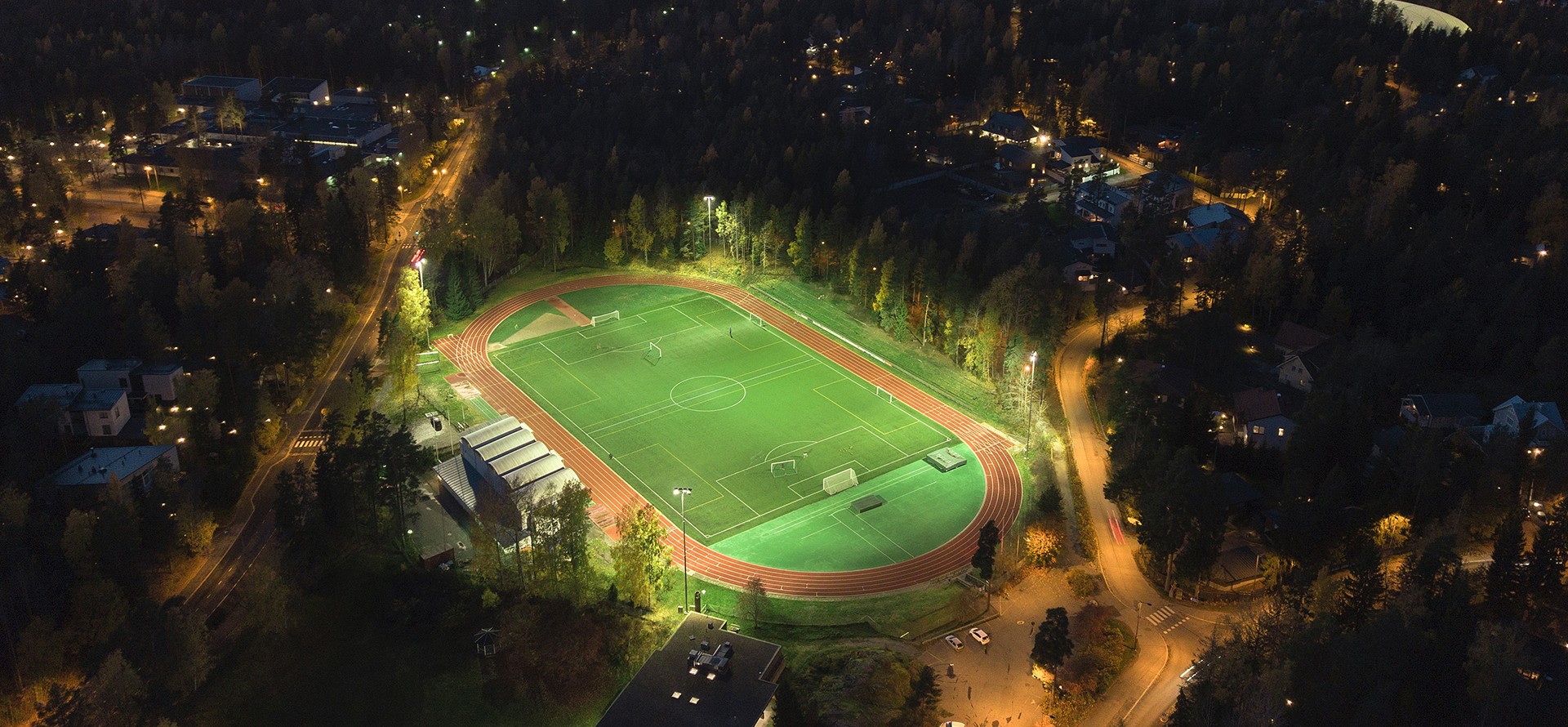

Soccer Fields and Stadiums, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas, Rugby Fields and Cricket Grounds, Track and Field Arenas, Golf Courses, Baseball Diamonds.

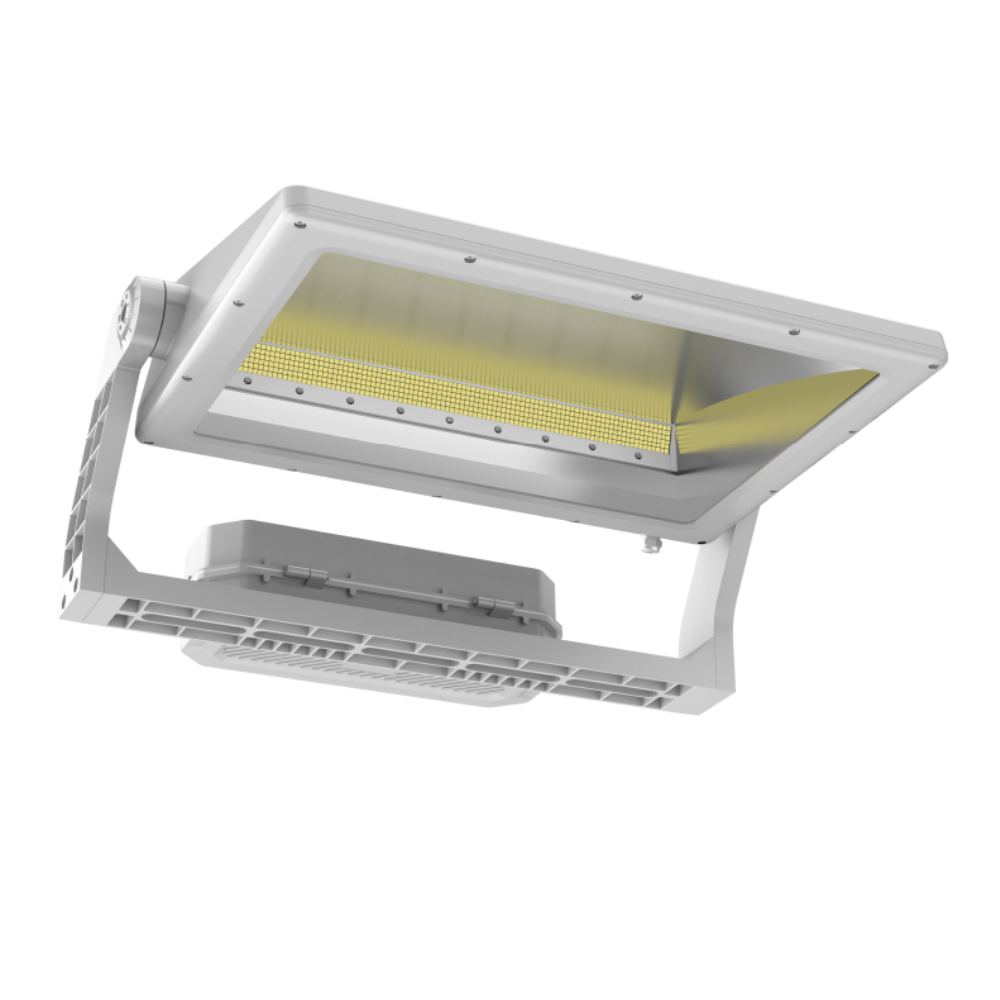

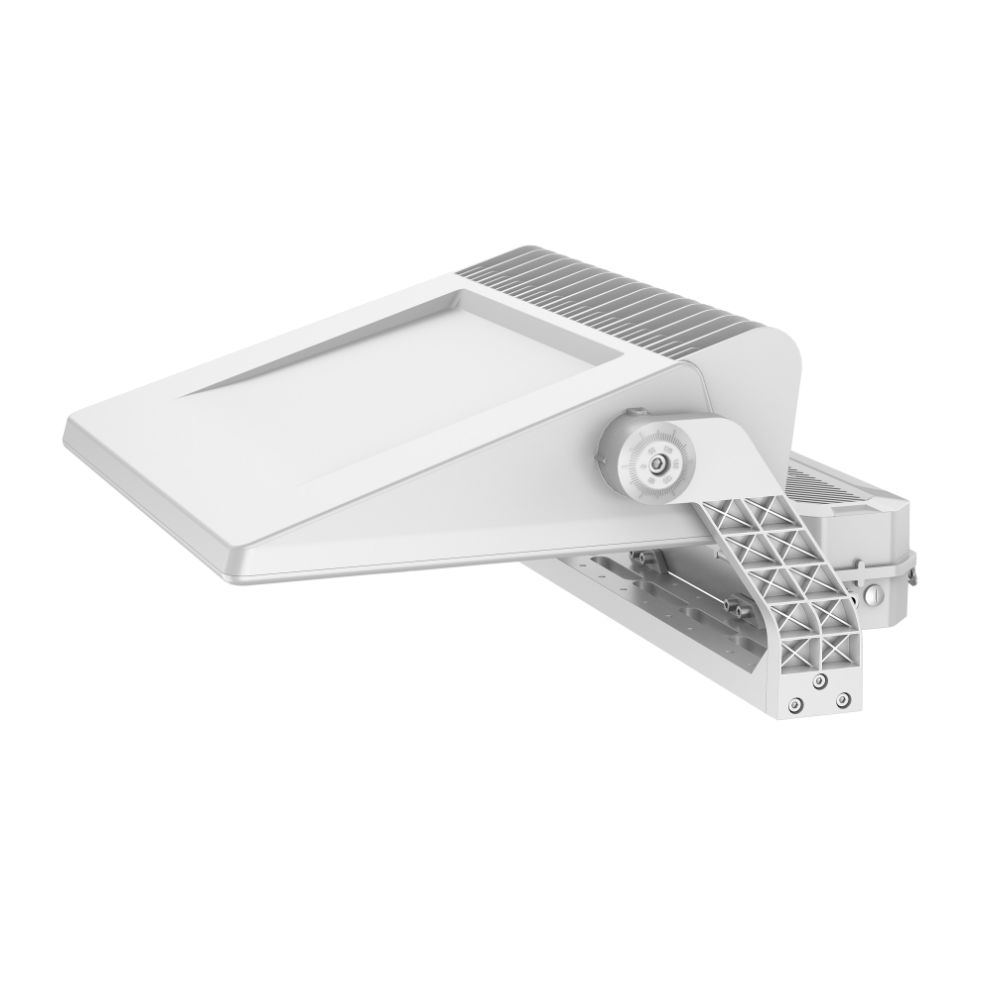

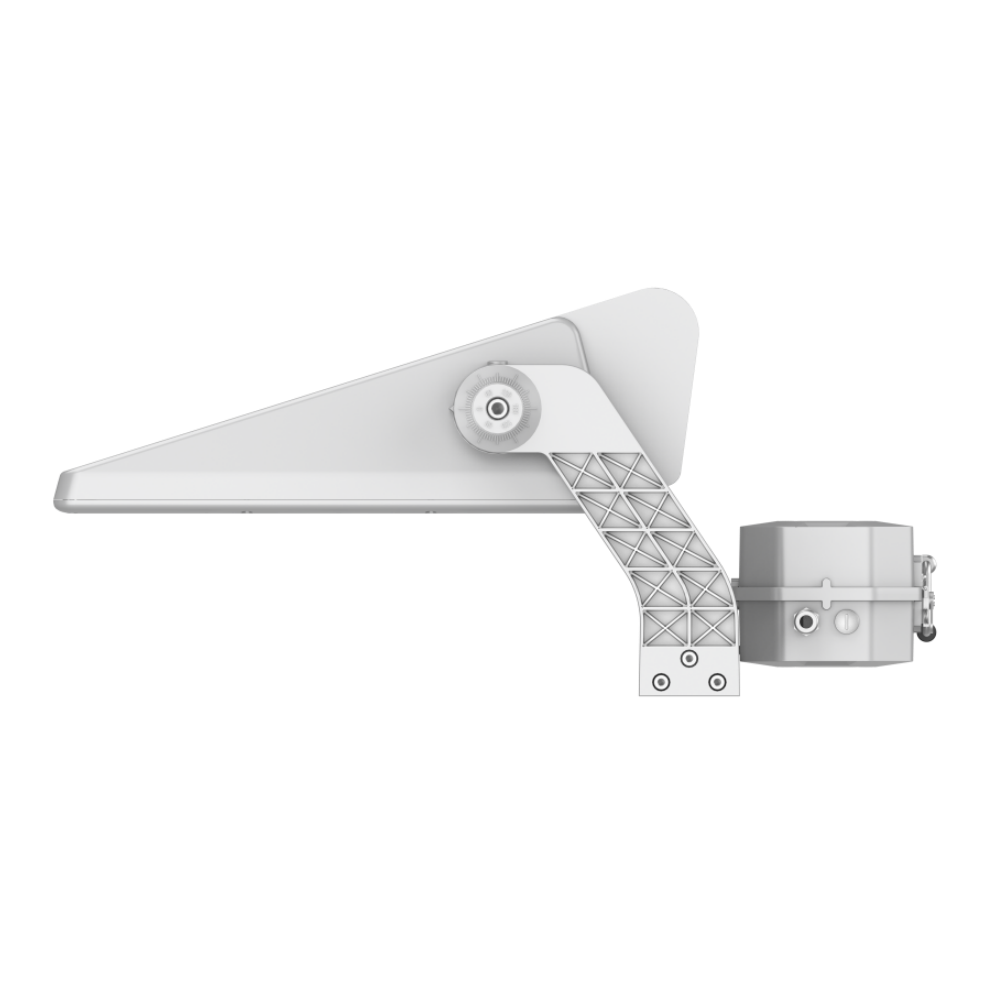

680W–1000W High-Power LED Floodlight
Up to 140 lm/W High Luminous Efficacy
Asymmetric Indirect Anti-Glare Lighting Design to Minimize Glare

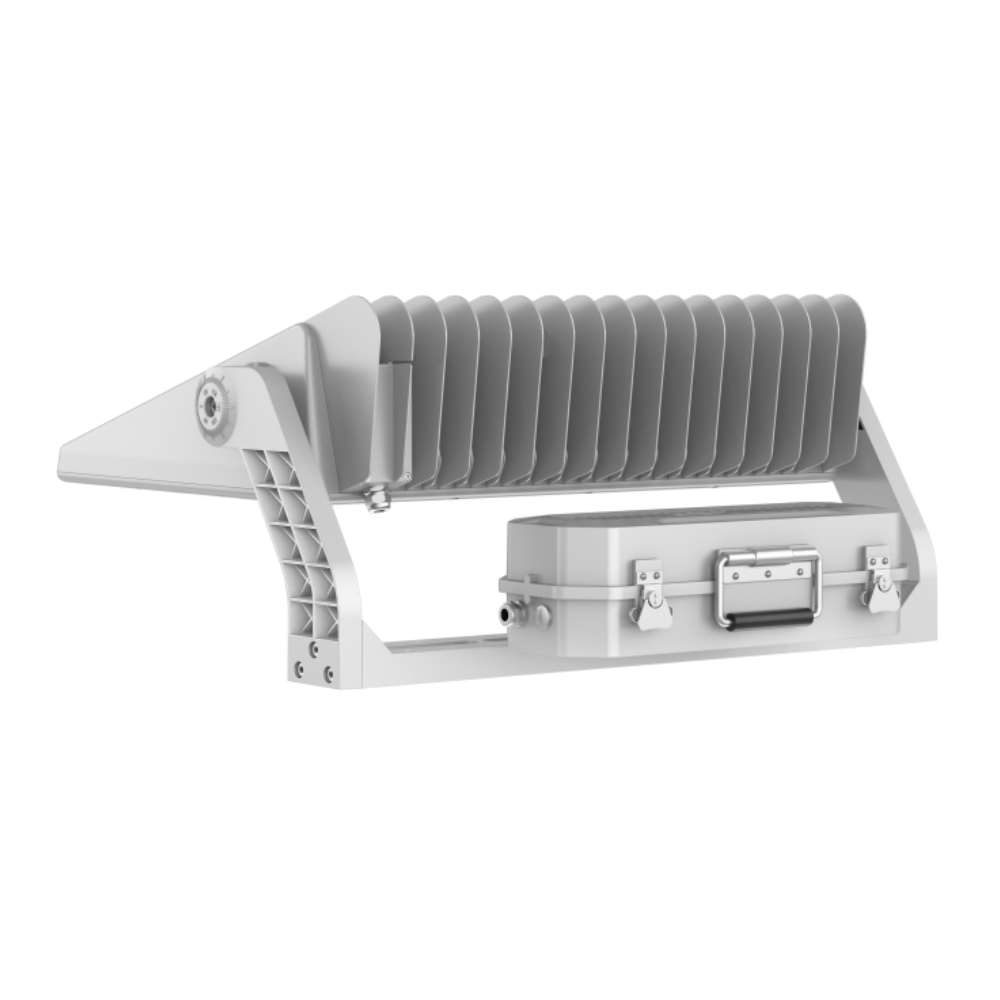

Die-Cast Aluminum Construction with a Clean Design and Excellent Thermal Management
Die-Cast Aluminum U-Bracket Provides an Optimal Combination of High Structural Strength, Lightweight Design, Thermal Conductivity, and Corrosion Resistance
IP66-Rated Waterproof Protection for Outdoor Applications

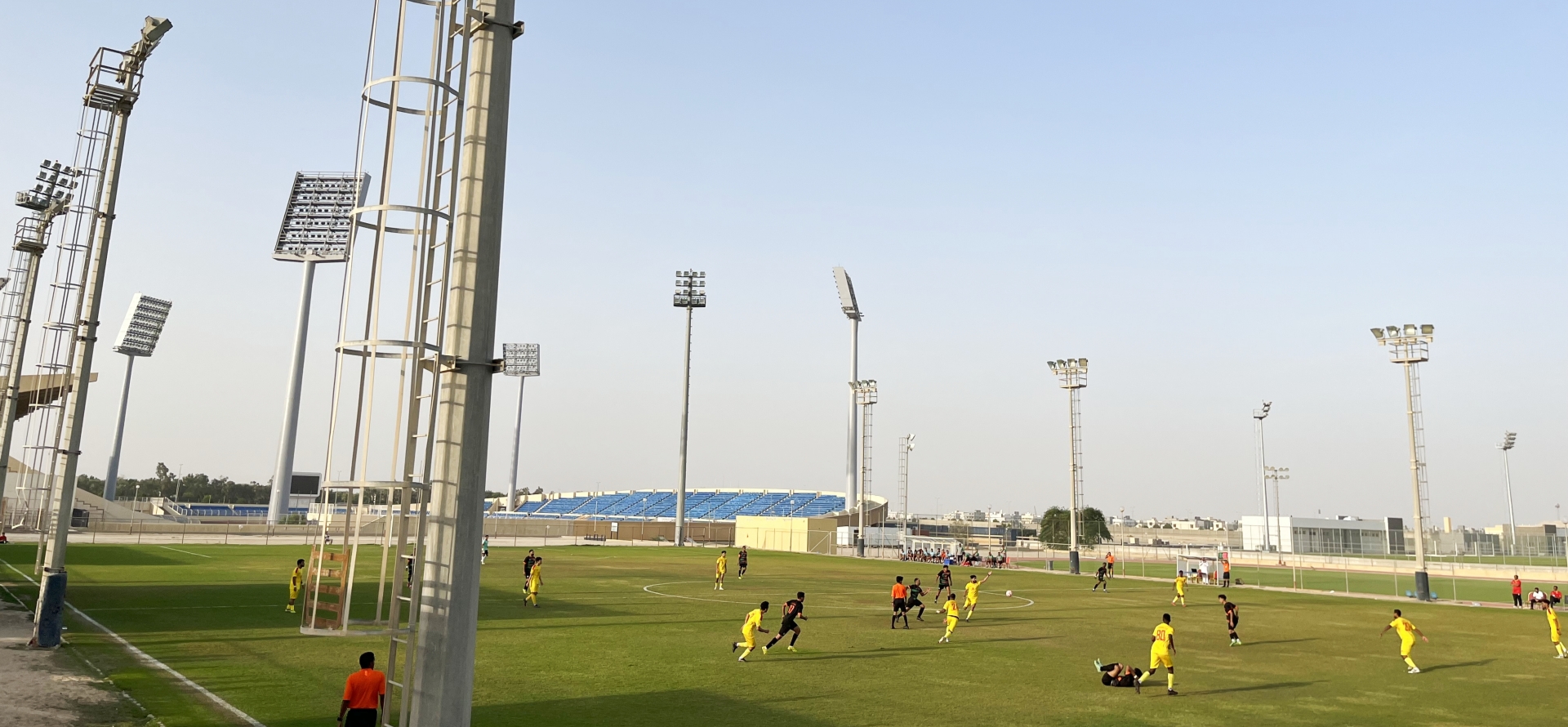

Ideal for Stadiums, Sports Fields, and High-Mast Lighting
Working Temperature: -20℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V/ AC200-480 50/60Hz.
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.
| Model No. | ISL-SF17-680W | ISL-SF17-880W | ISL-SF17-1000W |
| Power | 680W | 880W | 1000W |
| Dimmension | 771*610*363mm | 771*610*363mm | 771*610*363mm |
| Input Voltage | 100-277VAC/ 200-480VAC | ||
| Light Efficiency (±5%) | 140lm/W | ||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||
| CRI | 80 | ||
| Beam Angle | ASY60° | ||
| LED | SMD 5050 | ||
| Driver | Sosen/ Moso | ||
| SPD | 10KV | ||
| Housing | Die-casting technology by ADC12 | ||
| IP Rating | IP66 | ||
| IK Rating | IK08 | ||

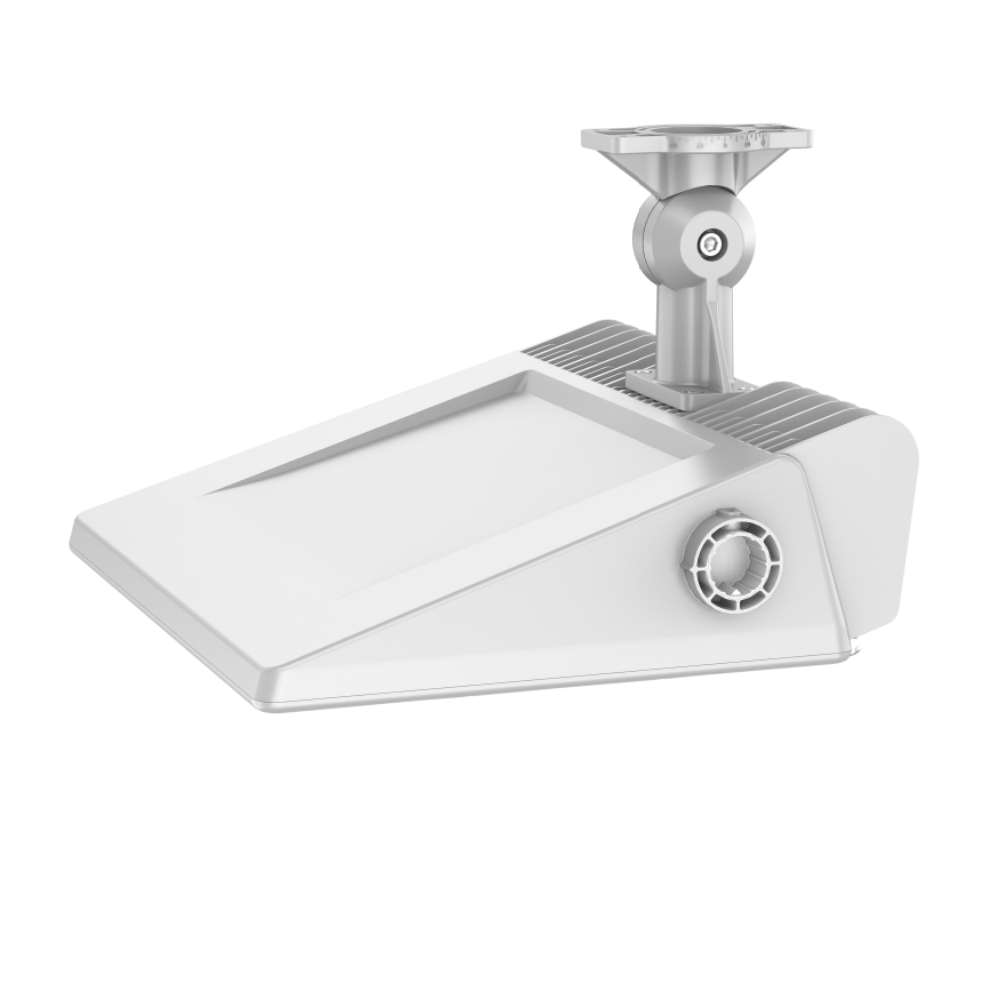

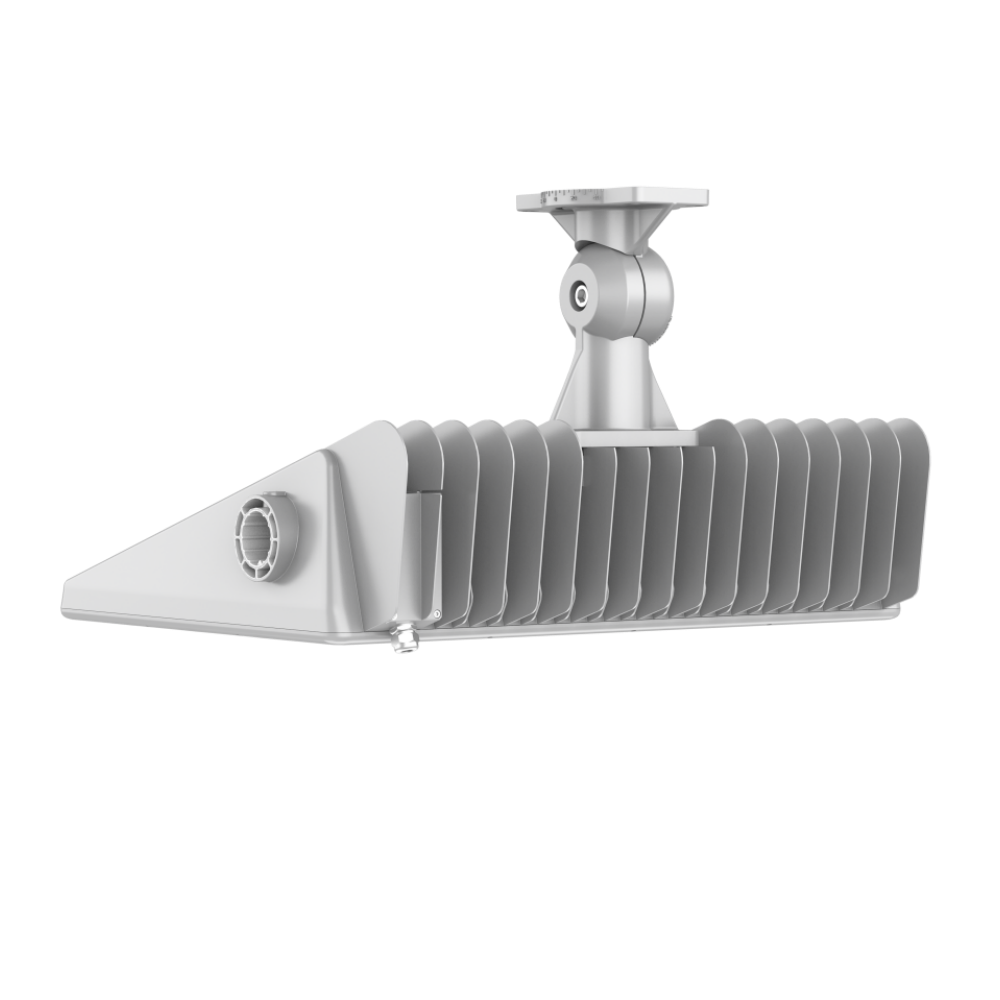

| Installation | Bracket Mounting/ Suspended Mounting | ||
| Operation Temperature | ﹣20°C- +50°C | ||
| Lifespan | 50,000H | ||
| Warranty | 5Years | ||
