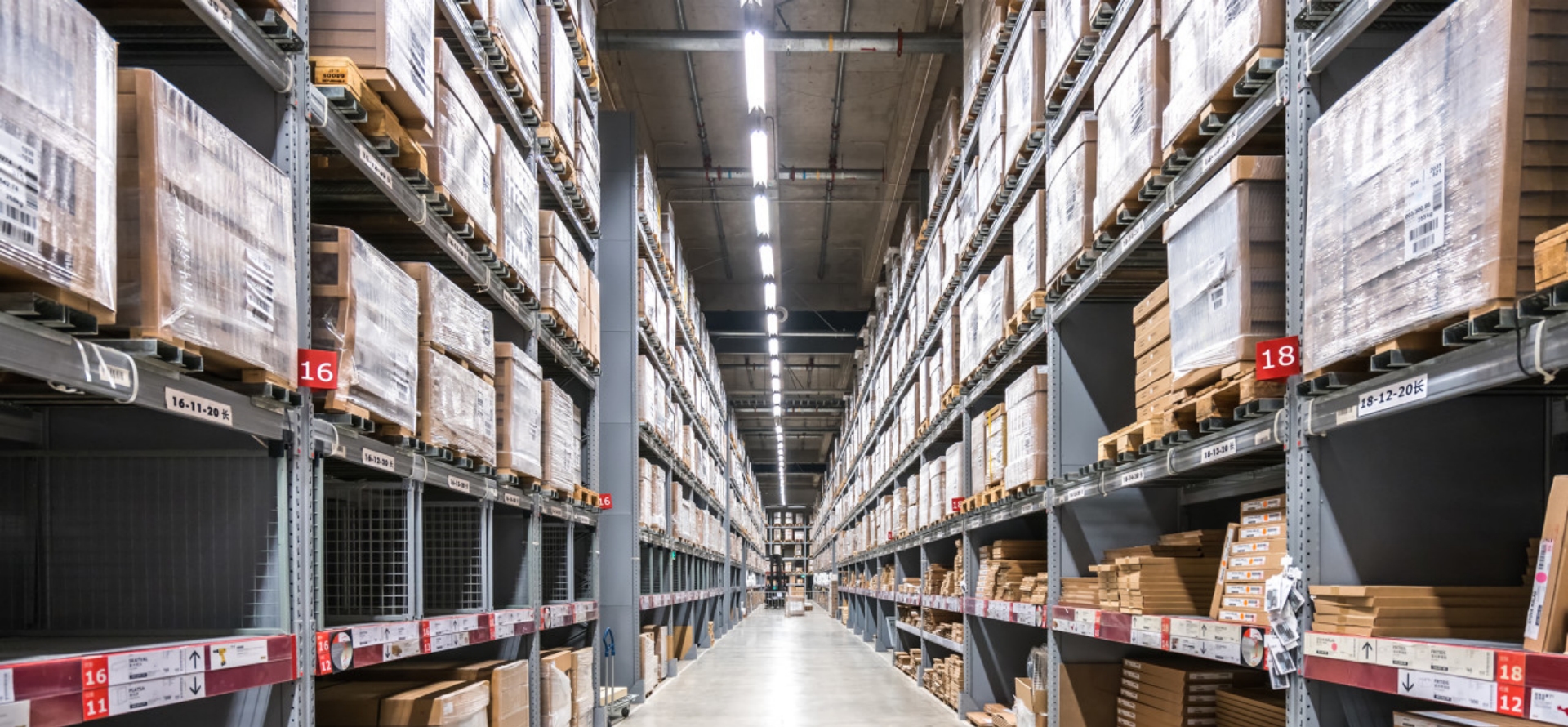

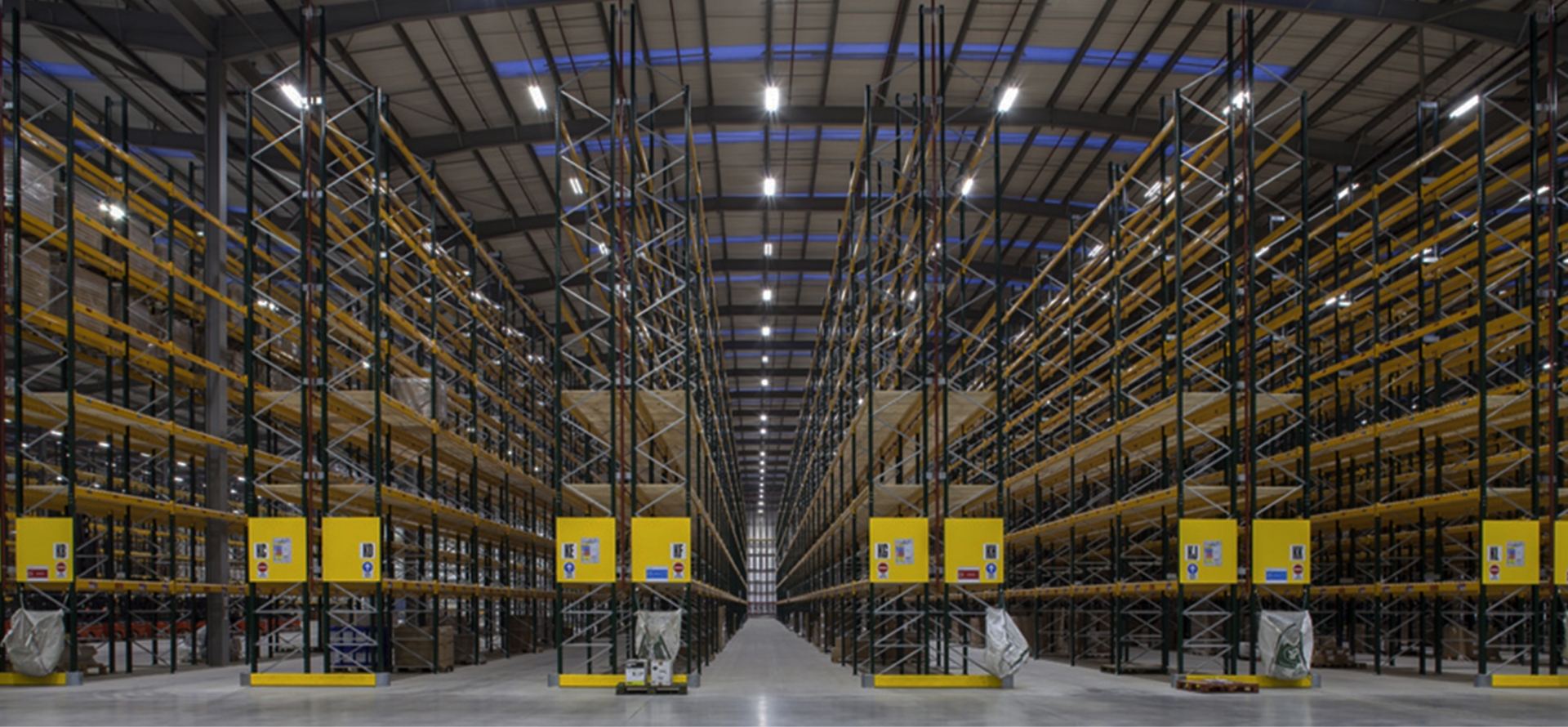

Ideal for warehouse, workshop, supermarket, underground parking lot, logistic center, indoor stadium and etc.
Ideal for wide-area coverage, delivering balanced and uniform lighting in industrial environments.
Available in 150, 170 and 190 lm/W efficiency options, delivering high lumen output with reduced energy consumption.

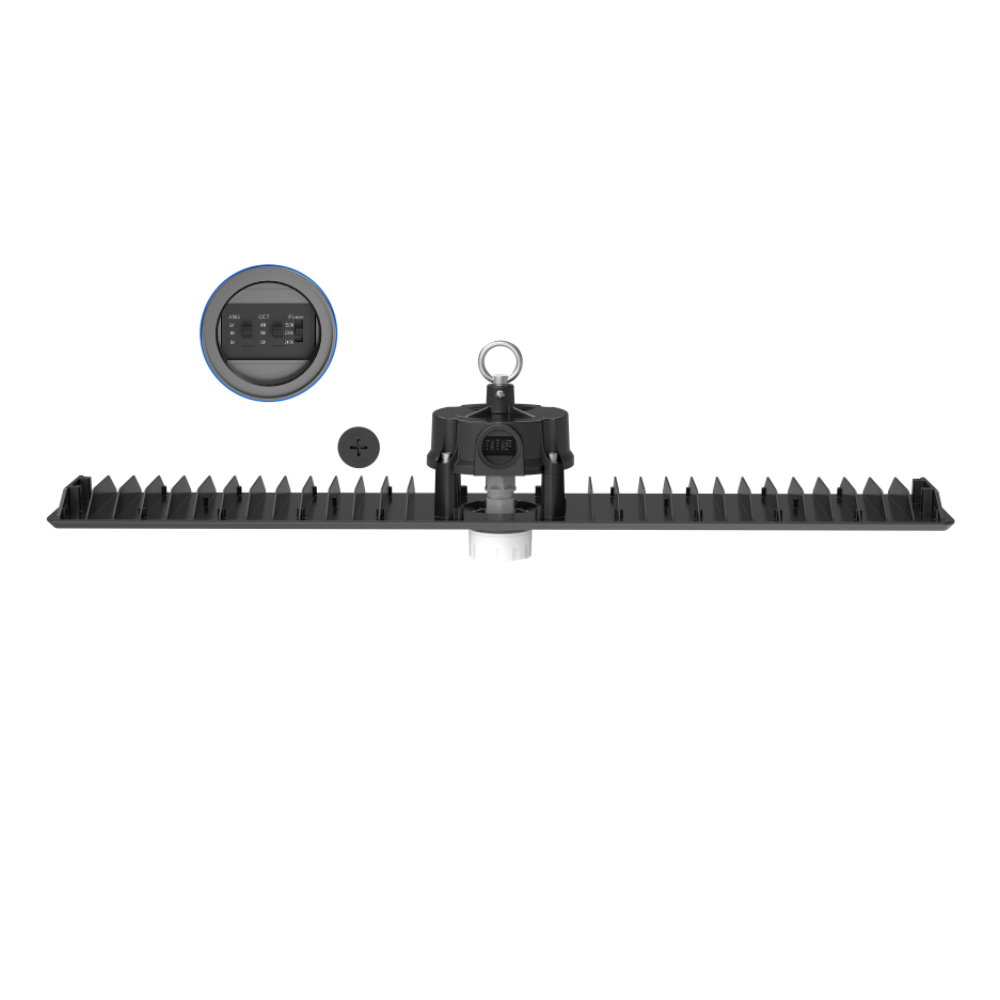

Selectable power, CCT, and beam angles simplify project planning and inventory management.
Optional motion sensor enhances energy efficiency and supports modern warehouse lighting requirements.
Working Temperature: -25℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally.

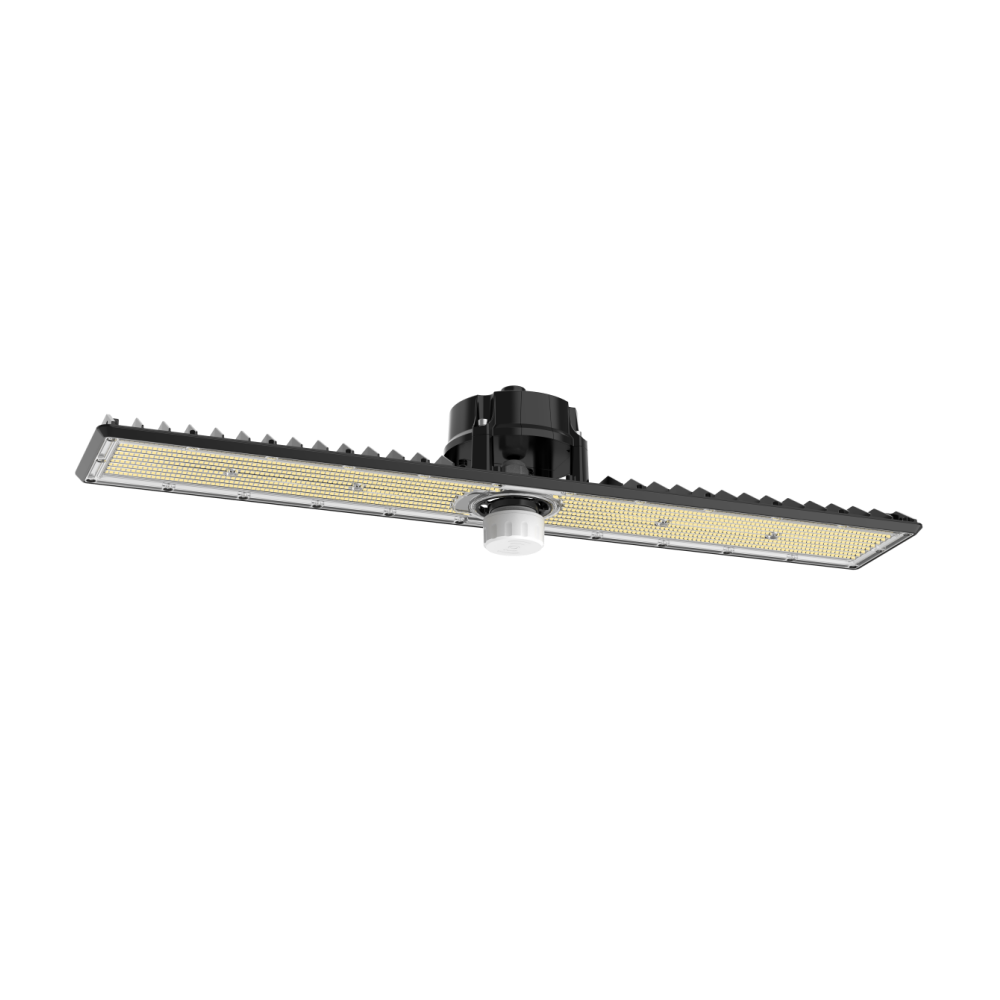

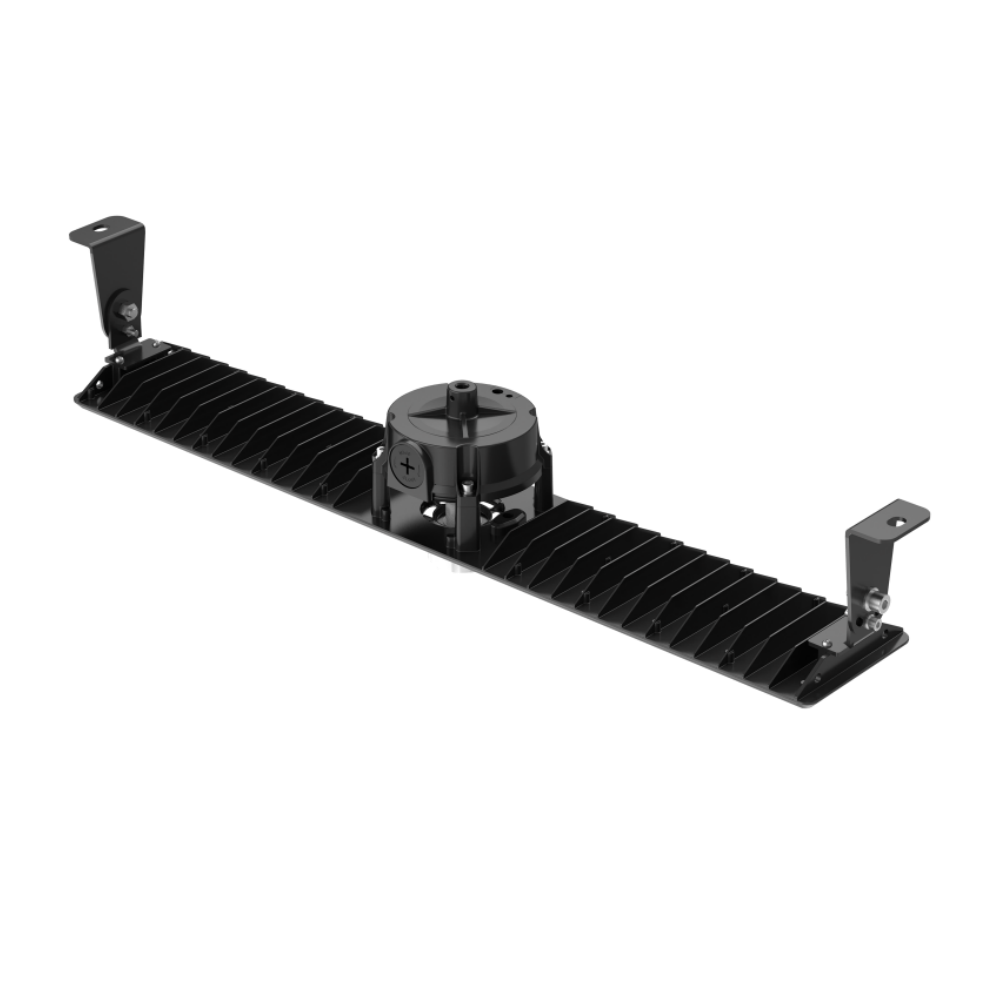

| Model No. | ISL-LHB03-A-200W | ISL-LHB03-A-240W |
| Rated Power | 200W | 240W |
| Dimension | 696*120*144mm | 696*120*144mm |
| Input Voltage | AC120-277V, 50/60Hz | |
| Light Efficiency | 150lm/W, 170lm/W, 190lm/W | |
| Color Temperature | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | |
| Beam Angle | 60°/ 90° | |
| CRI | 80Ra | |
| LED Chip | Lumileds/ San'an | |
| LED Driver | Sosen/ Philips | |
| Options | Zhaga Socket & Motion Sensor | |
| IP Rating | IP65 | |
| IK Rating | IK08 | |
| Operation Temperature | ﹣25°C- +50°C | |
| Lifespan | 50,000H | |
| Warranty | 5Years | |
| Version 1 | Single Power, Single CCT @150lm/W | |
| Version 2 | Single Power, Single CCT @170lm/W | |
| Version 3 | Single Power, Single CCT @190lm/W | |
| Version 4 | 3-Power, 3-CCT @150lm/W | |
| Version 5 | 3-Power, 3-CCT & 3-Beam Angle @150lm/W | |
