This Sports Light is specifically engineered for a wide range of outdoor sports and activity illumination needs, making it ideal for:

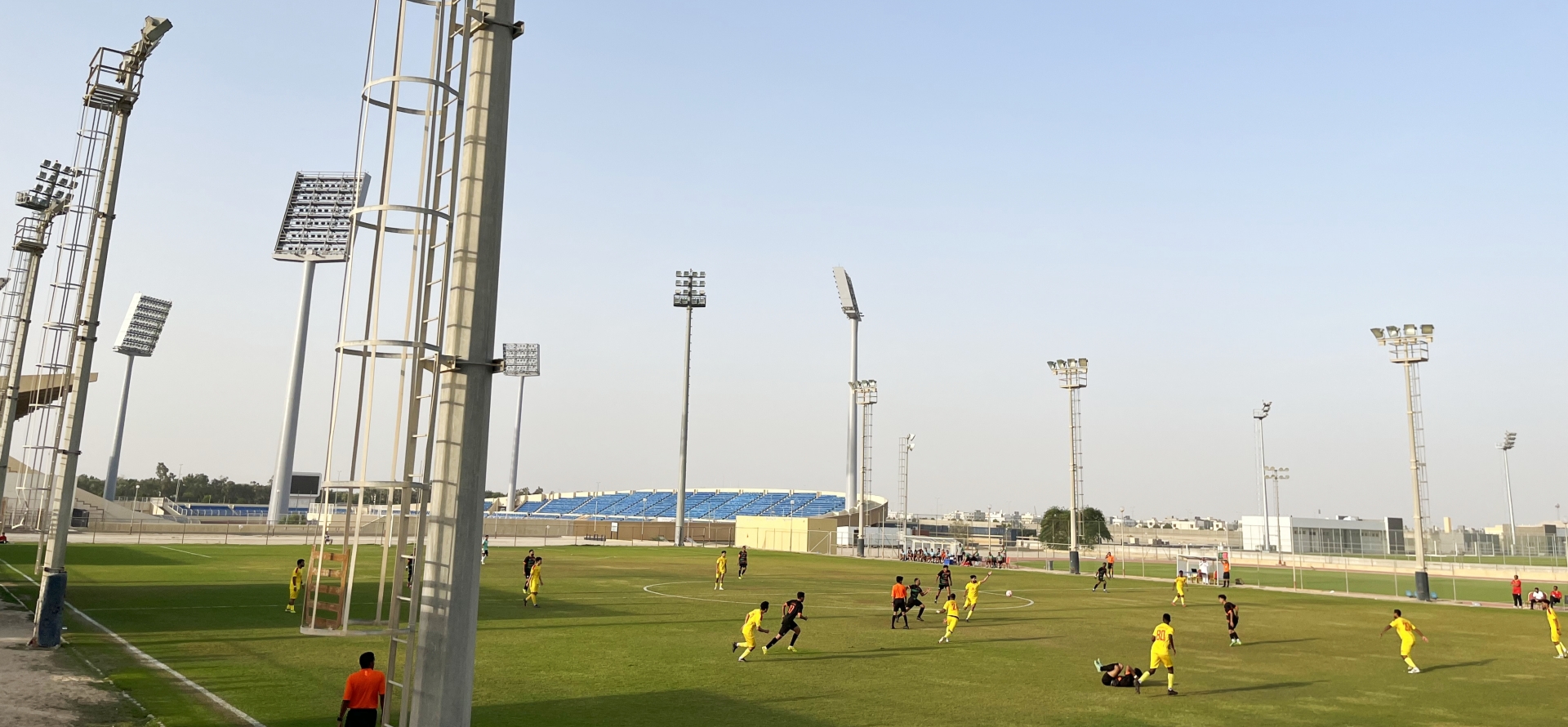

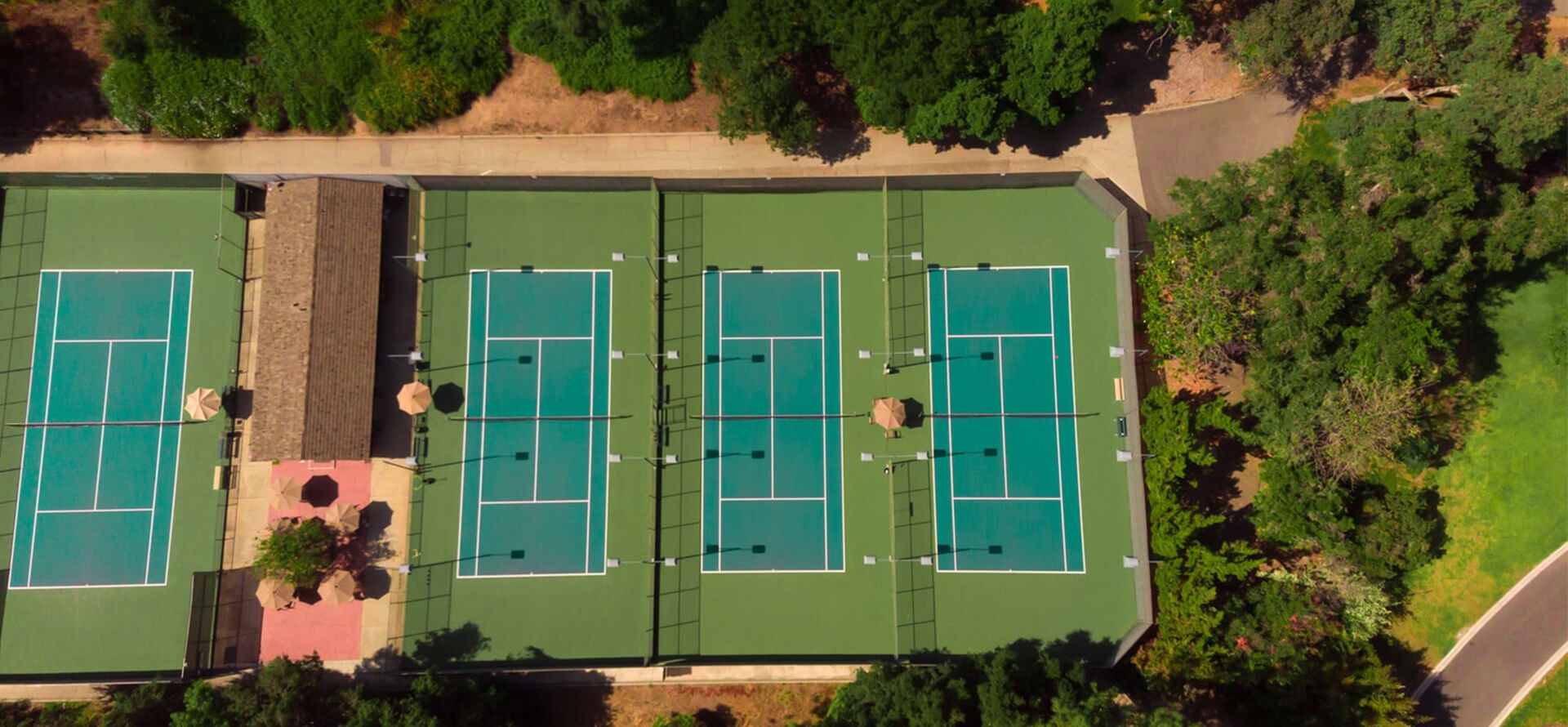

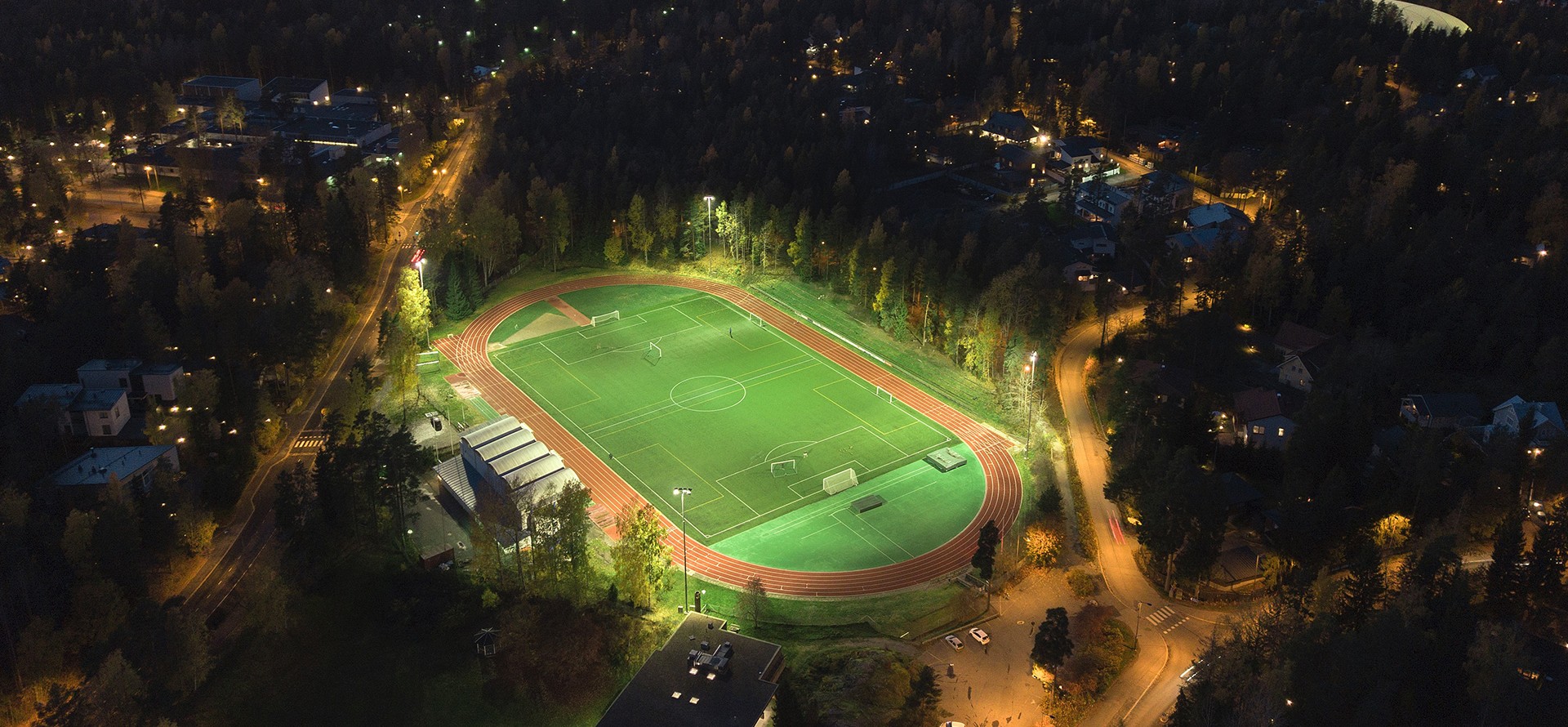

Soccer Fields and Stadiums, Tennis Courts and Basketball Courts, University Sports Grounds and Athletic Facilities, Community Sports Centers and Recreational Areas, Rugby Fields and Cricket Grounds, Track and Field Arenas, Golf Courses, Baseball Diamonds.

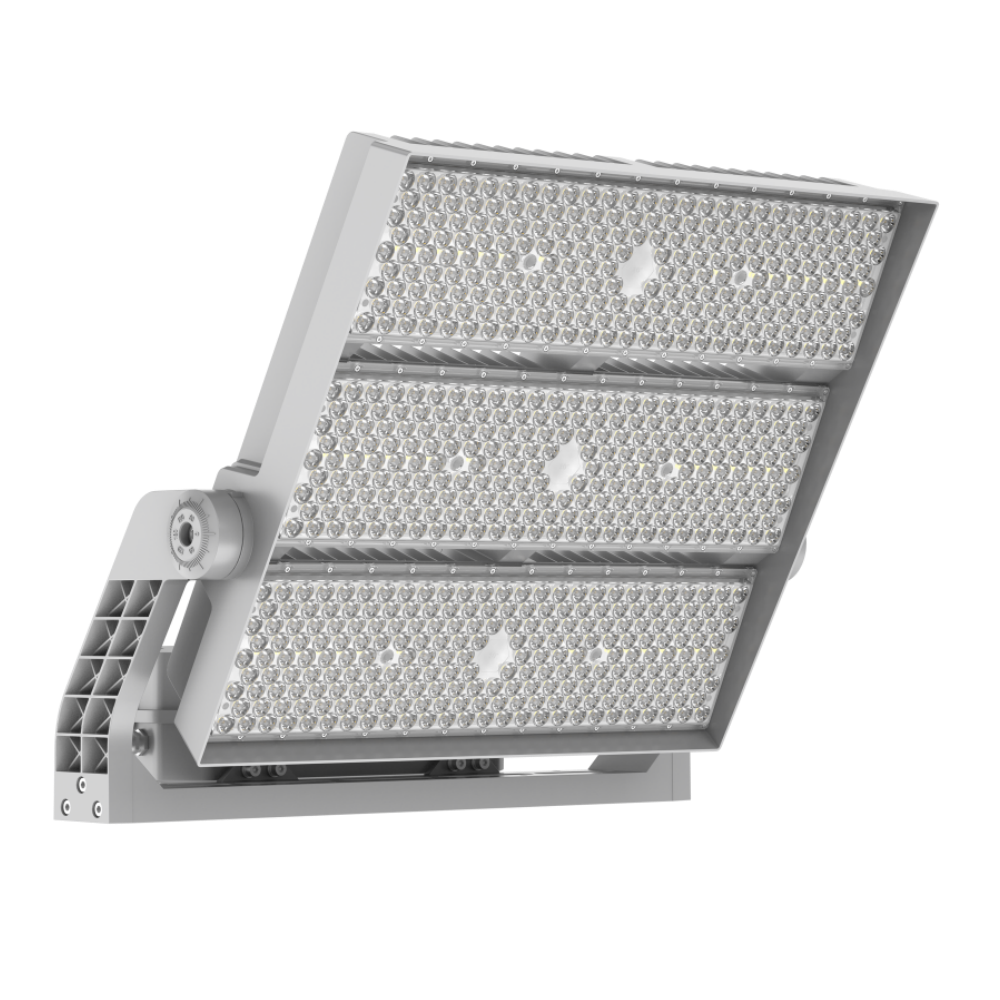

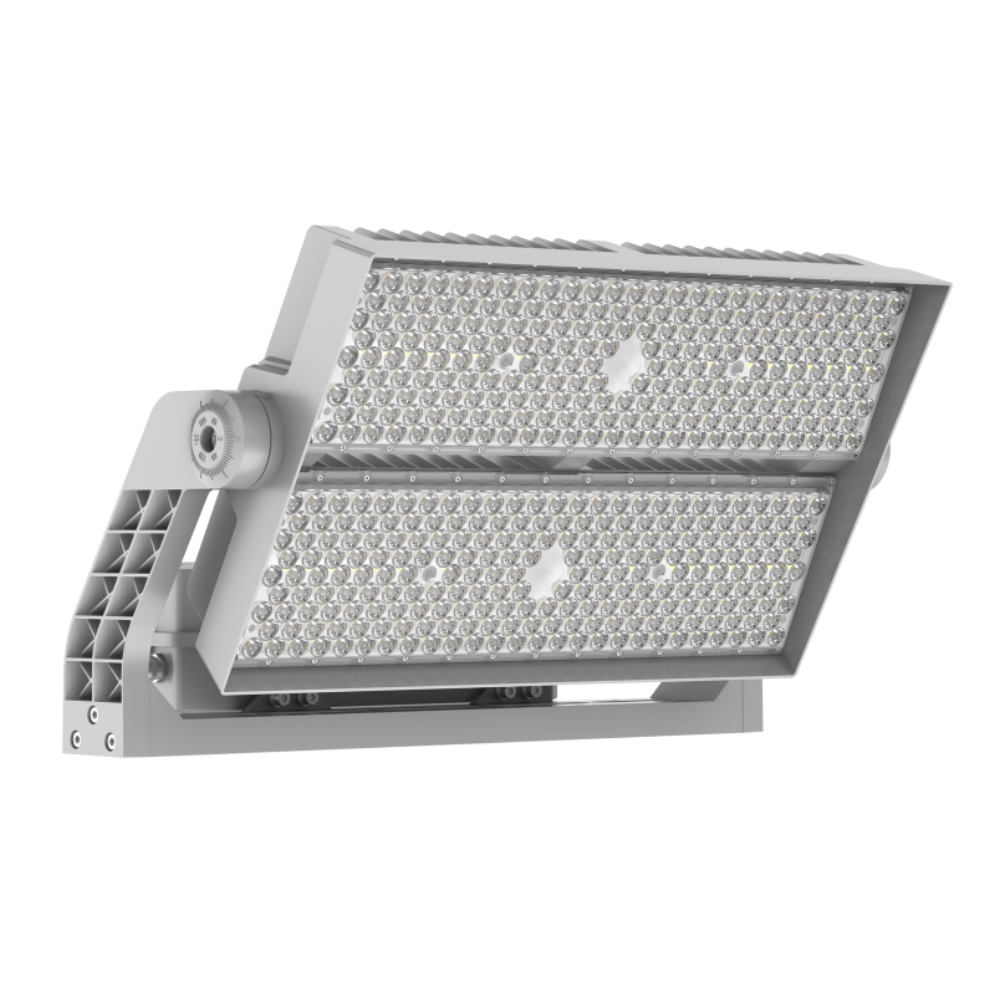

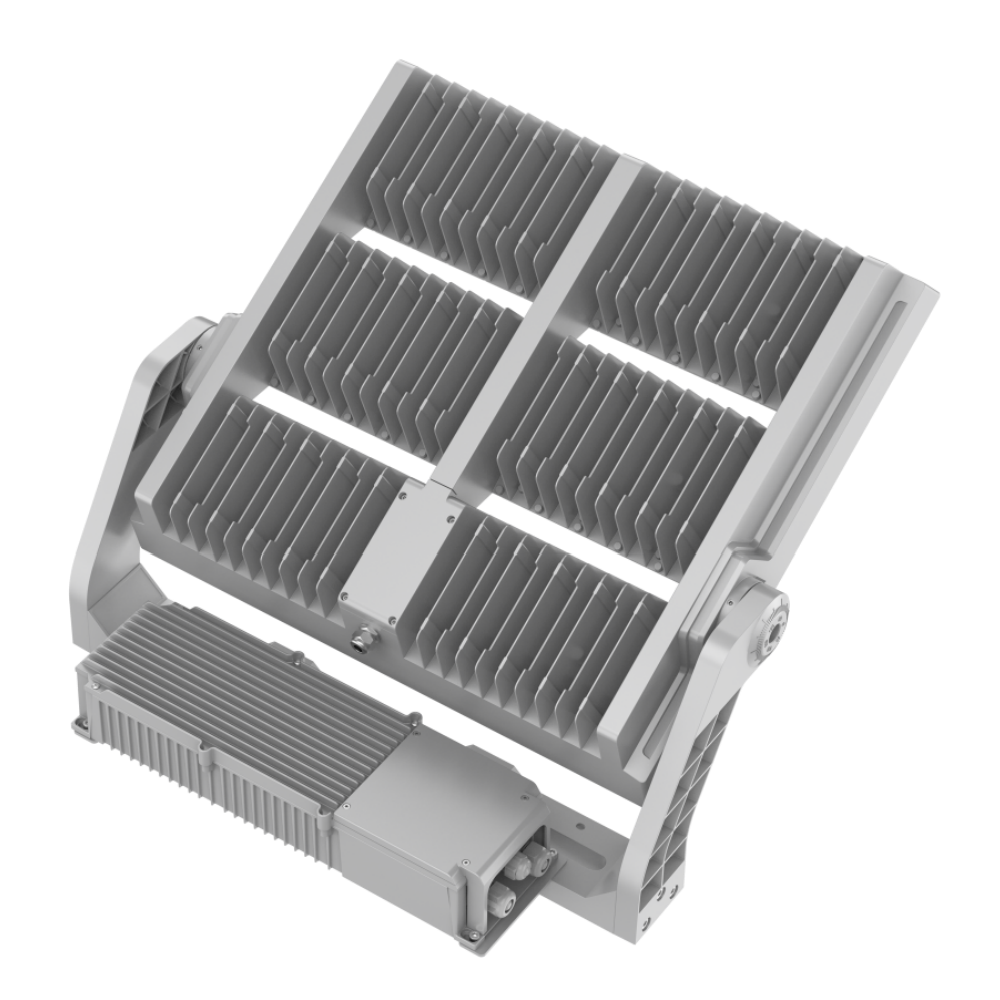

800W–1800W LED Stadium Floodlight.
150 lm/W Standard, 180 lm/W Optional.
Deep Recessed Design - Effectively restrain stray light and spill light.
High Strength Polycarbonate Optic Lens - UV resistance and 94% of light transmittance.
Angle Adjustment - Adopting an automotive brake pad structure, allows infinitely variable angle positioning without fixed steps.

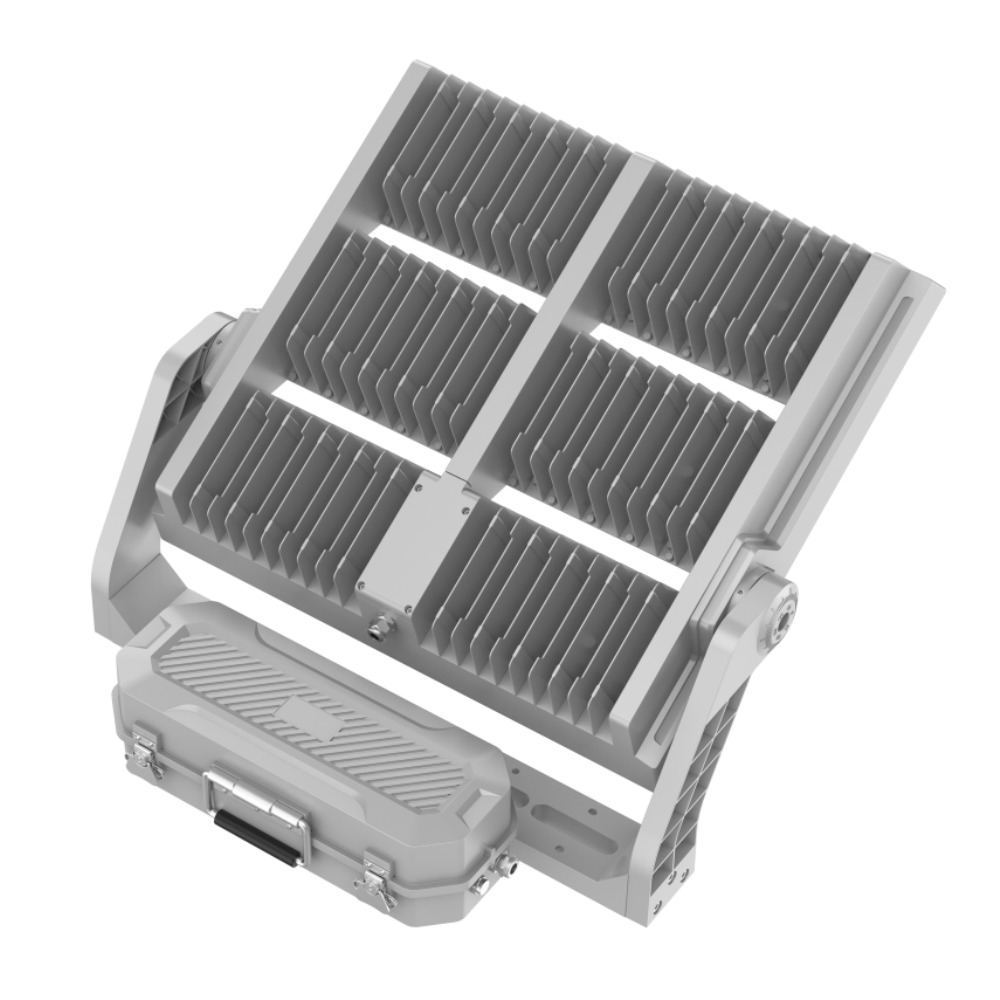

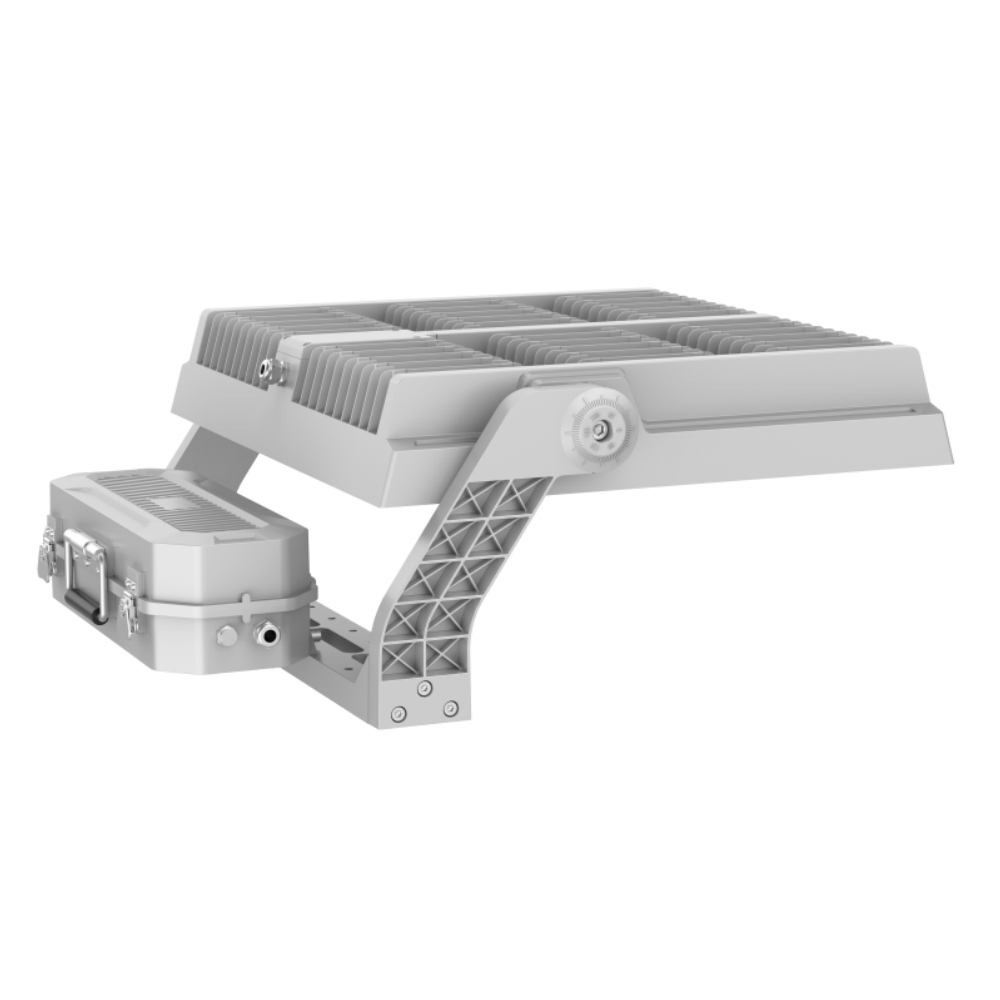

Die-Casting Aluminum U Bracket - Offers an optimal blend of high structural strength,and corrosion resistance.
Working Temperature: -35℃ to +50℃
Storage Temperature: -35℃ to +50℃
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
| Model No. | ISL-SF20-800W | ISL-SF20-1000W | ISL-SF20-1200W | ISL-SF20-1500W | ISL-SF20-1800W |
| Power | 800W | 1000W | 1200W | 1500W | 1800W |
| Dimmension | 719*455*278mm | 719*653*278mm | |||
| Input Voltage | 100-277VAC/ 200-480VAC | ||||
| Light Efficiency (±5%) | 150lm/W (standard), 180lm/W (optional) | ||||
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
| CRI | 80 | ||||
| Beam Angle | 10°/ 15°/ 25°/ 45°/ 60°/ 90°/ ASY60° | ||||
| LED | SMD 5050/ SMD 3737 | ||||
| Driver | Sosen/ Moso | ||||
| SPD | 10KV | ||||
| Housing | Die-casting technology by ADC12 | ||||
| IP Rating | IP66 | ||||
| IK Rating | IK08 | ||||
| Operation Temperature | ﹣35°C- +50°C | ||||
| Lifespan | 50,000H | ||||
| Warranty | 5Years | ||||
