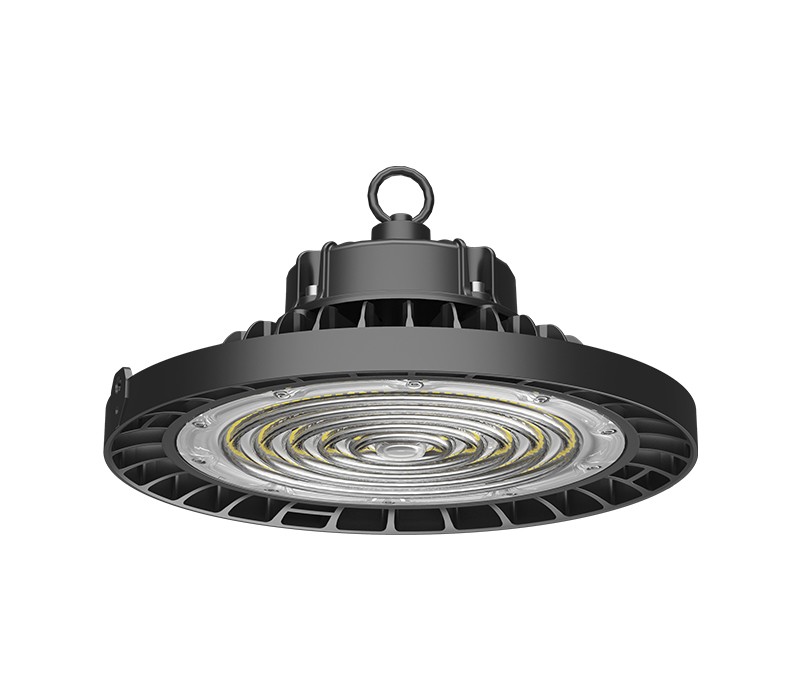

It can be widely used in Workshops, Warehouse, Exhibition halls, Supermarkets, Gyms, Indoor stadiums, Gas stations, Logistics centers, Underground parking lots, etc
High strength PC lens, Achieve IK08, Anti-UV, transmittance >94°
Multiple lighting distribution:60°/90°/110°
Top brand LED chip and driver, ensure the product quality and lifetime.
Die-casting technology by ADC12, Excellent thermal management, reduce the temperature difference and ensure the lumens depreciation
Ingress Protection Rating: IP66
Operation Temperature: -35°~+50°
Working Temperature: -35~+50
Storage Temperature: -35~+50
Working Humidity: 0%~85%
Storage Humidity: 0%~90%
Waring
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-277V 50/60Hz
Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally
| Model No. | ISL-UFO-G100W | ISL-UFO-G150W | ISL-UFO-G200W | ISL-UFO-G240W |
| Rated Power | 100W | 150W | 200W | 240W |
| Input Voltage | AC85~265V / AC100~277V | |||
| LED Chip | OSRAM 2835 | |||
| LED Driver | Sosen/MeanWell | |||
| Material | Alu+lens | |||
| CRI | Ra>70, Ra>80 | |||
| Power Factor | PF>0.95 | |||
| CCT | 2700-6500K | |||
| Light Efficacy | 150lm/W | |||
| IP Rating | IP65 | |||
| IK Rating | IK08 | |||
| Operation Temperature | ﹣35°C- +50°C | |||
| Beam Angle | 60/90/110° | |||
| Warranty | 5years | |||
| Lifespan | 50,000Hrs | |||
| Dimension | 270*149mm | 300*158mm | 330*164mm | 330*164mm |
| Packing | 330*330*160mm | 345*345*170mm | 395*395*180mm | 395*395*180mm |
| Weight | G.W: 2.3KG | G.W: 3.1KG | G.W.: 4.5KG | G.W: 4.5KG |
| Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS | |||
