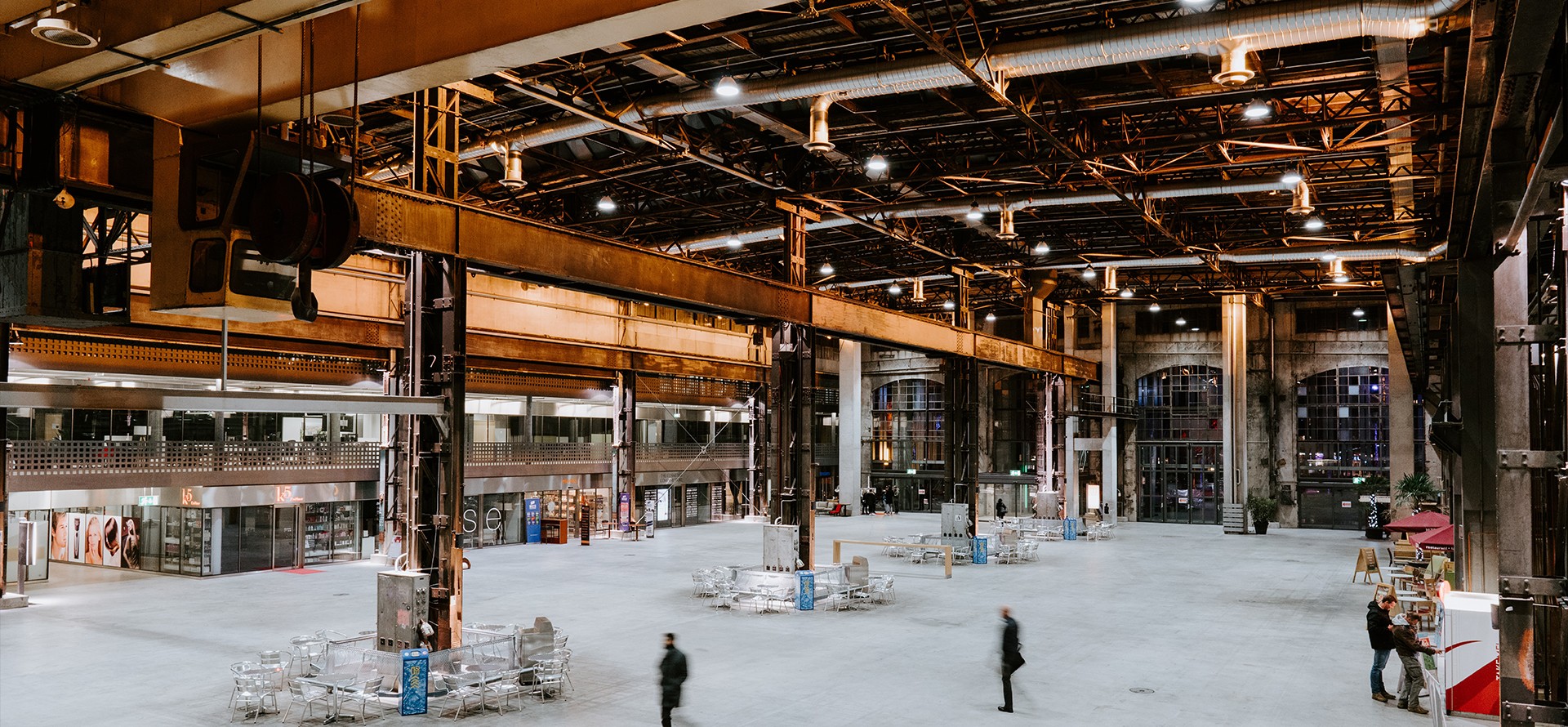

It can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Logistics Center, Gas Station, Indoors Stadium Light, Highway Toll Station, etc.

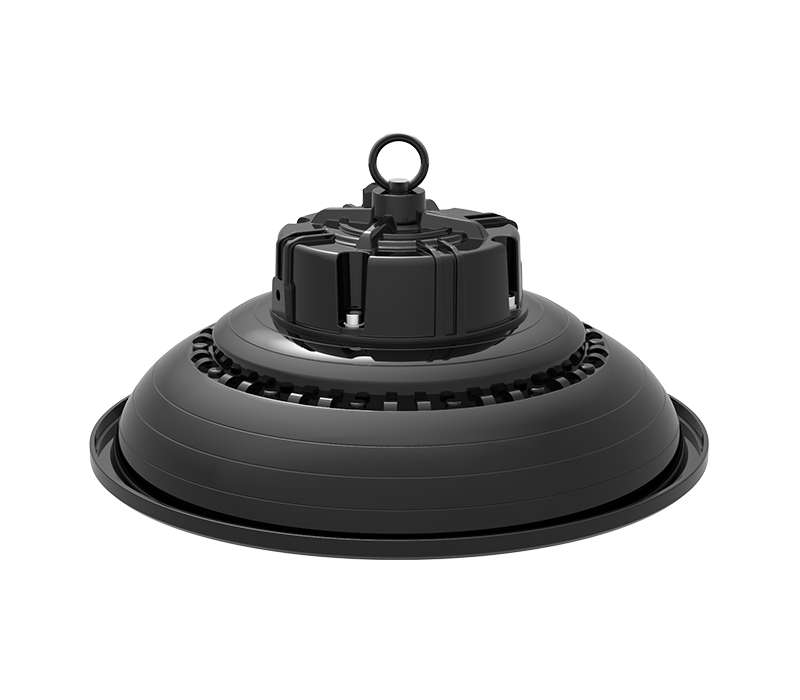

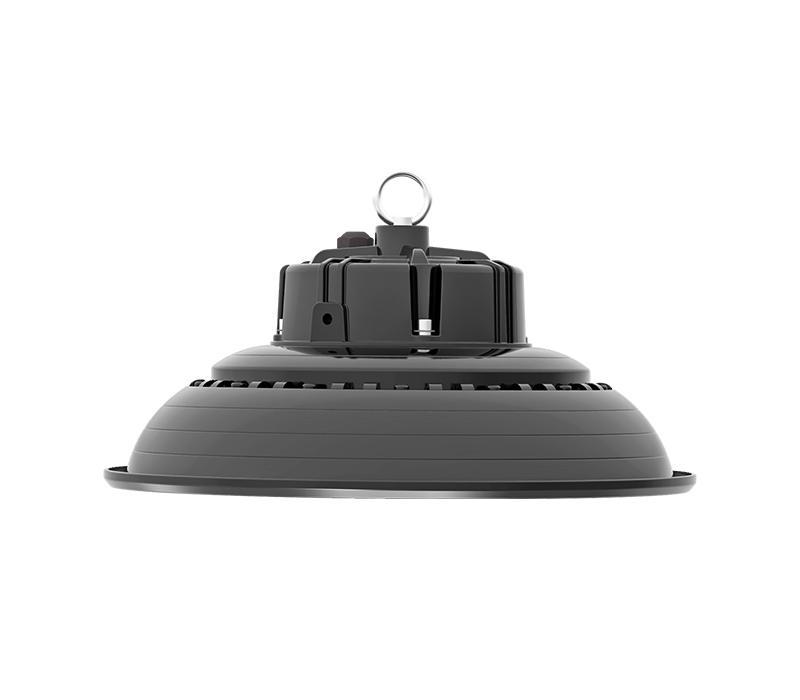

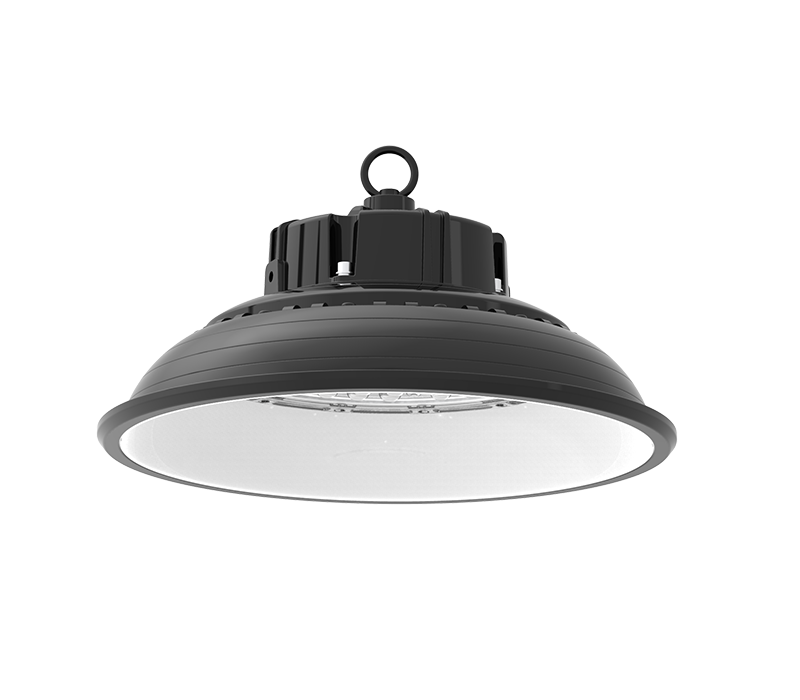

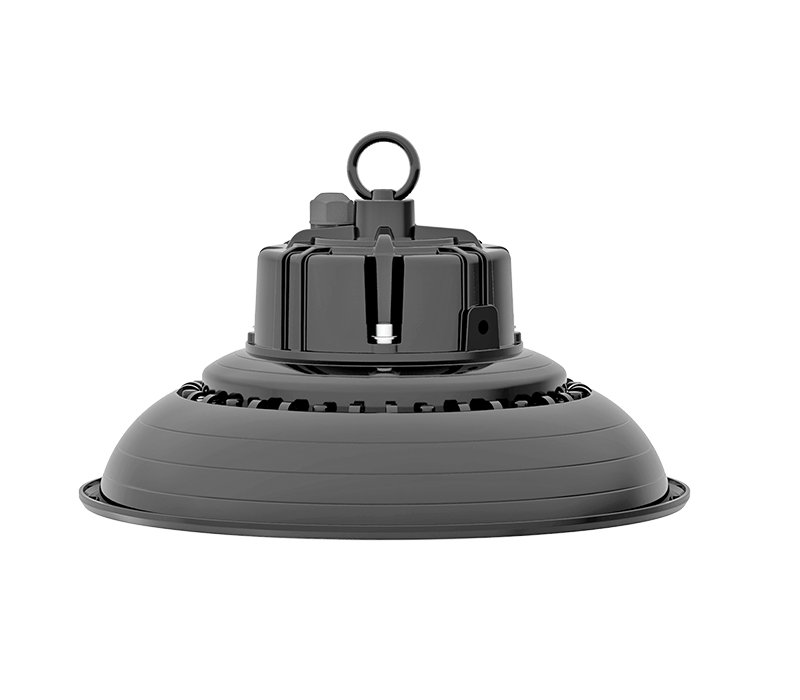

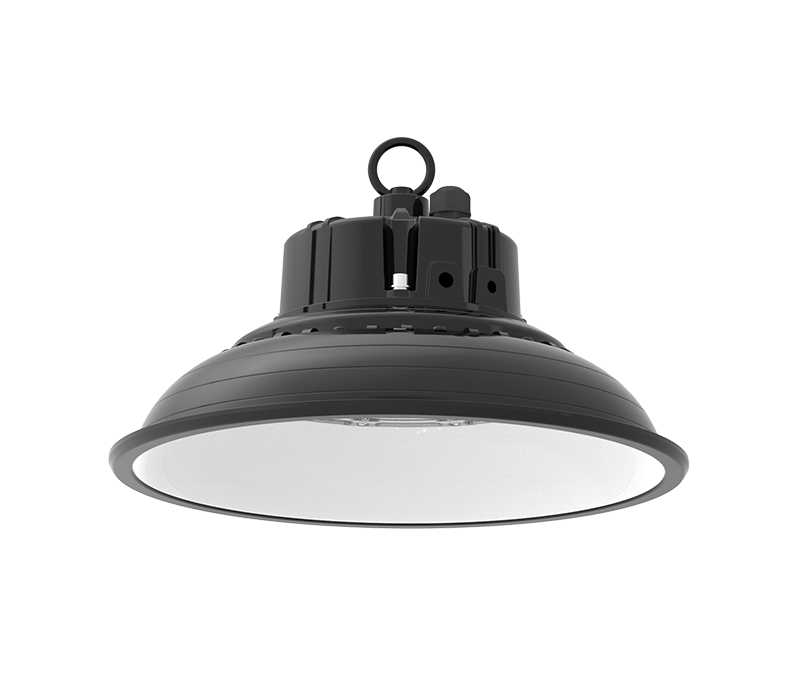

Unique elegant design in appearance, perfectly to replace MH&HPS High Bay

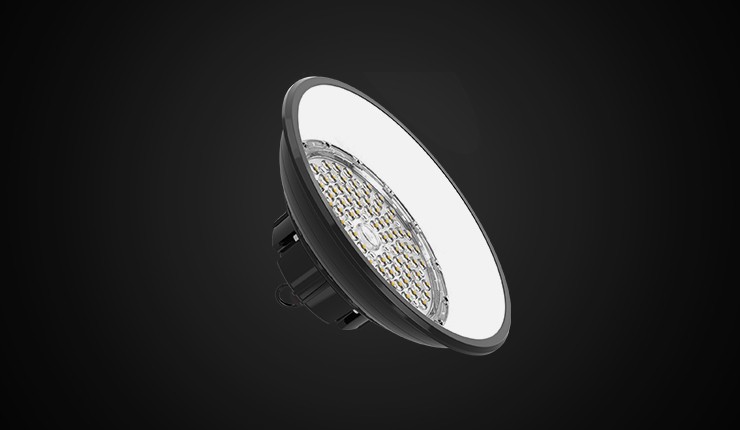

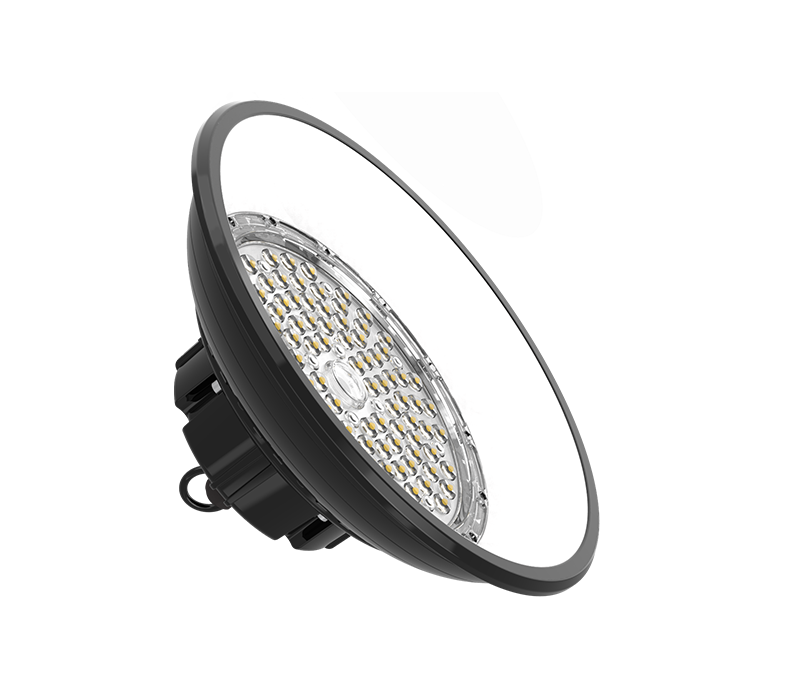

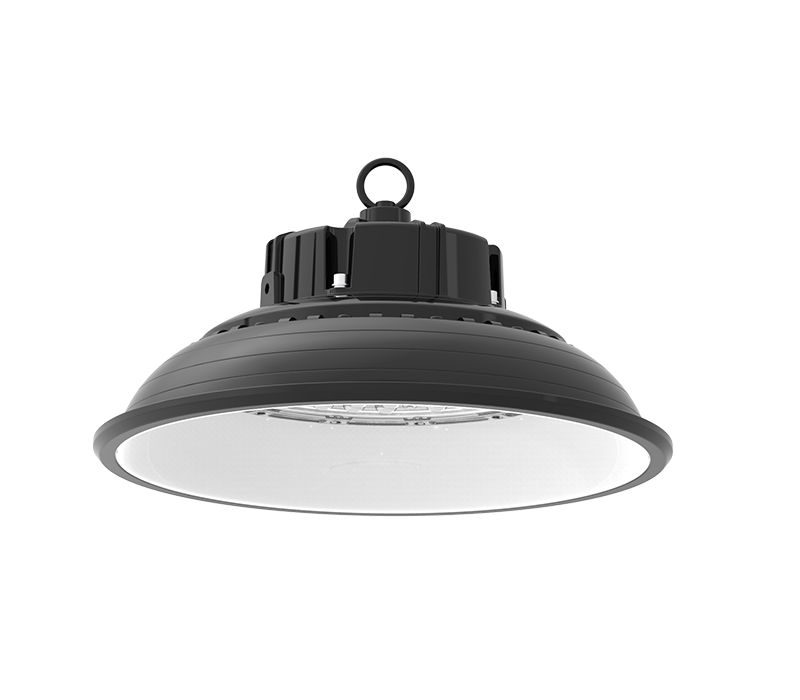

Integrated AL reflector and optical design, achieves low glare, ideally for supermarket, shopping mall and other commercial applications
Integrated AL reflector saves additional cost and time for projects need reflectors, such as labor cost, installation time.

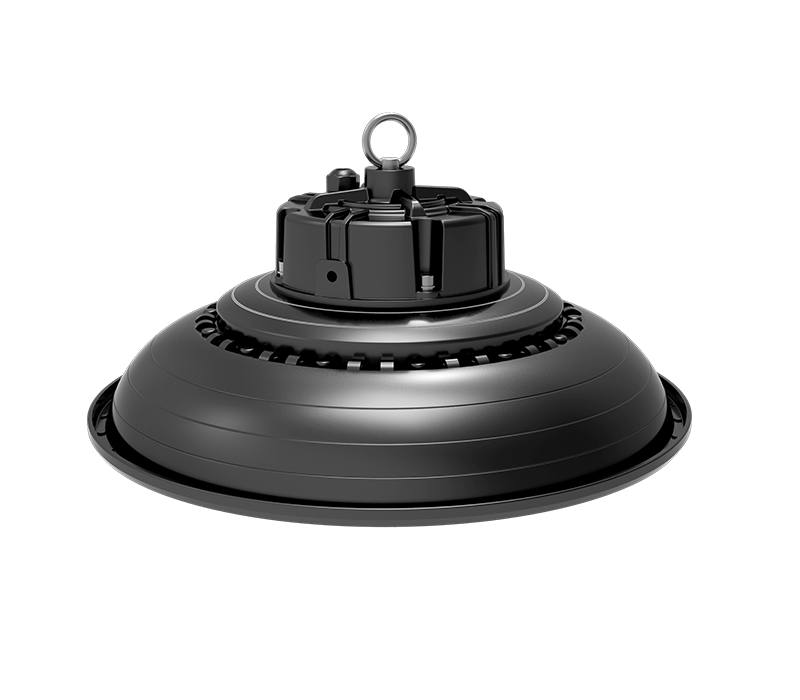

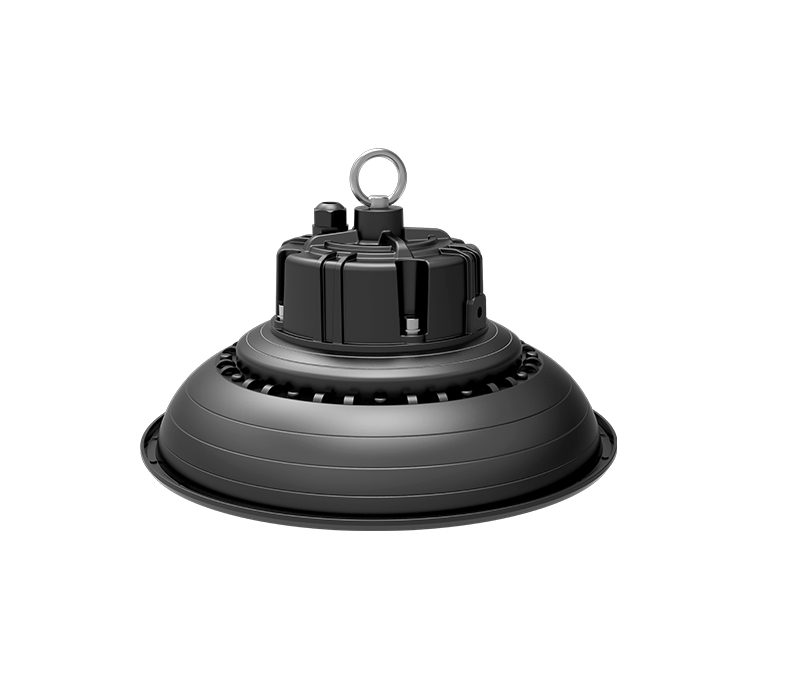

Incorporates rotating carving technology into the heat sink, 1070AL with 99% purity, thermal conductivity 236W/(m*k)@25℃, ensures excellent thermal management
Cavity structure, removes heat from inside of the heat sink.

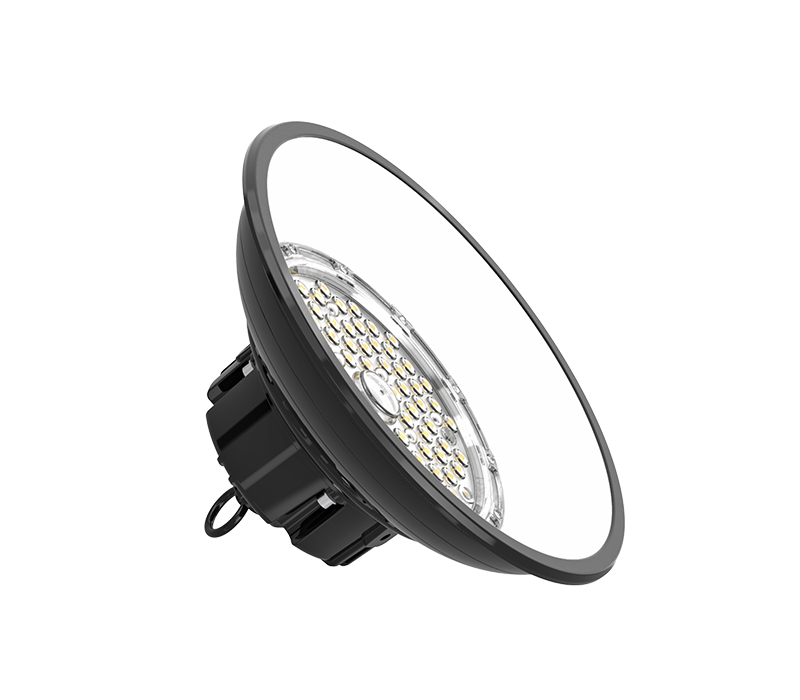

Top brand LED chips and drivers, ensures high luminous efficacy & longevity
Optical lighting distributions: 60°, 90°,110°
High luminous efficacy: 150lm/W, 170lm/W
Ingress protection & impact protection rating: IP65 & IK08
1. Please use the product in accordance to this instruction
2. Please do not replace components or modify lamps without authorization
1. For your safety, please cut off the supply before install the product
2. For the well function, please choose the voltage within the range specified on the product.
3. To avoid damage to the eyes, do not stare at a LED Light source long time.
4. Please follow the correct installation steps to install this product, for your safety, please cut off the electricity before installation.
|Input Voltage||AC85~265V / AC100~277V|
|LED Chip||OSRAM 2835/5050|
|Light Efficacy||150lm/W up to 170lm/W|
|Operation Temperature||﹣25°C- +50°C|
|Weight||G.W: 2KG||G.W: 2.2KG||G.W: 3.5KG||G.W: 3.7KG|
|Certificate||CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS|
